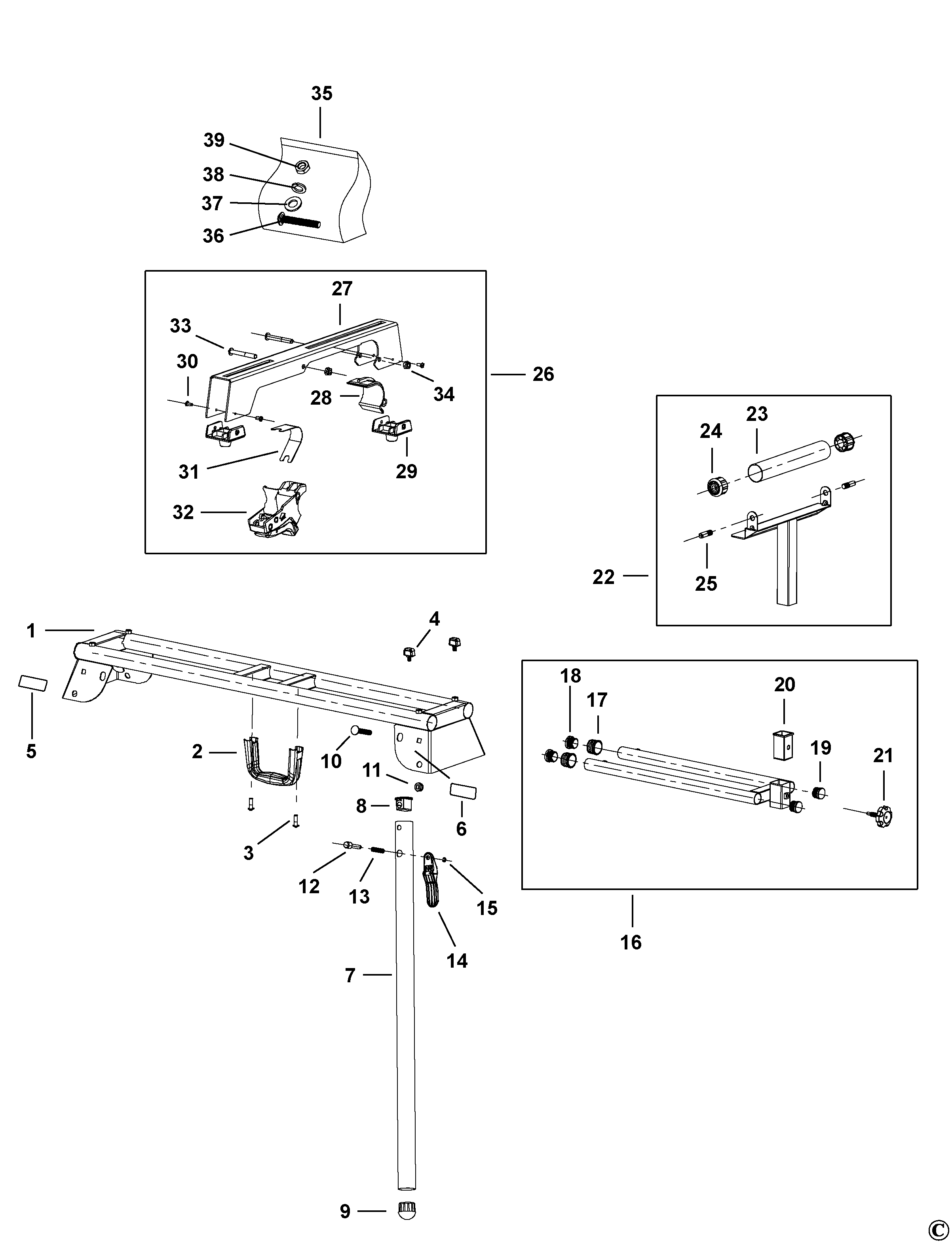

FME790 LEG STAND Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004704-50 | 1 | TABLE | XJ |  |
||
| 2 | 1004704-68 | 1 | HANDLE | XJ | |
||
| 3 | 1004704-67 | 2 | SCREW | XJ | |
||
| 4 | 1004704-82 | 4 | LOCK KNOB | XJ | |
||
| 7 | 1004704-65 | 4 | LEG | XJ | |
||
| 8 | 1004704-60 | 4 | CAP | XJ | |
||
| 9 | 1004704-66 | 4 | FOOT | XJ | |
||
| 10 | 1004704-88 | 4 | SCREW | XJ | |
||
| 11 | 1004704-89 | 4 | NUT | XJ | |
||
| 12 | 1004704-61 | 4 | LOCK PIN | XJ | |
||
| 13 | 1004704-62 | 4 | SPRING | XJ | |
||
| 14 | 1004704-63 | 4 | LEVER LOCK | XJ | |
||
| 15 | 1004704-64 | 4 | CIRCLIP | XJ | |
||
| 17 | 1004704-55 | 4 | CAP | XJ | |
||
| 18 | 1004704-58 | 4 | CAP | XJ | |
||
| 19 | 1004704-59 | 4 | CAP | XJ | |
||
| 21 | 1004704-83 | 2 | LOCK KNOB | XJ | |
||
| 22 | 1004704-51 | 2 | ROLLER SA | XJ | |
||
| 23 | 1004704-54 | 2 | ROLLER | XJ | |
||
| 24 | 1004704-57 | 4 | CAP | XJ | |
||
| 25 | 1004704-56 | 4 | BOLT | XJ | |
||
| 26 | 1004704-53 | 2 | BRACKET SA | XJ | |
||
| 27 | 1004704-74 | 2 | MOUNTING BRACKET | XJ |  |
||
| 27 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 28 | 1004704-77 | 2 | CLIP | XJ | |
||
| 29 | 1004704-75 | 4 | FOOT | XJ | |
||
| 30 | 1004704-76 | 8 | SCREW | XJ | |
||
| 31 | 1004704-78 | 2 | SPRING COMPRESSION | XJ | |
||
| 32 | 1004704-81 | 2 | LEVER RELEASE | XJ | |
||
| 33 | 1004704-79 | 4 | BOLT | XJ | |
||
| 34 | 1004704-80 | 4 | NUT | XJ | |
||
| 35 | 1004704-73 | 4 | PACK | XJ | |
||
| 36 | 1004704-69 | 4 | BOLT | XJ | |
||
| 37 | 1004704-70 | 4 | WASHER | XJ | |
||
| 38 | 1004704-71 | 4 | WASHER SPRING | XJ | |
||
| 39 | 1004704-72 | 4 | NUT | XJ | |
