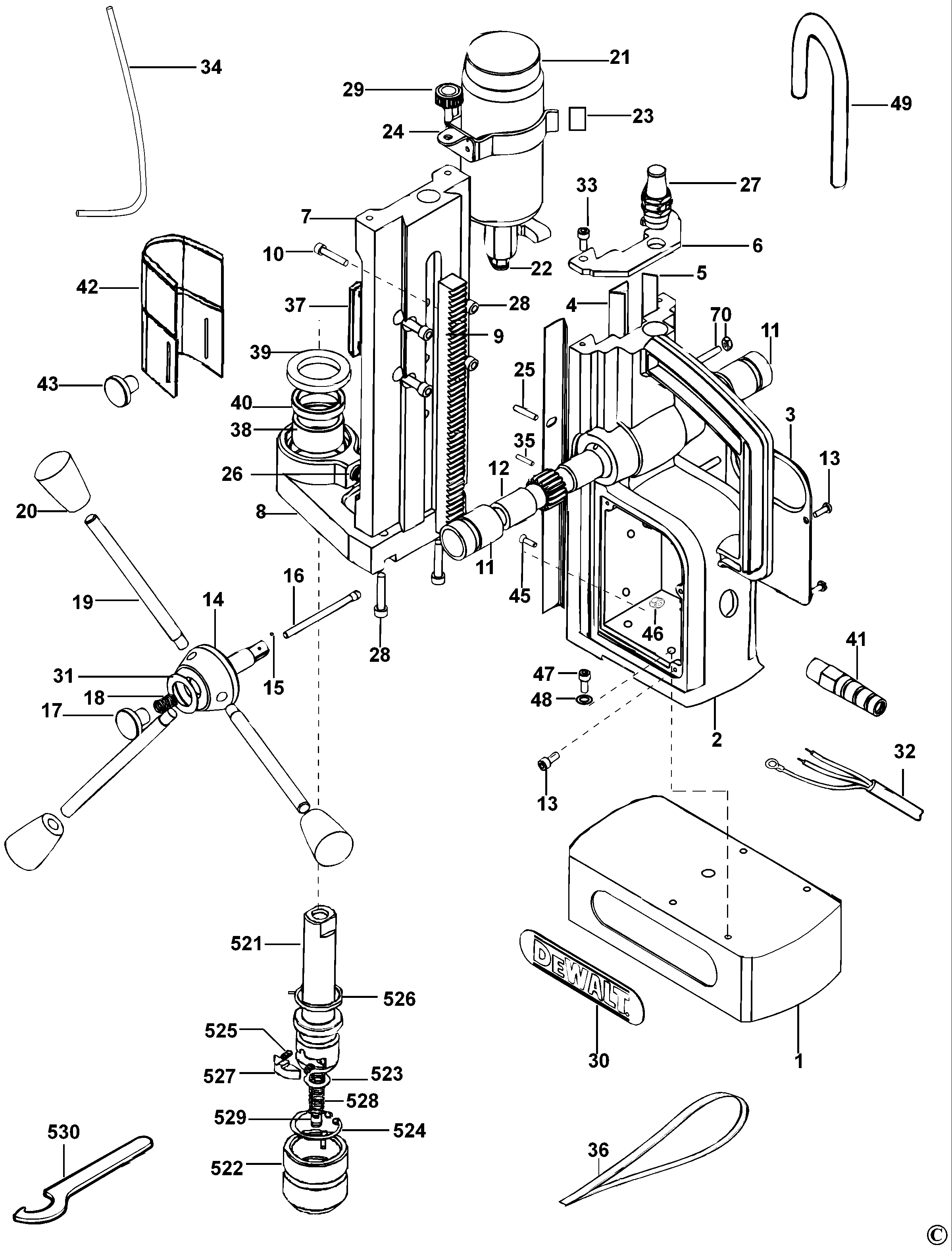

D21620K MAG DRILL STAND Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 596930-00 | 1 | ELECTRO MAGNET | GB |  |
||
| 2 | 596931-00 | 1 | HOUSING | GB | |
||
| 3 | 596933-00 | 1 | COVERPLATE | GB | |
||
| 4 | 596935-00 | 2 | GUIDE | GB | |
||
| 5 | 596936-00 | 1 | GLIDE STRIP | GB | |
||
| 6 | 596937-00 | 1 | PLATE | GB | |
||
| 7 | 596938-00 | 1 | SLIDER | GB | |
||
| 8 | 596939-00 | 1 | SUPPORT BRACKET | GB | |
||
| 9 | 596940-00 | 1 | RACK | GB | |
||
| 10 | 596941-00 | 2 | SCREW | M6X16 | GB | |
|
| 11 | 596942-00 | 2 | BUSH | GB | |
||
| 12 | 596943-00 | 1 | PINION | GB | |
||
| 13 | 596944-00 | 8 | SCREW | M4X12 | GB | |
|
| 14 | 596945-00 | 1 | BOSS | GB | |
||
| 15 | 596946-00 | 1 | BALLCATCH | GB | |
||
| 16 | 596947-00 | 1 | PUSHROD | GB | |
||
| 17 | 596948-00 | 1 | LOCKING KNOB | GB | |
||
| 18 | 596949-00 | 1 | SPRING COMPRESSION | GB | |
||
| 19 | 596950-00 | 3 | HANDLE | GB | |
||
| 20 | 596951-00 | 3 | END CAP | GB | |
||
| 21 | 596952-00 | 1 | TANK | GB | |
||
| 22 | 596953-00 | 1 | INSERT | GB | |
||
| 23 | 1004016-00 | 1 | BRACKET SA | GB | |
||
| 24 | 1004016-00 | 1 | BRACKET SA | GB | |
||
| 25 | 596956-00 | 7 | GRUB SCREW | GB | |
||
| 26 | 596957-00 | 1 | INSERT | GB | |
||
| 27 | 596958-00 | 1 | GLAND | GB | |
||
| 28 | 596959-00 | 6 | SCREW | M6 x 35 | GB | |
|
| 29 | 596960-00 | 1 | THUMBSCREW | GB | |
||
| 30 | 596961-00 | 2 | BRAND LABEL | GB | |
||
| 31 | 596962-00 | 1 | LABEL | GB | |
||
| 32 | 596964-00 | 1 | CABLE & PLUG | GB | |
||
| 33 | 596966-00 | 2 | SCREW | GB | |
||
| 34 | 596967-00 | 1 | PIPE | GB | |
||
| 35 | 596968-00 | 2 | SPIROL PIN | GB | |
||
| 36 | 597020-00 | 1 | STRAP | GB | |
||
| 37 | 596971-00 | 1 | SHIM | GB | |
||
| 38 | 596972-00 | 1 | BEARING BUSH | GB | |
||
| 39 | 596973-00 | 1 | SEAL | GB | |
||
| 40 | 596974-00 | 1 | SEAL | GB | |
||
| 41 | 596975-00 | 1 | GLAND | GB | |
||
| 42 | 596976-00 | 1 | GUARD | GB | |
||
| 43 | 596977-00 | 3 | THUMBSCREW | GB | |
||
| 45 | 597006-00 | 2 | SCREW | M3x10 | GB | |
|
| 46 | 597007-00 | 2 | NUT | M3 | GB | |
|
| 47 | 597008-00 | 4 | SCREW | M6x25 | GB | |
|
| 48 | 597009-00 | 4 | WASHER SPRING | M6 | GB | |
|
| 49 | 596934-00 | 1 | SLEEVE | GB | |
||
| 50 | 596987-00 | 1 | SUPPORT PLATE | GB | |
||
| 51 | 596988-01 | 1 | PCB SA | 230v | GB | |
|
| 52 | 596990-00 | 3 | HEATSINK | GB | |
||
| 53 | 596991-00 | 3 | SCREW | M3X6 CSK | GB | |
|
| 54 | 596992-00 | 3 | BUSH | GB | |
||
| 55 | 596993-00 | 3 | WASHER | GB | |
||
| 56 | 596994-00 | 3 | NUT | M3 | GB | |
|
| 57 | 596995-00 | 3 | SUPPORT | GB | |
||
| 58 | 596996-00 | 3 | NUT M4 | GB | |
||
| 59 | 596997-00 | 3 | SCREW | M4X6 | GB | |
|
| 60 | 596998-00 | 1 | SWITCH | GB | |
||
| 61 | 596999-00 | 1 | SWITCH | GB | |
||
| 62 | 597000-00 | 3 | GROMMET | GB | |
||
| 63 | 597001-00 | 1 | NEON SA | GB | |
||
| 65 | 597003-00 | 1 | SUPPRESSOR | GB | |
||
| 66 | 597004-00 | 1 | SWITCH | GB | |
||
| 67 | 597005-00 | 1 | COVERPLATE | GB | |
||
| 70 | 1002874-00 | 1 | KIT | GB | |
||
| 101 | 596818-00 | 1 | BRUSH COVER | GB | |
||
| 102 | 596819-00 | 4 | SCREW | GB | |
||
| 103 | 596821-00 | 1 | ARMATURE 230V | GB | |
||
| 104 | 596822-00 | 2 | BEARING | GB | |
||
| 105 | 596823-00 | 1 | CLIP | GB | |
||
| 106 | 596824-00 | 2 | BRUSH HOLDER | GB | |
||
| 107 | 596825-00 | 1 | BRUSH PAIR | GB | |
||
| 108 | 596826-00 | 4 | WASHER | GB | |
||
| 109 | 596827-00 | 4 | SCREW | GB | |
||
| 110 | 596828-00 | 2 | CONTACT PLATE | GB | |
||
| 111 | 596829-00 | 1 | CIRCLIP | GB | |
||
| 112 | 596830-00 | 1 | O RING | GB | |
||
| 113 | 596831-00 | 4 | SCREW | GB | |
||
| 114 | 596832-00 | 1 | BEARING | GB | |
||
| 115 | 596833-00 | 1 | GEARCASE COVER | GB | |
||
| 116 | 596834-00 | 1 | GEARCASE | GB | |
||
| 117 | 596835-00 | 1 | GEAR | GB | |
||
| 118 | 596836-00 | 1 | INTERSHAFT | GB | |
||
| 119 | 596837-00 | 1 | CHANGE LEVER SA | GB | |
||
| 120 | 596838-00 | 1 | LEVER | GB | |
||
| 121 | 596839-00 | 1 | PIN | GB | |
||
| 122 | 596840-00 | 2 | BEARING | GB | |
||
| 123 | 596841-00 | 1 | SPINDLE | GB | |
||
| 124 | 596842-00 | 1 | KEY | GB | |
||
| 125 | 596843-00 | 1 | PROTECTOR | GB | |
||
| 126 | 596844-00 | 1 | CABLE | GB | |
||
| 128 | 596845-00 | 1 | GASKET | GB | |
||
| 129 | 596846-00 | 1 | COVERPLATE | GB | |
||
| 132 | 596847-00 | 1 | GEAR | GB | |
||
| 134 | 596848-00 | 1 | SHIM | GB | |
||
| 135 | 596849-00 | 1 | CIRCLIP | GB | |
||
| 136 | 596850-00 | 1 | SHAFT | GB | |
||
| 138 | 596851-00 | 1 | GEAR SA | GB | |
||
| 139 | 596852-00 | 1 | KEY | GB | |
||
| 140 | 596853-00 | 3 | BEARING,NEEDLE | GB | |
||
| 142 | 596854-00 | 1 | BAFFLE FAN | GB | |
||
| 143 | 596855-00 | 2 | SCREW | GB | |
||
| 144 | 596857-00 | 1 | FIELD 230V | GB | |
||
| 145 | 596858-00 | 1 | HOUSING MOTOR | GB | |
||
| 146 | 596859-00 | 1 | SUPPRESSOR | GB | |
||
| 147 | 596860-00 | 1 | SLEEVE | GB | |
||
| 521 | 596978-00 | 1 | ARBOR SA | GB | |
||
| 522 | 596979-00 | 1 | COLLAR | GB | |
||
| 523 | 596980-00 | 1 | O RING | 20x4 | GB | |
|
| 524 | 596981-00 | 1 | CIRCLIP | GB | |
||
| 525 | 596982-00 | 2 | SPRING | GB | |
||
| 526 | 596983-00 | 1 | SPRING COMPRESSION | GB | |
||
| 527 | 596984-00 | 1 | LOCKING DEVICE | GB | |
||
| 528 | 596985-00 | 1 | SPRING COMPRESSION | GB | |
||
| 529 | 596986-00 | 1 | PLUG | GB | |
||
| 530 | 1004117-00 | 1 | SPANNER SPECIAL | GB | |
||
| 800 | 870889-02 | 1 | GREASE | GB |  |
