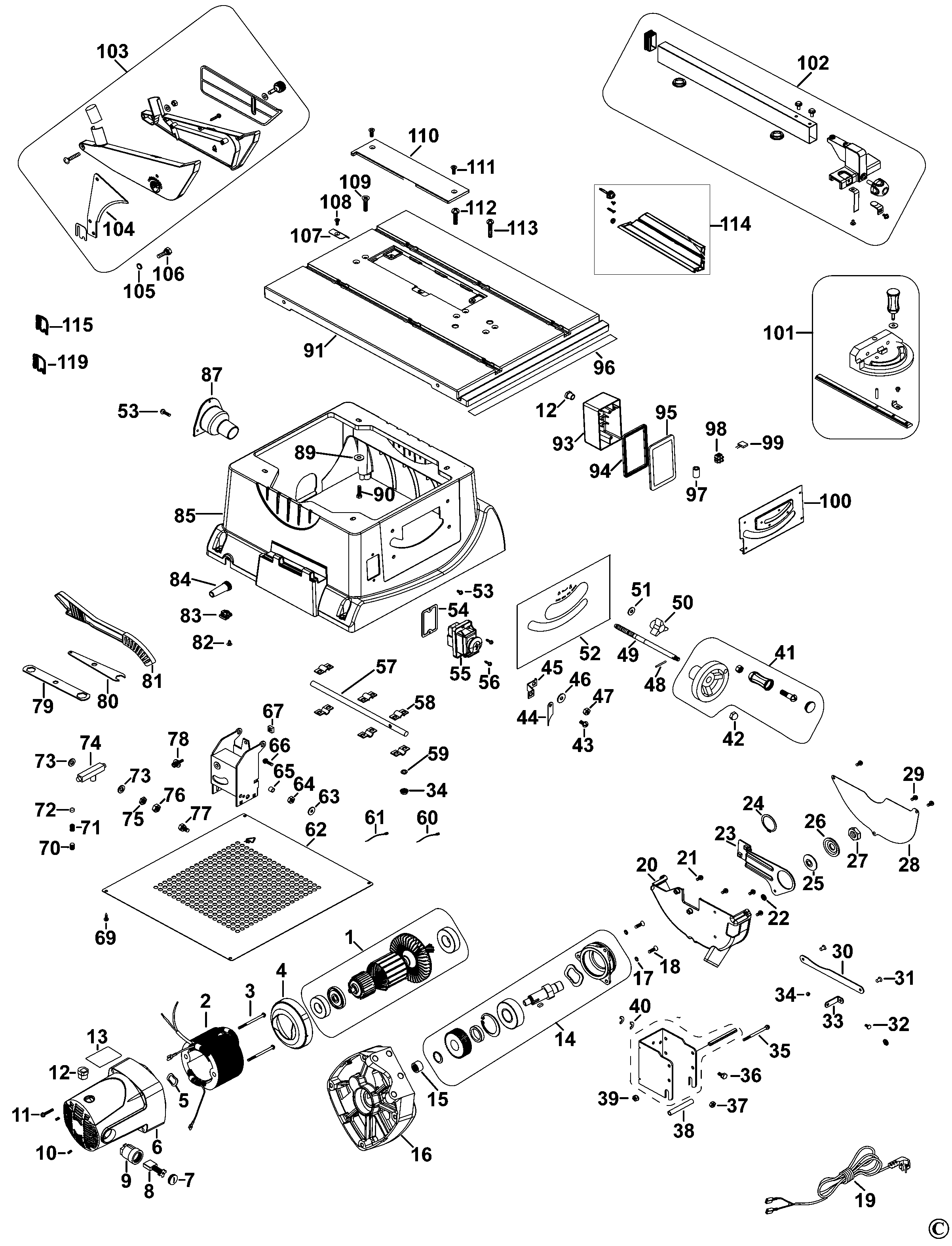

BT2504AE TABLE SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 3 | 1004689-47 | 2 | LOCK SCREW | XJ | |||
| 4 | 1004689-49 | 1 | BAFFLE | XJ | |||
| 5 | 1004689-48 | 1 | WASHER BOW | XJ | |||
| 6 | 1004689-51 | 1 | HOUSING MOTOR | XJ | |||
| 7 | 1004689-46 | 2 | BRUSH COVER | XJ | |||
| 8 | 1004689-45 | 2 | BRUSH | XJ | |||
| 9 | 1004689-44 | 2 | BRUSH HOLDER SA | XJ | |||
| 10 | 1004689-41 | 2 | SCREW | XJ | |||
| 11 | 1004689-50 | 2 | LOCKING SCREW | XJ | |||
| 12 | 1004689-43 | 3 | CORD PROTECTOR | XJ | |||
| 14 | 1004689-54 | 1 | SPINDLE SA | XJ | |||
| 15 | 1004689-39 | 1 | BEARING | XJ | |||
| 16 | 1004689-55 | 1 | CASTING | XJ | |||
| 17 | 1004689-40 | 3 | WASHER | XJ | |||
| 18 | 1004689-42 | 3 | SCREW | XJ | |||
| 20 | 1004690-55 | 1 | DUST COLLECTOR | XJ | |||
| 21 | 1004690-24 | 4 | SCREW | XJ | |||
| 22 | 1004690-10 | 2 | LOCKING RING | XJ | |||
| 23 | 1004690-52 | 1 | BRACKET | XJ | |||
| 24 | 1004690-50 | 1 | RETAINER | XJ | |||
| 25 | 1004690-60 | 1 | INNER FLANGE | XJ | |||
| 26 | 1004690-44 | 1 | OUTER FLANGE | XJ | |||
| 27 | 1004690-00 | 1 | NUT | XJ | |||
| 28 | 1004690-47 | 1 | COVER | XJ | |||
| 29 | 1004690-23 | 3 | SCREW | XJ | |||
| 30 | 1004690-53 | 1 | LEVER | XJ | |||
| 31 | 1004690-29 | 2 | RIVET | XJ | |||
| 32 | 1004690-26 | 1 | BOLT | XJ | |||
| 33 | 1004690-67 | 1 | BRACKET | XJ | |||
| 34 | 1004690-36 | 7 | LOCK NUT | XJ | |||
| 35 | 1004690-28 | 1 | BOLT | XJ | |||
| 36 | 1004690-14 | 4 | LOCKING SCREW | XJ | |||
| 37 | 1004690-30 | 1 | NUT | XJ | |||
| 38 | 1004689-94 | 1 | SPACER | XJ | |||
| 39 | 1004690-37 | 1 | LOCK NUT | XJ | |||
| 40 | 1004690-02 | 2 | WASHER | XJ | |||
| 41 | 1004690-81 | 1 | WHEEL SA | XJ | |||
| 42 | 1004690-35 | 1 | NUT | XJ | |||
| 43 | 1004690-25 | 1 | SCREW | XJ | |||
| 44 | 1004690-46 | 1 | POINTER | XJ | |||
| 45 | 1004689-92 | 1 | BRACKET | XJ | |||
| 46 | 1004690-01 | 1 | WASHER | XJ | |||
| 47 | 1004690-34 | 1 | NUT | XJ | |||
| 48 | 1004690-09 | 1 | ROLL PIN | XJ | |||
| 49 | 1004689-89 | 1 | BOLT | XJ | |||
| 50 | 1004690-76 | 1 | KNOB | XJ | |||
| 51 | 1004690-05 | 1 | WASHER | XJ | |||
| 52 | 1004690-83 | 1 | LABEL | XJ | |||
| 53 | 1004690-19 | 7 | SCREW | XJ | |||
| 54 | 1004689-85 | 1 | GASKET | XJ | |||
| 55 | 1004690-82 | 1 | SWITCH SA | XJ | |||
| 56 | 1004690-22 | 2 | SCREW | XJ | |||
| 57 | 1004690-45 | 1 | ROD | XJ | |||
| 58 | 1004689-96 | 6 | STRAP | XJ | |||
| 59 | 1004690-08 | 6 | WASHER SPRING | XJ | |||
| 60 | 1004690-49 | 1 | LEAD SA | XJ | |||
| 61 | 1004690-48 | 1 | LEAD SA | XJ | |||
| 62 | 1004690-58 | 1 | PLATE | XJ | |||
| 63 | 1004690-04 | 2 | WASHER | XJ | |||
| 64 | 1004690-31 | 1 | NUT | XJ | |||
| 65 | 1004689-98 | 1 | SPACER | XJ | |||
| 66 | 1004690-27 | 1 | BOLT | XJ | |||
| 67 | 1004689-95 | 1 | NUT | XJ | |||
| 69 | 1004690-70 | 4 | SCREW | XJ | |||
| 70 | 1004690-12 | 1 | SCREW | XJ | |||
| 71 | 1004689-91 | 1 | SPRING | XJ | |||
| 72 | 1004689-90 | 1 | SADDLE | XJ | |||
| 73 | 1004690-06 | 2 | WASHER | XJ | |||
| 74 | 1004689-97 | 1 | BRACKET | XJ | |||
| 75 | 1004690-33 | 1 | NUT | XJ | |||
| 76 | 1004690-32 | 1 | NUT | XJ | |||
| 77 | 1004690-15 | 1 | LOCKING SCREW | XJ | |||
| 78 | 1004690-17 | 1 | SCREW | XJ | |||
| 79 | 1004689-87 | 1 | SPANNER | XJ | |||
| 80 | 1004689-93 | 1 | SPANNER | XJ | |||
| 81 | 1004690-75 | 1 | PUSH BLOCK | XJ | |||
| 82 | 1004690-21 | 2 | SCREW | XJ | |||
| 83 | 1004689-86 | 1 | CORD CLAMP | XJ | |||
| 84 | 1004690-38 | 1 | CORD PROTECTOR | XJ | |||
| 85 | 1004690-74 | 1 | BODY | XJ | |||
| 87 | 1004690-59 | 1 | CONNECTOR | XJ | |||
| 89 | 1004690-03 | 4 | WASHER | XJ | |||
| 90 | 1004690-11 | 4 | BOLT | XJ | |||
| 91 | 1004690-54 | 1 | TABLE | XJ | |||
| 93 | 1004690-56 | 1 | HOUSING | XJ | |||
| 94 | 1004690-57 | 1 | GASKET | XJ | |||
| 95 | 1004690-65 | 1 | SEAL | XJ | |||
| 96 | 1004690-84 | 1 | SCALE | XJ | |||
| 97 | 1004690-40 | 1 | RING | XJ | |||
| 98 | 1004690-39 | 1 | TERMINAL BLOCK | XJ | |||
| 100 | 1004690-43 | 1 | RETAINER | XJ | |||
| 101 | 1004690-79 | 1 | MITRE FENCE | XJ | |||
| 102 | 1004690-77 | 1 | FENCE SA | XJ | |||
| 103 | 1004690-78 | 1 | GUARD SA | XJ | |||
| 104 | 1004690-51 | 1 | RIVING KNIFE | XJ |  |
||
| 105 | 1004690-07 | 2 | WASHER | XJ | |||
| 106 | 1004690-16 | 2 | LOCKING SCREW | XJ | |||
| 107 | 1004690-66 | 1 | COVER | XJ | |||
| 108 | 1004690-71 | 1 | SCREW | XJ | |||
| 109 | 1004690-13 | 6 | SCREW | XJ | |||
| 110 | 1004690-73 | 1 | INSERT | XJ | |||
| 111 | 1004690-69 | 2 | SCREW | XJ | |||
| 112 | 1004690-42 | 1 | SCREW | XJ | |||
| 113 | 1004690-72 | 1 | SCREW | XJ | |||
| 114 | 1004690-80 | 1 | FENCE | XJ | |||
| 115 | 1004690-61 | 1 | SPACER | XJ | |||
| 116 | 1004689-64 | 4 | LEG | XJ | |||
| 117 | 1004689-63 | 2 | SUPPORT BRACKET | XJ | |||
| 118 | 1004689-60 | 2 | BRACKET | XJ | |||
| 119 | 1004690-63 | 2 | SPACER | XJ | |||
| 120 | 1004689-61 | 1 | SUPPORT BRACKET | XJ | |||
| 121 | 1004689-59 | 2 | BRACKET | XJ | |||
| 124 | 1004689-62 | 1 | SUPPORT BRACKET | XJ | |||
| 125 | 1004689-57 | 16 | BOLT | XJ | |||
| 127 | 1004689-58 | 20 | NUT | XJ | |||
| 128 | 1004689-69 | 2 | BOLT | XJ | |||
| 129 | 1004689-67 | 2 | HOOK | XJ | |||
| 130 | 1004689-66 | 1 | HOOK | XJ | |||
| 131 | 1004689-68 | 2 | NUT | XJ | |||
| 133 | 1004689-65 | 4 | FOOT | XJ | |||
| 134 | 1004689-72 | 1 | EXTENSION | XJ | |||
| 135 | 1004689-73 | 2 | BRACKET | XJ | |||
| 136 | 1004689-70 | 6 | BOLT | XJ | |||
| 137 | 1004689-78 | 1 | BRACKET | XJ | |||
| 138 | 1004689-71 | 6 | NUT | XJ | |||
| 139 | 1004689-75 | 4 | BOLT | XJ | |||
| 140 | 1004689-74 | 12 | KNOB | XJ | |||
| 141 | 1004689-81 | 4 | BOLT | XJ | |||
| 142 | 1004689-79 | 2 | BRACKET | XJ | |||
| 143 | 1004689-76 | 8 | BOLT | XJ | |||
| 145 | 1004689-82 | 4 | WASHER | XJ | |||
| 146 | 1004689-77 | 2 | EXTENSION | XJ | |||
| 147 | 1004689-84 | 1 | LABEL | XJ | |||
| 148 | 1004689-80 | 2 | BRACKET | XJ |
