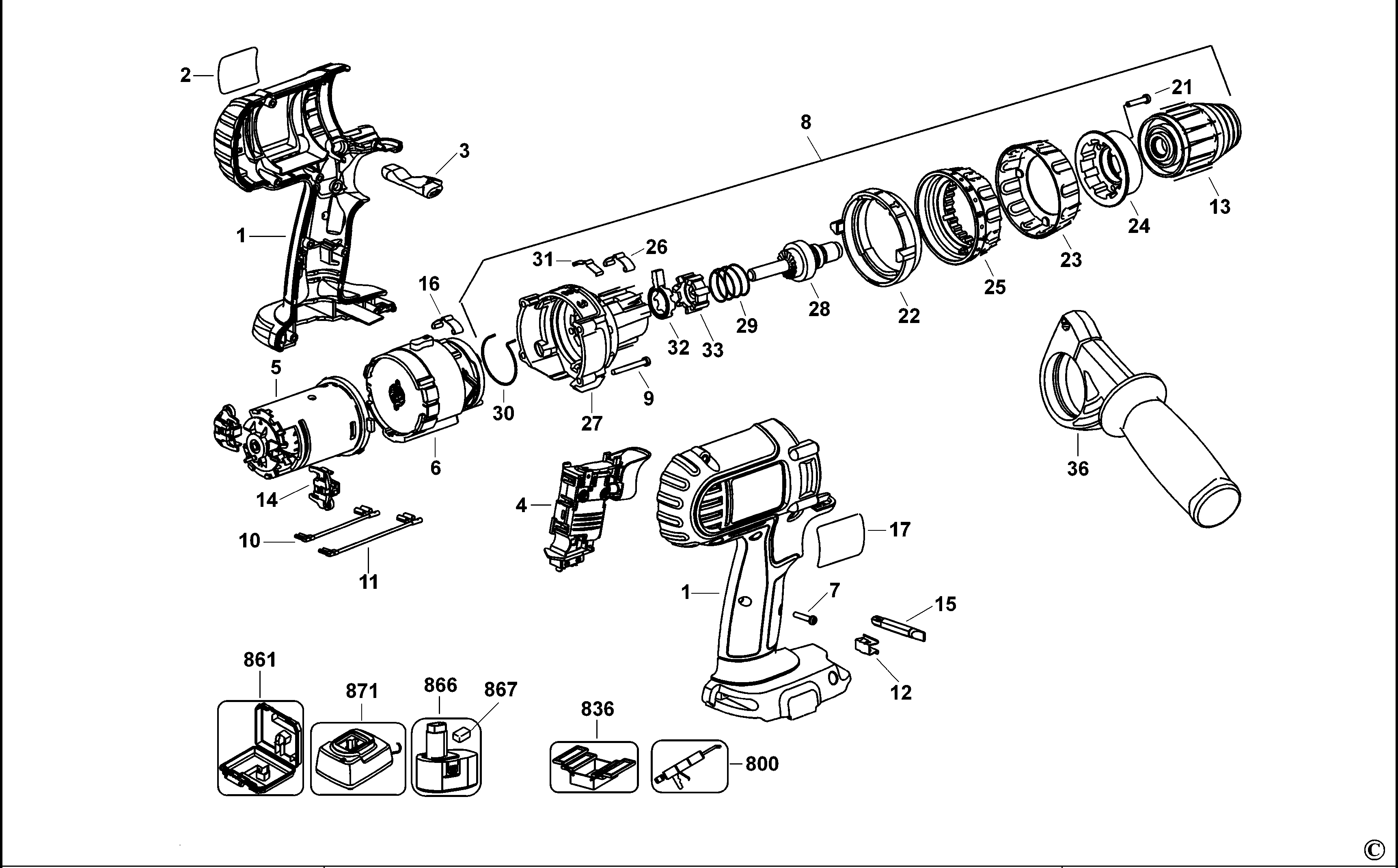

DC927K CORDLESS DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 647555-00 | 1 | CLAMSHELL SET | DC927KL | GB |  |
|
| 2 | 652246-00 | 1 | BRAND LABEL | GB | |
||
| 3 | 647558-00 | 1 | ACTUATOR FWD/REV | GB | |||
| 4 | 152274-25SV | 1 | SWITCH SA | GB | |
||
| 5 | 649056-01SV | 1 | MOTOR & PINION | INCL 14 | GB | ||
| 6 | 649026-00SV | 1 | TRANSMISSION SA | GB | |
||
| 7 | 682211-00 | 7 | SCREW | GB |  |
||
| 8 | 647566-04 | 1 | SPINDLE & GEAR SA | Nosecone assembly | GB | |
|
| 9 | 330019-52 | 4 | SCREW | GB | |
||
| 10 | 651872-00 | 1 | LEAD SA | 14 AWG | GB | |
|
| 11 | 651873-00 | 1 | LEAD SA | 14 AWG | GB | |
|
| 12 | 148354-03 | 1 | HOLDER | GB | |
||
| 13 | 330075-90 | 1 | CHUCK KEYLESS | GB | |
||
| 14 | 493511-00 | 2 | BRUSH PAIR | GB | |
||
| 15 | 297757-02 | 1 | BIT PHILLIPS | GB | |
||
| 16 | 638117-00 | 1 | SPRING | GB | |
||
| 17 | 653658-00 | 1 | RATING PLATE | DC927-Ty.1 EURO | GB | |
|
| 21 | 330019-00 | 3 | SCREW | M3x16 T10 PLASTITE | GB | |
|
| 22 | 649054-00 | 1 | COLLAR | GB | |
||
| 23 | 649055-00 | 1 | COLLAR | GB | |
||
| 24 | 649057-00 | 1 | CAP | Metal cap | GB | |
|
| 25 | 649053-00 | 1 | COLLAR | GB | |
||
| 26 | 395460-00 | 1 | SPRING GUIDE | GB | |
||
| 27 | 647567-04 | 1 | HOUSING | Hsg.& brg. 18v Euro | GB | |
|
| 28 | 638427-00 | 1 | SPINDLE SA | GB | |
||
| 29 | 394546-00 | 1 | SPRING | GB | |
||
| 30 | 399059-00 | 1 | SPRING | GB | |
||
| 31 | 634729-00 | 1 | SPRING | GB | |
||
| 32 | 394545-00 | 1 | CAM | GB | |
||
| 33 | 638072-00 | 1 | RATCHET FIXED | GB | |
||
| 36 | 646594-00 | 1 | SIDE HANDLE | GB | |
||
| 800 | 870889-02 | 1 | GREASE | GB | |
||
| 836 | 559665-99 | 1 | S.T.CHUCK REMOVAL JIG | GB | |
||
| 836 | 559662-99 | 1 | S.T.CHUCK REMOVAL JIG | GB | |
||
| 836 | 559697-99 | 1 | S.T.INSERT | GB | |
||
| 836 | 559661-99 | 1 | S.T.CHUCK REMOVAL JIG | GB | |
||
| 861 | 660141-00 | 1 | KITBOX | GB | |
||
| 866 | N425667 | 1 | BATTERY 18V - 2.0AH - 36WH | DC927KL | GB | |
|
| 867 | 650912-00 | 1 | SAFETY CAP | Li-Ion - Nano | GB | |
|
| 871 | N015877 | 1 | CHARGER 7.2V - 18V | DC927KL | GB | |
