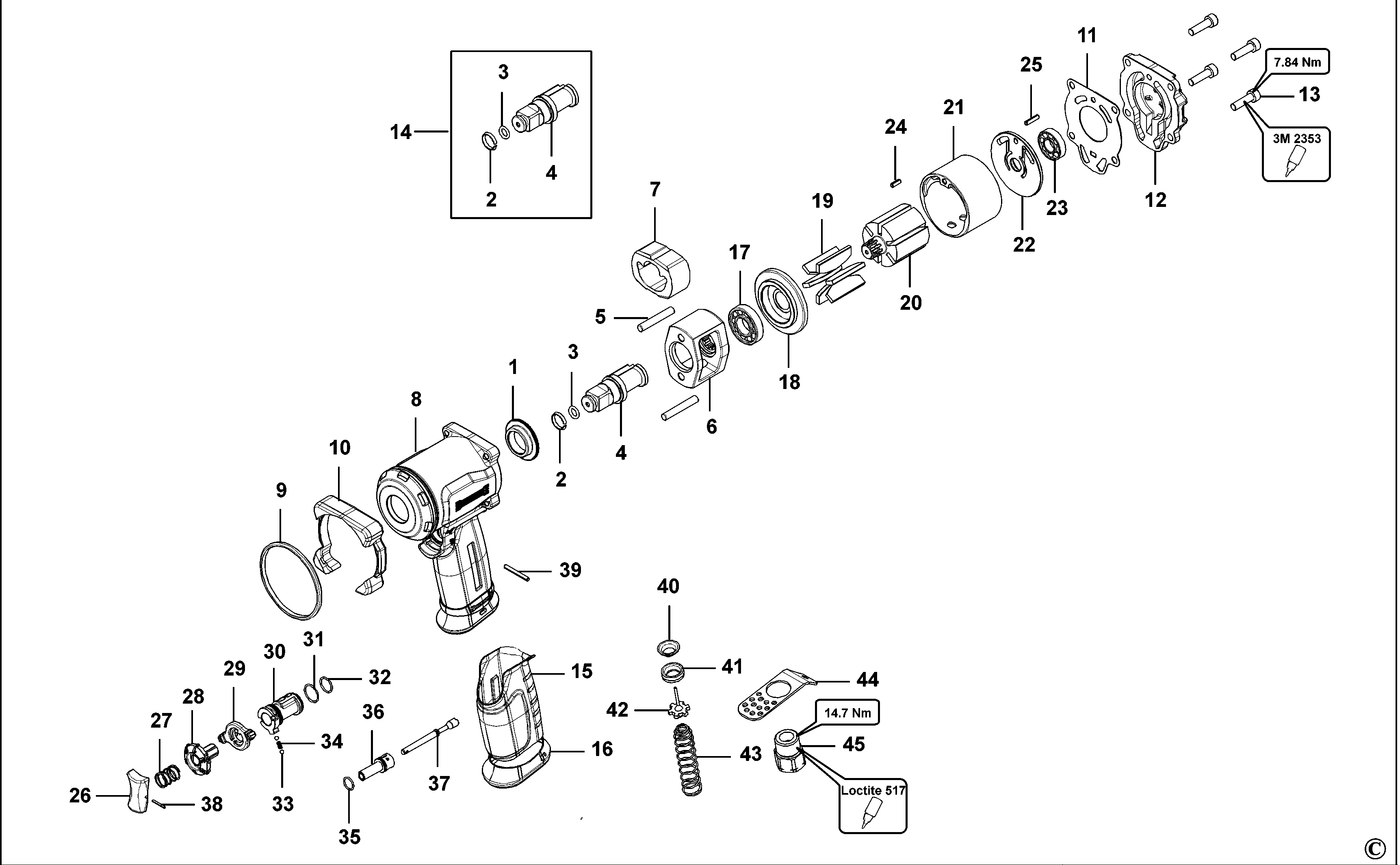

SCMTSA-050M IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N449222 | 1 | BUSHING | XJ |  |
||
| 2 | N449223 | 1 | RETAINER | XJ | |
||
| 3 | N449225 | 1 | O RING | XJ | |
||
| 5 | N449229 | 2 | PIN | XJ | |
||
| 6 | N449230 | 1 | HAMMER FRAME | XJ | |
||
| 7 | N449231 | 1 | HAMMER | XJ | |
||
| 9 | N449284 | 1 | BUMPER | XJ |  |
||
| 10 | N449285 | 1 | BUMPER | XJ | |
||
| 11 | N449286 | 1 | GASKET | XJ | |
||
| 12 | N449287 | 1 | COVER REAR | XJ | |
||
| 13 | N449288 | 4 | SCREW | XJ | |
||
| 15 | N449290 | 1 | HANDLE UPPER | XJ | |
||
| 16 | N449291 | 1 | LOWER HANDLE | XJ | |
||
| 17 | N449293 | 1 | BEARING | XJ | |
||
| 18 | N449298 | 1 | BEARING PLATE | XJ | |
||
| 19 | N449299 | 6 | ROTOR BLADE | XJ | |
||
| 20 | N449300 | 1 | ROTOR | XJ | |
||
| 21 | N449301 | 1 | CYLINDER | XJ | |
||
| 22 | N449302 | 1 | PLATE | XJ | |
||
| 23 | N449303 | 1 | BEARING | XJ | |
||
| 24 | N449304 | 1 | SPIROL PIN | XJ | |
||
| 25 | N449305 | 1 | SPIROL PIN | XJ | |
||
| 26 | N449296 | 1 | TRIGGER | XJ | |
||
| 27 | N449297 | 1 | SPRING | XJ | |
||
| 28 | N449306 | 1 | REGULATOR | XJ | |
||
| 29 | N449307 | 1 | ACTUATOR FWD/REV | XJ | |
||
| 30 | N449315 | 1 | REVERSE VALVE | XJ | |
||
| 31 | N449316 | 1 | O RING | XJ | |
||
| 32 | N449317 | 1 | O RING | XJ | |
||
| 33 | N449318 | 1 | BALL | XJ | |
||
| 34 | N449319 | 1 | SPRING | XJ | |
||
| 35 | N449320 | 1 | O RING | XJ | |
||
| 36 | N449321 | 1 | REGULATOR | XJ | |
||
| 37 | N449322 | 1 | ACTUATION ARM | XJ | |
||
| 38 | N449323 | 1 | SPIROL PIN | XJ | |
||
| 39 | N449324 | 1 | SPIROL PIN | XJ | |
||
| 40 | N449325 | 1 | BUSHING | XJ | |
||
| 41 | N449326 | 1 | SEAL | XJ | |
||
| 42 | N449327 | 1 | VALVE | XJ | |
||
| 43 | N449328 | 1 | SPRING | XJ | |
||
| 44 | N449330 | 1 | DEFLECTOR | XJ | |
||
| 45 | N449332 | 1 | INLET | XJ | |
