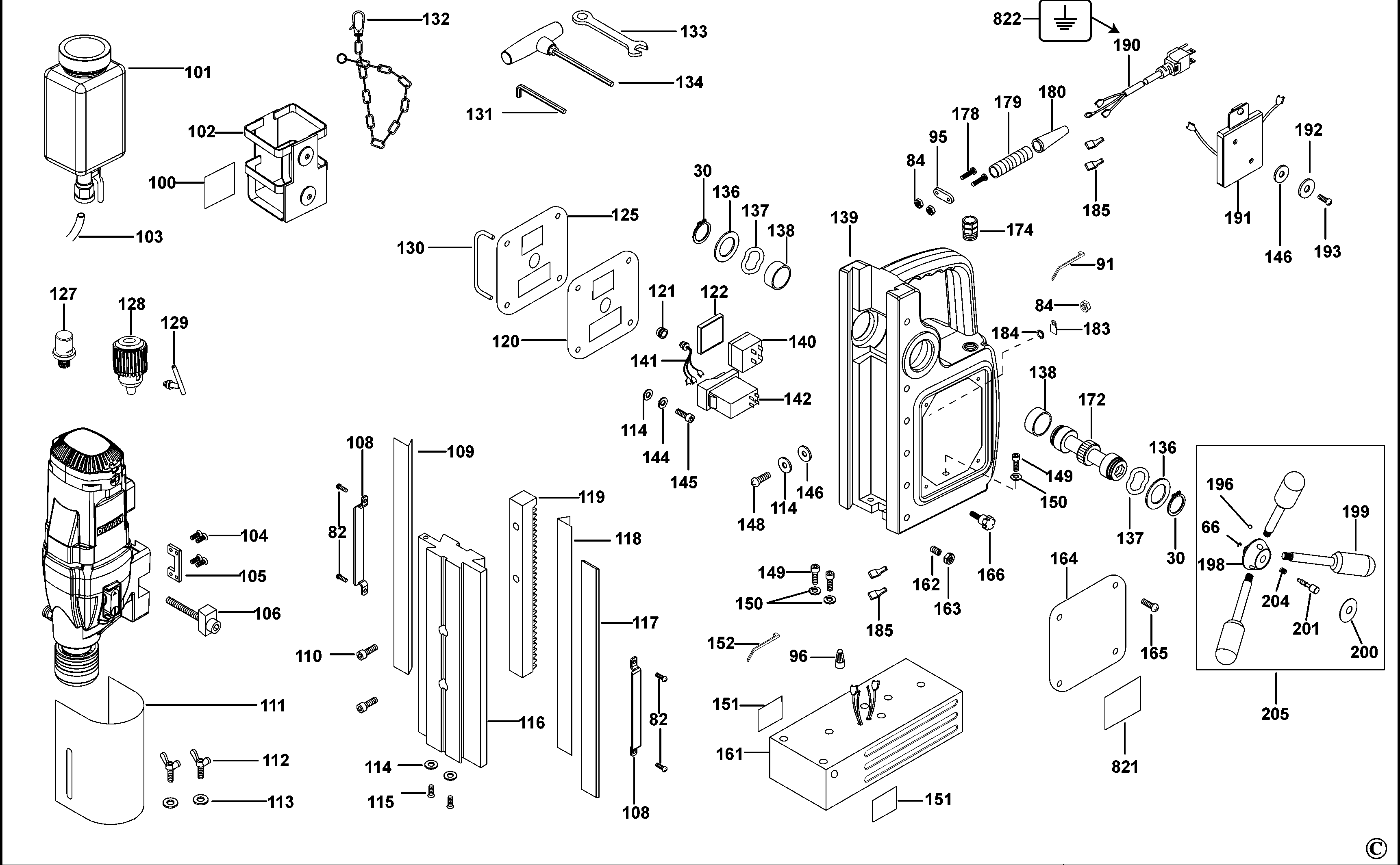

DWE1622K MAG DRILL STAND Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 10 | 1004685-00 | 1 | SPINDLE SA | LX |  |
||
| 11 | 1004685-01 | 1 | RING | LX | |
||
| 12 | 1004685-02 | 1 | WASHER | LX | |
||
| 13 | 1004685-03 | 1 | RING | LX | |
||
| 14 | 1004685-04 | 1 | SEAL | LX | |
||
| 15 | 1004685-05 | 1 | SPRING | LX | |
||
| 16 | 1004685-06 | 2 | DETENT | LX | |
||
| 17 | 1004685-07 | 1 | BALL STEEL | LX | |
||
| 18 | 1004685-08 | 2 | SCREW | LX | |
||
| 19 | 1004685-09 | 1 | KEY | LX | |
||
| 20 | 1004685-10 | 2 | LEAF SPRING | LX | |
||
| 21 | 1004685-11 | 1 | SPINDLE | LX | |
||
| 22 | 1004685-12 | 1 | BAND | LX | |
||
| 23 | 1004685-13 | 1 | DETENT | LX | |
||
| 24 | 1004685-14 | 1 | SLEEVE | LX | |
||
| 25 | 1004685-15 | 1 | SPRING | LX | |
||
| 26 | 1004685-16 | 1 | WASHER | LX | |
||
| 27 | 1004685-17 | 1 | RING | LX | |
||
| 28 | 1004685-18 | 1 | RING | LX | |
||
| 29 | 1004685-19 | 1 | BEARING,BALL | LX | |
||
| 30 | 1004685-20 | 3 | RING | LX | |
||
| 34 | 1004685-31 | 1 | BEARING 608 | LX | |
||
| 35 | 1004685-21 | 1 | ARMATURE 120V | LX | |
||
| 36 | 1004685-23 | 4 | BEARING,BALL | LX | |
||
| 37 | 1004685-24 | 1 | BEARING,BALL | LX | |
||
| 38 | 1004685-87 | 1 | GEARCASE COVER | <242013 | LX | |
|
| 39 | 1004685-86 | 1 | O RING | >242013 | LX | |
|
| 40 | 1004685-26 | 1 | BEARING,NEEDLE | LX | |
||
| 42 | 1004685-27 | 1 | INTERSHAFT SA | LX | |
||
| 43 | 1004685-28 | 1 | RING | LX | |
||
| 44 | 1004685-29 | 1 | GEAR | LX | |
||
| 46 | 1004685-30 | 1 | WOODRUFF KEY | LX | |
||
| 48 | 1004685-32 | 1 | RING | LX | |
||
| 49 | 1004685-33 | 1 | GEAR | LX | |
||
| 50 | 1004685-34 | 2 | SEAL | LX | |
||
| 56 | 1004685-35 | 1 | SLIDER | LX |  |
||
| 57 | 1004685-36 | 1 | PLATE | LX | |
||
| 58 | 1004685-37 | 1 | GEAR | LX | |
||
| 59 | 1004685-38 | 1 | SHAFT SA | LX | |
||
| 60 | 1004685-39 | 1 | KEY | LX | |
||
| 62 | 1004685-40 | 1 | COUPLING | LX | |
||
| 63 | 1004685-41 | 1 | GEARCASE | LX | |
||
| 64 | 1004685-76 | 1 | LABEL | LX | |
||
| 65 | 1004685-42 | 2 | SCREW | LX | |
||
| 66 | 1004685-43 | 3 | CLIP | LX | |
||
| 67 | 1004685-44 | 1 | SPRING | LX | |
||
| 68 | 1004685-45 | 1 | PIN | LX | |
||
| 69 | 1004685-46 | 1 | SELECTOR | LX | |
||
| 70 | 1004685-47 | 1 | SPRING | LX | |
||
| 71 | 1004685-48 | 1 | SCREW | LX | |
||
| 72 | 1004685-49 | 2 | SCREW | LX | |
||
| 73 | N176013 | 1 | BRAND LABEL | LX | |
||
| 74 | 1004685-50 | 2 | SCREW | LX | |
||
| 75 | 1004685-51 | 1 | END CAP | LX | |
||
| 76 | 1004685-52 | 2 | BRUSH HOLDER | LX | |
||
| 80 | 1004685-53 | 4 | SCREW | LX | |
||
| 81 | 1004685-54 | 1 | BRUSH PAIR | LX | |
||
| 82 | 1004685-56 | 6 | SCREW | LX | |
||
| 83 | 1004685-57 | 2 | BRUSH SPRING | LX | |
||
| 84 | 1004685-58 | 6 | NUT | LX | |
||
| 85 | 1004685-59 | 1 | FIELD CASE | LX | |
||
| 86 | 1004685-61 | 1 | FIELD 110V | LX | |
||
| 87 | 1004685-55 | 2 | SCREW | LX | |
||
| 88 | 1004685-62 | 1 | BAFFLE FAN | LX | |
||
| 89 | 1004685-63 | 1 | SLEEVE | LX | |
||
| 90 | 1004685-64 | 1 | LEADWIRE | LX | |
||
| 91 | 1004685-65 | 2 | CABLE TIE | LX | |
||
| 92 | 1004685-66 | 4 | SCREW | LX | |
||
| 93 | 1004685-67 | 1 | COVERPLATE | LX | |
||
| 94 | 1004685-68 | 2 | SCREW | LX | |
||
| 95 | 1004685-69 | 2 | CLAMP | LX | |
||
| 96 | 1004685-70 | 3 | CONNECTOR | LX | |
||
| 100 | 1004685-71 | 1 | LABEL | LX | |
||
| 101 | 1004686-00 | 1 | TANK | LX | |
||
| 102 | 1004686-01 | 1 | HOLDER | LX | |
||
| 103 | 1004686-02 | 1 | TUBE | LX | |
||
| 104 | 1004686-03 | 4 | SCREW | LX | |
||
| 105 | 1004686-04 | 1 | PLATE | LX | |
||
| 106 | 1004686-05 | 1 | CLAMP SA | LX | |
||
| 108 | 1004686-07 | 2 | BRACKET | LX | |
||
| 109 | 1004686-08 | 1 | GUIDE | LX | |
||
| 110 | 1004686-09 | 2 | SCREW | LX | |
||
| 111 | 1004686-10 | 1 | GUARD | LX | |
||
| 112 | 1004686-11 | 2 | THUMBSCREW | LX | |
||
| 113 | 1004686-12 | 2 | WASHER | LX | |
||
| 114 | 1004686-13 | 7 | WASHER | LX | |
||
| 115 | 1004686-14 | 2 | SCREW | LX | |
||
| 116 | 1004686-15 | 1 | SLIDER | LX | |
||
| 117 | 1004686-16 | 1 | SHIM | LX | |
||
| 118 | 1004686-17 | 1 | GUIDE | LX | |
||
| 119 | 1004686-18 | 1 | RACK | LX | |
||
| 120 | 1004686-19 | 1 | COVERPLATE | LX | |
||
| 121 | 1004686-20 | 1 | FRAME | LX | |
||
| 122 | 1004686-21 | 1 | COVER | LX | |
||
| 125 | N176015 | 1 | LABEL | LX | |
||
| 127 | 1004685-73 | 1 | ADAPTOR | LX | |
||
| 128 | 1004685-74 | 1 | CHUCK | LX | |
||
| 129 | 1004685-75 | 1 | CHUCK KEY | LX | |
||
| 130 | 1004686-22 | 2 | GUARD | LX | |
||
| 131 | 1004686-23 | 1 | HEX KEY | 2.5mm | LX | |
|
| 132 | 1004686-24 | 1 | CHAIN | LX | |
||
| 133 | 1004686-25 | 1 | SPANNER | LX | |
||
| 134 | 1004686-26 | 1 | HEX KEY | LX | |
||
| 136 | 1004686-28 | 2 | WASHER | LX | |
||
| 137 | 1004686-29 | 2 | WASHER THRUST | LX | |
||
| 138 | 1004686-30 | 2 | BUSHING | LX | |
||
| 139 | 1004686-31 | 1 | BODY | LX | |
||
| 140 | 1004686-32 | 1 | SWITCH | LX | |
||
| 141 | 1004686-33 | 1 | LED LIGHT | LX | |
||
| 142 | 1004686-35 | 1 | SWITCH 115V | LX | |
||
| 144 | 1004686-37 | 4 | WASHER | LX | |
||
| 145 | 1004686-38 | 4 | SCREW | LX | |
||
| 146 | 1004686-39 | 3 | WASHER | LX | |
||
| 148 | 1004686-40 | 1 | SCREW | LX | |
||
| 149 | 1004686-41 | 3 | SCREW | LX | |
||
| 150 | 1004686-42 | 3 | WASHER LOCK | LX | |
||
| 151 | N176016 | 2 | LABEL | LX | |
||
| 152 | 1004686-68 | 1 | CABLE TIE | LX | |
||
| 161 | 1004685-84 | 1 | ELECTRO MAGNET | LX | |
||
| 162 | 1004686-45 | 5 | GRUB SCREW | LX | |
||
| 163 | 1004686-46 | 5 | NUT | LX | |
||
| 164 | 1004686-47 | 1 | COVERPLATE | LX | |
||
| 165 | 1004686-48 | 4 | SCREW | LX | |
||
| 166 | 1004686-49 | 1 | THUMBSCREW | LX | |
||
| 172 | 1004686-52 | 1 | SHAFT SA | LX | |
||
| 174 | 1004686-53 | 1 | GLAND | LX | |
||
| 178 | 1004686-56 | 2 | SCREW | LX | |
||
| 179 | 1004686-57 | 1 | SLEEVE | LX | |
||
| 180 | 1004686-58 | 1 | CORD PROTECTOR | LX | |
||
| 183 | 1004686-77 | 1 | EARTHING MARKING | LX | |
||
| 184 | 1004686-78 | 1 | WASHER LOCK | LX | |
||
| 185 | 1004686-59 | 4 | SLEEVE INSULATING | LX | |
||
| 190 | 1004685-79 | 1 | CORDSET | LX | |
||
| 191 | 1004686-66 | 1 | ELECTRONIC 115V | LX | |
||
| 192 | 1004686-79 | 2 | WASHER | LX | |
||
| 193 | 1004686-67 | 2 | SCREW | LX | |
||
| 196 | 1004686-70 | 1 | INSERT | LX | |
||
| 198 | 1004686-72 | 1 | BOSS | LX | |
||
| 199 | 1004686-73 | 3 | HANDLE SA | LX | |
||
| 200 | N176014 | 1 | LABEL | LX | |
||
| 201 | 1004686-74 | 1 | PLUNGER | LX | |
||
| 204 | 1004686-75 | 1 | SPRING | LX | |
||
| 205 | 1004686-76 | 1 | ELEVATING HANDLE | LX | |
||
| 800 | 5140061-28 | 1 | GREASE | LX | |
||
| 821 | N176004 | 1 | RATING PLATE | LX | |
||
| 822 | N296439 | 1 | WARNING LABEL | LX | |
||
| 861 | 1004685-72 | 1 | KITBOX | LX | |
