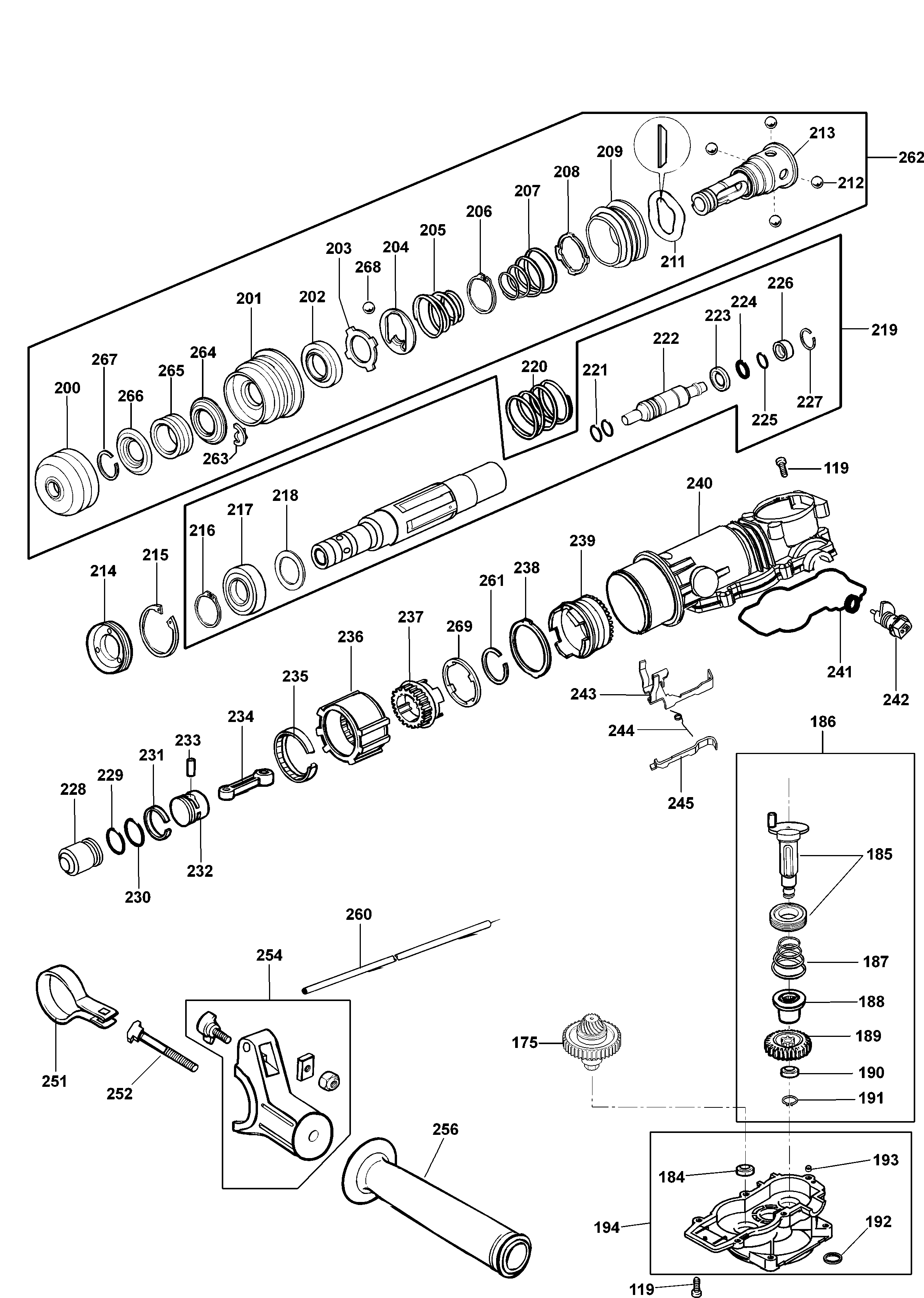

DW570K HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 641411-00 | 1 | FENCE | GB | |||
| 3 | 5103553-00 | 2 | BATTERY 18V - 1.5AH - 27WH | GB |  |
||
| 4 | 388048-00 | 2 | STOP RUBBER | GB |  |
||
| 5 | N044994 | 1 | MOTOR HOUSING | GB | |||
| 7 | 330113-06 | 1 | CORDSET | 18-2 ST | GB | ||
| 8 | N175643 | 1 | CORDSET | TW | GB | ||
| 9 | 330003-05 | 1 | BEARING | GB | |||
| 10 | 700964-00 | 1 | BEARING | GB | |
||
| 11 | 448859-03 | 1 | HOUSING,CLUTCH | GB | |||
| 12 | 133825-00 | 1 | CLIP | GB | |
||
| 14 | 330019-02 | 2 | SCREW | GB | |
||
| 15 | N411028 | 4 | LEAD ASSY. | BLACK (120MM), 18GA | GB | ||
| 16 | 330045-12 | 7 | SCREW | GB | |
||
| 17 | 062487-00 | 1 | WASHER | GB | |||
| 18 | 449376-00 | 2 | SCREW | GB | |
||
| 19 | 384127-01 | 2 | SCREW | GB | |
||
| 22 | 390198-00 | 4 | SCREW | GB | |
||
| 24 | 464285-00 | 4 | SCREW | GB | |
||
| 25 | N496662 | 1 | ADAPTOR | NO-MAR | GB | |
|
| 26 | 148354-03 | 1 | HOLDER | GB | |
||
| 28 | 385306-00 | 1 | CLUTCH MODULE | GB | |
||
| 29 | N064499 | 1 | SHAFT SA | GB | |||
| 31 | N500477 | 1 | BEARING | GB | |
||
| 32 | N339299 | 1 | BEARING | GB | |
||
| 33 | N238459 | 1 | BEARING | PACKAGED 882511 | GB | ||
| 34 | 38210-00 | 1 | INTERGEAR | INCL. 35 | GB | ||
| 35 | 38221-00 | 1 | BEARING | GB | |||
| 36 | A27330 | 1 | MAGNET | GB | |
||
| 38 | 376-00 | 1 | SCREW | GB | |
||
| 39 | 7027-00 | 1 | KEY | GB | |||
| 41 | N405415 | 1 | CORDSET | GB | |
||
| 42 | 930028-00 | 1 | O RING | GB | |
||
| 43 | N396339 | 1 | COVER | GB | |
||
| 47 | N772471 | 1 | BASE SA | GB | |
||
| 51 | N420134 | 1 | RATING LABEL | DWP352VS-B2C TY2 | GB | ||
| 59 | 584450-00 | 1 | NOZZLE | GB | |
||
| 60 | 650460-00 | 1 | SELECTOR | Mode Selector | GB | |
|
| 64 | N117271SV | 1 | SPRING | GB | |
||
| 69 | N397369 | 1 | RATING LABEL | DWE6421 | GB | ||
| 70 | N396634 | 1 | MOUNT | GB | |
||
| 101 | N030349 | 1 | MOTOR SA 230V | GB | |
||
| 102 | 377653-08 | 1 | FIELD 230V | GB | |
||
| 103 | 487175-49 | 1 | SWITCH SA | GB | |
||
| 104 | 487131-00 | 1 | BRUSH KIT | GB | |
||
| 106 | 324438-73 | 1 | CORDSET | GB | |
||
| 107 | 328649-20 | 1 | ELECTRONIC 230V | GB | |
||
| 111 | 487087-00 | 1 | CAPACITOR SA | GB | |
||
| 112 | 323091-01 | 1 | CORD PROTECTOR | GB | |
||
| 113 | 821070 | 1 | CORD CLAMP | GB | |
||
| 114 | 330065-08 | 20 | SCREW | M4x18 T20 | GB | |
|
| 115 | 329845-00 | 1 | HOLDER | GB | |
||
| 116 | 329777-00 | 1 | LEAD SA | GB | |
||
| 117 | 329776-00 | 1 | LEAD SA | GB | |
||
| 119 | 324007-11 | 13 | SCREW | M5 X 18 | GB | |
|
| 121 | 328856-01 | 1 | LEAD | GB | |
||
| 122 | 330065-24 | 2 | SCREW | GB | |
||
| 123 | 327486-00 | 1 | GUIDE | GB | |
||
| 124 | 330065-21 | 2 | SCREW | GB | |
||
| 125 | 487073-01 | 1 | MOTOR HOUSING SA | GB | |
||
| 126 | N542566 | 1 | BEARING | GB | |
||
| 126 | N542566 | 1 | BEARING | GB | |
||
| 127 | 325279-00 | 1 | SLEEVE | GB | |
||
| 128 | 327487-00 | 1 | HOLDER BEARING | GB | |
||
| 129 | 327489-01 | 1 | END CAP | GB | |
||
| 130 | 324119-02 | 1 | SCREW | GB | |
||
| 133 | 326667-00 | 2 | BRUSH SPRING | GB | |
||
| 134 | 326933-01 | 2 | HOLDER | GB | |
||
| 141 | 327589-09 | 1 | CLAMSHELL | GB | |
||
| 142 | 327577-00 | 4 | RING | GB | |
||
| 143 | 487094-01 | 1 | TRIGGER | GB | |
||
| 145 | 326438-00 | 1 | SPRING | GB | |
||
| 146 | 327499-02 | 1 | COVER HOUSING | GB | |
||
| 147 | 327586-00 | 1 | FILTER | GB | |
||
| 148 | 323711-15 | 1 | O RING | GB | |
||
| 149 | 327500-00 | 1 | SWITCH COVER | GB | |
||
| 150 | 327503-02 | 1 | LOCK BUTTON | GB | |
||
| 151 | 323395-31 | 1 | SPRING | GB | |
||
| 152 | 327501-00 | 1 | LEVER | GB | |
||
| 153 | 327509-00 | 1 | CAP | GB | |
||
| 175 | 492162-00 | 1 | REPAIR KIT | GB | |
||
| 184 | 330003-39 | 1 | BEARING | GB | |
||
| 185 | 487074-49 | 1 | BEARING SA | GB | |
||
| 186 | 575736-00 | 1 | REPAIR KIT | GB | |
||
| 187 | 328769-00 | 1 | SPRING | GB | |
||
| 188 | 327507-00 | 1 | SLEEVE | GB | |
||
| 189 | 574741-00 | 1 | GEAR | GB | |
||
| 190 | 323872-05 | 1 | BEARING | GB | |
||
| 191 | 324822-05 | 1 | CIRCLIP | GB | |
||
| 192 | 327141-03 | 1 | SEAL | GB | |
||
| 193 | 327575-00 | 1 | SLEEVE | GB | |
||
| 194 | 327568-00 | 1 | CASTING SA | GB | |
||
| 200 | 487147-00 | 1 | LIP SEAL | GB | |
||
| 201 | 487149-00 | 1 | COLLAR SA | GB | |
||
| 202 | 487146-00 | 1 | WASHER | GB | |
||
| 203 | 487148-00 | 1 | GUIDE | GB | |
||
| 204 | 487153-00 | 1 | WASHER | GB | |
||
| 205 | 487160-00 | 1 | SPRING | GB | |
||
| 206 | 324822-00 | 1 | CIRCLIP | GB | |
||
| 207 | 487118-00 | 1 | SPRING | GB | |
||
| 208 | 327540-00 | 1 | LOCKING RING | GB | |
||
| 209 | 327541-00 | 1 | HOLDER | GB | |
||
| 211 | 327594-00 | 1 | WASHER SPRING | GB | |
||
| 212 | 487033-00 | 4 | BALL | GB | |
||
| 213 | 487145-00 | 1 | SPINDLE | GB | |
||
| 214 | 327141-01 | 1 | SEAL | GB | |
||
| 215 | 575279-00 | 1 | RETAINER | GB | |
||
| 216 | 324822-06 | 1 | RETAINER | GB | |
||
| 217 | 330003-46 | 1 | BEARING | GB | |
||
| 218 | 574840-00 | 1 | DAMPER | GB | |
||
| 219 | 575737-00 | 1 | SPINDLE SA | GB | |
||
| 220 | 323395-26 | 1 | SPRING | GB | |
||
| 221 | 323711-39 | 2 | O RING | GB | |
||
| 222 | 487414-00 | 1 | BEAT PIECE | GB | |
||
| 223 | 327533-00 | 1 | WASHER | GB | |
||
| 224 | 323711-31 | 1 | O RING | GB | |
||
| 225 | 323711-32 | 1 | O RING | GB | |
||
| 226 | 327532-00 | 1 | BUSH | GB | |
||
| 227 | 323762-06 | 1 | RETAINER | GB | |
||
| 228 | 327591-00 | 1 | RAM | GB | |
||
| 229 | 487037-00 | 1 | O RING | GB | |
||
| 230 | 323711-10 | 1 | O RING | GB | |
||
| 231 | 325905-01 | 1 | PISTON RING | GB | |
||
| 232 | 327520-00 | 1 | PISTON | GB | |
||
| 233 | 329818-00 | 1 | PIN | GB | |
||
| 234 | 327519-00 | 1 | CON ROD | GB | |
||
| 235 | 327492-00 | 1 | RING | GB | |
||
| 236 | 327528-00 | 1 | BUSH | GB | |
||
| 237 | 327527-00 | 1 | SLEEVE | GB | |
||
| 238 | 327553-00 | 1 | WASHER | GB | |
||
| 239 | 492162-00 | 1 | REPAIR KIT | GB | |
||
| 240 | 477193-00 | 1 | HOUSING SA | GB | |
||
| 241 | 327518-00 | 1 | SEAL | GB | |
||
| 242 | 327502-00 | 1 | CAM | GB | |
||
| 243 | 327504-00 | 1 | FORK | GB | |
||
| 244 | 327574-00 | 1 | SPRING | GB | |
||
| 245 | 327505-00 | 1 | LEVER | GB | |
||
| 251 | 327493-00 | 1 | COLLAR | GB | |
||
| 252 | 327544-00 | 1 | BOLT | GB | |
||
| 254 | 487103-49 | 1 | CLAMP SA | GB | |
||
| 256 | 327545-00 | 1 | HANDLE | GB | |
||
| 260 | 326205-00 | 1 | DEPTH ROD | GB | |
||
| 261 | 323763-07 | 1 | RETAINER | GB | |
||
| 262 | 575568-00 | 1 | HOLDER TOOL | GB | |
||
| 263 | 487126-00 | 1 | INSERT | GB | |
||
| 264 | 487150-00 | 1 | WASHER SPECIAL | GB | |
||
| 265 | 487152-00 | 1 | DAMPER | GB | |
||
| 266 | 487151-00 | 1 | WASHER | GB | |
||
| 267 | 323762-09 | 1 | RETAINER | GB | |
||
| 268 | 487033-01 | 1 | BALL | GB | |
||
| 269 | 329590-00 | 1 | WASHER | GB | |
||
| 800 | 487142-01 | 1 | GREASE 1KG | Turmogrease P1001 | GB | |
|
| 801 | 586778-04 | 1 | GREASE 100 GMS | GB | |
||
| 802 | 328771-07 | 1 | GREASE | 50G, BIT GREASE | GB | |
|
| 816 | 578793-00 | 1 | BRAND LABEL | GB | |
||
| 821 | 569037-00 | 1 | RATING PLATE | GB | |
||
| 836 | 559613-99 | 1 | SERVICE TOOL | Mandrel Seal | GB | |
|
| 837 | 559611-99 | 1 | SERVICE TOOL | Mandrel Circlip | GB | |
|
| 840 | 559610-99 | 1 | SERVICE TOOL | Alignment Jig Field | GB | |
|
| 848 | 487096-00 | 1 | SERVICE KIT 230V | GB | |
||
| 861 | 381297-58 | 1 | KITBOX | GB | |
||
| 861 | 616863-00 | 1 | O RING | GB |
