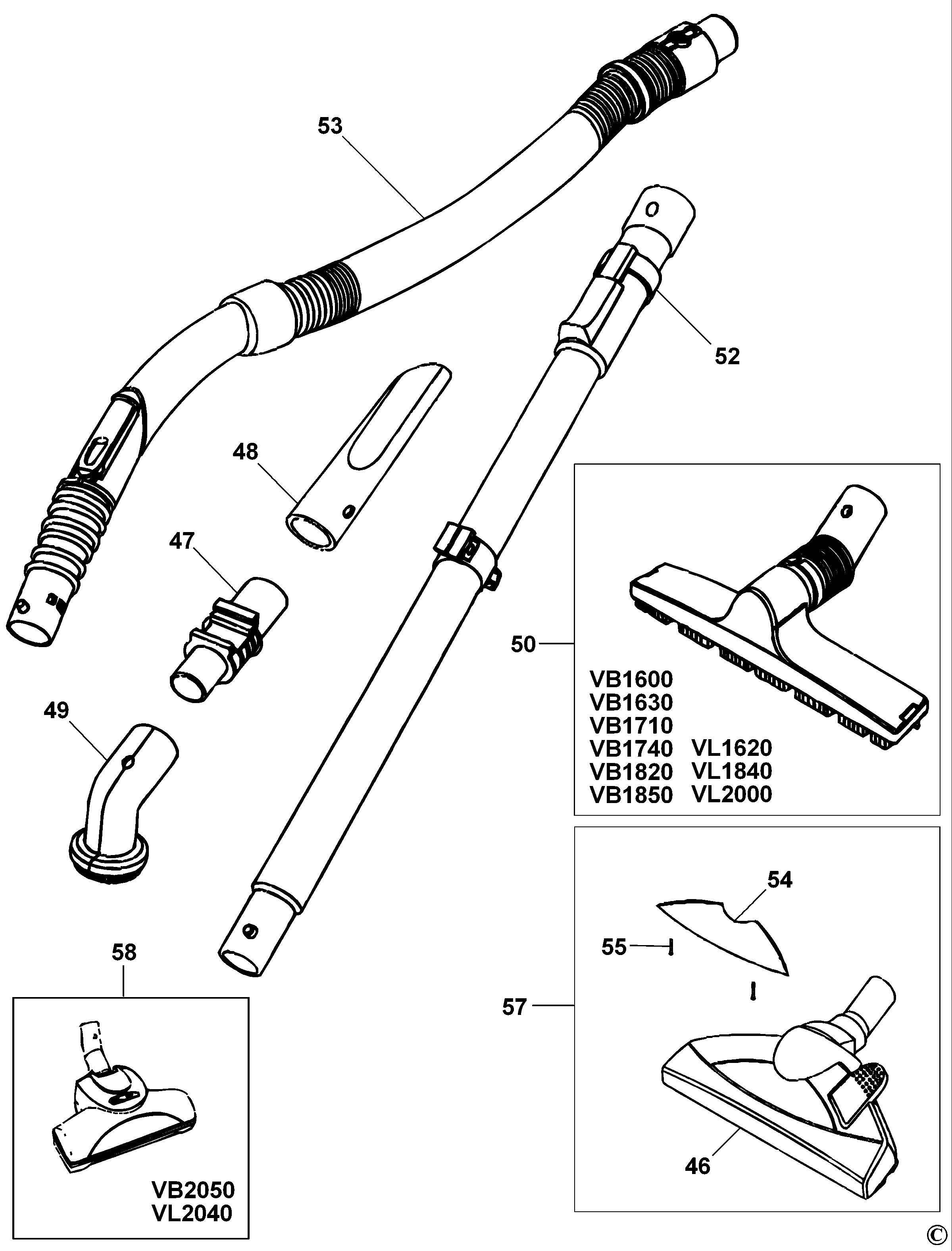

VB2050 VACUUM CLEANER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 585544-00 | 1 | HOUSING LOWER | GB |  |
||
| 2 | 583112-00 | 2 | WHEEL REAR | GB | |
||
| 3 | 585635-10 | 1 | COVER | GB | |
||
| 4 | 5106266-00 | 1 | VALVE | GB | |
||
| 5 | 5106260-00 | 2 | WHEEL SA | GB | |
||
| 6 | 5106219-05 | 1 | PCB SA | 1600 | GB | |
|
| 7 | 5106274-06 | 1 | HOUSING UPPER | Orange | Upto DC 04-2005 | GB | |
| 7 | 5106274-07 | 1 | HOUSING UPPER | Orange | From DC 05-2005 | GB | |
| 8 | 585462-00 | 1 | CLIP | GB | |
||
| 9 | 583405-00 | 1 | LATCH | GB | |
||
| 10 | 585460-00 | 1 | SPRING | GB | |
||
| 11 | 584986-00 | 1 | TUBE | GB | |
||
| 13 | 583135-00 | 1 | ACTUATOR | GB | |
||
| 14 | 583132-00 | 1 | ACTUATOR | GB | |
||
| 15 | 583137-00 | 1 | SWITCH | GB | |
||
| 16 | 583140-00 | 1 | SLIDER | GB | |
||
| 17 | 586504-00 | 1 | RETAINER | GB | |
||
| 18 | 584651-00 | 1 | HANDLE | Light Grey | Upto DC 04-2005 | GB | |
| 18 | 584651-10 | 1 | HANDLE | Light Grey | From DC 05-2005 | GB | |
| 19 | 583109-11 | 1 | CABLE SA | GB | |
||
| 21 | 478002-00 | 1 | MOTOR SA | 1800W | GB | |
|
| 22 | 583120-01 | 1 | MOUNT | GB | |
||
| 23 | 5106217-00 | 1 | LEAD SA | GB | |
||
| 24 | 583146-00 | 1 | FOAM | GB | |
||
| 25 | 5106218-01 | 1 | LEAD SA | GB | |
||
| 26 | 585535-00 | 12 | SCREW | No6 x 17mm | GB | |
|
| 27 | 584982-08 | 1 | INSERT | GB | |
||
| 28 | 5106246-00 | 1 | INDICATOR | GB | |
||
| 29 | 5106276-09 | 1 | LID SA | GB | |
||
| 30 | 585580-00 | 2 | SCREW | No 6 x 12 | GB | |
|
| 31 | 583404-01 | 1 | MOUNT | GB | |
||
| 32 | 583402-00 | 1 | SUPPORT | GB | |
||
| 33 | 583123-00 | 1 | COVER HOUSING | GB | |
||
| 34 | 585535-00 | 3 | SCREW | No6 x 17mm | GB | |
|
| 35 | 478003-00 | 1 | FILTER | GB | |
||
| 36 | 583138-00 | 1 | GRILL | GB | |
||
| 37 | 583136-00 | 2 | SPRING | GB | |
||
| 38 | 5106864-00 | 1 | WASHER LOCK | GB | |
||
| 39 | 588324-00 | 1 | HOLDER DUSTBAG | GB | |
||
| 40 | 585622-00 | 1 | RETAINER | GB | |
||
| 41 | 585580-00 | 1 | SCREW | No 6 x 12 | GB | |
|
| 42 | 5106225-00 | 1 | DUSTBAG | GB | |
||
| 46 | 5106261-00 | 1 | HEAD SA | GB | |
||
| 47 | 585244-10 | 1 | HOLDER | GB | |
||
| 48 | 585131-00 | 1 | TOOL CREVICE | GB | |
||
| 49 | 5106265-00 | 1 | BRUSH SA | GB | |
||
| 52 | 5106232-00 | 1 | VACUUM TUBE SA | GB | |
||
| 53 | 5106259-07 | 1 | HOSE SA | GB | |
||
| 54 | 5106292-10 | 1 | BRAND LABEL | GB | |
||
| 55 | 585580-00 | 2 | SCREW | No 6 x 12 | GB | |
|
| 56 | 5106228-00 | 1 | FILTER | VBP50 | GB | |
|
| 57 | 5106262-10 | 1 | HEAD SA | GB | |
||
| 58 | 477773-01 | 1 | HEAD SA | GB | |
