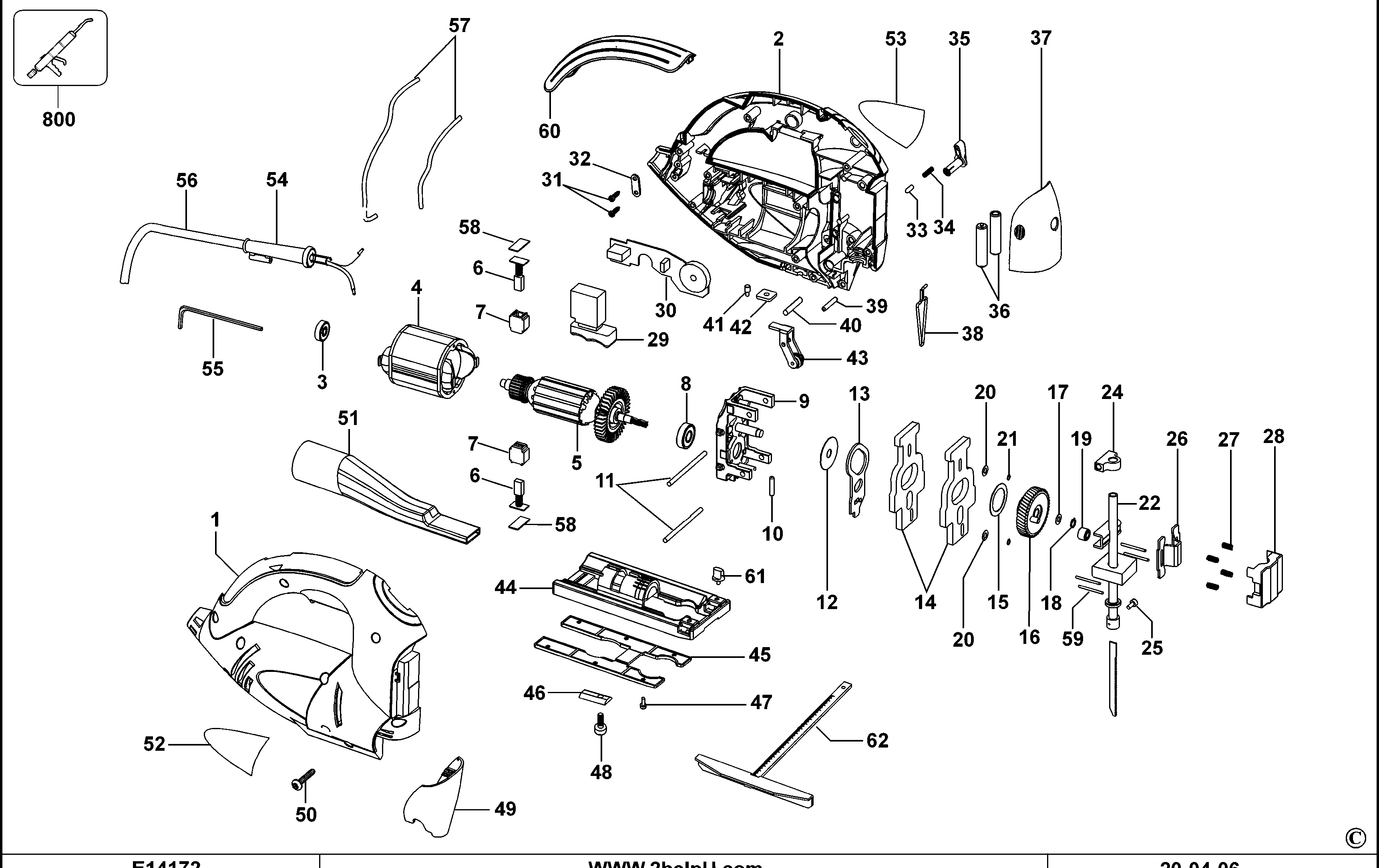

KS710LK JIGSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 597334-00 | 1 | HOUSING RH | GB |  |
||
| 2 | 597335-00 | 1 | HOUSING LH | GB | |
||
| 3 | 597336-00 | 1 | BEARING | 626 - 2Z/C3 | GB | |
|
| 4 | 597337-00 | 1 | FIELD 230V | GB | |
||
| 5 | 597338-00 | 1 | ARMATURE 230V | GB | |
||
| 6 | 597339-00 | 2 | BRUSH | GB | |
||
| 7 | 597340-00 | 2 | BRUSH HOLDER | GB | |
||
| 8 | 597341-00 | 1 | BEARING | 609 - 2RZ/C3 | GB | |
|
| 9 | 597342-00 | 1 | GEARCASE | GB | |
||
| 10 | 597343-00 | 1 | PIN | GB | |
||
| 11 | 597344-00 | 2 | PIN | GB | |
||
| 12 | 597345-00 | 1 | WASHER | GB | |
||
| 13 | 597346-00 | 1 | PLATE | GB | |
||
| 14 | 597347-00 | 2 | COUNTERWEIGHT | GB | |
||
| 15 | 597348-00 | 1 | WASHER | GB | |
||
| 16 | 597349-00 | 1 | GEAR | GB | |
||
| 17 | 597350-00 | 1 | WASHER | GB | |
||
| 18 | 597351-00 | 1 | RING | GB | |
||
| 19 | 597352-00 | 1 | BEARING NEEDLE | GB | |
||
| 20 | 597353-00 | 2 | WASHER | GB | |
||
| 21 | 597354-00 | 2 | RING | GB | |
||
| 22 | 597355-00 | 1 | SHAFT SA | GB | |
||
| 24 | 597356-00 | 1 | BEARING SLIDE | GB | |
||
| 25 | 597357-00 | 1 | SCREW | GB | |
||
| 26 | 597358-00 | 1 | CLAMP | GB | |
||
| 27 | 597359-00 | 4 | SPRING | GB | |
||
| 28 | 597360-00 | 1 | HOLDER | GB | |
||
| 29 | 597361-00 | 1 | SWITCH | GB | |
||
| 30 | 597362-00 | 1 | ELECTRONIC | GB | |
||
| 31 | 597363-00 | 2 | SCREW | GB | |
||
| 32 | 597364-00 | 1 | CORD CLAMP | GB | |
||
| 33 | 597365-00 | 1 | PIVOT | GB | |
||
| 34 | 597366-00 | 1 | SPRING | GB | |
||
| 35 | 597367-00 | 1 | LEVER | GB | |
||
| 36 | AAABATTERY | 2 | BATTERY | AAA Battery | GB | ||
| 37 | 597368-00 | 1 | HOUSING SA | GB | |
||
| 38 | 597369-00 | 1 | SUPPORT | GB | |
||
| 39 | 597370-00 | 1 | AXLE | GB | |
||
| 40 | 597371-00 | 1 | AXLE | GB | |
||
| 41 | 597372-00 | 1 | PIN | GB | |
||
| 42 | 597373-00 | 1 | NUT | GB | |
||
| 43 | 597374-00 | 1 | BLADE SUPPORT SA | GB | |
||
| 44 | 597375-00 | 1 | BASEPLATE | GB | |
||
| 45 | 597376-00 | 1 | COVER | GB | |
||
| 46 | 597377-00 | 1 | RETAINER | GB | |
||
| 47 | 597378-00 | 6 | SCREW | GB | |
||
| 48 | 597379-00 | 1 | SCREW | GB | |
||
| 49 | 597380-00 | 1 | GUARD | GB | |
||
| 50 | 597381-00 | 1 | SCREW | 3.5 x 19 | GB | |
|
| 51 | 597382-00 | 1 | VACUUM ADAPTOR | GB | |
||
| 52 | 597383-00 | 1 | NAMEPLATE | GB | |
||
| 53 | 597384-00 | 1 | BRAND LABEL | GB | |
||
| 54 | 597385-00 | 1 | CORD PROTECTOR | GB | |
||
| 55 | 597386-00 | 1 | HEX KEY 3 MM | GB | |
||
| 56 | 597388-00 | 1 | CORDSET | GB | |
||
| 57 | 597389-00 | 2 | LEADWIRE | GB | |
||
| 58 | 597390-00 | 2 | BLOCK | GB | |
||
| 59 | 597391-00 | 4 | ROLLER | GB | |
||
| 60 | 597392-00 | 1 | HANDLE COVER | GB | |
||
| 61 | 1002479-00 | 2 | THUMBSCREW | GB | |
||
| 62 | 1002480-00 | 1 | RIP FENCE | GB | |
||
| 800 | 870889-03 | 1 | GREASE | RENOLIT PARAGON EP ½ - 20 GRAMS | GB |  |
