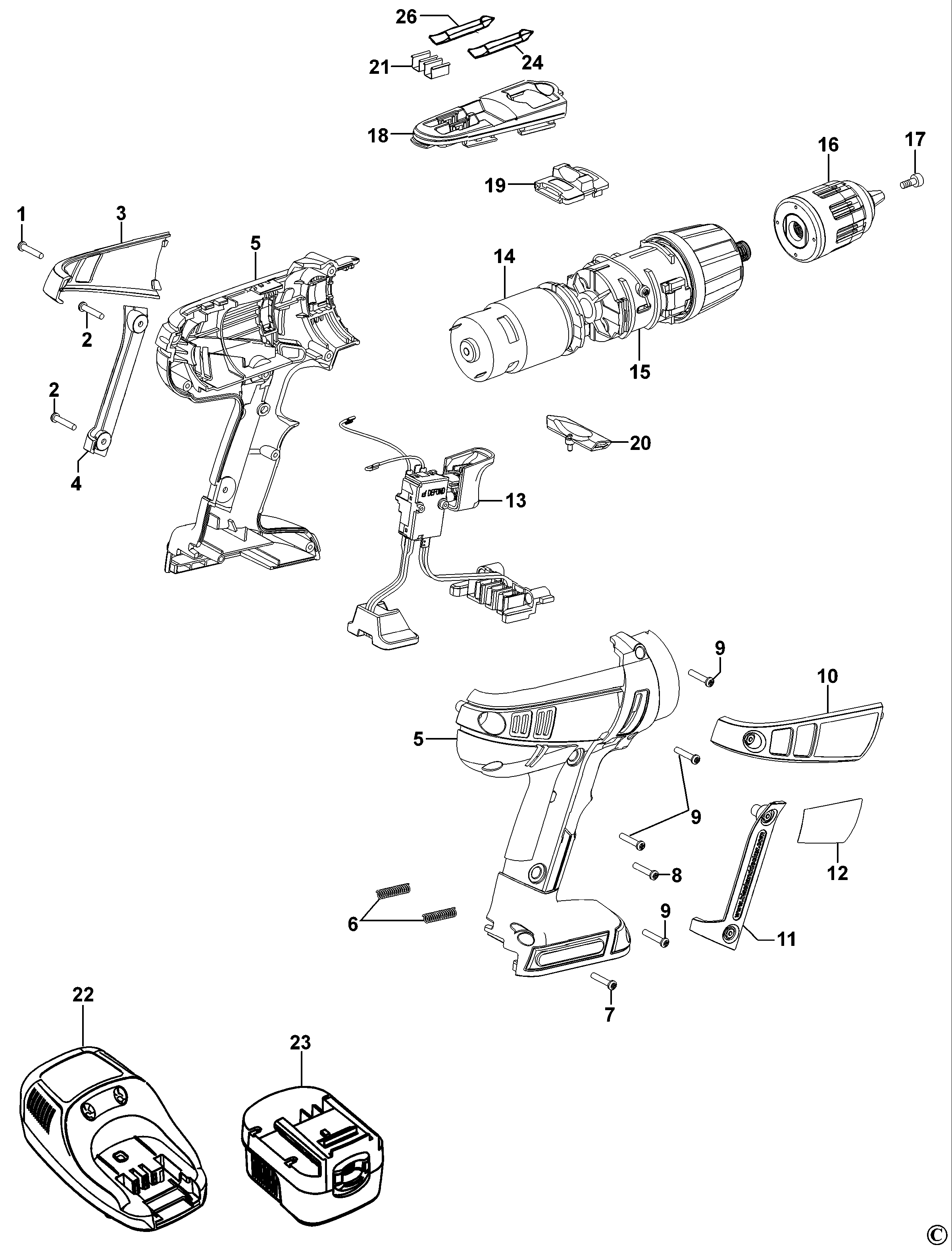

XTC126BK CORDLESS DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5145507-03 | 1 | SCREW | M3.5 x 34 - T20 | GB |  |
|
| 1 | 571824-00 | 1 | GEARCASE SA | GB | |
||
| 2 | 5145507-02 | 2 | SCREW | M3.5 x 25 - T20 | GB | |
|
| 2 | 569588-00 | 1 | FIELD 230V | GB | |
||
| 3 | 5146443-00 | 1 | COVERPLATE | GB | |
||
| 3 | 398646-00 | 1 | ADAPTOR | GB | |
||
| 4 | 5146441-00 | 1 | COVER | GB | |
||
| 5 | 5145486-04 | 1 | CLAMSHELL | 12 V | GB | |
|
| 5 | 575684-00 | 1 | MOTOR SA | GB | |||
| 6 | 5100035-03 | 2 | SPRING | GB |  |
||
| 6 | 401637-00 | 1 | FIELDCASE | GB | |
||
| 7 | 5146420-02 | 1 | SCREW | GB | |
||
| 7 | 798723-06 | 1 | CHUCK KEYLESS | GB | |
||
| 8 | 5146420-00 | 1 | SCREW | M3.5 x 9mm - T15 | GB | |
|
| 8 | 90528126 | 4 | FILTER | FVF90 | GB | |
|
| 9 | 5146420-01 | 4 | SCREW | GB | |
||
| 9 | 90510011 | 1 | SWITCH SA | GB | |||
| 10 | 5146444-00 | 1 | SUPPORT PLATE | GB | |
||
| 10 | N075277 | 1 | RATING PLATE | BR | GB | ||
| 11 | 5146442-00 | 1 | COVER | GB | |
||
| 11 | 569577-19 | 1 | FIELD SA 115V | GB | |
||
| 12 | 90504338 | 1 | RATING PLATE | GB | |
||
| 13 | 5147013-00 | 1 | SWITCH SA | 12 V | GB | |
|
| 13 | 401966-00 | 1 | ELECTRONIC 115V | GB | |
||
| 14 | 5147016-00 | 1 | MOTOR SA | 12 V | GB | |
|
| 15 | 5146602-00 | 1 | GEARBOX SA | GB | |
||
| 16 | 419233-17 | 1 | CHUCK KEYLESS | GB | |
||
| 16 | 90530026 | 1 | BATTERY PACK 6V | NiMH | GB | |
|
| 17 | 5103096-01 | 1 | SCREW | GB | |
||
| 17 | 402485-01 | 1 | KIT SA | GB | |
||
| 18 | 5145492-01 | 1 | COVER-TOP | GB | |
||
| 18 | 869245-00 | 2 | SCREW | GB | |
||
| 19 | 5147020-00 | 1 | ACTUATOR | GB | |
||
| 20 | 5145488-00 | 1 | ACTUATOR FWD/REV | GB | |
||
| 21 | 148354-03 | 2 | HOLDER | GB | |
||
| 22 | 90501636 | 1 | CHARGER SA | 9.6 - 18V NiMH/RoHS | GB | |
|
| 23 | 499948-58 | 1 | BATTERY 12V - 1.7AH | GB | |
||
| 24 | 419581-01 | 2 | BIT | GB | |||
| 26 | 419581-62 | 1 | BIT | GB | |
