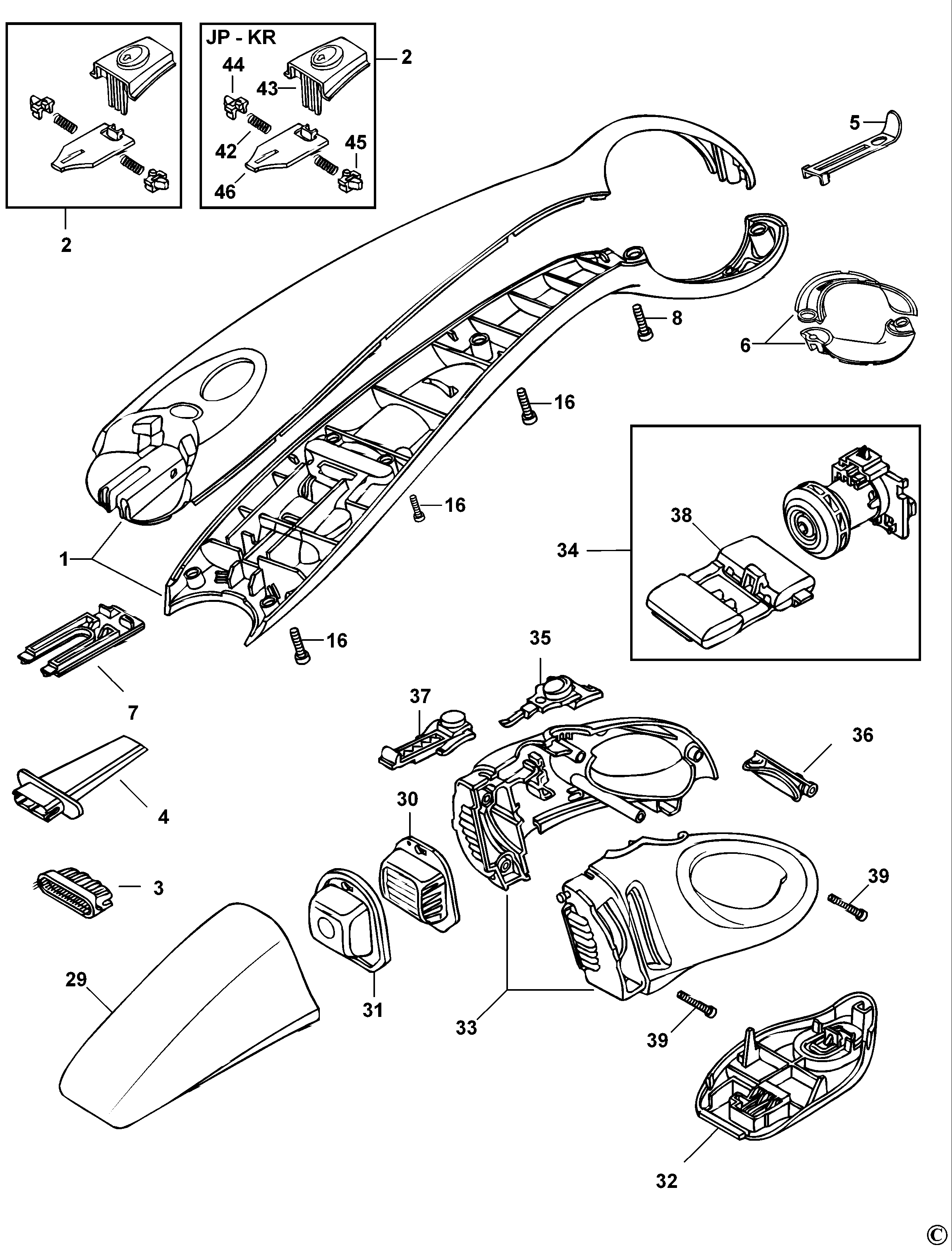

FV1201 FLOOR VAC Type H1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5101446-03 | 1 | HANDLE SA | GB |  |
||
| 2 | 5101449-00 | 1 | BUTTON SA | GB | |
||
| 3 | 499748-06 | 1 | BRUSH SA | GB | |
||
| 4 | 499745-06 | 1 | TOOL CREVICE | GB | |
||
| 5 | 5101479-00 | 1 | LOOP HANDLE | GB | |
||
| 6 | 5101444-00 | 1 | INSERT SA | GB | |
||
| 7 | 5101476-01 | 1 | COVER | Indigo | GB | |
|
| 8 | 5101502-00 | 2 | SCREW | 3.5 x 38mm | GB | |
|
| 9 | 5101443-03 | 1 | HOUSING PAIR | 12 Volt - Indigo | GB | ||
| 10 | 5101447-00 | 1 | LEAD SA | GB | |
||
| 11 | 499738-05 | 1 | CONTACT SA | GB | |
||
| 12 | 5101461-03 | 1 | FUNNEL | GB | |
||
| 13 | 5101464-01 | 1 | COVER | GB | |
||
| 14 | 5101450-00 | 1 | CATCH SA | GB | |
||
| 15 | 5101503-00 | 6 | SCREW | 3.5 x 12mm | GB | |
|
| 16 | 5100439-01 | 10 | SCREW | 3.6 x 18mm | GB | |
|
| 17 | 5100550-01 | 1 | POWERBRUSH SA | GB | |
||
| 18 | 5100562-03 | 1 | MOTOR SA | 12 Volt | GB | |
|
| 19 | 5100561-00 | 1 | BELT TOOTHED | GB | |
||
| 20 | 5101492-00 | 4 | AXLE | 2.5 x 30mm | GB | |
|
| 21 | 5101486-00 | 4 | ROLLER | GB | |
||
| 22 | 5101439-04 | 1 | HOUSING PAIR | Grey | GB | |
|
| 23 | 5101462-01 | 1 | CAP | Indigo | GB | |
|
| 24 | 90503268 | 1 | INSERT | GB | |
||
| 25 | 5101478-01 | 1 | COVER | GB | |
||
| 26 | 419799-05 | 2 | SCREW | GB | |
||
| 27 | 5101503-00 | 6 | SCREW | 3.5 x 12mm | GB | |
|
| 28 | 5100439-01 | 5 | SCREW | 3.6 x 18mm | GB | |
|
| 29 | 90503266 | 1 | BOWL | GB | |
||
| 30 | 499739-01 | 1 | FILTER | GB |  |
||
| 31 | 499742-00 | 1 | COVER | GB | |
||
| 32 | 499724-10 | 1 | HOUSING LOWER | GB | |
||
| 33 | 5101448-04 | 1 | CLAMSHELL SET | GB | |||
| 34 | 499697-25 | 1 | BATTERY & MOTOR SA | 12V - NiCd | GB | |
|
| 35 | 5101437-03 | 1 | SWITCH SA | Indigo | GB | |
|
| 36 | 499744-17 | 1 | INSERT | Indigo | GB | |
|
| 37 | 499721-13 | 1 | LATCH | GB | |
||
| 38 | 499694-14 | 1 | BATTERY PACK 12V | NiCd | GB | |
|
| 39 | 499903-00 | 5 | SCREW | GB | |
||
| 40 | 5101484-00 | 1 | HOOK | GB | |
||
| 41 | 90501182 | 1 | CHARGER GB | 12 Volt - RoHS | GB | |
