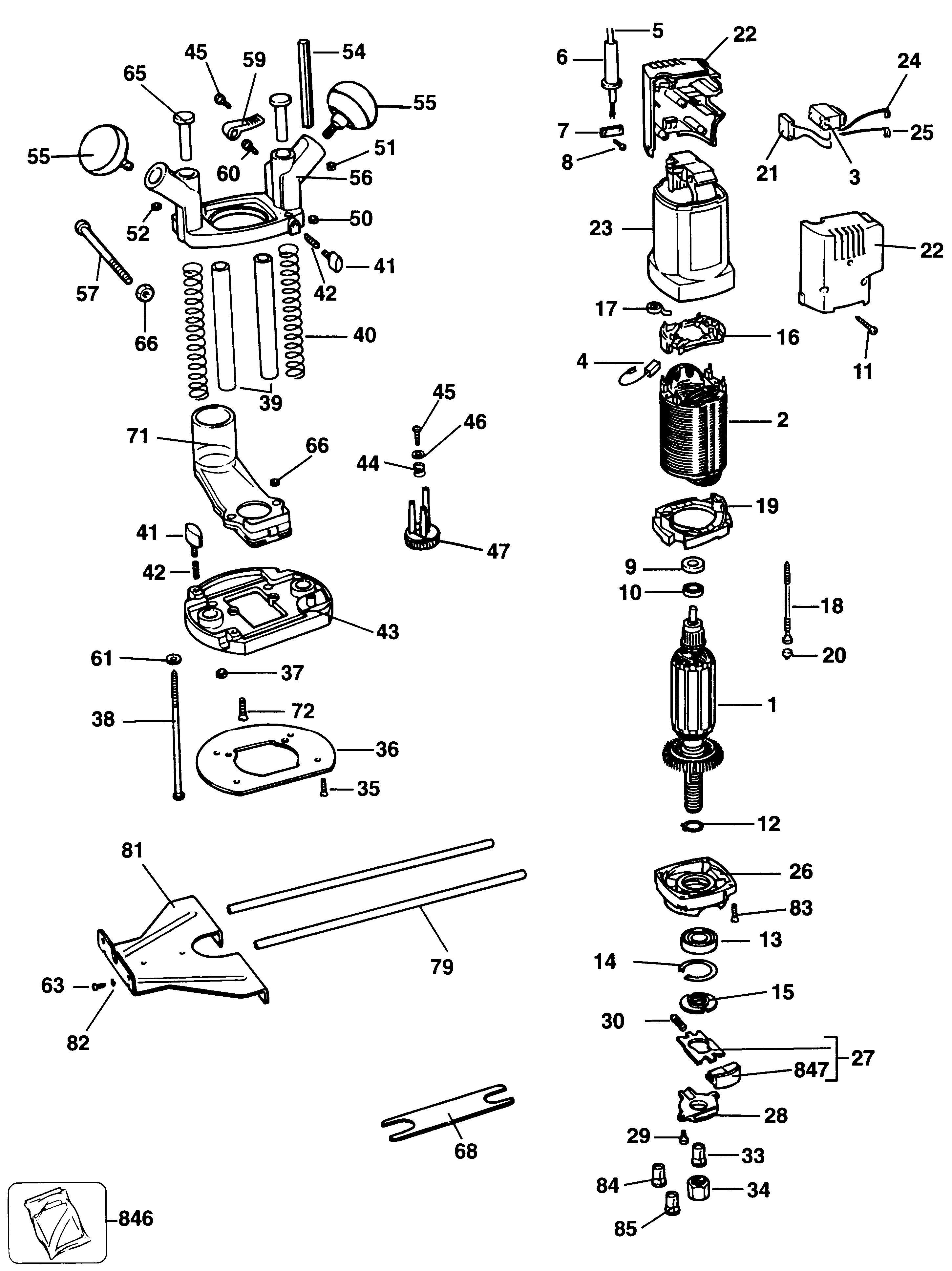

BD779 ROUTER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 868630-00 | 1 | ARMATURE | GB |  |
||
| 1 | 868126-00 | 1 | FAN | GB | |||
| 2 | 930441-00 | 1 | FIELD 240V | GB | |
||
| 3 | N566709 | 1 | SWITCH | GB |  |
||
| 3 | N171838 | 1 | SWITCH SA | EMI | GB | |
|
| 4 | 930760-00 | 2 | BRUSH 230V | GB | |
||
| 4 | 33910 | 2 | TOOL REST | GB | |
||
| 5 | 330060-03 | 1 | CABLE & PLUG | GB | |
||
| 5 | 582212-00 | 1 | PCB | GB | |||
| 6 | 949835-01 | 1 | PROTECTOR | GB | |
||
| 6 | 944366-01 | 1 | BUSH | GB | |
||
| 7 | 930103-00 | 1 | CORD CLAMP | GB | |
||
| 7 | N406306 | 1 | TUBE | HIGH TEMPERATURE | GB | ||
| 8 | 930276 | 2 | SCREW | GB | |
||
| 8 | 949640-02 | 2 | BRUSH LED | GB | |
||
| 9 | 930029-00 | 1 | HOLDER BEARING | GB | |
||
| 10 | 330003-34 | 1 | BEARING | GB | |
||
| 10 | 942926 | 1 | FIELD 220V | GB | |
||
| 11 | 930079-01 | 7 | SCREW | GB | |
||
| 11 | 330003-67 | 7 | BEARING | GB | |||
| 12 | 930098-00 | 1 | RETAINER | GB | |
||
| 12 | 494271-00 | 1 | THRUST PLATE | GB | |
||
| 15 | 944484-00 | 1 | LOCKING RING | GB | |
||
| 15 | 860073-04 | 1 | WASHER | GB | |
||
| 16 | 930746-00 | 1 | BRUSH HOLDER SA | GB | |
||
| 16 | 369148-11 | 1 | BRAND LABEL | GB | |
||
| 17 | 930090-00 | 2 | BRUSH SPRING | GB | |
||
| 17 | 578037-00 | 2 | BRAND LABEL | GB | |
||
| 18 | 930077-00 | 2 | SCREW | GB | |
||
| 18 | 944544 | 6 | NUT | GB | |
||
| 18 | 586838-00 | 2 | CLAMSHELL SET | green | GB | |
|
| 19 | 943173-00 | 1 | BAFFLE | GB | |
||
| 19 | 863706-01 | 1 | PROTECTOR | GB | |
||
| 20 | 933657-00 | 2 | CAP | GB | |
||
| 20 | 861487-00 | 2 | WHEEL SA | GB | |||
| 21 | 949877-01 | 1 | CAPACITOR | GB | |
||
| 21 | 1004756-14 | 1 | LEVER LOCK-OFF | GB | |
||
| 22 | 944739-00 | 1 | HANDLE | GB | |
||
| 22 | 945663-00 | 1 | PARTS PACK | GB | |
||
| 23 | 943169-01 | 1 | FIELDCASE | GB | |||
| 24 | 949801-11 | 1 | LEAD | GB | |
||
| 24 | 44375 | 1 | COVER | GB | |
||
| 25 | 949801-10 | 1 | LEAD | GB | |
||
| 25 | 44374 | 1 | CAP | GB | |||
| 26 | 944856-00 | 1 | HOUSING LOWER | GB | |
||
| 26 | 180114901 | 1 | HOUSING | GB | |
||
| 27 | 401027-00 | 1 | BUTTON SA | GB | |
||
| 27 | 401039-01 | 1 | KITBOX | GB | |
||
| 28 | 944386-00 | 1 | COVER | GB | |
||
| 28 | 625419-00 | 1 | GUARD | GB | |||
| 29 | 930251-01 | 2 | SCREW.TEMP | GB | |
||
| 29 | 638529-00 | 2 | TERMINAL BLOCK | GB | |
||
| 30 | N406641 | 1 | SPRING COMPRESSION | GB | |
||
| 30 | 34524 | 1 | KNOB | GB | |
||
| 33 | 943269-00 | 1 | COLLET 6MM | GB | |
||
| 34 | 943270-00 | 1 | COLLET NUT | GB | |
||
| 34 | 32603 | 1 | POINTER | GB | |
||
| 35 | 944593 | 1 | SCREW | GB | |
||
| 35 | 330075-44 | 1 | CHUCK KEYLESS | GB | |
||
| 36 | 944492 | 1 | BASE | GB | |
||
| 36 | 147858-00 | 1 | ADAPTOR | GB | |
||
| 37 | 930243 | 2 | NUT | GB | |
||
| 37 | 322275 | 2 | KNOB | GB | |
||
| 38 | 945749-00 | 2 | SCREW.TEMP | GB | |
||
| 38 | 577432-00 | 2 | SWITCHBOX SA | GB | |
||
| 39 | 944495 | 2 | COLUMN | GB | |
||
| 40 | 944549 | 2 | SPRING | GB | |
||
| 41 | 326573-01 | 4 | SCREW WING | GB | |
||
| 41 | 1004771-29 | 4 | TANK | GB | |
||
| 42 | 868082-00 | 3 | SPRING | GB | |
||
| 42 | 577708-01 | 3 | COVER-TOP | GB | |
||
| 43 | 944494 | 1 | BASE | GB | |
||
| 43 | 370936-03 | 1 | SHEATH | 40cm - Orange | GB | |
|
| 44 | 944592 | 1 | SPRING | GB | |||
| 44 | 577789-00 | 1 | BRAND LABEL | GB | |
||
| 45 | 930240 | 2 | SCREW | GB | |
||
| 45 | 376631-04 | 2 | RATING PLATE | GB | |
||
| 46 | 949876-03 | 1 | WASHER | GB | |
||
| 46 | 940988-46 | 1 | LEAD | GB | |
||
| 47 | 402928-00 | 1 | ADJUSTER DEPTH | GB | |
||
| 47 | 568523-00 | 1 | CLAMSHELL | GB | |
||
| 50 | 949726-05 | 1 | NUT | GB | |
||
| 50 | 44430 | 1 | CAPACITOR | GB | |
||
| 51 | 896369 | 1 | NUT | GB | |
||
| 51 | 6010029-19 | 1 | CABLE | INTERNAL | GB | ||
| 52 | 860083-14 | 2 | NUT | GB | |
||
| 52 | 577795-00 | 2 | RING | GB | |
||
| 54 | 946373-00 | 1 | DEPTH STOP,IMPERIAL | GB | |
||
| 55 | 947143-00 | 2 | HANDLE | GB | |
||
| 55 | 931419-00 | 2 | PIN | GB | |
||
| 56 | 402930-00 | 1 | BRACKET SA | GB | |
||
| 57 | 949701-01 | 1 | SCREW | GB | |
||
| 57 | 949843-07 | 1 | CABLE | GB | |
||
| 59 | 944483 | 1 | LEVER | GB | |
||
| 59 | 147194-00 | 1 | SEAL | GB | |
||
| 60 | 944486 | 1 | SCREW.TEMP | GB | |
||
| 60 | 147973-00 | 1 | PIN | GB | |
||
| 61 | 937883 | 2 | WASHER | GB | |
||
| 61 | 860784-00 | 2 | CAP | GB | |
||
| 63 | 931787 | 2 | SCREW | GB | |
||
| 63 | 322747 | 2 | WARNING LABEL | GB | |||
| 65 | 944487 | 2 | COVER | GB | |
||
| 65 | 798666-02 | 2 | CLAMSHELL | GB | |
||
| 66 | 930244-00 | 3 | NUT | GB | |
||
| 68 | 943276 | 1 | WRENCH | GB | |||
| 68 | 385023-01 | 1 | CLAMSHELL | GB | |||
| 71 | 945304-00 | 1 | DUST EXTRACTOR | GB | |
||
| 71 | 147188-01 | 1 | BEARING | GB | |
||
| 72 | 869076-00 | 2 | SCREW | GB | |
||
| 72 | 869076-00 | 2 | SCREW | GB | |
||
| 79 | 568573-00 | 2 | GUIDE ROD | GB | |
||
| 81 | 945657-00 | 1 | GUIDE FENCE | GB | |
||
| 81 | 579967-00 | 1 | WARNING LABEL | GB | |
||
| 82 | 930248-00 | 2 | WASHER | GB | |
||
| 82 | N464860 | 2 | RATING LABEL | DWE402 TYPE 4 | GB | ||
| 84 | 943269-01 | 1 | COLLET 6.35MM | GB | |
||
| 85 | 943269-02 | 1 | COLLET 8MM | GB | |
||
| 846 | 945663-03 | 1 | PARTS PACK | GB | |
||
| 847 | 401026-00 | 1 | BUTTON | GB | |
||
| 847 | 323264-49 | 1 | ARMATURE | GB | |
