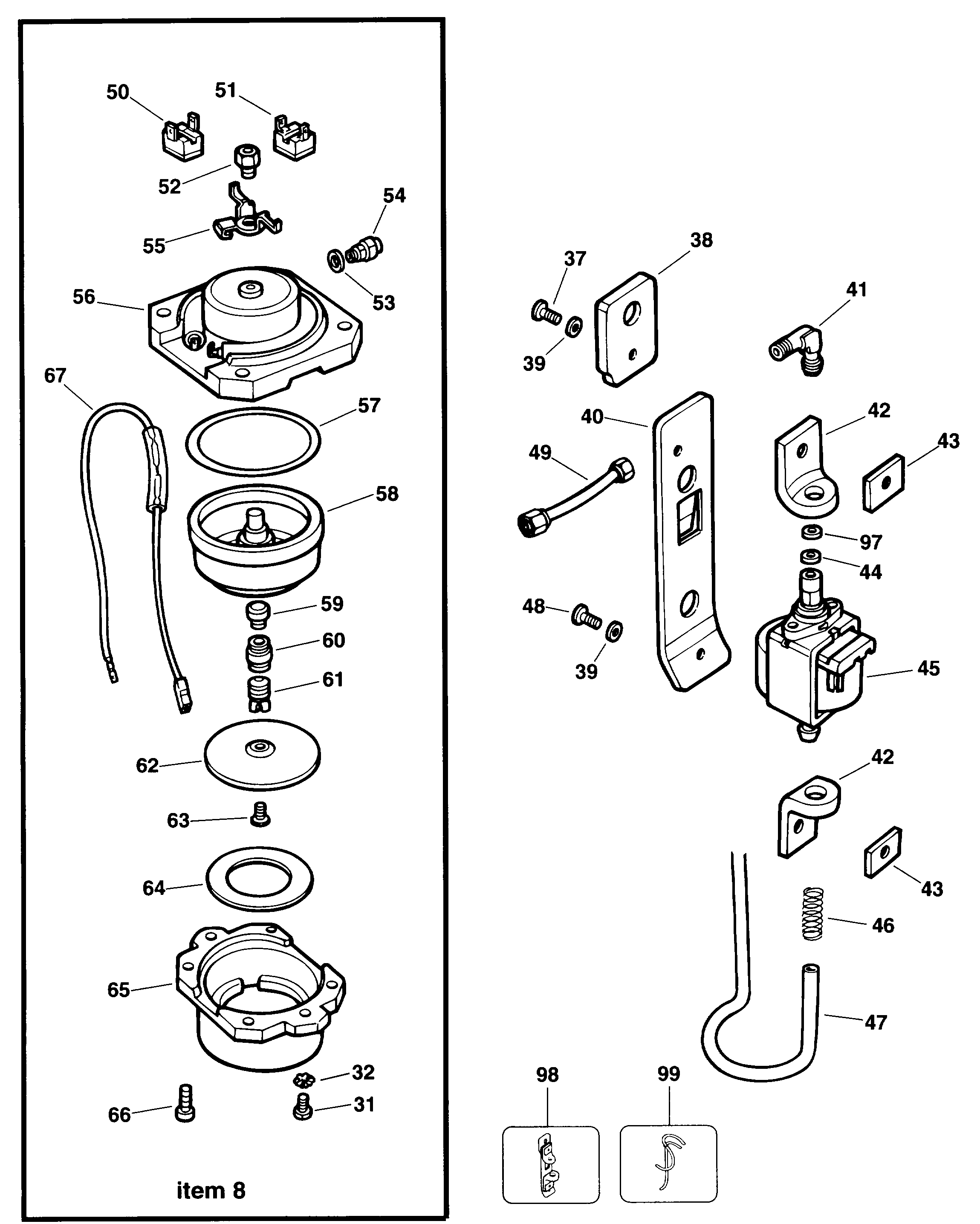

EM5N COFFEEMAKER Type 1 | Drawings
Documents

Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
---|---|---|---|---|---|---|---|
1 | 752855 | 1 | COVER REAR | XJ | ![]() |
||
2 | 752868 | 4 | SCREW | XJ | ![]() |
||
3 | 560021-00 | 1 | COVER | EM5N | XJ | ![]() |
|
3 | 560021-00 | 1 | COVER | EM5 (2) | XJ | ![]() |
|
3 | 752856 | 1 | COVER | EM5 (1) | XJ | ![]() |
|
4 | 752865 | 1 | HANDLE | XJ | ![]() |
||
5 | 752867 | 1 | RESERVOIR | EM5 (1) | XJ | ![]() |
|
5 | 560024-00 | 1 | RESERVOIR | EM5 (2) | XJ | ![]() |
|
5 | 560024-00 | 1 | RESERVOIR | EM5N | XJ | ![]() |
|
6 | 560037-00 | 1 | PIPE | EM5 (2) | XJ | ![]() |
|
6 | 560037-00 | 1 | PIPE | EM5N | XJ | ![]() |
|
7 | 560025-00 | 1 | VALVE | EM5 (2) | XJ | ![]() |
|
7 | 560025-00 | 1 | VALVE | EM5N | XJ | ![]() |
|
8 | 560401-00 | 1 | BOILER SA | EM5N | XJ | ![]() |
|
8 | 560401-00 | 1 | BOILER SA | EM5 (2) | XJ | ![]() |
|
8 | 752857 | 1 | BOILER SA | EM5 (1) | XJ | ![]() |
|
9 | 752873 | 2 | SCREW | XJ | ![]() |
||
10 | 752872 | 3 | WASHER | XJ | ![]() |
||
11 | 752890 | 1 | LEAD EARTH | EM5 (1) | XJ | ![]() |
|
11 | 560029-00 | 1 | LEAD EARTH | EM5N | XJ | ![]() |
|
11 | 560029-00 | 1 | LEAD EARTH | EM5 (2) | XJ | ![]() |
|
12 | 752892 | 4 | NUT | EM5 (1) | XJ | ![]() |
|
12 | 560030-00 | 1 | NUT | EM5N | XJ | ![]() |
|
12 | 560030-00 | 1 | NUT | EM5 (2) | XJ | ![]() |
|
13 | 560076-00 | 1 | CASING | EM5N | XJ | ![]() |
|
13 | 752878 | 1 | CASING | EM5 (1) | XJ | ![]() |
|
13 | 560074-00 | 1 | CASING | EM5 (2) | XJ | ![]() |
|
14 | 752886 | 1 | KNOB | XJ | ![]() |
||
15 | 752871 | 1 | SPOUT | XJ | ![]() |
||
16 | 752883 | 1 | HOLDER | XJ | ![]() |
||
17 | 560038-00 | 1 | BASE | EM5N | XJ | ![]() |
|
17 | 560038-00 | 1 | BASE | EM5 (2) | XJ | ![]() |
|
18 | 752880 | 1 | MEASURE | XJ | ![]() |
||
19 | 752884 | 1 | HOLDER | XJ | ![]() |
||
20 | 752879 | 4 | FOOT | XJ | ![]() |
||
21 | 560028-00 | 1 | CORD CLAMP | EM5N | XJ | ![]() |
|
21 | 560028-00 | 1 | CORD CLAMP | EM5 (2) | XJ | ![]() |
|
22 | 752906 | 1 | CORDSET | XJ | ![]() |
||
23 | 560033-00 | 2 | SCREW | EM5N | XJ | ![]() |
|
23 | 560033-00 | 2 | SCREW | EM5 (2) | XJ | ![]() |
|
24 | 560035-00 | 1 | COVER | EM5N | XJ | ![]() |
|
24 | 560035-00 | 1 | COVER | EM5 (2) | XJ | ![]() |
|
25 | 560036-00 | 1 | SCREW | EM5N | XJ | ![]() |
|
25 | 560036-00 | 1 | SCREW | EM5 (2) | XJ | ![]() |
|
26 | 752894 | 1 | TERMINAL BLOCK | EM5 (1) | XJ | ![]() |
|
26 | 560031-00 | 1 | TERMINAL BLOCK | EM5N | XJ | ![]() |
|
26 | 560031-00 | 1 | TERMINAL BLOCK | EM5 (2) | XJ | ![]() |
|
27 | 752869 | 2 | SCREW | EM5N | XJ | ![]() |
|
27 | 752869 | 2 | SCREW | EM5 (2) | XJ | ![]() |
|
27 | 752869 | 1 | SCREW | EM5 (1) | XJ | ![]() |
|
28 | 560040-00 | 1 | BASEPLATE | EM5N | XJ | ![]() |
|
28 | 560039-00 | 1 | BASEPLATE | EM5 (2) | XJ | ![]() |
|
29 | 752877 | 1 | TRAY DRIP | XJ | ![]() |
||
30 | 752875 | 1 | PESTLE | XJ | ![]() |
||
31 | 752899 | 2 | SCREW | XJ | ![]() |
||
32 | 752900 | 2 | WASHER | XJ | ![]() |
||
33 | 752876 | 1 | GRID | XJ | ![]() |
||
34 | 752874 | 1 | SWITCH | XJ | ![]() |
||
36 | 560075-00 | 1 | TUBE SILICONE | EM5N | XJ | ![]() |
|
36 | 560075-00 | 1 | TUBE SILICONE | EM5 (2) | XJ | ![]() |
|
37 | 560065-00 | 1 | SCREW | EM5N | XJ | ![]() |
|
37 | 560065-00 | 1 | SCREW | EM5 (2) | XJ | ![]() |
|
38 | 560068-00 | 1 | DAMPER | EM5N | XJ | ![]() |
|
38 | 560068-00 | 1 | DAMPER | EM5 (2) | XJ | ![]() |
|
39 | 560066-00 | 2 | WASHER | EM5N | XJ | ![]() |
|
39 | 560066-00 | 2 | WASHER | EM5 (2) | XJ | ![]() |
|
40 | 752901 | 1 | HOLDER | EM5 (1) | XJ | ![]() |
|
40 | 560069-00 | 1 | BRACKET | EM5N | XJ | ![]() |
|
40 | 560069-00 | 1 | BRACKET | EM5 (2) | XJ | ![]() |
|
41 | 752905 | 1 | COUPLING | XJ | ![]() |
||
42 | 752902 | 2 | SHOCK ABSORBER | XJ | ![]() |
||
43 | 752903 | 2 | PLATE | XJ | ![]() |
||
44 | 560032-00 | 1 | GASKET | EM5N | XJ | ![]() |
|
44 | 560032-00 | 1 | GASKET | EM5 (2) | XJ | ![]() |
|
44 | 752913 | 1 | GASKET | EM5 (1) | XJ | ![]() |
|
45 | 752022 | 1 | PUMP 220V | XJ | ![]() |
||
46 | 752907 | 1 | SPRING | XJ | ![]() |
||
47 | 752908 | 1 | TUBE SILICONE | XJ | ![]() |
||
48 | 752904 | 2 | SCREW | XJ | ![]() |
||
49 | 560067-00 | 1 | TUBE SA | EM5N | XJ | ![]() |
|
49 | 560067-00 | 1 | TUBE SA | EM5 (2) | XJ | ![]() |
|
50 | 560054-00 | 1 | THERMOSTAT | EM5N | XJ | ![]() |
|
50 | 560054-00 | 1 | THERMOSTAT | EM5 (2) | XJ | ![]() |
|
50 | 752860 | 1 | THERMOSTAT | EM5 (1) | XJ | ![]() |
|
51 | 752861 | 1 | THERMOSTAT | XJ | ![]() |
||
52 | 560061-00 | 1 | NUT | EM5N | XJ | ![]() |
|
52 | 560061-00 | 1 | NUT | EM5 (2) | XJ | ![]() |
|
53 | 560060-00 | 1 | WASHER | EM5N | XJ | ![]() |
|
53 | 560060-00 | 1 | WASHER | EM5 (2) | XJ | ![]() |
|
54 | 560059-00 | 1 | CONNECTOR | EM5N | XJ | ![]() |
|
54 | 560059-00 | 1 | CONNECTOR | EM5 (2) | XJ | ![]() |
|
55 | 560062-00 | 1 | RETAINER | EM5N | XJ | ![]() |
|
55 | 560062-00 | 1 | RETAINER | EM5 (2) | XJ | ![]() |
|
55 | 752918 | 1 | RETAINER | EM5 (1) | XJ | ![]() |
|
56 | 560063-00 | 1 | HEATER SA | EM5N | XJ | ![]() |
|
56 | 560063-00 | 1 | HEATER SA | EM5 (2) | XJ | ![]() |
|
57 | 752921 | 1 | GASKET | XJ | ![]() |
||
58 | 752922 | 1 | BOILER | EM5 (1) | XJ | ![]() |
|
58 | 560057-00 | 1 | BOILER | EM5 (2) | XJ | ![]() |
|
58 | 560057-00 | 1 | BOILER | EM5N | XJ | ![]() |
|
59 | 560053-00 | 1 | VALVE | EM5N | XJ | ![]() |
|
59 | 560053-00 | 1 | VALVE | EM5 (2) | XJ | ![]() |
|
59 | 752859 | 1 | VALVE | EM5 (1) | XJ | ![]() |
|
60 | 752862 | 1 | SPRING | XJ | ![]() |
||
61 | 752863 | 1 | CONNECTOR | XJ | ![]() |
||
62 | 752864 | 1 | GRID | XJ | ![]() |
||
63 | 752866 | 1 | SCREW | XJ | ![]() |
||
64 | 752923 | 1 | GASKET | XJ | ![]() |
||
65 | 752924 | 1 | HOUSING LOWER | EM5 (1) | XJ | ![]() |
|
65 | 560058-00 | 1 | HOUSING LOWER | EM5 (2) | XJ | ![]() |
|
65 | 560058-00 | 1 | HOUSING LOWER | EM5N | XJ | ![]() |
|
66 | 860093-16 | 4 | SCREW | EM5 (1) | XJ | ![]() |
|
66 | 560064-00 | 1 | BOLT | EM5N | XJ | ![]() |
|
66 | 560064-00 | 1 | BOLT | EM5 (2) | XJ | ![]() |
|
67 | 560023-00 | 1 | FUSE | EM5N | XJ | ![]() |
|
67 | 560023-00 | 1 | FUSE | EM5 (2) | XJ | ![]() |
|
67 | 752858 | 1 | FUSE | EM5 (1) | XJ | ![]() |
|
70 | 752882 | 1 | FILTER | XJ | ![]() |
||
71 | 752881 | 1 | FILTER | XJ | ![]() |
||
72 | 752885 | 1 | CORD PROTECTOR | EM5 (1) | XJ | ![]() |
|
73 | 752887 | 1 | VALVE SLIDE | EM5 (1) | XJ | ![]() |
|
74 | 752888 | 1 | NUT | EM5 (1) | XJ | ![]() |
|
75 | 752889 | 1 | GASKET | EM5 (1) | XJ | ![]() |
|
76 | 752891 | 4 | WASHER | EM5 (1) | XJ | ![]() |
|
77 | 752893 | 1 | NUT | EM5 (1) | XJ | ![]() |
|
78 | 752895 | 1 | INSULATOR | EM5 (1) | XJ | ![]() |
|
79 | 752896 | 1 | SCREW | EM5 (1) | XJ | ![]() |
|
80 | 752897 | 1 | SCREW | EM5 (1) | XJ | ![]() |
|
81 | 752898 | 2 | SCREW | EM5 (1) | XJ | ![]() |
|
82 | 752909 | 1 | CORD CLAMP | EM5 (1) | XJ | ![]() |
|
83 | 752910 | 2 | NUT | EM5 (1) | XJ | ![]() |
|
84 | 752911 | 1 | PLATE | EM5 (1) | XJ | ![]() |
|
85 | 752912 | 1 | HOLDER | EM5 (1) | XJ | ![]() |
|
86 | 752914 | 1 | CORD CLAMP | EM5 (1) | XJ | ![]() |
|
87 | 752915 | 2 | TUBE SA | EM5 (1) | XJ | ![]() |
|
88 | 752916 | 2 | NUT | EM5 (1) | XJ | ![]() |
|
89 | 752917 | 1 | HOUSING UPPER | EM5 (1) | XJ | ![]() |
|
90 | 752919 | 2 | GASKET | EM5 (1) | XJ | ![]() |
|
91 | 752920 | 2 | NUT | EM5 (1) | XJ | ![]() |
|
92 | 752041 | 1 | RESISTOR | EM5 (1) | XJ | ![]() |
|
93 | 752445 | 4 | BRACKET | EM5 (1) | XJ | ![]() |
|
94 | 752444 | 4 | NUT | EM5 (1) | XJ | ![]() |
|
95 | 752925 | 1 | COUPLING | EM5 (1) | XJ | ![]() |
|
96 | 560077-00 | 2 | SCREW | EM5N | XJ | ![]() |
|
96 | 560077-00 | 2 | SCREW | EM5 (2) | XJ | ![]() |
|
97 | 560078-00 | 1 | WASHER | EM5N | XJ | ![]() |
|
97 | 560078-00 | 1 | WASHER | EM5 (2) | XJ | ![]() |
|
98 | 568102-00 | 1 | LEAD | EM5N | XJ | ![]() |
|
98 | 568102-00 | 1 | LEAD | EM5 (2) | XJ | ![]() |
|
99 | 568101-00 | 1 | BRACKET SA | EM5N | XJ | ![]() |
|
99 | 568101-00 | 1 | BRACKET SA | EM5 (2) | XJ | ![]() |
