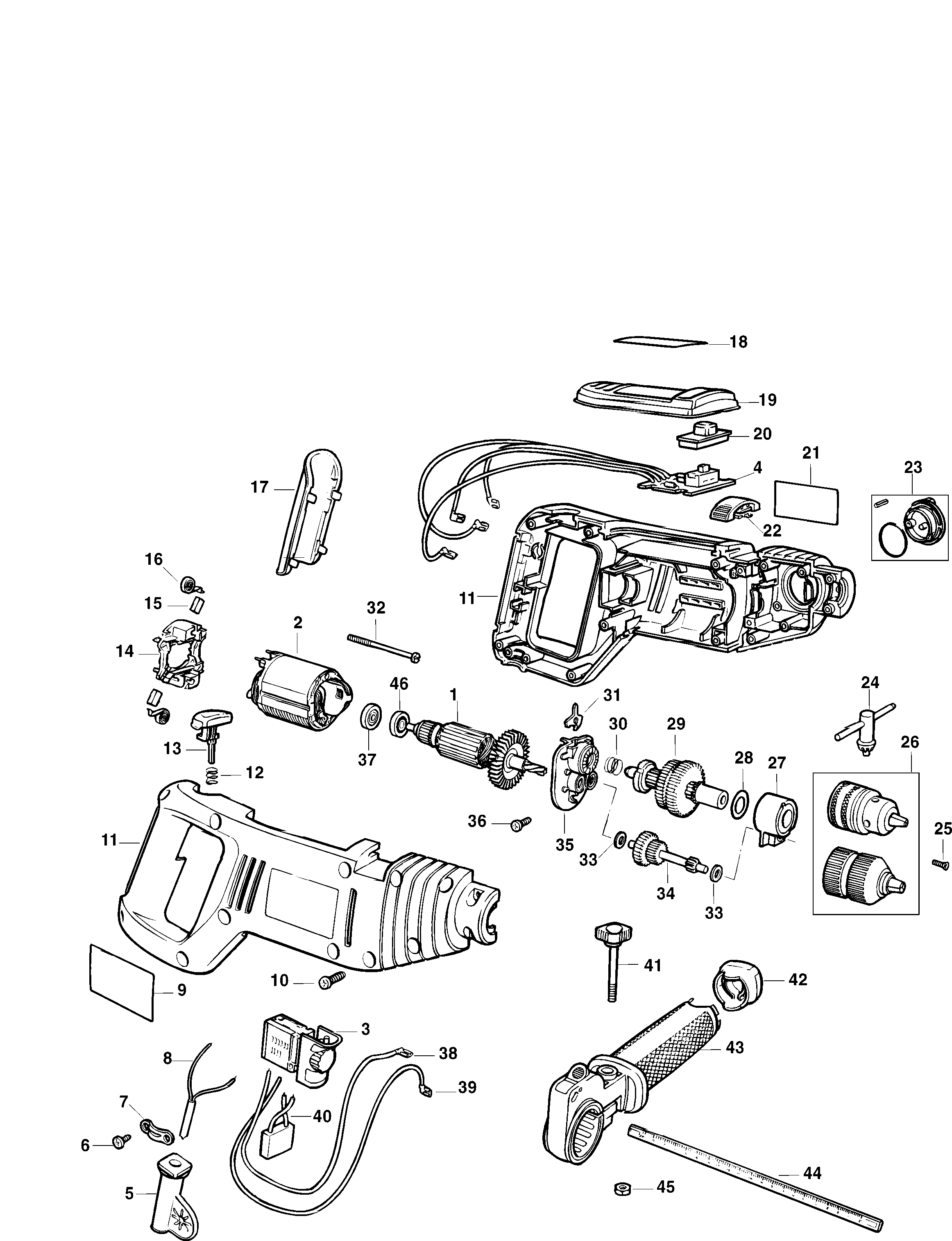

KD795RE HAMMER DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 806541-00 | 1 | ARMATURE SA | TYPE 1 | GB |  |
|
| 1 | 806541-03 | 1 | ARMATURE SA | TYPE 2 | GB | |
|
| 2 | 798832-04 | 1 | FIELD | TYPE 2 | GB | |
|
| 2 | 798832-01 | 1 | FIELD SA | TYPE 1 | GB | |
|
| 3 | 807440-01 | 1 | SWITCH VARIABLE | GB | |
||
| 4 | 808239-00 | 1 | PCB SA | GB | |
||
| 5 | 770236 | 1 | PROTECTOR | RE | GB |  |
|
| 5 | 770235 | 1 | PROTECTOR | CRE | GB | |
|
| 6 | 821057 | 1 | SCREW | No 6 x 12.7mm | GB | |
|
| 7 | 821070 | 1 | CORD CLAMP | GB | |
||
| 8 | 330060-53 | 1 | CORDSET | GB | |
||
| 10 | 809961 | 13 | SCREW | GB | |
||
| 11 | 806526 | 1 | CLAMSHELL | GB | |
||
| 12 | 748158 | 1 | SPRING | GB | |
||
| 13 | 806528 | 1 | BUTTON LOCK-ON | GB | |
||
| 14 | 806486-00 | 1 | BRUSH HOLDER PLATE | GB | |
||
| 15 | 806681 | 2 | BRUSH | GB | |
||
| 16 | 808527-00 | 2 | BRUSH SPRING | GB | |
||
| 17 | 806161 | 1 | GRIP | GB | |
||
| 19 | 808168 | 1 | INSERT | GB | |
||
| 20 | 808176 | 1 | ACTUATOR | GB | |
||
| 21 | 806539-00 | 1 | BRAND LABEL | RE TYPE 1 | GB | |
|
| 21 | 806539-01 | 1 | BRAND LABEL | CRE TYPE 1 | GB | |
|
| 21 | 806539-07 | 1 | BRAND LABEL | CRE TYPE 2 | GB | |
|
| 21 | 371798-00 | 1 | BRAND LABEL | RE TYPE 2 | GB | ||
| 22 | 806540 | 1 | SELECTOR | GB | |
||
| 23 | 806561-49 | 1 | KNOB SA | GB | |
||
| 24 | 330034-08 | 1 | CHUCK KEY | RE | GB | |
|
| 25 | 798796 | 1 | SCREW | GB | |
||
| 26 | 5140071-68 | 1 | CHUCK 13MM | RE | GB | |
|
| 26 | 583096-02 | 1 | CHUCK SA | CRE | GB | |
|
| 27 | 377769-00 | 1 | BEARING SA | GB | |
||
| 28 | 807629 | 1 | WASHER | GB | |
||
| 29 | 806555-49 | 1 | OUTPUT SHAFT | GB | |
||
| 30 | 807630 | 1 | SPRING | GB | |
||
| 31 | 798815 | 1 | PLATE THRUST | GB | |
||
| 32 | 812751 | 2 | SCREW.TEMP | GB | |
||
| 33 | 807631 | 2 | WASHER | GB | |
||
| 34 | 807180-49 | 1 | INTER SHAFT SA | GB | |
||
| 35 | 806569 | 1 | BEARING SA | GB | |
||
| 36 | 809961 | 2 | SCREW | GB | |
||
| 37 | 812970 | 1 | HOLDER,RUBBER | GB | |
||
| 38 | 806961 | 1 | LEAD | GB | |
||
| 39 | 806927 | 1 | LEAD | GB | |
||
| 40 | 807745 | 1 | CAPACITOR | GB | |
||
| 41 | 798858 | 1 | BOLT | GB | |
||
| 42 | 798867 | 1 | CAP | GB | |
||
| 43 | 806542 | 1 | HANDLE SA | GB | |
||
| 44 | 798846-00 | 1 | DEPTH STOP | GB | |
||
| 45 | 807369 | 1 | NUT | GB | |
||
| 46 | 330003-02 | 1 | BEARING | GB | |
