KD154CRE HAMMER DRILL Type 1 | Drawings
Documents

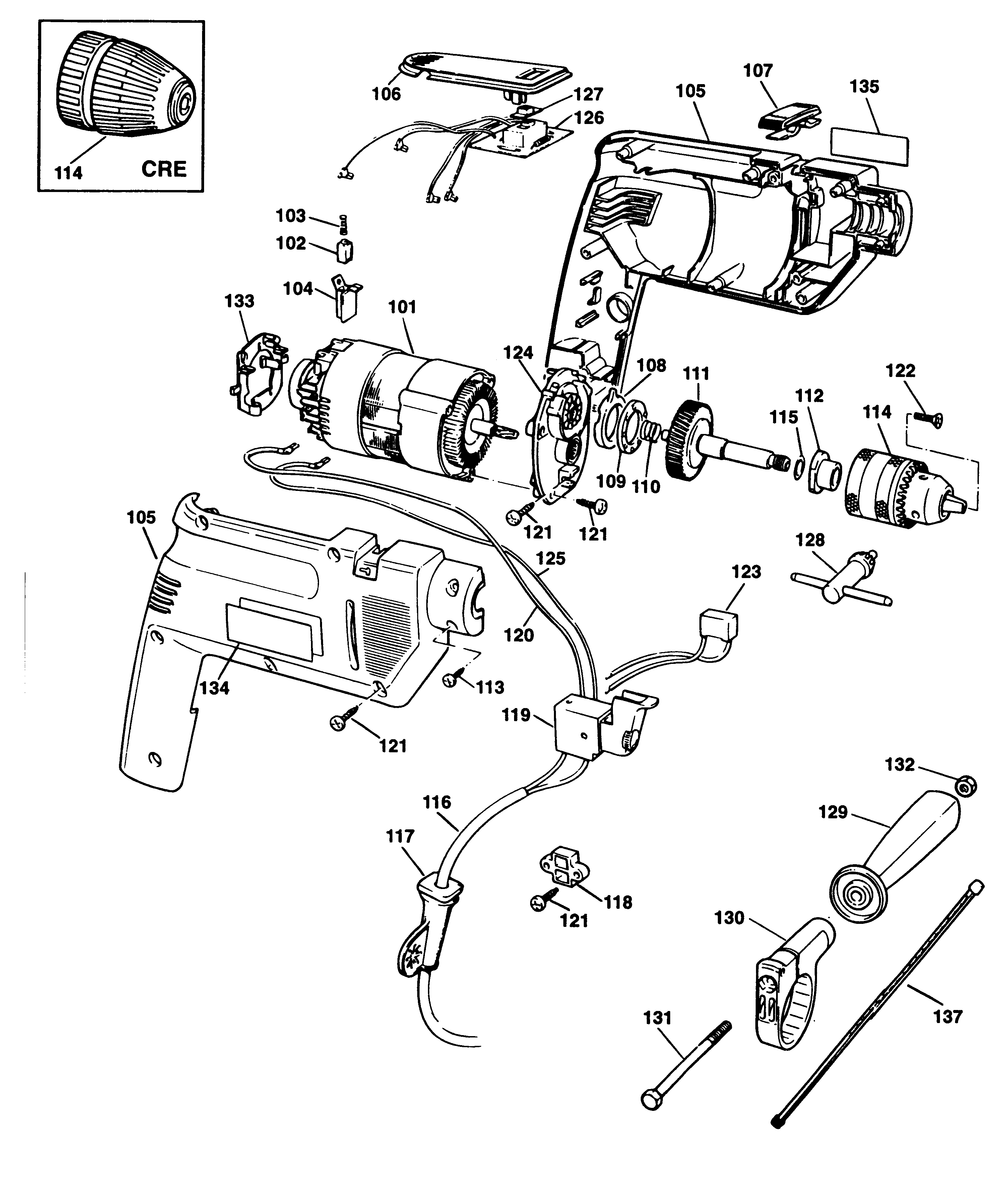

Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 376913-03 | 1 | MOTOR SA | GB |  |
||
| 102 | 376143 | 2 | BRUSH | GB | |
||
| 103 | 847709 | 2 | SPRING | GB |  |
||
| 104 | 812738 | 2 | BRUSH HOLDER | GB | |
||
| 105 | 369035 | 1 | CLAMSHELL | GB | |
||
| 106 | 798017-01 | 1 | INSERT | GB | |
||
| 108 | 812962 | 1 | RING | GB | |
||
| 109 | 892261 | 1 | BEARING | GB | |
||
| 110 | 821986 | 1 | SPRING | GB | |
||
| 111 | 747323-49 | 1 | SPINDLE SA | GB | |
||
| 112 | 812973 | 1 | BEARING | GB | |
||
| 113 | 805035 | 2 | SCREW | GB | |
||
| 114 | 330033-23 | 1 | CHUCK 13MM | KD150RE | GB | |
|
| 114 | 330033-23 | 1 | CHUCK 13MM | KD560RE | GB | |
|
| 114 | 330033-23 | 1 | CHUCK 13MM | KD154RE | GB | |
|
| 114 | 330033-23 | 1 | CHUCK 13MM | KD550RE | GB | |
|
| 114 | 479902-00 | 1 | CHUCK SA | KD150CRE | GB | ||
| 114 | 479902-00 | 1 | CHUCK SA | KD154CRE | GB | ||
| 114 | 479902-00 | 1 | CHUCK SA | KD560CRE | GB | ||
| 115 | 812979 | 1 | WASHER THRUST | GB | |
||
| 116 | 330060-53 | 1 | CORDSET | GB | |
||
| 117 | 770236 | 1 | PROTECTOR | GB | |
||
| 118 | 994808 | 1 | CABLE CLAMP | GB | |
||
| 119 | 372976-49 | 1 | SWITCH KIT | Capax | GB | |
|
| 120 | 822216 | 1 | LEAD | GB | |
||
| 121 | 809961 | 11 | SCREW | GB | |
||
| 122 | 805434 | 1 | SCREW.SPECIAL | GB | |
||
| 123 | 793192 | 1 | CAPACITOR SA | GB | |
||
| 124 | 823782 | 1 | COVER GEARCASE | GB | |
||
| 125 | 830847 | 1 | LEAD SA | GB | |
||
| 126 | 794724 | 1 | SWITCH REVERSE | GB | |
||
| 127 | 795209 | 1 | ACTUATOR | GB | |
||
| 128 | 330034-07 | 1 | CHUCK KEY | KD150RE | GB | |
|
| 128 | 330034-07 | 1 | CHUCK KEY | KD560RE | GB | |
|
| 128 | 330034-07 | 1 | CHUCK KEY | KD154RE | GB | |
|
| 128 | 330034-07 | 1 | CHUCK KEY | KD550RE | GB | |
|
| 129 | 808402 | 1 | SIDE HANDLE | GB | |
||
| 130 | 808405 | 1 | CLAMP | GB | |
||
| 131 | 813918 | 1 | SCREW | GB | |
||
| 132 | 896369 | 1 | NUT | GB | |
||
| 133 | 822789 | 1 | COVER | GB | |
||
| 135 | 368975-01 | 1 | BRAND LABEL | KD154CRE | GB | |
|
| 135 | 368975-02 | 1 | BRAND LABEL | KD154RE | GB | |
|
| 135 | 368975-04 | 1 | BRAND LABEL | KD560RE | GB | |
|
| 135 | 368975-03 | 1 | BRAND LABEL | KD560CRE | GB | |
|
| 135 | 368975-05 | 1 | BRAND LABEL | KD550RE | GB | |
|
| 135 | 368975-06 | 1 | BRAND LABEL | KD150CRE | GB | |
|
| 137 | 808401 | 1 | DEPTH STOP | GB | |
