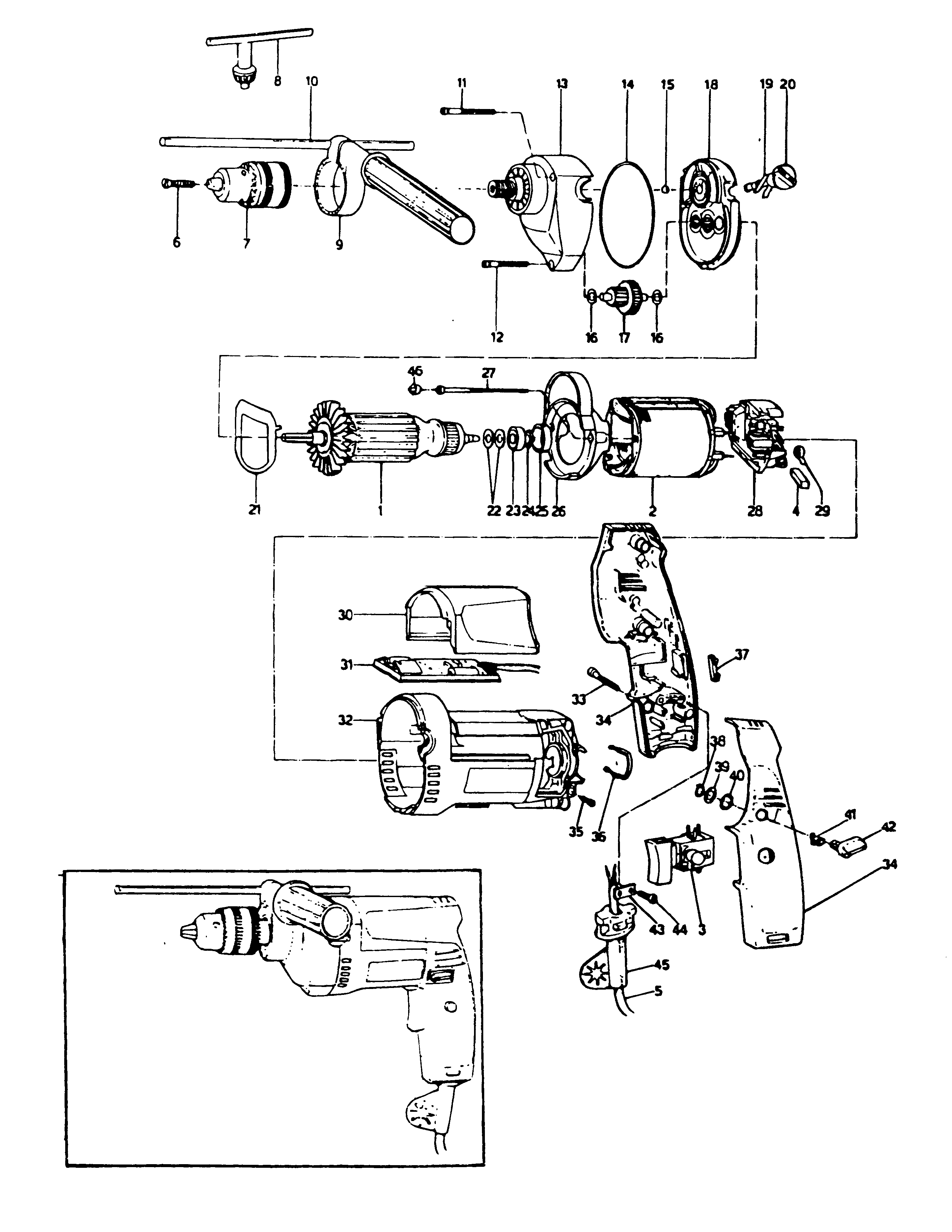

EMD403 DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 932954 | 1 | ARMATURE | GB 240V | XJ |  |
|
| 1 | 932955 | 1 | ARMATURE | GB 115V | XJ | |
|
| 2 | 934020 | 1 | FIELD | GB 115V | XJ | |
|
| 2 | 934022 | 1 | FIELD | GB 240V | XJ | |
|
| 3 | 938237 | 1 | SWITCH | XJ | |
||
| 4 | 930760-00 | 2 | BRUSH 230V | GB 240V | XJ |  |
|
| 4 | 930802-00 | 2 | BRUSH | GB 115V | XJ | |
|
| 5 | 330061-07 | 1 | CABLE SA | GB 115V | XJ | |
|
| 5 | 949770-06 | 1 | CABLE & PLUG | GB 240V | XJ | |
|
| 6 | 945013-00 | 1 | SCREW | S8 | XJ | |
|
| 6 | 949890-02 | 1 | SCREW | S2A | XJ | |
|
| 7 | 5140071-68 | 1 | CHUCK 13MM | S2A | XJ | |
|
| 7 | 930010 | 1 | CHUCK | S8 | XJ | |
|
| 8 | 330034-07 | 1 | CHUCK KEY | S8 | XJ | |
|
| 8 | 330034-07 | 1 | CHUCK KEY | S2A | XJ | |
|
| 9 | 930281 | 1 | HANDLE SA | XJ | |
||
| 10 | 930101 | 1 | DEPTH ROD | XJ | |
||
| 11 | 931298 | 2 | SCREW | XJ | |
||
| 12 | 931297-00 | 1 | SCREW | XJ | |
||
| 13 | 932964 | 1 | GEARCASE SA | XJ | |
||
| 14 | 931286 | 1 | SEAL | XJ | |
||
| 15 | 930012 | 1 | BALL | XJ | |
||
| 16 | 930102-00 | 2 | WASHER | XJ | |
||
| 17 | 939802 | 1 | GEAR & PINION SA | XJ | |
||
| 18 | 939803 | 1 | GEARCASE COVER SA | XJ | |
||
| 19 | 933021 | 1 | SPRING | XJ | |
||
| 20 | 936418 | 1 | LEVER SA | XJ | |
||
| 21 | 935678 | 1 | SPRING | XJ | |
||
| 22 | 932933-00 | 2 | WASHER | XJ | |
||
| 23 | 330003-02 | 1 | BEARING | XJ | |
||
| 24 | 939624-00 | 1 | RING | XJ | |
||
| 25 | 930029-00 | 1 | HOLDER BEARING | XJ | |
||
| 26 | 932934 | 1 | BAFFLE | XJ | |
||
| 27 | 930752-00 | 2 | SCREW | XJ | |
||
| 28 | 940127 | 1 | BRUSH HOLDER 240V | GB 240V | XJ | |
|
| 29 | 930090-00 | 2 | BRUSH SPRING | XJ | |
||
| 30 | 938241-00 | 1 | COVER | XJ | |||
| 31 | 937484 | 1 | ELECTRONIC 115V | GB 115V | XJ | |
|
| 31 | 937483 | 1 | ELECTRONIC 240V | GB 240V | XJ | |
|
| 32 | 938890-00 | 1 | FIELDCASE | XJ | |
||
| 33 | 930079-01 | 4 | SCREW | XJ | |
||
| 34 | 938239-00 | 1 | HANDLE SA | XJ | |
||
| 35 | 931254-00 | 1 | SCREW | XJ | |
||
| 36 | 932930 | 1 | RING | XJ | |
||
| 37 | 930187 | 1 | CONNECTOR | XJ | |
||
| 38 | 940131 | 1 | RING | XJ | |
||
| 39 | 941351 | 1 | WASHER | XJ | |
||
| 40 | 940132 | 1 | WASHER | XJ | |
||
| 41 | 939464 | 1 | COUPLING | XJ | |
||
| 42 | 940133 | 1 | LEVER | XJ | |
||
| 43 | 930103-00 | 1 | CORD CLAMP | XJ | |
||
| 44 | 930276 | 2 | SCREW | XJ | |
||
| 45 | 938498 | 1 | CORD PROTECTOR | XJ | |
||
| 46 | 933657-00 | 2 | CAP | XJ | |
