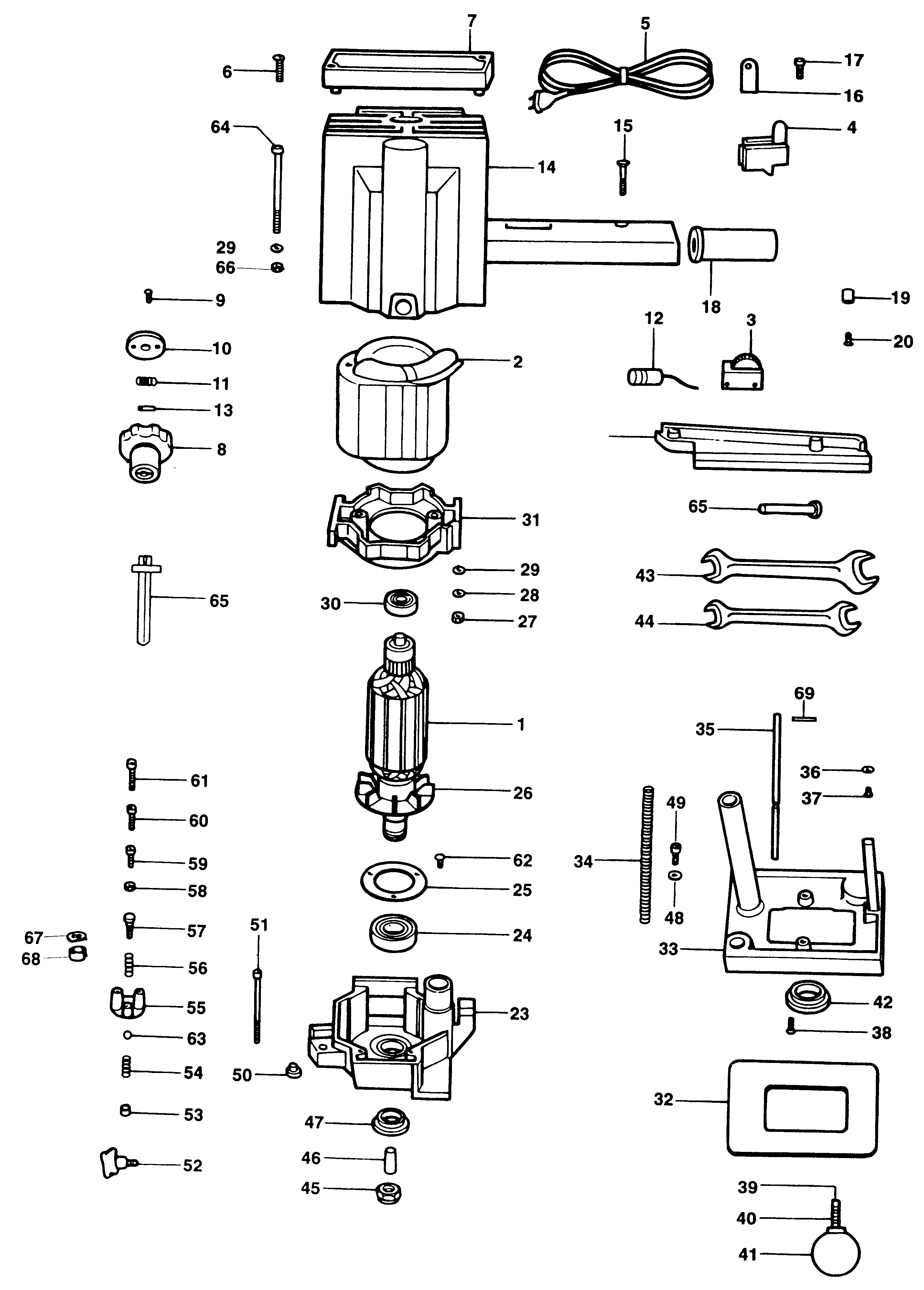

MF68 LAMINATE TRIMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 249717-00 | 1 | ARMATURE | 115 VOLT | XW |  |
|
| 3 | N566709 | 1 | SWITCH | XW |  |
||
| 4 | 868054-01 | 2 | BRUSH & HOLDER | 115 VOLT | XW | |
|
| 6 | 761307-00 | 2 | SCREW | XW | |
||
| 7 | 249010-00 | 1 | PLATE | XW | |
||
| 8 | 868083-00 | 1 | HANDLE | XW | |
||
| 9 | 003811600 | 2 | SCREW | XW | |
||
| 10 | 868088-00 | 1 | PLATE | XW | |
||
| 11 | 024931038 | 2 | SPRING | XW | |
||
| 12 | 869213-00 | 1 | SUPPRESSOR | XW | |
||
| 13 | 868087-00 | 2 | LOCKING PIN | XW | |
||
| 14 | 249008-01 | 1 | HOUSING | XW | |
||
| 15 | 249416-03 | 3 | SCREW | XW | |
||
| 16 | 868069-00 | 2 | CLAMP | XW | |
||
| 17 | 949896-11 | 2 | SCREW | XW | |
||
| 18 | 720703-00 | 1 | PROTECTOR | XW | |
||
| 19 | 910556 | 1 | CABLE CLAMP | XW | |
||
| 20 | 249416-06 | 2 | SCREW | XW | |
||
| 22 | 249011-00 | 1 | COVER | XW | |
||
| 23 | 868076-00 | 1 | HOUSING | XW | |
||
| 24 | 868768-16 | 1 | BEARING | XW | |
||
| 25 | 868047-00 | 1 | PLATE | XW | |
||
| 26 | 868060-00 | 1 | FAN | XW | |
||
| 27 | 868062-00 | 2 | NUT | XW | |
||
| 28 | 868048-00 | 4 | WASHER | XW | |
||
| 29 | 725163 | 8 | WASHER | XW | |
||
| 30 | N110358 | 1 | BEARING | XW | |
||
| 31 | 868059-00 | 1 | PLATE | XW | |
||
| 32 | 868086-00 | 1 | PLATE | MOF69 | XW | |
|
| 33 | 868085-00 | 1 | BASEPLATE | M6 x 12 | MOF69 | XW | |
| 34 | 868091-00 | 1 | SPRING | MOF69 | XW | |
|
| 35 | 868084-00 | 1 | SPINDLE | MOF69 | XW | |
|
| 36 | 249233-00 | 1 | WASHER | XW | |
||
| 37 | 720685-00 | 5 | SCREW.TEMP | XW | |
||
| 38 | 249412-20 | 2 | SCREW | MOF69 | XW | |
|
| 39 | 760254-00 | 1 | SCREW | XW | |
||
| 40 | 868075-00 | 1 | PIN | XW | |
||
| 41 | 868071-00 | 1 | HANDLE | XW | |
||
| 42 | 037213901 | 1 | BUSH | MOF69 | XW | |
|
| 43 | 868078-00 | 1 | SPANNER | MOF69 | XW | |
|
| 43 | 868078-00 | 1 | SPANNER | MOF69 | XW | |
|
| 43 | 868032-00 | 1 | SPANNER | MF68 | XW | |
|
| 44 | 941580-00 | 1 | SPANNER 13-17MM | XW | |
||
| 45 | 326286-01 | 1 | COLLET & NUT SA | 6.35mm 1/4 inch | XW | |
|
| 45 | 326286-00 | 1 | COLLET & NUT SA | 8mm | XW | |
|
| 47 | 868052-00 | 1 | NUT | XW | |
||
| 48 | 868064-00 | 1 | WASHER | MOF69 | XW | |
|
| 49 | 860089-23 | 2 | SCREW | XW | |
||
| 50 | 760298-01 | 2 | INSERT | XW | |
||
| 51 | 054123500 | 1 | PIN | XW | |
||
| 52 | 025922908 | 3 | KNOB | MOF69 | XW | |
|
| 52 | 025922908 | 1 | KNOB | MF68 | XW | |
|
| 53 | 868072-00 | 2 | CIRCLIP | XW | |
||
| 54 | 868082-00 | 1 | SPRING | XW | |
||
| 55 | 720674-01 | 1 | TURRET | XW | |
||
| 57 | 249432-00 | 1 | SCREW | XW | |
||
| 58 | 860083-02 | 3 | NUT | XW | |
||
| 59 | 942931-02 | 1 | SCREW.TEMP | XW | |
||
| 60 | 942931-01 | 1 | SCREW | XW | |
||
| 61 | 868109-00 | 1 | SCREW | XW | |
||
| 62 | 860205-04 | 3 | SCREW | XW | |
||
| 63 | 720664-00 | 1 | BALL | XW | |
||
| 64 | 036811100 | 4 | SCREW | XW | |
||
| 65 | 941770-00 | 1 | CENTRE | XW | |
||
| 66 | 249232-00 | 2 | NUT M4 | XW | |
||
| 67 | 860658-01 | 1 | WASHER | XW | |
||
| 68 | 868092-00 | 1 | WASHER | XW | |
||
| 69 | 069913906 | 1 | PIN | XW | |
