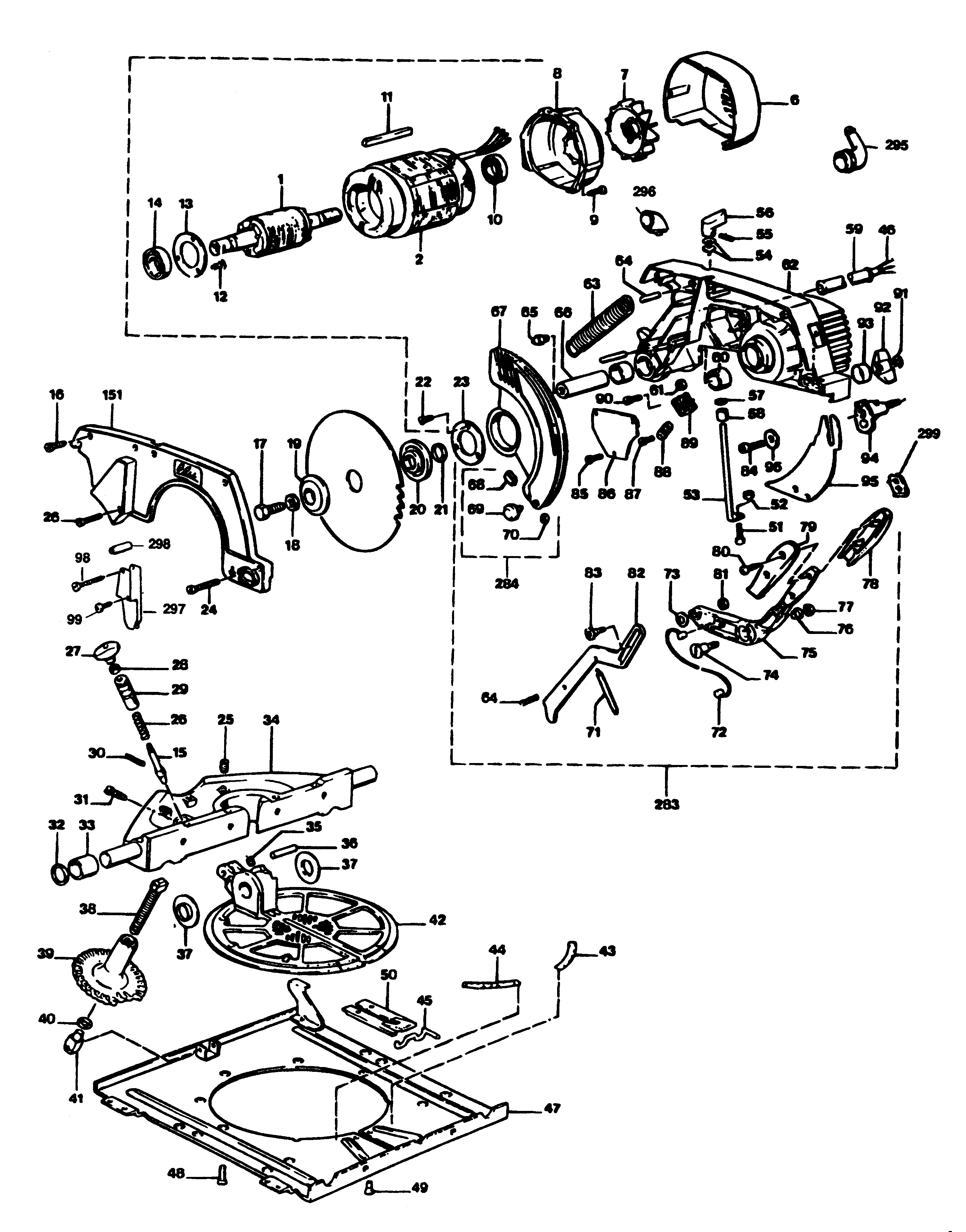

TGS171----L MOTOR Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 171100201 | 1 | ROTOR | XJ |  |
||
| 2 | 868421-01 | 1 | STATOR 220V | XJ | |
||
| 6 | 171120804 | 1 | COVER | XJ | |
||
| 7 | 171130500 | 1 | FAN | XJ | |
||
| 8 | 171120200 | 1 | END CAP | XJ | |
||
| 9 | 860084-10 | 4 | SCREW | XJ | |
||
| 10 | 034830000 | 1 | BEARING 6004ZZ | XJ | |
||
| 11 | 171125701 | 2 | WEDGE | XJ | |
||
| 12 | 860091-04 | 3 | SCREW | XJ |  |
||
| 13 | 171114700 | 1 | PLATE | XJ | |
||
| 14 | 860155-08 | 1 | BEARING | XJ | |
||
| 15 | 941798-00 | 1 | LOCKING PIN | XJ | |
||
| 16 | 330045-15 | 4 | SCREW | XJ | |
||
| 17 | 171813200 | 1 | SCREW | XJ | |
||
| 18 | 860073-04 | 1 | WASHER | XJ | |
||
| 19 | 171120602 | 1 | FLANGE | XJ | |
||
| 20 | 172125400 | 1 | BOSS | XJ | |
||
| 21 | 945979-00 | 1 | SPACER | XJ | |
||
| 22 | 860091-04 | 3 | SCREW | XJ | |
||
| 23 | 171114700 | 1 | PLATE | XJ | |
||
| 24 | 861090-00 | 2 | SCREW | XJ | |
||
| 25 | 942329-00 | 7 | SCREW | XJ | |
||
| 26 | 761054-00 | 1 | SPRING | XJ | |
||
| 27 | 071921305 | 1 | KNOB | XJ | |
||
| 28 | 949726-05 | 1 | NUT | XJ | |
||
| 29 | 941802-00 | 1 | BARREL | XJ | |
||
| 30 | 761065-00 | 1 | PIN | XJ | |
||
| 31 | 941880-00 | 1 | SCREW | XJ | |
||
| 32 | 171930412 | 2 | WASHER | XJ | |
||
| 33 | 171114002 | 1 | BUSH | XJ | |
||
| 34 | 171116603 | 1 | FENCE | XJ | |
||
| 35 | 949743-01 | 2 | SCREW | XJ | |
||
| 36 | 760259-00 | 1 | PIN | XJ | |
||
| 37 | 941800-00 | 2 | WASHER LOCK | XJ | |
||
| 38 | 942225-00 | 1 | SPINDLE | XJ | |
||
| 39 | 942472-01 | 1 | WHEEL REGULATOR | XJ | |
||
| 40 | 941801-00 | 1 | WASHER | XJ | |
||
| 41 | 171112607 | 1 | LOCATOR | XJ | |
||
| 42 | 171115108 | 1 | TABLE ROTARY | XJ | |
||
| 43 | 942207-00 | 1 | SCALE RH | XJ | |
||
| 44 | 942208-00 | 1 | SCALE LH | XJ | |
||
| 45 | 942234-00 | 1 | LOCKING PIN | XJ | |
||
| 46 | 942354-00 | 1 | CABLE | XJ | |
||
| 47 | 171115109 | 1 | TABLE | XJ | |
||
| 48 | 868256-00 | 10 | SCREW | XJ | |
||
| 49 | 942272-00 | 1 | SCREW | XJ | |
||
| 50 | 171111702 | 1 | PLATE | XJ | |
||
| 51 | 860085-09 | 1 | SCREW.TEMP | XJ | |
||
| 52 | 860083-12 | 1 | NUT M6 | XJ | |
||
| 53 | 861380-00 | 1 | DEPTH STOP | XJ | |
||
| 54 | 860491-01 | 2 | SPRING | XJ | |
||
| 55 | 760233-00 | 1 | PIN | XJ | |
||
| 57 | 860073-03 | 1 | WASHER M8 | XJ | |
||
| 58 | 942244-00 | 1 | BUSH | XJ | |
||
| 59 | 942277-00 | 1 | PROTECTOR | XJ | |
||
| 60 | 941886-00 | 1 | BUSH | XJ | |
||
| 61 | 249232-00 | 2 | NUT M4 | XJ | |
||
| 62 | 171120102 | 1 | HOUSING | XJ | |
||
| 63 | 941885-00 | 1 | SPRING | XJ | |
||
| 63 | 941885-00 | 1 | SPRING | XJ | |
||
| 64 | 941872-00 | 2 | PIN | XJ | |
||
| 65 | 034940402 | 1 | NIPPLE | XJ | |
||
| 66 | 071123503 | 1 | SPINDLE | XJ | |
||
| 67 | 942255-03 | 1 | GUARD | XJ | |
||
| 67 | 942255-03 | 1 | GUARD | XJ | |
||
| 68 | 861095-01 | 1 | BUFFER | XJ | |
||
| 69 | 861096-01 | 2 | ROLLER | XJ | |
||
| 70 | 860322-03 | 2 | CIRCLIP | XJ | |
||
| 71 | 760295-01 | 1 | SPRING | XJ | |
||
| 72 | 171982509 | 1 | PULL WIRE | XJ | |||
| 73 | 171120600 | 1 | DISC | XJ | |
||
| 74 | 171127001 | 1 | SCREW | XJ | |
||
| 75 | 942251-00 | 1 | LEVER | XJ | |
||
| 76 | 171120901 | 2 | BOSS | XJ | |
||
| 77 | 941563-00 | 1 | NUT | XJ | |
||
| 78 | 171127400 | 1 | HANDLE | XJ | |
||
| 79 | 171120202 | 1 | HANDLE COVER | XJ | |
||
| 80 | 860084-11 | 2 | SCREW | XJ | |
||
| 81 | 949726-05 | 1 | NUT | XJ | |
||
| 82 | 171120501 | 1 | LINK | XJ | |
||
| 83 | 171127003 | 1 | SCREW | XJ | |
||
| 84 | 942041-00 | 1 | SCREW | XJ | |
||
| 85 | 860091-04 | 3 | SCREW | XJ | |
||
| 86 | 171163501 | 1 | COVER | XJ | |
||
| 87 | 860084-13 | 2 | SCREW | XJ | |
||
| 88 | 941544-00 | 2 | CABLE CLAMP | XJ | |
||
| 89 | 942416-00 | 1 | TERMINAL BLOCK | XJ | |
||
| 90 | 017811102 | 2 | SCREW | XJ | |
||
| 91 | 860322-00 | 1 | CIRCLIP | XJ | |
||
| 92 | 942263-00 | 1 | KNOB | XJ | |
||
| 93 | 171120903 | 1 | WASHER | XJ | |
||
| 94 | 171121304 | 1 | HOLDER | XJ | |
||
| 95 | 171125702 | 1 | RIVING KNIFE | XJ | |
||
| 96 | 860073-04 | 1 | WASHER | XJ | |
||
| 97 | 942230-00 | 1 | SPINDLE SA | XJ | |
||
| 98 | 860084-17 | 1 | SCREW | XJ | |
||
| 99 | 860084-20 | 1 | SCREW | XJ | |
||
| 100 | 171120806 | 1 | GUARD | XJ | |
||
| 151 | 945960-05 | 1 | COVER | XJ | |
||
| 284 | 944898-01 | 1 | ROLLER SA | XJ | |
||
| 286 | 941580-00 | 1 | SPANNER 13-17MM | XJ | |
||
| 295 | 942311-00 | 1 | TUBE | XJ | |
||
| 297 | 171121101 | 1 | PLATE | XJ | |
||
| 298 | 171128302 | 1 | SPACER | XJ | |
||
| 299 | 171120700 | 1 | PLATE | XJ | |
