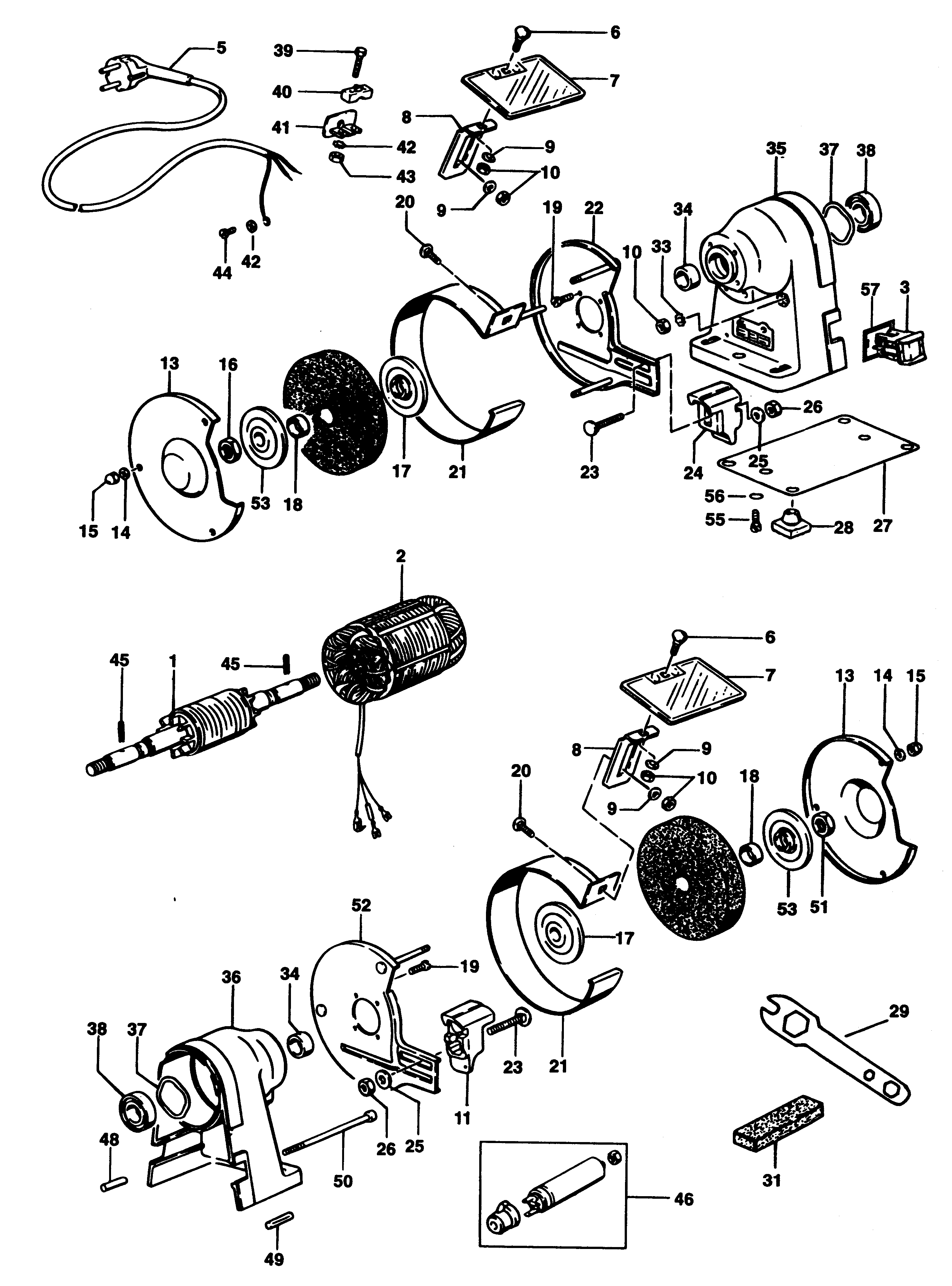

EDS164 BENCH GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 743412 | 1 | ROTOR | EDS164 TYPE 2 | GB |  |
|
| 1 | 162100200 | 1 | ROTOR | EDS163 | GB | |
|
| 1 | 162100200 | 1 | ROTOR | EDS164 TYPE 1 | GB | |
|
| 2 | 743413 | 1 | STATOR | EDS164 TYPE 2 | GB | |
|
| 2 | 148102102 | 1 | STATOR 220V | EDS163 | GB | |
|
| 2 | 148102102 | 1 | STATOR 220V | EDS164 TYPE 1 | GB | |
|
| 3 | 743238 | 1 | SWITCH | GB | |
||
| 5 | 742175-05 | 1 | CABLE | GB | |
||
| 6 | 725184 | 2 | SCREW | GB |  |
||
| 7 | 742133 | 2 | VISOR | GB | |
||
| 8 | 744188 | 2 | BRACKET | GB | |
||
| 9 | 880391 | 4 | WASHER | GB | |
||
| 10 | 725125 | 6 | NUT | GB | |
||
| 11 | 744183 | 1 | SUPPORT | GB | |
||
| 13 | 744190 | 2 | GUARD | EDS163 | GB | |
|
| 14 | 725269 | 6 | WASHER | GB | |
||
| 15 | 146823100 | 6 | LOCK-NUT | GB | |
||
| 16 | 742140 | 1 | NUT LH | GB | |
||
| 17 | 742298 | 2 | CLAMP | GB | |
||
| 18 | 742134 | 2 | BUSH | GB | |
||
| 19 | 725196 | 8 | SCREW | GB | |
||
| 20 | 725184 | 2 | SCREW | GB | |
||
| 21 | 744227 | 2 | RING | EDS163 | GB | |
|
| 22 | 163121301 | 1 | COVER LH | EDS163 | GB | |
|
| 23 | 742042 | 2 | SCREW | GB | |
||
| 24 | 744184 | 1 | SUPPORT | GB | |
||
| 25 | 742172 | 2 | WASHER | GB | |
||
| 26 | 725187 | 2 | NUT | M8 | GB | |
|
| 27 | 742124-01 | 1 | PLATE | GB | |
||
| 28 | 742126 | 4 | MOUNT | GB | |
||
| 29 | 742511 | 1 | SPANNER | GB | |
||
| 31 | 742240 | 1 | STONE | GB | |
||
| 33 | 743415 | 2 | WASHER | 6mm | GB | |
|
| 34 | 742153 | 2 | BUSH | GB | |
||
| 35 | 744241-49 | 1 | HOUSING PAIR | EDS164 TYPE 2 | GB | |
|
| 35 | 742151 | 1 | HOUSING LH | EDS163 | GB | |
|
| 35 | 742151 | 1 | HOUSING LH | EDS164 TYPE 1 | GB | |
|
| 36 | 742268 | 1 | HOUSING RH | EDS163 | GB | |
|
| 36 | 742268 | 1 | HOUSING RH | EDS164 TYPE 1 | GB | |
|
| 36 | 744241-49 | 1 | HOUSING PAIR | EDS164 TYPE 2 | GB | |
|
| 37 | 113933000 | 1 | WASHER | GB | |
||
| 38 | 861721-01 | 2 | BEARING | GB | |
||
| 39 | 742041 | 2 | SCREW | GB | |
||
| 40 | 742127 | 1 | CABLE CLAMP | GB | |
||
| 41 | 742125 | 1 | CABLE CLAMP | GB | |
||
| 42 | 725163 | 2 | WASHER | GB | |
||
| 43 | 725698 | 2 | NUT | GB | |
||
| 44 | 725183 | 1 | SCREW | GB | |
||
| 45 | 742053 | 2 | PIN | GB | |
||
| 46 | 743309 | 1 | CAPACITOR | GB | |
||
| 48 | 743311 | 2 | PIN | FROM SER No 16401115 | GB | |
|
| 48 | 725885 | 1 | ROLLPIN | EDS163 | GB | |
|
| 48 | 725885 | 1 | ROLLPIN | EDS164 TYPE 1 | GB | |
|
| 48 | 725885 | 1 | ROLLPIN | UPTO SER No 16401114 | GB | |
|
| 49 | 742168 | 1 | PIN | GB | |
||
| 50 | 742171 | 2 | SCREW | GB | |
||
| 51 | 742887 | 1 | NUT | GB | |
||
| 52 | 744185 | 1 | COVER | EDS164 TYPE 1 | GB | |
|
| 52 | 744185 | 1 | COVER | EDS164 TYPE 2 | GB | |
|
| 52 | 744228 | 1 | COVER RH | EDS163 | GB | |
|
| 53 | 742066 | 2 | CLAMP OUTER | GB | |
||
| 55 | 726430 | 2 | SCREW | EDS164 TYPE 2 | GB | |
|
| 56 | 725165 | 2 | WASHER | EDS164 TYPE 2 | GB | |
