ETS41 BENCH SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 568712-00 | 1 | MOTOR | GB |  |
||
| 2 | 568713-00 | 4 | ROD | GB | |
||
| 3 | 568714-00 | 4 | SPRING | GB | |
||
| 4 | 568715-00 | 1 | FAN | GB | |
||
| 5 | 568718-00 | 1 | SWITCH SA | GB | |
||
| 6 | 568719-00 | 1 | GUARD | GB | |
||
| 7 | 568720-00 | 1 | COVER | GB | |
||
| 8 | 568721-00 | 1 | PIPE | GB | |
||
| 9 | 279315-00 | 1 | HOSE | GB | |
||
| 10 | 569282-00 | 1 | NUT | GB | |
||
| 11 | 568722-00 | 1 | OUTER FLANGE | GB | |
||
| 12 | 568723-00 | 1 | INNER FLANGE | GB | |
||
| 13 | 568724-00 | 1 | BUSH | GB | |
||
| 14 | 568725-00 | 1 | BOLT | GB | |
||
| 15 | 568726-00 | 1 | SCREW | GB | |
||
| 16 | 568727-00 | 1 | BOLT | GB | |
||
| 18 | 568729-00 | 1 | RIVING KNIFE | GB | |
||
| 19 | 568730-00 | 1 | NUT | GB | |
||
| 20 | 568731-00 | 1 | NUT | GB | |
||
| 21 | 568732-00 | 2 | SPACER | GB | |
||
| 22 | 569039-00 | 8 | BOLT | M5 x 12 | GB | |
|
| 23 | 568734-00 | 1 | ARM | GB | |
||
| 24 | 568735-00 | 1 | ARM | GB | |
||
| 25 | 568736-00 | 1 | PLATE | GB | |
||
| 26 | 568737-00 | 1 | LEVER | GB | |
||
| 27 | 568738-00 | 1 | BOLT | GB | |
||
| 28 | 568739-00 | 2 | WASHER | GB | |
||
| 29 | 568740-00 | 1 | PIN | GB | |
||
| 30 | 568741-00 | 1 | BUSH | GB | |
||
| 31 | 568742-00 | 1 | PLATE | GB | |
||
| 32 | 568743-00 | 1 | NUT | GB | |
||
| 33 | 568744-00 | 1 | KEY | GB | |
||
| 34 | 568745-00 | 1 | SCREW | GB | |
||
| 35 | 568746-00 | 4 | BOLT | GB | |
||
| 36 | 568747-00 | 1 | GRUB SCREW | GB | |
||
| 37 | 568748-00 | 1 | ROD | GB | |
||
| 38 | 568749-00 | 1 | ROD | GB | |
||
| 39 | 568750-00 | 1 | RING | GB | |
||
| 40 | 568751-00 | 1 | LEVER | GB | |
||
| 41 | 568752-00 | 1 | NUT | GB | |
||
| 42 | 568753-00 | 1 | WASHER | GB | |
||
| 43 | 568754-00 | 1 | WHEEL | GB | |
||
| 44 | 568755-00 | 1 | NUT | GB | |
||
| 45 | 568756-00 | 1 | SPRING | GB | |
||
| 46 | 568757-00 | 1 | LEVER | GB | |
||
| 47 | 568758-00 | 1 | NUT | GB | |
||
| 48 | 568759-00 | 1 | NUT | GB | |
||
| 49 | 568760-00 | 1 | CAP | GB | |
||
| 50 | 568761-00 | 2 | CLAMP | GB | |
||
| 51 | 568762-00 | 1 | SCREW | GB | |
||
| 52 | 568763-00 | 1 | SCALE | GB | |
||
| 53 | 568764-00 | 1 | HOLDER | GB | |
||
| 54 | 568765-00 | 1 | SPRING | GB | |
||
| 55 | 568766-00 | 1 | WASHER | GB | |
||
| 56 | 568767-00 | 1 | NUT | GB | |
||
| 57 | 568768-00 | 1 | WASHER | GB | |
||
| 58 | 568769-00 | 1 | REAR BRACKET | GB | |
||
| 59 | 568770-00 | 1 | WASHER | GB | |
||
| 60 | 568771-00 | 1 | LEVER | GB | |
||
| 61 | 568772-00 | 1 | FRONT BRACKET | GB | |
||
| 63 | 568774-00 | 4 | BOLT | GB | |
||
| 65 | 568776-00 | 2 | CIRCLIP | GB | |
||
| 66 | 568777-00 | 1 | PIN | GB | |
||
| 67 | 568778-00 | 1 | BRACKET | GB | |
||
| 68 | 568779-00 | 4 | SCREW | GB | |
||
| 69 | 568780-00 | 8 | PLATE | GB | |
||
| 70 | 568781-00 | 1 | LEVER | GB | |
||
| 71 | 568782-00 | 1 | PIN | GB | |
||
| 72 | 568783-00 | 4 | SUPPORT | GB | |
||
| 73 | 568784-00 | 1 | SUPPORT | GB | |
||
| 74 | 569042-00 | 2 | BOLT | M8 x 12 | GB | |
|
| 75 | 568786-00 | 1 | PLATE | GB | |
||
| 76 | 568787-00 | 4 | BOLT | GB | |
||
| 77 | 568788-00 | 2 | PLATE | GB | |
||
| 78 | 568789-00 | 2 | SHAFT | GB | |
||
| 80 | 568791-00 | 4 | BEARING | GB | |
||
| 81 | 568792-00 | 8 | BOLT | GB | |
||
| 84 | 568793-00 | 1 | CIRCLIP | GB | |
||
| 85 | 568794-00 | 2 | PANEL | GB | |
||
| 86 | 568795-00 | 1 | PANEL | GB | |
||
| 87 | 568796-00 | 1 | PANEL | GB | |
||
| 88 | 568797-00 | 1 | PANEL | GB | |
||
| 89 | 568798-00 | 2 | PLATE | GB | |
||
| 90 | 568799-00 | 2 | RAIL | GB | |
||
| 91 | 568800-00 | 2 | RAIL | GB | |
||
| 92 | 568801-00 | 4 | PIECE | GB | |
||
| 93 | 569041-00 | 16 | BOLT | M6 x 10 | GB | |
|
| 94 | 568803-00 | 1 | GUARD | GB | |
||
| 95 | 568804-00 | 1 | SCALE | GB | |
||
| 96 | 568805-00 | 8 | PLATE | GB | |
||
| 97 | 568806-00 | 2 | PLATE | GB | |
||
| 98 | 568807-00 | 2 | PLATE | GB | |
||
| 99 | 568808-00 | 2 | PLATE | GB | |
||
| 100 | 568809-00 | 1 | PLATE | GB | |
||
| 101 | 568810-00 | 2 | PLATE | GB | |
||
| 102 | 568811-00 | 1 | PLATE | GB | |
||
| 103 | 569039-00 | 2 | BOLT | M5 x 12 | GB | |
|
| 106 | 568814-00 | 2 | LOCATOR | GB | |
||
| 107 | 568815-00 | 4 | SCREW | GB | |
||
| 109 | 568817-00 | 1 | PUSH BLOCK | GB | |
||
| 110 | 568818-00 | 4 | BRACE | GB | |
||
| 111 | 568819-00 | 4 | BOLT | GB | |
||
| 112 | 568820-00 | 4 | FOOT | GB | |
||
| 113 | 569041-00 | 8 | BOLT | M6 x 10 | GB | |
|
| 114 | 279978-00 | 2 | ECCENTRIC | GB | |
||
| 115 | 279979-00 | 2 | STOP | GB | |
||
| 116 | 568822-00 | 16 | BOLT | GB | |
||
| 117 | 568823-00 | 12 | SCREW | GB | |
||
| 118 | 568824-00 | 4 | SCREW | GB | |
||
| 119 | 568825-00 | 2 | SCREW | GB | |
||
| 120 | 568826-00 | 2 | BOLT | GB | |
||
| 121 | 568827-00 | 2 | NUT | GB | |
||
| 122 | 568828-00 | 2 | WASHER | GB | |
||
| 123 | 568829-00 | 4 | NUT | GB | |
||

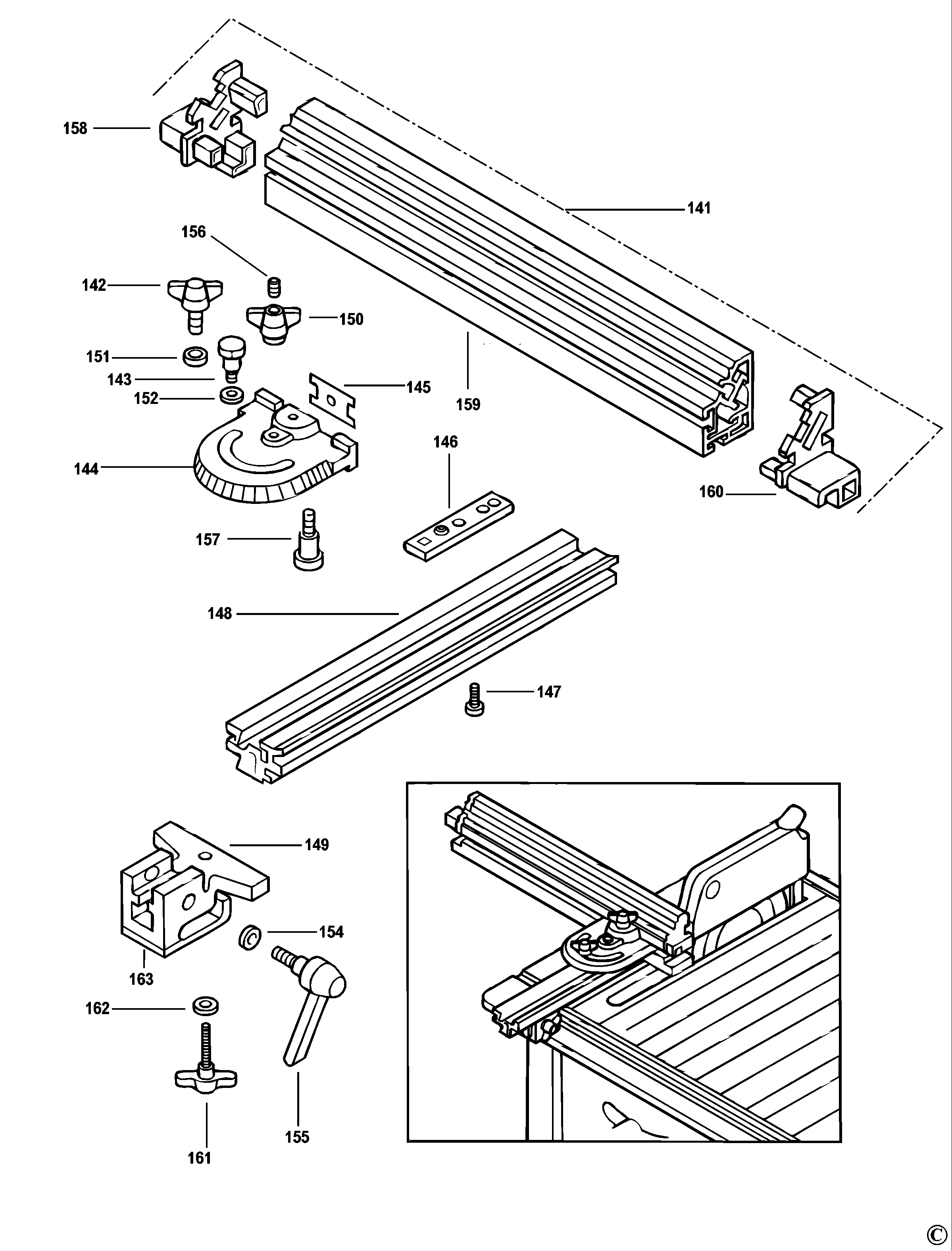

| 141 | 568699-00 | 1 | FENCE SA | GB | |
||
| 142 | 279311-00 | 1 | KNOB | GB | |
||
| 143 | 279361-00 | 1 | PIVOT | GB | |
||
| 144 | 279401-00 | 1 | PROTRACTOR | GB | |
||
| 145 | 279402-00 | 1 | LEAF SPRING | GB | |
||
| 146 | 279403-00 | 1 | PLATE | GB | |
||
| 147 | 760219-00 | 2 | SCREW | GB |  |
||
| 148 | 568700-00 | 1 | ARM | GB | |
||
| 149 | 568704-00 | 1 | MOUNT | GB | |
||
| 150 | 279395-00 | 1 | KNOB | GB | |
||
| 151 | 568830-00 | 1 | WASHER | GB | |
||
| 152 | 568831-00 | 1 | WASHER | GB | |
||
| 154 | 568833-00 | 1 | WASHER | GB | |
||
| 155 | 568705-00 | 1 | LEVER | GB | |
||
| 156 | 279378-00 | 1 | GRUB SCREW | GB | |
||
| 157 | 279399-00 | 1 | ECCENTRIC | GB | |
||
| 158 | 560239-00 | 1 | COVER LH | GB | |
||
| 159 | 568706-00 | 1 | FENCE | GB | |
||
| 160 | 560240-00 | 1 | COVER RH | GB | |
||
| 161 | 568834-00 | 1 | BOLT | GB | |
||
| 162 | 568835-00 | 1 | WASHER | GB | |
||
| 163 | 559766-00 | 1 | CLAMP | GB | |
||
| 164 | 569040-00 | 2 | BOLT | M5 x 14 | GB | |
|
| 836 | 559622-99 | 1 | SPANNER | 20-22mm | GB | |
|
| 837 | 559623-99 | 1 | SPANNER | 10 - 13mm | GB | |
|
| 838 | 559624-99 | 1 | HEX KEY | 6 mm | GB | |
|
| 839 | 559625-99 | 1 | HEX KEY | 3mm | GB | |
