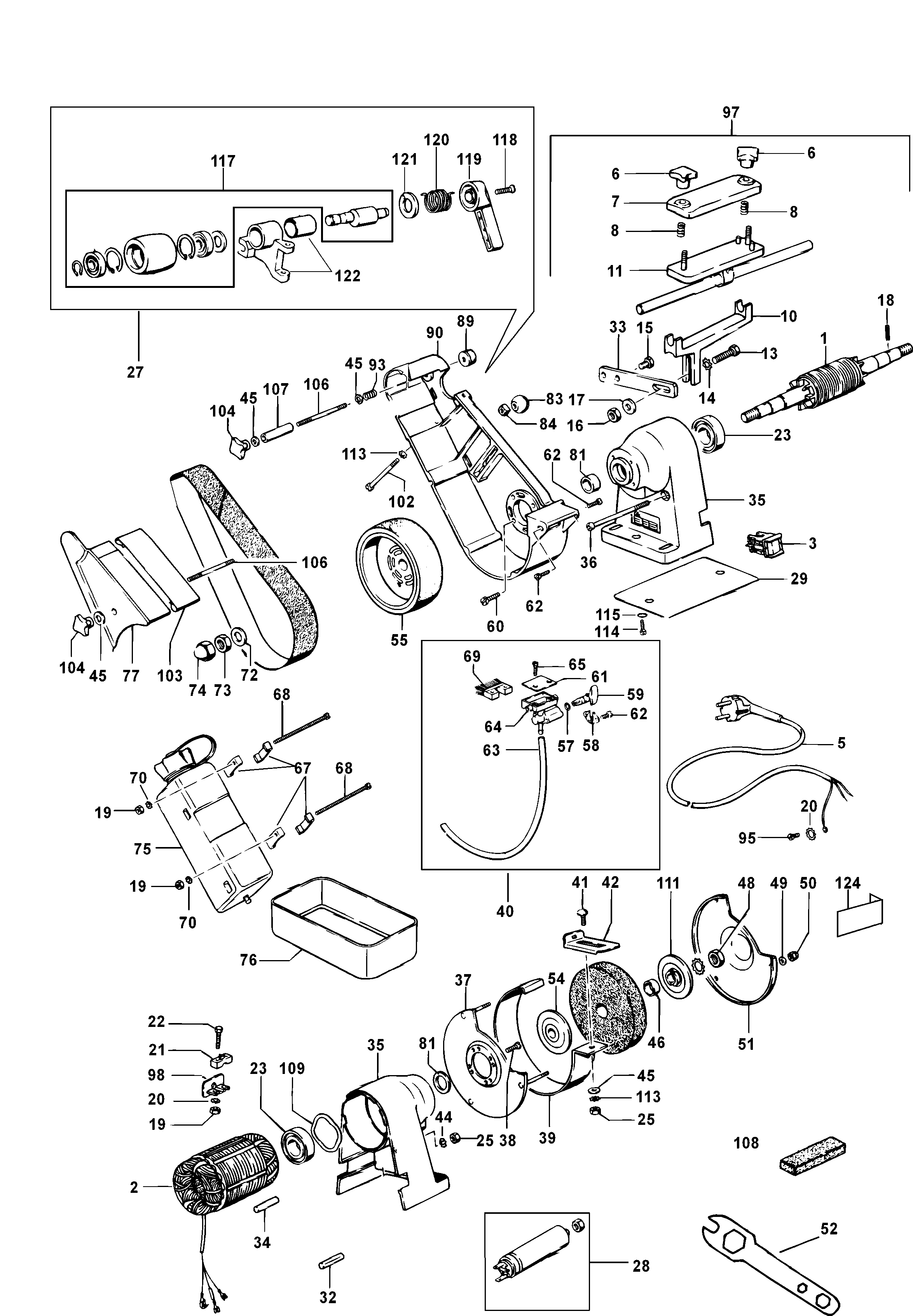

MWA71 BENCH GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 378881 | 1 | ROTOR | GB |  |
||
| 2 | 378891 | 1 | STATOR | GB | |
||
| 3 | 378787-03 | 1 | SWITCH | Black | GB |  |
|
| 5 | 378893-01 | 1 | CORDSET | GB | |
||
| 6 | 744324 | 2 | KNOB SA | GB | |
||
| 7 | 744231 | 1 | STRIP | GB | |
||
| 8 | 742243 | 2 | SPRING | GB | |
||
| 10 | 744230 | 1 | HOLDER | GB | |||
| 11 | 744232 | 1 | SUPPORT | GB | |
||
| 13 | 742047 | 1 | SCREW | GB | |
||
| 14 | 742046 | 1 | WASHER M8 | GB | |
||
| 15 | 378908 | 2 | SCREW | GB | |
||
| 16 | 725187 | 1 | NUT | M8 | GB | |
|
| 17 | 742172 | 1 | WASHER | GB | |
||
| 18 | 742053 | 1 | PIN | GB | |
||
| 19 | 725698 | 4 | NUT | GB | |
||
| 20 | 725163 | 3 | WASHER | GB | |
||
| 21 | 742127 | 1 | CABLE CLAMP | GB | |
||
| 22 | 742041 | 2 | SCREW | GB | |
||
| 23 | 760245-00 | 2 | BEARING | GB | |
||
| 25 | 725125 | 4 | NUT | GB | |
||
| 27 | 744371-10 | 1 | LEVER SA | GB | |
||
| 28 | 378892 | 1 | CAPACITOR | GB | |
||
| 29 | 378841 | 1 | PLATE | GB | |
||
| 30 | 378738 | 4 | FOOT | GB | |
||
| 32 | 742168 | 2 | PIN | GB | |
||
| 33 | 744234 | 1 | SUPPORT | GB | |
||
| 34 | 742168 | 2 | PIN | GB | |
||
| 35 | 378791-20 | 2 | HOUSING | GB | |
||
| 36 | 378907 | 2 | SCREW | GB | |
||
| 37 | 744236 | 1 | PLATE | GB | |
||
| 38 | 378795-09 | 4 | SCREW | GB | |
||
| 39 | 744238 | 1 | GUARD | GB | |
||
| 40 | 742273 | 1 | HOSE SA | GB | |
||
| 41 | 725184 | 2 | SCREW | GB | |
||
| 42 | 744188 | 1 | BRACKET | GB | |
||
| 44 | 743415 | 2 | WASHER | 6mm | GB | |
|
| 45 | 880391 | 5 | WASHER | GB | |
||
| 46 | 742134 | 1 | BUSH | GB | |
||
| 48 | 742887 | 1 | NUT | GB | |
||
| 49 | 725269 | 3 | WASHER | GB | |
||
| 50 | 146823100 | 3 | LOCK-NUT | GB | |
||
| 51 | 744237 | 1 | GUARD | GB | |
||
| 52 | 742511 | 1 | SPANNER | GB | |
||
| 54 | 742298 | 1 | CLAMP | GB | |
||
| 55 | 744695 | 1 | PULLEY | GB | |
||
| 57 | 742282 | 1 | SEAL | GB | |
||
| 58 | 742279 | 1 | FLANGE | GB | |
||
| 59 | 742275 | 1 | GRIP | GB | |
||
| 60 | 378788 | 4 | SCREW | GB | |
||
| 61 | 742166 | 1 | COVER | GB | |
||
| 62 | 742051 | 4 | SCREW | GB | |
||
| 63 | 742278 | 1 | TUBE | GB | |
||
| 64 | 742280-00 | 1 | HOLDER | GB | |
||
| 65 | 742050 | 2 | SCREW | GB | |
||
| 67 | 742299 | 4 | CLAMP | GB | |
||
| 68 | 742300 | 2 | SCREW | GB | |
||
| 69 | 742276 | 2 | BRUSH | GB | |
||
| 70 | 725163 | 2 | WASHER | GB | |
||
| 72 | 742054 | 1 | WASHER | GB | |
||
| 73 | 742140 | 1 | NUT LH | GB | |
||
| 74 | 744243 | 1 | CAP | GB | |
||
| 75 | 742274 | 1 | RESERVOIR | GB | |
||
| 76 | 742283 | 1 | SCALE | GB | |
||
| 77 | 744246 | 1 | SUPPORT | GB | |
||
| 81 | 742153 | 2 | BUSH | GB | |
||
| 83 | 742234 | 1 | KNOB | GB | |
||
| 84 | 742289 | 1 | NUT | GB | |
||
| 89 | 742272 | 1 | STOP RUBBER | GB | |
||
| 90 | 744235 | 1 | COVER | GB | |
||
| 93 | 760276-00 | 1 | SPRING | GB | |
||
| 95 | 378795-01 | 1 | SCREW | GB | |
||
| 97 | 744253 | 1 | CLAMP KIT SA | GB | |
||
| 98 | 742125 | 1 | CABLE CLAMP | GB | |
||
| 102 | 742231 | 1 | SCREW | GB | |
||
| 103 | 742290 | 1 | PLATE | GB | |
||
| 104 | 744324 | 2 | KNOB SA | GB | |
||
| 106 | 742288 | 2 | SCREW | GB | |
||
| 107 | 742228 | 1 | SPACER | GB | |
||
| 108 | 742240 | 1 | STONE | GB | |
||
| 109 | 113933000 | 1 | WASHER | GB | |
||
| 111 | 742066 | 1 | CLAMP OUTER | GB | |
||
| 112 | 742133 | 1 | VISOR | GB | |
||
| 113 | 743415 | 2 | WASHER | 6mm | GB | |
|
| 114 | 726430 | 2 | SCREW | GB | |
||
| 115 | 725165 | 2 | WASHER | GB | |
||
| 117 | 742212 | 1 | REPAIR KIT | GB | |
||
| 118 | 744308 | 1 | SCREW | GB | |
||
| 119 | 744245 | 1 | LEVER | GB | |
||
| 120 | 744692 | 1 | SPRING | GB | |
||
| 121 | 742218 | 1 | WASHER | GB | |
||
| 122 | 743814 | 1 | BRACKET SA | GB | |
