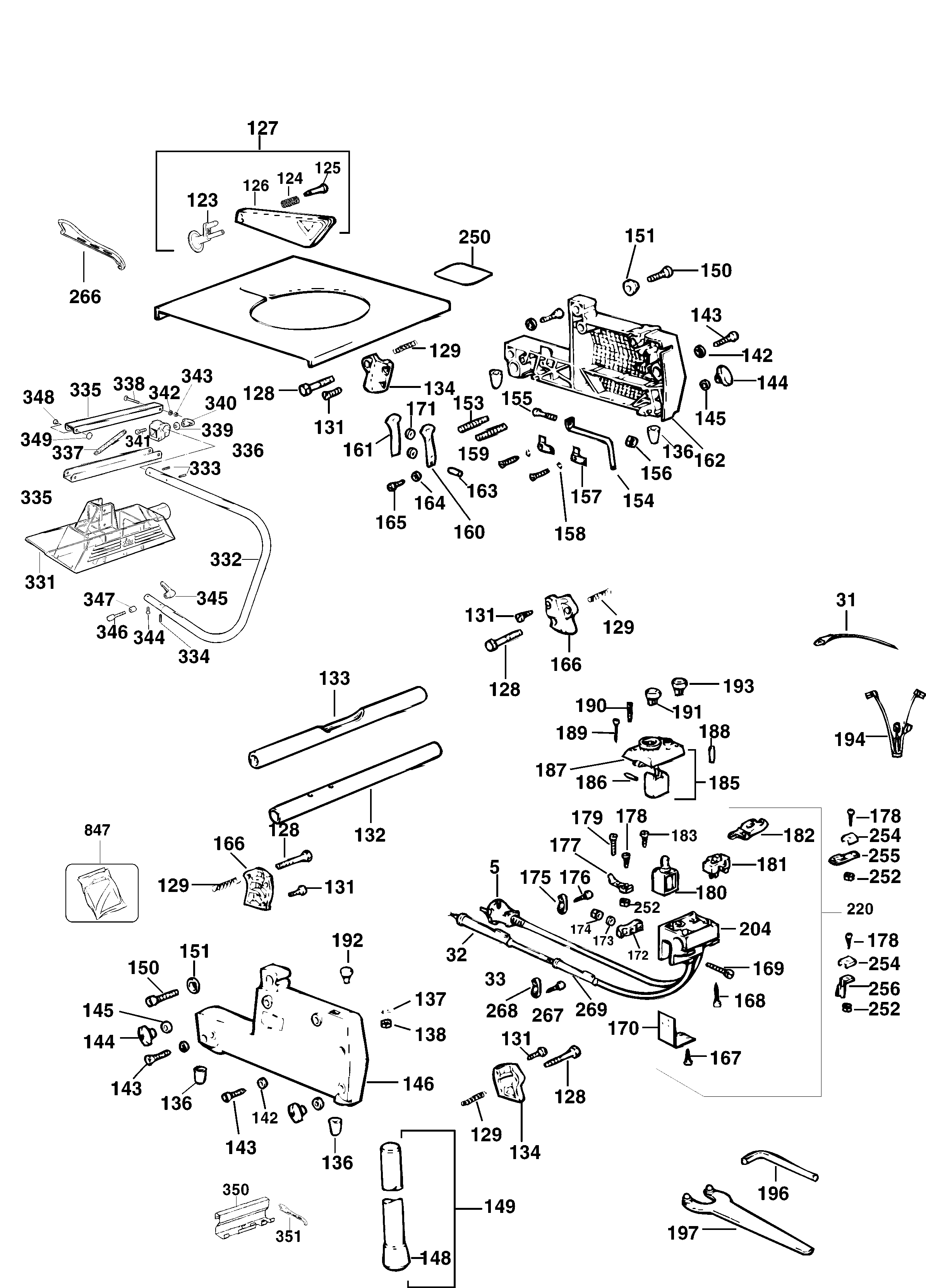

TGS173 COMBINATION SAW Type 5 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 868397-00 | 1 | ROTOR SA | GB |  |
||
| 2 | 868395-03 | 1 | STATOR 115V | GB 115V | GB | |
|
| 2 | 868395-00 | 1 | STATOR 230V | GB 240V | GB |  |
|
| 3 | 864720-05 | 1 | SWITCH | GB | |||
| 4 | 949772-45 | 1 | CAPACITOR 115V | GB 115V | GB | |
|
| 5 | 868551-01 | 1 | CORDSET (M/PLUG) GB | GB 240V | GB | |
|
| 5 | 949788-67 | 1 | CABLE 115V | GB 115V | GB | |
|
| 7 | 861085-04 | 1 | END CAP | GB | |
||
| 8 | 861116-00 | 4 | SCREW | GB | |
||
| 9 | 942413-02 | 1 | FAN | GB | |
||
| 10 | 861036-02 | 1 | END CAP | GB | |
||
| 11 | 942453-00 | 1 | KNOB | GB | |
||
| 12 | 949726-05 | 1 | NUT | GB | |
||
| 13 | 861069-00 | 1 | BARREL | GB | |
||
| 14 | 761054-00 | 1 | SPRING | GB | |
||
| 15 | 941798-00 | 1 | LOCKING PIN | GB | |
||
| 16 | 942329-00 | 7 | SCREW | GB | |
||
| 17 | 761065-00 | 1 | PIN | GB | |
||
| 18 | 941880-00 | 1 | SCREW | GB | |
||
| 20 | 941549-00 | 1 | PIN | GB | |
||
| 21 | 942885-00 | 1 | BRACKET | GB 115V | GB | |
|
| 22 | 942363-00 | 1 | SPINDLE | GB | |
||
| 23 | 861060-01 | 1 | WHEEL | GB | |
||
| 24 | 860088-23 | 1 | SCREW | GB | |
||
| 27 | 949884-01 | 1 | LEVER | GB | |
||
| 29 | 941872-00 | 1 | PIN | GB | |
||
| 30 | 941800-00 | 2 | WASHER LOCK | GB | |
||
| 31 | 942427-00 | 2 | CONNECTING WIRE | GB | |
||
| 32 | 942277-00 | 1 | PROTECTOR | GB | |
||
| 33 | 946845-00 | 1 | CABLE | GB | |
||
| 34 | 945620-00 | 1 | SPINDLE | GB | |
||
| 35 | 760299-00 | 2 | SCREW | GB 115V | GB | |
|
| 36 | 941886-00 | 2 | BUSH | GB | |
||
| 37 | 860085-32 | 1 | SCREW | M8 X 160 | GB | |
|
| 39 | 949743-01 | 2 | SCREW | GB | |
||
| 40 | 869230-01 | 1 | ROTARY TABLE | GB | |
||
| 41 | 942364-00 | 1 | PLATE | GB | |
||
| 42 | 942234-00 | 1 | LOCKING PIN | GB | |
||
| 43 | 861064-00 | 1 | SCALE RH | GB | |
||
| 44 | 861065-00 | 1 | SCALE LH | GB | |
||
| 45 | 942450-00 | 1 | KNOB | GB | |
||
| 46 | 868256-00 | 1 | SCREW | GB | |
||
| 47 | 942272-00 | 1 | SCREW | GB | |
||
| 48 | 861062-00 | 1 | FIXED TABLE | GB | |
||
| 49 | 868285-02 | 1 | BACK FENCE | GB | |
||
| 50 | 942400-01 | 1 | CLAMP | GB | |
||
| 51 | 930563-00 | 1 | BEARING | GB | |
||
| 52 | 942476-01 | 1 | SEGMENT | GB | |
||
| 53 | 860085-28 | 2 | SCREW | GB | |
||
| 54 | 861983-01 | 1 | WASHER | GB | |
||
| 55 | 861038-00 | 1 | BELT | GB | |
||
| 56 | 861040-00 | 1 | PULLEY | GB | |
||
| 57 | 760233-00 | 1 | PIN | GB | |
||
| 58 | 941807-00 | 1 | KNOB | GB | |
||
| 59 | 860491-01 | 1 | SPRING | GB | |
||
| 60 | 864398-12 | 1 | MOTOR HOUSING SA | GB 240V | GB | |
|
| 60 | 864398-12 | 1 | MOTOR HOUSING SA | GB 115V | GB | |
|
| 61 | 860155-08 | 1 | BEARING | GB | |
||
| 62 | 861055-01 | 1 | FLANGE | GB | |
||
| 63 | 860084-11 | 2 | SCREW | GB | |
||
| 64 | 860094-00 | 3 | SCREW.TEMP | GB | |
||
| 67 | 942490-00 | 1 | BUSH | GB | |
||
| 68 | 860079-05 | 1 | CIRCLIP | GB | |
||
| 69 | 868571-00 | 1 | FLANGE SET SA | GB | |
||
| 70 | 868571-00 | 1 | FLANGE SET SA | GB | |
||
| 72 | 761295-00 | 1 | SCREW | GB | |
||
| 73 | 861705-00 | 3 | CIRCLIP SA | GB | |
||
| 74 | 861039-01 | 1 | PULLEY | GB | |
||
| 75 | 942394-05 | 1 | GUARD REAR | GB | |
||
| 76 | 942500-00 | 1 | SPINDLE | GB | |
||
| 77 | 941602-00 | 1 | WASHER | GB | |
||
| 78 | 860322-00 | 1 | CIRCLIP | GB | |
||
| 79 | 942263-01 | 1 | KNOB | GB | |
||
| 80 | 945767-02 | 1 | HOLDER | GB | |
||
| 81 | 945739-02 | 1 | RIVING KNIFE | GB 240V | GB | |
|
| 81 | 945739-02 | 1 | RIVING KNIFE | GB 115V | GB | |
|
| 82 | 949886-16 | 1 | SCREW | GB | |
||
| 83 | 860089-18 | 1 | SCREW | GB | |
||
| 84 | 942508-00 | 1 | TERMINAL BLOCK | GB | |
||
| 86 | 860089-13 | 1 | SCREW | GB | |
||
| 88 | 946214-01 | 1 | HOLDER | GB | |
||
| 89 | 949772-43 | 1 | CAPACITOR | GB 240V | GB | |
|
| 91 | 942485-00 | 2 | COVER | GB | |
||
| 92 | 942467-00 | 1 | LEAD SA | GB 240V | GB | |
|
| 92 | 942467-00 | 1 | LEAD SA | GB 115V | GB | |
|
| 93 | 861704-02 | 1 | GUARD SA | GREY | GB | |
|
| 94 | 867403-00 | 1 | LEVER | GB | |
||
| 95 | 942482-01 | 1 | HANDLE HALF | GB | |
||
| 96 | 942498-01 | 1 | HANDLE | GB | |
||
| 97 | 942108-02 | 1 | LEVER SA | GB | |
||
| 98 | 946646-00 | 1 | SEAL | GB | |
||
| 99 | 949734-09 | 1 | PIN | GB | |
||
| 100 | 760233-00 | 1 | PIN | GB | |
||
| 101 | 860084-13 | 2 | SCREW | GB | |
||
| 102 | 941544-00 | 1 | CABLE CLAMP | GB | |
||
| 103 | 861378-00 | 1 | SCREW | GB | |
||
| 104 | 860089-21 | 1 | SCREW | GB | |
||
| 105 | 860089-14 | 1 | SCREW | GB | |
||
| 107 | 942493-00 | 1 | PIN | GB | |
||
| 108 | 861054-01 | 1 | SCREW | GB | |
||
| 110 | 942182-00 | 1 | PIN | GB | |
||
| 112 | 949725-05 | 1 | SPRING | GB | |
||
| 113 | 860085-17 | 1 | SCREW | GB | |
||
| 114 | 861380-00 | 1 | DEPTH STOP | GB | |
||
| 115 | 860083-12 | 1 | NUT M6 | GB | |
||
| 116 | 942244-00 | 1 | BUSH | GB | |
||
| 117 | 861096-01 | 1 | ROLLER | GB | |
||
| 118 | 861095-01 | 1 | BUFFER | GB | |
||
| 120 | 861380-00 | 1 | DEPTH STOP | GB | |
||
| 121 | 860073-08 | 1 | WASHER | GB | |
||
| 123 | N162670 | 1 | PIVOT | GB 240V | GB | |
|
| 123 | N162670 | 1 | PIVOT | GB 115V | GB | |
|
| 124 | 941622-00 | 1 | SPRING | GB 240V | GB | |
|
| 124 | 941622-00 | 1 | SPRING | GB 115V | GB | |
|
| 125 | 860084-20 | 1 | SCREW | GB 240V | GB | |
|
| 125 | 860084-20 | 1 | SCREW | GB 115V | GB | |
|
| 126 | N162669 | 1 | GUARD UPPER | GB 240V | GB | |
|
| 126 | N162669 | 1 | GUARD UPPER | GB 115V | GB | |
|
| 127 | N164678 | 1 | GUARD SA | GB 240V | GB | |
|
| 127 | N164678 | 1 | GUARD SA | GB 115V | GB | |
|
| 128 | 860301-09 | 4 | BOLT | GB | |
||
| 129 | 761054-00 | 4 | SPRING | GB | |
||
| 131 | 330045-55 | 1 | SCREW | M5x55 MTL THD FMG | GB | |
|
| 132 | 861074-00 | 1 | CROSS BRACE | GB | |
||
| 133 | 861075-00 | 1 | CROSS BRACE | GB | |
||
| 134 | 861078-01 | 2 | CLAMP LH | GB | |
||
| 136 | 942375-00 | 4 | FOOT | GB | |
||
| 137 | 860078-02 | 1 | WASHER | GB | |
||
| 138 | 860083-15 | 1 | NUT | GB | |
||
| 142 | 98197-08 | 4 | WASHER | GB | |
||
| 143 | 942447-00 | 4 | SCREW | GB | |
||
| 144 | 941756-00 | 4 | KNOB | GB | |
||
| 145 | 860073-03 | 1 | WASHER M8 | GB | |
||
| 146 | 861088-01 | 1 | SIDE LH | GB | |
||
| 148 | 861073-00 | 4 | FOOT | GB | |
||
| 149 | 861076-00 | 4 | LEG SA | GB | |
||
| 150 | 942041-00 | 1 | SCREW | GB | |
||
| 151 | 861068-00 | 2 | WASHER | GB | |
||
| 153 | 942522-00 | 2 | SPRING | GB | |
||
| 154 | 942098-00 | 1 | LOCKING DEVICE | GB | |
||
| 155 | 942185-00 | 1 | SCREW | M6 | GB | |
|
| 156 | 860083-12 | 1 | NUT M6 | GB | |
||
| 157 | 942104-00 | 2 | BRIDGE | GB | |
||
| 158 | 761035-00 | 1 | WASHER | GB | |
||
| 159 | 860094-00 | 2 | SCREW.TEMP | GB | |
||
| 160 | 861071-00 | 3 | CATCH | GB | |
||
| 161 | 861070-00 | 3 | LOCKING DEVICE | GB | |
||
| 162 | 861089-01 | 1 | SIDE RH | GB | |
||
| 163 | 942365-00 | 1 | PIN | GB | |
||
| 164 | 949876-08 | 2 | WASHER | GB | |
||
| 165 | 860094-00 | 2 | SCREW.TEMP | GB | |
||
| 166 | 861077-01 | 2 | CLAMP RH | GB | |
||
| 167 | 860084-20 | 1 | SCREW | GB | |
||
| 168 | 080914409 | 2 | SCREW | GB | |
||
| 169 | 949701-12 | 1 | SCREW | GB 240V | GB | |
|
| 169 | 016811102 | 1 | SCREW | GB 115V | GB | |
|
| 170 | 170166500 | 1 | BRACKET | GB | |
||
| 171 | 860073-07 | 2 | WASHER M6 | GB | |
||
| 172 | 173162700 | 1 | CABLE CLAMP | GB | |
||
| 173 | 860073-01 | 1 | WASHER | GB | |
||
| 174 | 860083-02 | 1 | NUT | GB | |
||
| 175 | 861091-00 | 3 | CABLE CLAMP | GB | |
||
| 176 | 949701-12 | 1 | SCREW | GB | |
||
| 177 | 172164604 | 1 | CONNECTOR | GB | |
||
| 178 | 949870-02 | 2 | SCREW | GB | |
||
| 179 | 760299-00 | 1 | SCREW | GB | |
||
| 180 | 942517-00 | 1 | ELECTRO MAGNET | GB | |
||
| 181 | 173160300 | 1 | SWITCH | GB | |
||
| 182 | 173164100 | 1 | SWITCH SUPPORT | GB | |
||
| 183 | 170910349 | 2 | SCREW | GB | |
||
| 185 | 864720-00 | 1 | SWITCH SA | GB | |
||
| 186 | 861378-00 | 4 | SCREW | GB | |
||
| 187 | 862415-00 | 1 | SWITCH SUPPORT | GB | |
||
| 188 | 942124-00 | 1 | PIN | GB | |
||
| 189 | 720744-00 | 4 | SCREW | GB | |
||
| 190 | 860084-14 | 2 | SCREW | GB | |
||
| 191 | 173163400 | 1 | BUTTON ON | GB | |
||
| 192 | 941614-00 | 1 | FOOT | GB | |
||
| 193 | 173163401 | 1 | BUTTON OFF | GB | |
||
| 194 | 861775-00 | 1 | RECTIFIER | GB | |
||
| 196 | 860098-04 | 1 | WRENCH 6 MM | GB | |
||
| 197 | 939072-00 | 1 | SPANNER | GB | |
||
| 198 | 861063-00 | 1 | TABLE LATCH | GB | |
||
| 200 | 861097-00 | 1 | LABEL | GB | |
||
| 201 | 942045-00 | 1 | PIN | GB | |
||
| 202 | 860089-25 | 1 | SCREW | GB | |
||
| 204 | 861115-00 | 1 | SWITCHBOX | GB | |
||
| 208 | 173167100 | 1 | GUIDE | GB | |
||
| 209 | 861037-00 | 1 | BELT COVER | GB | |
||
| 210 | 861704-02 | 1 | GUARD SA | GREY | GB | |
|
| 211 | 861084-00 | 1 | LOCKING PIN SA | GB | |
||
| 212 | 942492-00 | 1 | BLOCK | GB | |
||
| 213 | 860649-01 | 2 | PIN | GB | |
||
| 214 | 945619-00 | 1 | SPRING | GB | |
||
| 215 | 941602-00 | 1 | WASHER | GB | |
||
| 216 | 860085-18 | 1 | SCREW | GB | |
||
| 217 | 941606-00 | 1 | SCREW | GB | |
||
| 233 | 946215-00 | 1 | SEAL | GB | |
||
| 234 | 760299-00 | 1 | SCREW | GB | |
||
| 235 | 946213-02 | 1 | GUARD SA | GB | |
||
| 236 | 946314-00 | 2 | FASTENER | GB | |
||
| 241 | 944902-01 | 1 | RIVING KNIFE KIT | GB 240V | GB | |
|
| 241 | 944902-01 | 1 | RIVING KNIFE KIT | GB 115V | GB | |
|
| 243 | 949870-02 | 1 | SCREW | GB | |
||
| 244 | 933652-00 | 1 | WASHER | GB | |
||
| 245 | 860089-25 | 1 | SCREW | GB | |
||
| 246 | 941633-00 | 1 | WASHER | GB | |
||
| 247 | 860073-01 | 1 | WASHER | GB | |
||
| 248 | 944603-00 | 1 | LABEL RIVING KNIFE | GB | |
||
| 250 | 861099-00 | 1 | LABEL | GB | |
||
| 252 | 942193-00 | 1 | NUT | GB | |
||
| 254 | 942421-00 | 1 | PLATE | GB | |
||
| 255 | 942431-00 | 1 | PLATE | GB | |
||
| 256 | 942432-00 | 1 | CONNECTOR | GB | |
||
| 257 | 949795-01 | 4 | SCREW | GB | |
||
| 258 | 946620-00 | 1 | WEDGE | GB | |
||
| 259 | 949725-02 | 1 | SPRING 50MM | GB | |
||
| 263 | 867397-00 | 1 | HANDLE SA | GB | |
||
| 265 | 946315-00 | 1 | SHOCK ABSORBER | GB | |
||
| 266 | 860610-01 | 1 | PUSHROD | GB | |
||
| 267 | 861090-00 | 1 | SCREW | GB | |
||
| 268 | 866693-00 | 1 | CLAMP | GB | |
||
| 269 | 940258-00 | 1 | SLEEVE | GB | |
||
| 270 | 942320-03 | 1 | GUIDE | GB | |
||
| 271 | 861346-00 | 1 | FENCE | GB | |
||
| 272 | 942316-01 | 1 | CLAMPING BAR | GB | |
||
| 273 | 860073-03 | 1 | WASHER M8 | GB | |
||
| 274 | 941756-00 | 1 | KNOB | GB | |
||
| 275 | 941819-01 | 1 | BRACKET | GB | |
||
| 276 | 941756-00 | 1 | KNOB | GB | |
||
| 277 | 860092-02 | 1 | NUT | GB | |
||
| 278 | 860073-07 | 1 | WASHER M6 | GB | |
||
| 279 | 941578-01 | 1 | FENCE | GB | |
||
| 280 | 942172-00 | 1 | BASE | GB | |
||
| 281 | 949743-03 | 1 | SCREW | GB | |
||
| 282 | 942151-00 | 1 | RAIL | GB | |
||
| 283 | 860089-00 | 2 | SCREW.TEMP | GB | |
||
| 284 | 941518-00 | 1 | SCREW | GB | |
||
| 285 | 860083-12 | 1 | NUT M6 | GB | |
||
| 286 | 860073-03 | 1 | WASHER M8 | GB | |
||
| 287 | 860722-01 | 1 | BUNG | GB | |
||
| 288 | 942308-00 | 1 | REDUCER | GB | |
||
| 847 | 861304-00 | 1 | KIT | GB | |
