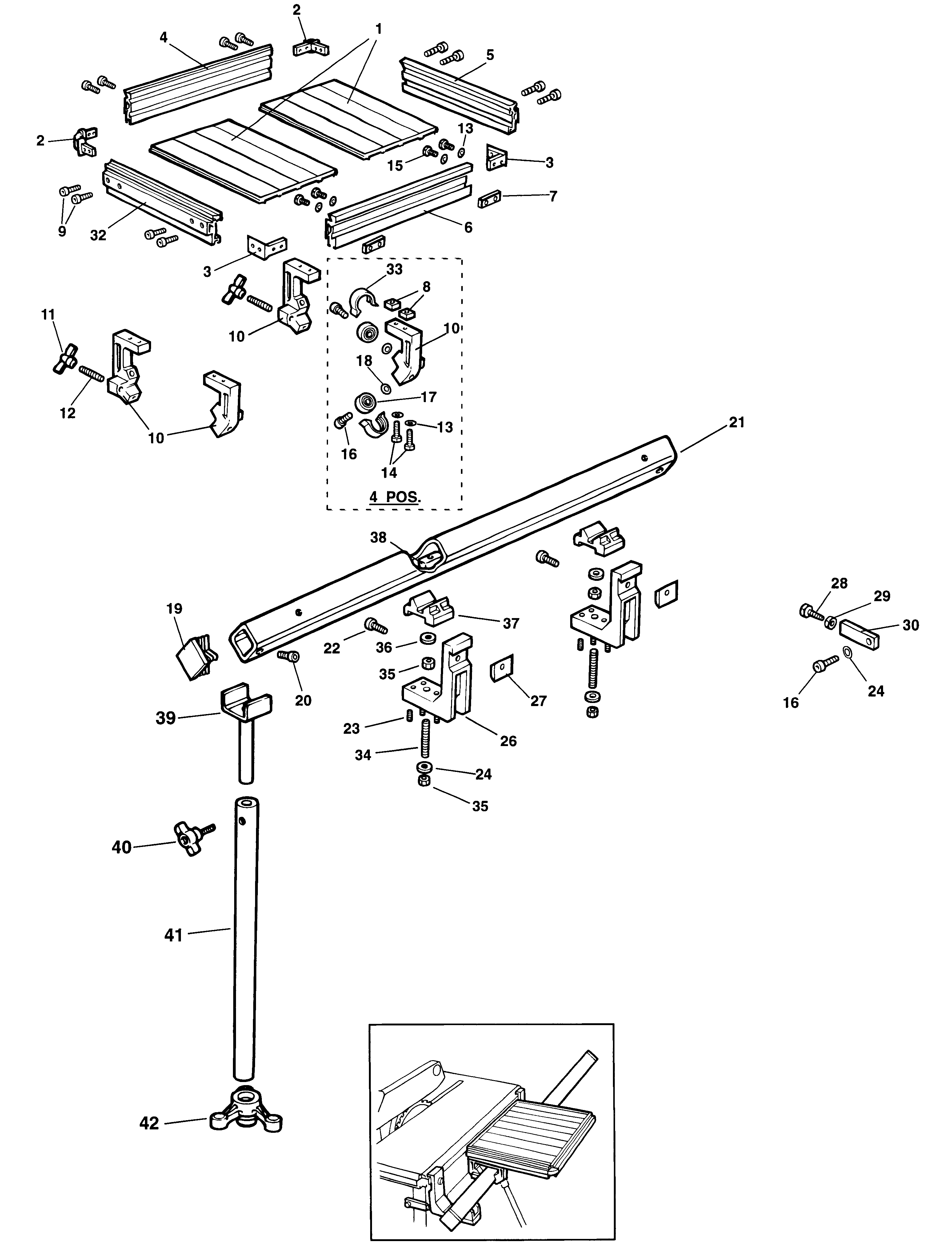

EZ41102 EXTENSION TABLE Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 568484-00 | 2 | TABLE | XJ |  |
||
| 2 | 279356-00 | 2 | JOINT | XJ | |
||
| 3 | 279412-00 | 2 | JOINT | XJ | |
||
| 4 | 279431-00 | 1 | SIDE EXTRUSION | XJ | |
||
| 5 | 279416-00 | 1 | RAIL | XJ | |
||
| 6 | 279417-00 | 1 | RAIL | XJ | |
||
| 7 | 279418-00 | 2 | NUT | XJ | |
||
| 8 | 279366-00 | 8 | NUT | XJ | |
||
| 9 | 279367-00 | 12 | SCREW.SPECIAL | XJ | |
||
| 10 | 279419-00 | 4 | SUPPORT | XJ | |
||
| 11 | 279420-00 | 2 | KNOB | XJ | |
||
| 12 | 279421-00 | 2 | STUD | XJ | |
||
| 13 | 720959-00 | 12 | WASHER | XJ |  |
||
| 14 | 860085-13 | 8 | SCREW | XJ | |
||
| 15 | 932617 | 4 | SCREW | XJ | |
||
| 16 | 882397 | 10 | SCREW | XJ | |
||
| 17 | 279422-00 | 8 | BEARING | XJ | |
||
| 19 | 279423-00 | 1 | END CAP | XJ | |
||
| 20 | 935875-00 | 1 | SCREW | XJ | |
||
| 21 | 560394-00 | 1 | BAR | XJ | |
||
| 22 | 911281 | 2 | SCREW | XJ | |||
| 23 | 279429-00 | 6 | SCREW.SPECIAL | XJ | |
||
| 24 | 278913-00 | 3 | WASHER M8 | XJ | |
||
| 26 | 279425-00 | 2 | SUPPORT BRACKET | XJ | |
||
| 27 | 279426-00 | 2 | NUT | XJ | |
||
| 28 | 860085-10 | 1 | SCREW | XJ | |
||
| 29 | 860083-12 | 1 | NUT M6 | XJ | |
||
| 30 | 279427-00 | 2 | SUPPORT PLATE | XJ | |
||
| 32 | 279398-00 | 1 | RAIL | XJ | |
||
| 33 | 279629-00 | 8 | COVER BEARING | XJ | |
||
| 34 | 560012-00 | 2 | STUD | XJ | |
||
| 35 | 279639-00 | 4 | LOCK-NUT | XJ | |
||
| 36 | 560019-00 | 2 | WASHER | XJ | |
||
| 37 | 560013-00 | 2 | SUPPORT | XJ | |
||
| 38 | 560014-00 | 2 | NUT | XJ | |
||
| 39 | 560391-00 | 1 | SUPPORT BRACKET | XJ | |
||
| 40 | 560393-00 | 1 | SCREW WING | XJ | |
||
| 41 | 560392-00 | 1 | SHAFT | XJ | |
||
| 42 | 560395-00 | 1 | FOOT | XJ | |
