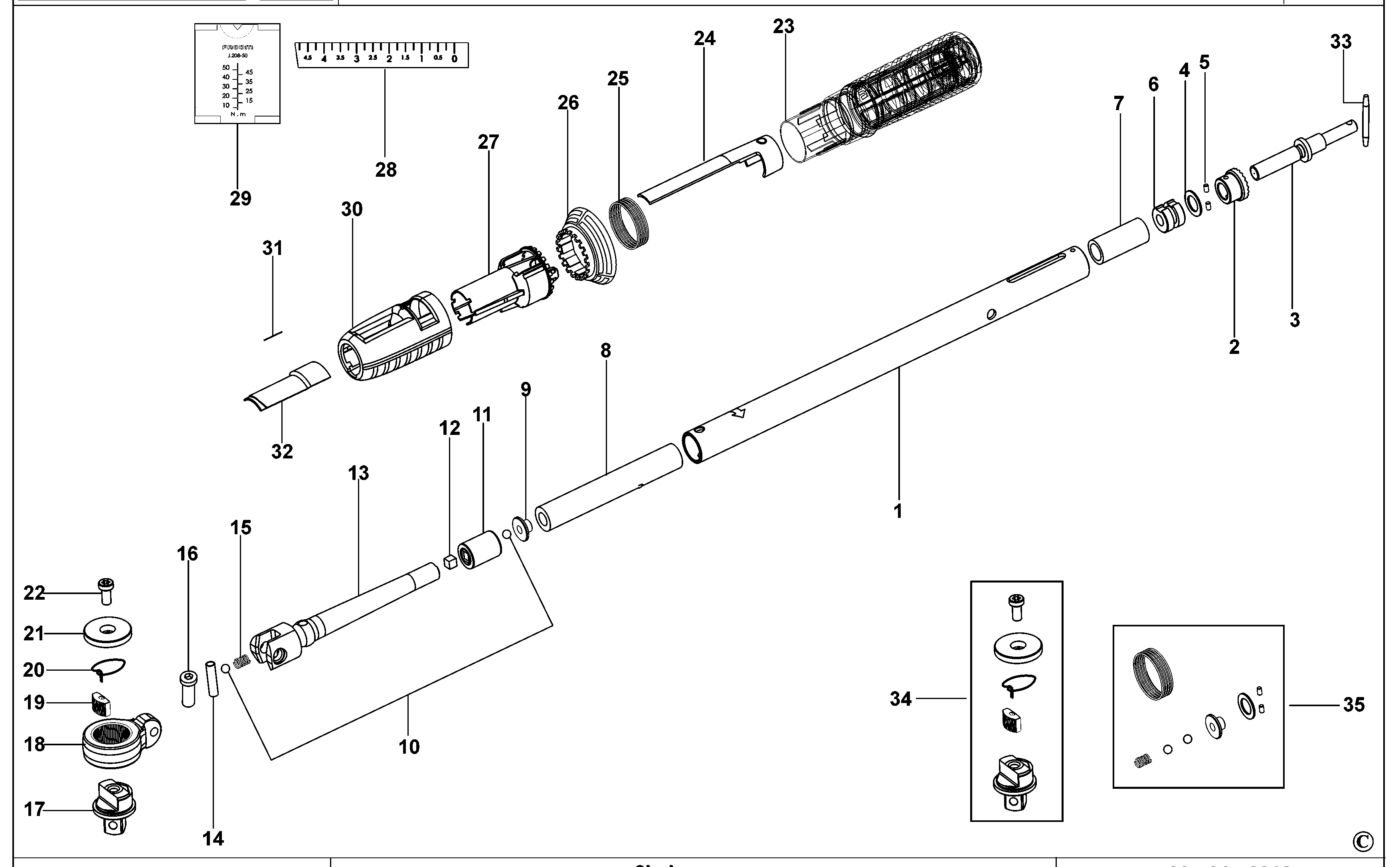

810 F 200 WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 000000-05 | 1 | PARTIAL SUPPORT - ONLY PARTS LISTED AVAI | XJ | |||
| 2 | 767-022 | 1 | NUT | XJ |  |
||
| 3 | 767-019 | 1 | SCREW | XJ | |
||
| 4 | 778-007 | 1 | WASHER | XJ | |
||
| 5 | RC.3-5 | 2 | PIN | XJ | |
||
| 6 | 767-017 | 1 | STOP | XJ | |
||
| 7 | T0212670 | 1 | SPACER | XJ |  |
||
| 8 | 767-013 | 1 | SPRING | XJ | |
||
| 9 | 5140194-84 | 1 | INSERT | S.313-14 | XJ | |
|
| 10 | 5140194-81 | 2 | BALL | RB5.556 | XJ | |
|
| 11 | S.325D4 | 1 | THRUST PLATE | XJ | |
||
| 12 | S.206-100-15 | 1 | ROCKER | XJ | |
||
| 13 | 5140194-78 | 1 | ARM | FLEX-HEAD TWXF100-03 | XJ | |
|
| 14 | S.206-100-03 | 1 | PIN | XJ | |
||
| 15 | 5140194-80 | 1 | SPRING | N315-17 | XJ | |
|
| 16 | 5140194-93 | 1 | SCREW | M8X22.5 | XJ | |
|
| 17 | S.151R | 1 | ROTOR | XJ | |
||
| 18 | 1004738-97 | 1 | HEAD | XJ | |
||
| 19 | S.151-3 | 1 | PAWL | XJ | |
||
| 20 | S.151-6 | 1 | SPRING | XJ | |
||
| 21 | S.151C | 1 | INVERTER | XJ | |
||
| 22 | S.151-5 | 1 | SCREW | XJ | |
||
| 23 | 767-131 | 1 | HANDLE | XJ | |
||
| 24 | 767-042 | 1 | SLIDE | XJ | |
||
| 25 | 767-046 | 1 | LOCKING RING | XJ | |
||
| 26 | 767-046 | 1 | LOCKING RING | XJ | |
||
| 27 | 767-041 | 1 | LOCK HANDLE | XJ | |
||
| 28 | 767-035 | 1 | LABEL | XJ | |
||
| 29 | T0212700 | 1 | LABEL - SCALE | XJ | |
||
| 30 | 767-045 | 1 | HOUSING FRONT | XJ | |
||
| 30 | 767-045 | 1 | HOUSING FRONT | XJ | |
||
| 31 | 767-126 | 1 | LABEL - RED LINE | XJ | |
||
| 32 | 767-043 | 1 | WINDOW | XJ | |
||
| 33 | 767-028 | 1 | PIN | XJ | |
||
| 34 | 1004742-36 | 1 | REPAIR KIT | XJ | |
||
| 35 | 1004742-37 | 1 | REPAIR KIT | XJ | |
