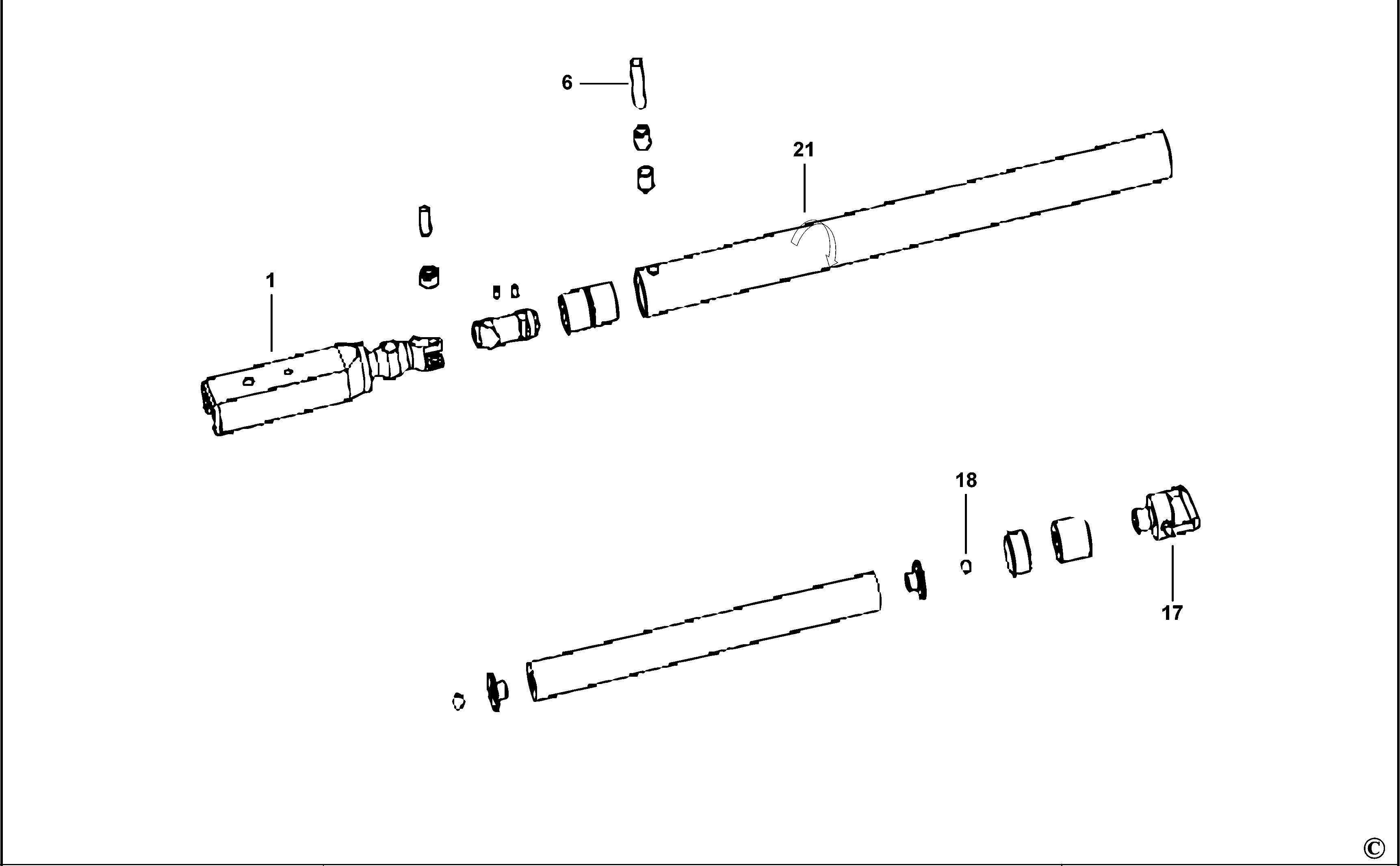

811 RC 25 WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 000000-05 | 1 | PARTIAL SUPPORT - ONLY PARTS LISTED AVAI | XJ | |||
| 2 | 809030-07 | 1 | CHARGER SA | XJ |  |
||
| 3 | 568382-00 | 2 | LEAD | XJ | |
||
| 6 | S.206-100-03 | 1 | PIN | XJ |  |
||
| 6 | 743751 | 1 | HOUSING | XJ | |
||
| 7 | 321958 | 1 | HOUSING SA | XJ | |
||
| 8 | 568355-00 | 1 | LEVER | XJ | |
||
| 9 | 568354-00 | 1 | SPRING | XJ | |
||
| 10 | 806156 | 1 | SWITCH | XJ | |
||
| 11 | 568401-00 | 1 | WHEEL | XJ | |
||
| 12 | 320843-05 | 1 | CAPACITOR | XJ | |
||
| 13 | 279710-00 | 1 | BOWL | XJ | |
||
| 14 | 320725-00 | 1 | FIELDCASE | XJ | |||
| 15 | 322001 | 1 | SWITCH | Lock-Off | XJ | |
|
| 16 | 824992-49 | 1 | BLADE & GEAR SA | XJ | |
||
| 17 | S.365DA03 | 1 | CAP SA | XJ | |
||
| 18 | RB.5.556 | 1 | BALL STEEL | XJ | |
||
| 18 | 826317 | 1 | RATING PLATE | XJ | |||
| 20 | 568326-00 | 1 | WASHER | XJ | |
||
| 21 | R.305D21 | 1 | LABEL - RED ARROW | XJ | |
||
| 21 | 321327 | 1 | INSERT | XJ | |
||
| 23 | 6010029-02 | 2 | PANEL | XJ | |
||
| 26 | 372365 | 1 | SHOE SA | XJ | |
||
| 27 | 568385-00 | 2 | CORD CLAMP | XJ | |
||
| 28 | 6010029-56 | 2 | FILTER | JUICEEXTRACTOR | XJ | |
|
| 29 | 832211-01 | 1 | GRASSFLAP | XJ | |
||
| 30 | 90626849 | 1 | SPRING | XJ | |
||
| 31 | 1004774-91 | 2 | SPRING | XJ | |
||
| 32 | 151002-00 | 7 | DUST DEFLECTOR | XJ | |
||
| 33 | 568391-00 | 1 | CIRCLIP | XJ | |
||
| 35 | 398578-01 | 1 | SIDE HANDLE | XJ | |||
| 36 | 279604-00 | 1 | TIMER | XJ | |
||
| 40 | 6010085-05 | 2 | SWITCH | XJ | |||
| 44 | 123286-00 | 1 | PINION | XJ | |
||
| 46 | 90538466 | 4 | SLEEVE BEARING | XJ | |
||
| 48 | 568363-00 | 1 | BEARING | XJ | |
||
| 49 | 249080-00 | 1 | RAIL | XJ | |
||
| 55 | 325022-00 | 2 | WASHER SPECIAL | XJ | |
||
| 56 | 584422-00 | 1 | CYLINDER SA | XJ | |
||
| 62 | 392311-00 | 1 | LEG STAND | XJ | |
||
| 63 | 831683-01 | 1 | SWITCH | XJ | |
