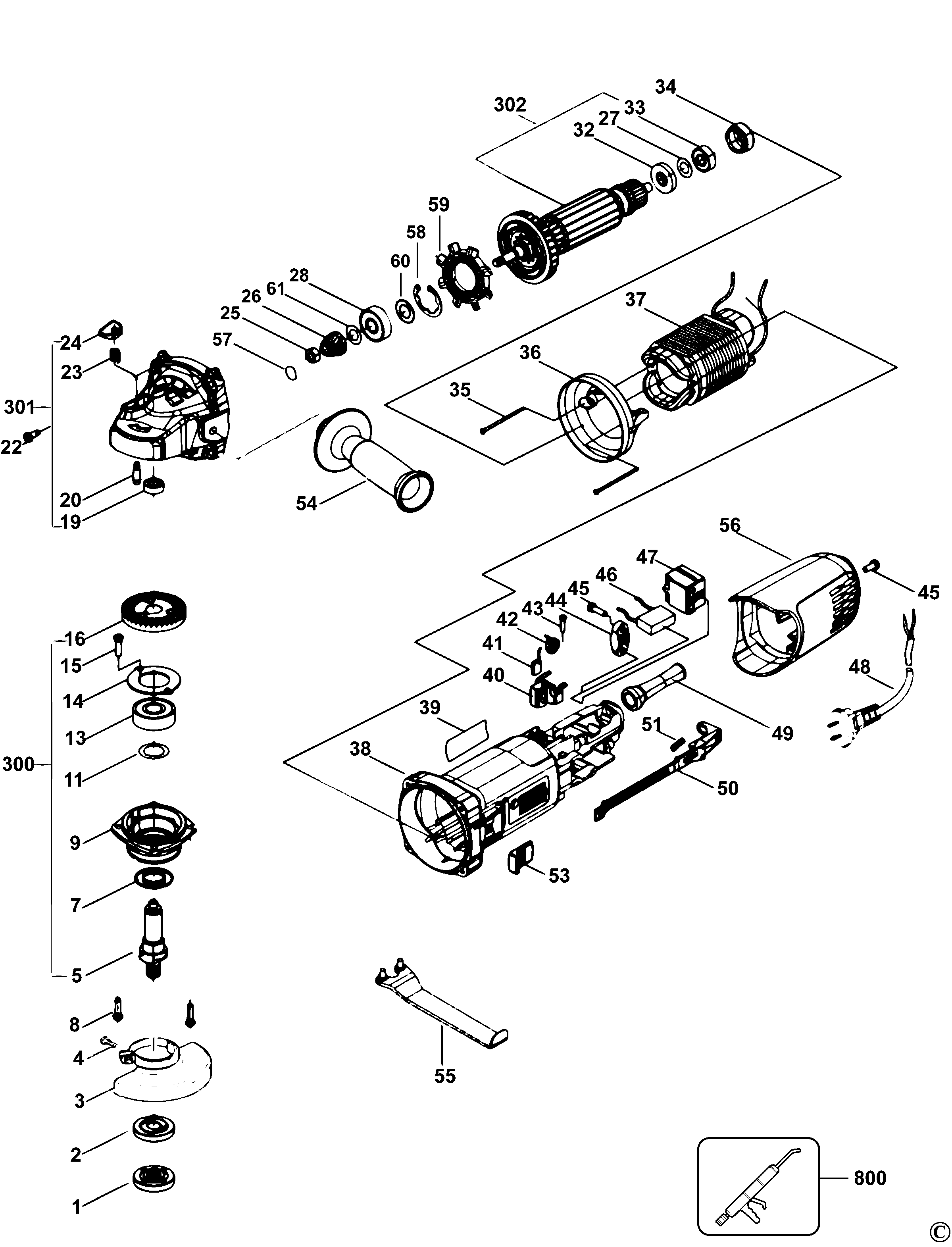

FMEG825 ANGLE GRINDER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 4145104008 | 1 | OUTER FLANGE | XJ |  |
||
| 2 | 4145104002 | 1 | INNER FLANGE | XJ | |
||
| 3 | 4142104001 | 1 | GUARD SA | XJ | |
||
| 4 | 49203052 | 1 | SCREW | XJ | |
||
| 5 | N559299 | 1 | SPINDLE | XJ | |
||
| 7 | 4141004012 | 1 | DUST GUARD | XJ | |
||
| 8 | 49209042 | 4 | SCREW | XJ | |
||
| 9 | N569767 | 1 | GEARCASE COVER | XJ | |
||
| 11 | 4140704002 | 1 | WASHER | 12 x 26.5 x 0.2 mm; 12*26.5*0.2 | XJ | |
|
| 13 | 49111017 | 1 | BEARING | XJ | |
||
| 14 | 4141404606 | 1 | BASE PLATE | XJ | |
||
| 15 | 49203008 | 8 | SCREW | XJ | |
||
| 16 | N539401 | 1 | GEAR | XJ | |
||
| 19 | 49111032 | 1 | BEARING | XJ | |
||
| 20 | 4141004008 | 1 | LOCK PIN | XJ | |
||
| 22 | N547082 | 4 | SCREW | XJ | |
||
| 23 | 4140308003 | 1 | SPRING | XJ |  |
||
| 24 | 4141001005 | 1 | BUTTON | XJ | |
||
| 25 | 49205005 | 1 | NUT | M6 | XJ | |
|
| 26 | N539400 | 1 | PINION | XJ | |
||
| 27 | 4141004002 | 1 | WASHER | 7 x 16.5 x 0.3 mm; 7*16.5*0.3 | XJ | |
|
| 28 | 49111039 | 1 | BEARING | XJ | |
||
| 32 | 4140901007 | 1 | WASHER INSULATING | XJ | |
||
| 33 | 49106002 | 1 | BEARING | XJ | |
||
| 34 | 4141403001 | 1 | SLEEVE BEARING | XJ | |
||
| 35 | 49206031 | 2 | SCREW | 4 x 75 mm; 4*75 | XJ | |
|
| 36 | 4141401603 | 1 | BAFFLE | XJ | |
||
| 37 | 60314059 | 1 | FIELD SA | XJ | |
||
| 38 | N592377 | 1 | FIELDCASE | XJ | |
||
| 40 | 4141007001 | 1 | BRUSH HOLDER | XJ | |
||
| 41 | N531676 | 1 | BRUSH PAIR | XJ | |
||
| 42 | 4141008001 | 1 | BRUSH SPRING | XJ | |
||
| 43 | 49206001 | 4 | SCREW | XJ | |
||
| 44 | 4240201013 | 1 | CORD CLAMP | XJ | |
||
| 45 | 49206018 | 3 | SCREW | SELF-TAPPING 4*15 | XJ | |
|
| 45 | 60302010 | 1 | FIELD SA | XJ | |
||
| 46 | Z494014-1 | 1 | CAPACITOR | XJ | |
||
| 47 | 4140305605 | 1 | SWITCH SA | XJ | |
||
| 49 | 49303005 | 1 | CORD PROTECTOR | XJ | |
||
| 50 | 4141401002 | 1 | LINK | XJ | |
||
| 51 | 4141408001 | 1 | SPRING | XJ | |
||
| 53 | 4141401003 | 1 | BUTTON | XJ | |
||
| 54 | 4140401001 | 1 | HANDLE SIDE SA | XJ | |
||
| 55 | 4140304608 | 1 | WRENCH SET | XJ | |
||
| 56 | 4141401602 | 1 | END CAP | XJ | |
||
| 57 | 4030203005 | 1 | O RING | XJ | |
||
| 58 | 4141404607 | 1 | CIRCLIP | XJ | |
||
| 59 | 4141401607 | 1 | BAFFLE FAN | XJ | |
||
| 60 | 4090104003 | 1 | WASHER | 8 x 15 x 0.2 mm; 8*15*0.2 | XJ | |
|
| 61 | 4140304012 | 1 | WASHER | 6 x 16.5 x 0.2 mm; 6*16.5*0.2 | XJ | |
|
| 300 | N592303 | 1 | SPINDLE & GEAR SA | XJ | |
||
| 301 | 4141450008 | 1 | GEARCASE SA | XJ | |
||
| 302 | 4141450009 | 1 | ARMATURE SA | XJ | |
||
| 800 | 870889-02 | 1 | GREASE | XJ | |
