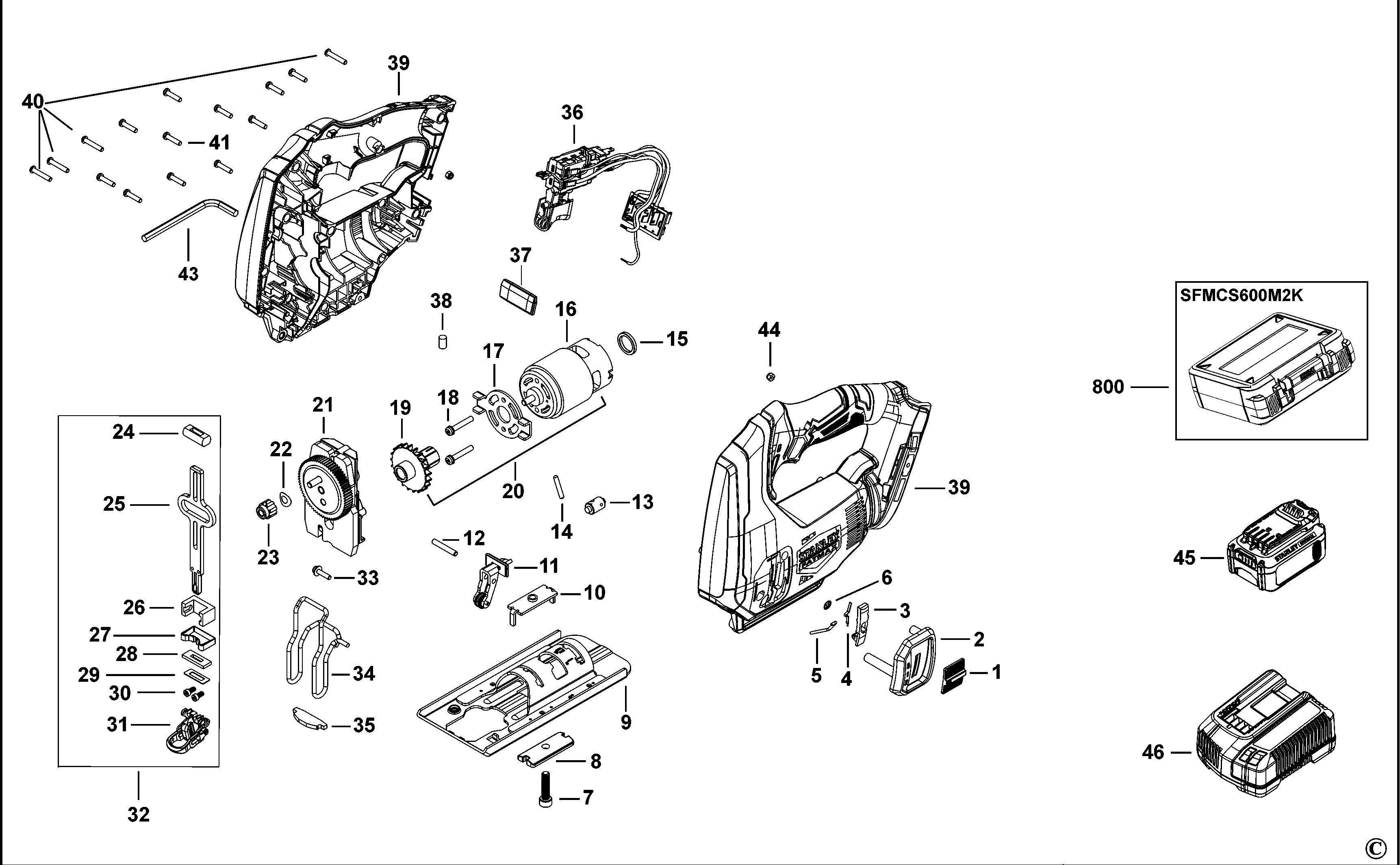

SFMCS600 CORDLESS JIGSAW Type H1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N568730 | 1 | SLIDER | GB |  |
||
| 2 | N568729 | 1 | COVER | GB | |
||
| 3 | 90594596 | 1 | PLATE | GB |  |
||
| 4 | 5145989-00 | 1 | DETENT | GB | |
||
| 5 | 90597489 | 1 | ROD | GB | |
||
| 6 | 5145994-00 | 1 | RING | GB | |
||
| 7 | 098121-25 | 1 | BOLT | GB | |
||
| 8 | N594992 | 1 | PLATE LOCK | GB | |
||
| 9 | N575351 | 1 | SHOE SA | GB | |
||
| 10 | 90592123 | 1 | PLATE LOCK | GB | |
||
| 11 | 90549292 | 1 | BLADE SUPPORT SA | GB | |||
| 12 | 5146349-00 | 1 | PIN | GB | |
||
| 13 | N597525 | 1 | SELECTOR | GB | |
||
| 14 | N597524 | 1 | NEEDLE ROLLER | GB | |
||
| 15 | 90578553 | 1 | O RING | GB | |
||
| 16 | N722218 | 1 | MOTOR SA | GB | |
||
| 17 | 90590985 | 1 | PLATE | GB | |
||
| 18 | 498974-02 | 2 | SCREW | M4X6 | GB | |
|
| 19 | 90593862 | 1 | FAN | GB | |
||
| 20 | N821355 | 1 | MOTOR SA | GB | |||
| 21 | N597331 | 1 | TRANSMISSION SA | GB | |
||
| 22 | 5146006-00 | 1 | WASHER | GB | |
||
| 23 | 795688-00 | 1 | ROLLER | GB | |
||
| 24 | 582719-00 | 1 | BEARING | GB | |
||
| 25 | 582653-00 | 1 | SHAFT | GB | |
||
| 26 | 795645 | 1 | CARRIER | GB | |
||
| 27 | 5146865-00 | 1 | SPRING CLIP | GB | |
||
| 28 | 5146353-00 | 1 | FELT SEAL | GB | |
||
| 29 | 5146352-00 | 1 | PLATE | GB | |
||
| 30 | 5146354-00 | 2 | SCREW | GB | |
||
| 31 | N575811 | 1 | BLADE CLAMP | GB | |||
| 32 | N851735 | 1 | SHAFT SA | GB | |||
| 33 | 90543289 | 1 | SCREW | GB | |
||
| 34 | N575353 | 1 | GUARD | GB | |
||
| 35 | 90546247 | 1 | PAD | GB | |
||
| 36 | N690918 | 1 | SWITCH SA | GB | |
||
| 37 | N560349 | 1 | TRIGGER | GB | |
||
| 38 | 5149025-00 | 1 | PLUG | GB | |
||
| 39 | N715049 | 1 | CLAMSHELL PAIR | GB | |
||
| 40 | N602179 | 4 | SCREW | M3.5*20MM | GB | |
|
| 41 | 5106167-00 | 11 | SCREW | GB | |
||
| 43 | 90592650 | 1 | KEY | 5MM | GB | |
|
| 44 | 90556571 | 2 | NUT | M3 | GB | |
|
| 45 | N855084 | 1 | BATTERY 18V - 4.0AH - 72WH | SFMCS600M2K | GB | ||
| 45 | N901002 | 1 | BATTERY 18V - 2.0AH - 36WH | SFMCB202-XJ | SFMCS600D1K | GB | |
| 46 | N567651 | 1 | CHARGER SA | SFMCB12 - 2A | SFMCS600D1K | GB | |
| 800 | N736464 | 1 | KITBOX | SFMCS600M2K+D1K | GB | |
