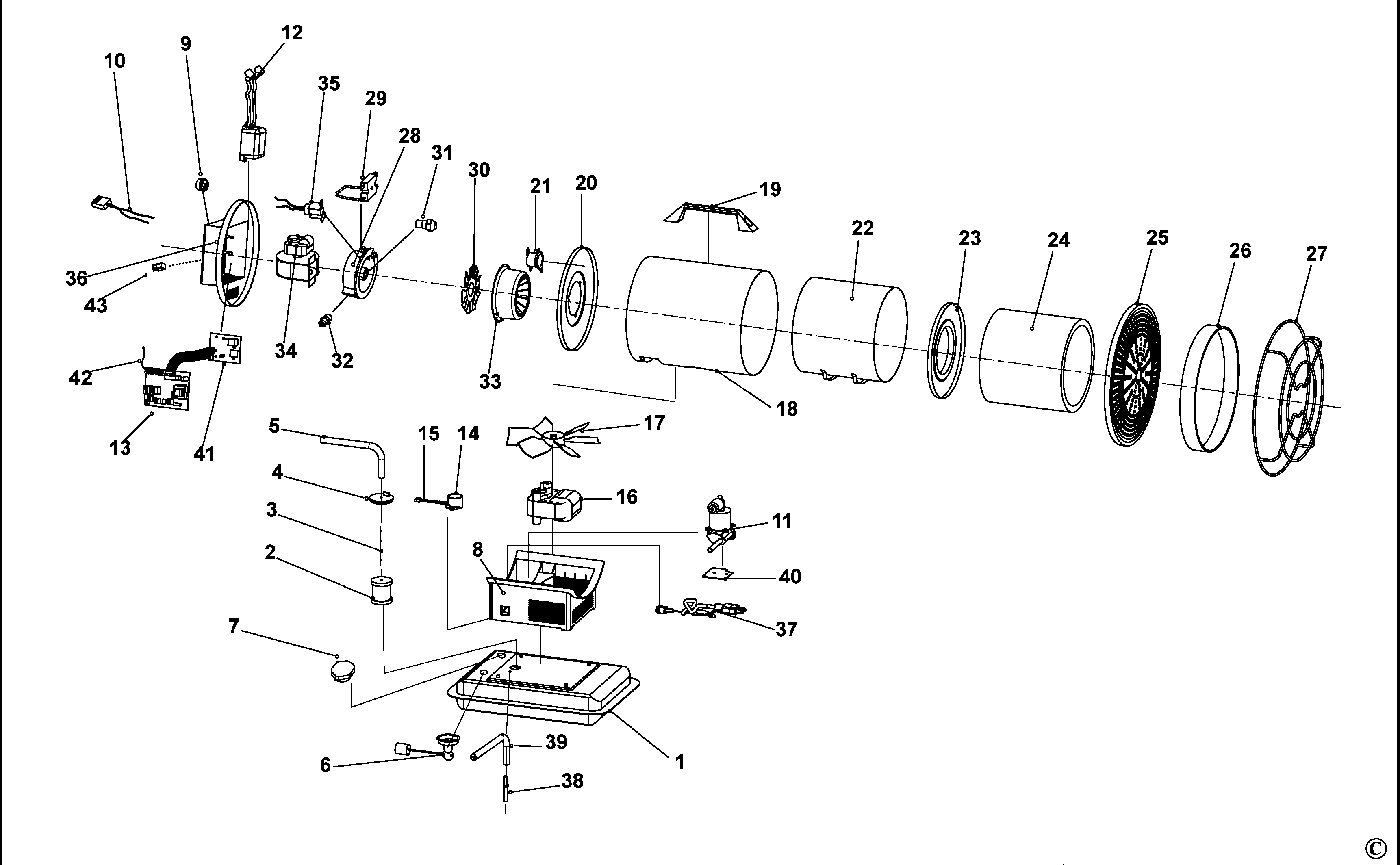

Item No.	Product Number	Qty Per	Product Description	Other Info	Markets
1	1004747-53	1	TANK		XJ
2	1004747-55	1	FILTER SA	<2016	XJ
2	1004747-54	1	FILTER SA	>2017	XJ
3	1004747-60	1	TUBE		XJ
4	1004747-56	1	SEAL		XJ
5	1004784-20	1	HOSE		XJ
6	1004747-57	1	GAUGE		XJ
7	1004747-58	1	FUEL CAP		XJ
8	1004747-61	1	FAN COVER		XJ
9	1004747-91	1	SWITCH		XJ
10	1004747-85	1	SET OF LEAD WIRES		XJ
11	1004747-64	1	PUMP SA		XJ
12	1004747-87	1	STARTER SA		XJ
13	1004747-86	1	PCB		XJ
14	1004747-62	1	SENSOR		XJ
15	1004747-63	1	SET OF LEAD WIRES		XJ
16	1004747-67	1	MOTOR		XJ
17	1004747-97	1	FAN		XJ
18	1004747-70	1	HOUSING		XJ
19	1004747-90	1	HANDLE		XJ
20	1004747-80	1	SUPPORT		XJ
21	1004747-72	1	SWITCH		XJ
22	1004747-71	1	INSULATOR		XJ
23	1004747-74	1	INSULATOR		XJ
24	1004747-73	1	HEATSHIELD		XJ
25	1004747-75	1	PLATE		XJ
26	1004747-88	1	RING		XJ
27	1004747-89	1	GUARD		XJ
28	1004747-76	1	BODY		XJ
29	1004747-78	1	SPARK PLUG		XJ
30	1004747-79	1	BLADE		XJ
31	1004747-77	1	NOZZLE		XJ
33	1004747-81	1	CAP SA		XJ
34	1004747-82	1	MOTOR SA		XJ
35	1004747-83	1	SENSOR		XJ
36	1004747-84	1	COVER		XJ
37	1004747-69	1	CORDSET	EUR	XJ
38	1004747-59	1	PIPE SA		XJ
40	1004747-66	1	BRACKET		XJ
41	1004747-92	1	PCB SA	230v	XJ
42	1004747-93	1	WIRE HARNESS		XJ
