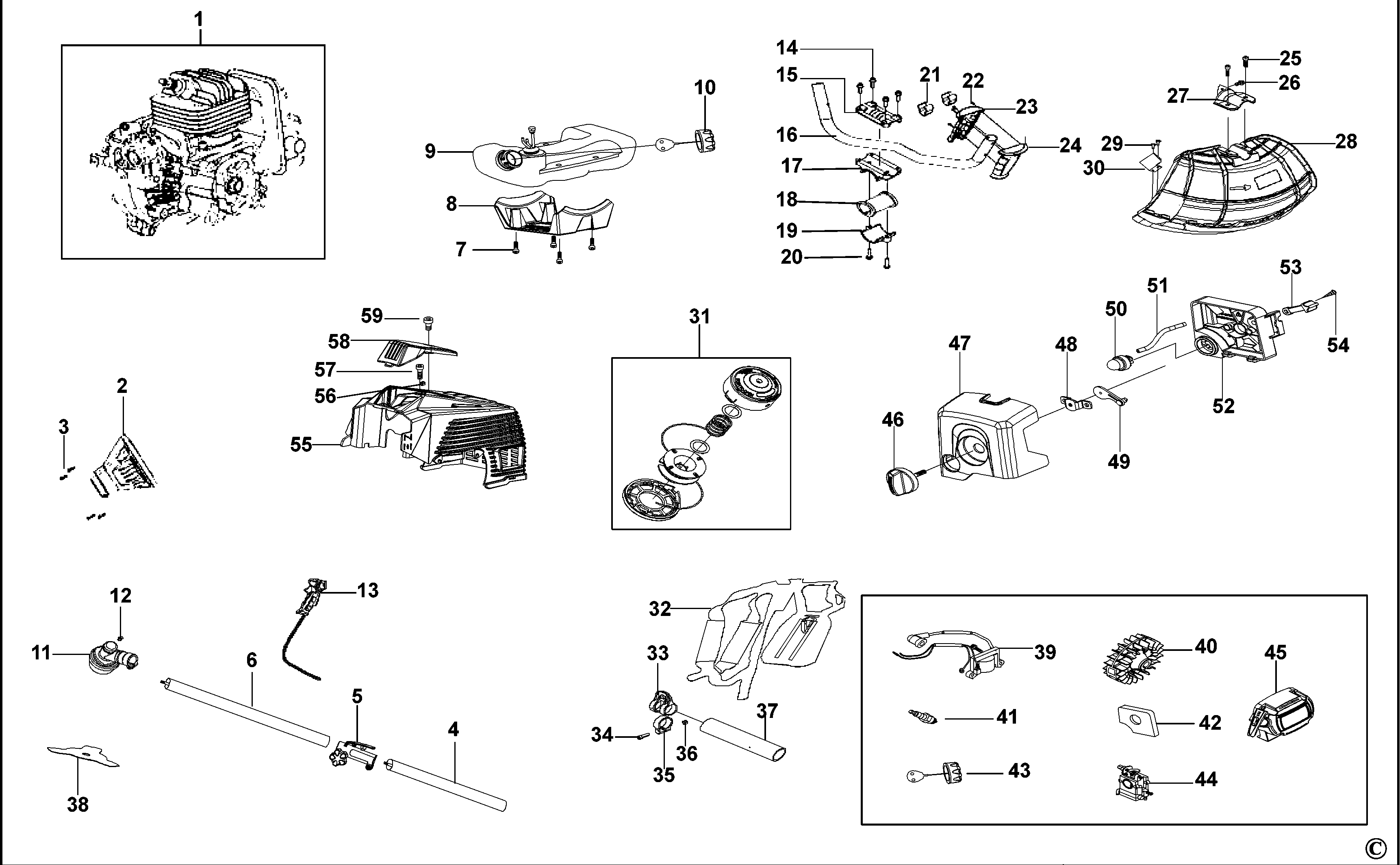

SPS-900 BRUSH CUTTER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | E604200060-A1 | 1 | MOTOR SA | XJ |  |
||
| 2 | E604200060-B1 | 1 | MOUNT | XJ | |
||
| 3 | E604200060-B2 | 4 | SCREW | XJ | |
||
| 4 | E604200060-C1 | 1 | TUBE | XJ | |
||
| 5 | E604200060-C2 | 1 | HANDLE SA | XJ |  |
||
| 6 | E604200060-C3 | 1 | TUBE | XJ | |
||
| 7 | E604200060-D1 | 4 | SCREW | XJ | |
||
| 8 | E604200060-D2 | 1 | HOUSING | XJ | |
||
| 9 | E604200060-D3 | 1 | Fuel tank | Fuel/oil ratio:40:1 | XJ | |
|
| 10 | E604200060-D4 | 1 | CAP SA | XJ | |
||
| 11 | E604200060-E1 | 1 | GEARBOX | XJ | |
||
| 12 | E604200060-E2 | 1 | SCREW | XJ | |
||
| 13 | E604200060-F1 | 1 | HANDLE SA | XJ | |
||
| 14 | E604200060-G1 | 4 | SCREW | XJ | |
||
| 15 | E604200060-G2 | 1 | PLATE | XJ | |
||
| 16 | E604200060-G3 | 1 | HANDLE | XJ | |
||
| 17 | E604200060-G4 | 1 | BASE PLATE | XJ | |
||
| 18 | E604200060-G5 | 1 | DAMPER | XJ | |
||
| 19 | E604200060-G6 | 1 | COVER | XJ | |
||
| 20 | E604200060-G7 | 2 | SCREW | XJ | |
||
| 21 | E604200060-G8 | 1 | CLIP | XJ | |
||
| 22 | E604200060-G9 | 4 | SCREW | XJ | |
||
| 23 | E604200060-G10 | 1 | COVER RH | XJ | |
||
| 24 | E604200060-G11 | 1 | COVER LH | XJ | |
||
| 25 | E604200060-H1 | 2 | SCREW | XJ | |
||
| 26 | E604200060-H2 | 1 | SCREW | XJ | |
||
| 27 | E604200060-H3 | 1 | PLATE | XJ | |
||
| 28 | E604200060-H4 | 1 | GUARD | XJ | |
||
| 29 | E604200060-H5 | 2 | SCREW | XJ | |
||
| 30 | E604200060-H6 | 1 | GUARD CUT OFF | XJ | |
||
| 31 | E604200060-I | 1 | SPOOL & LINE | XJ | |
||
| 32 | E604200060-J1 | 1 | STRAP | XJ | |
||
| 33 | E604200060-J2 | 1 | BRACKET | XJ | |
||
| 34 | E604200060-J3 | 1 | NUT | XJ | |
||
| 35 | E604200060-J4 | 1 | CLIP | XJ | |
||
| 36 | E604200060-J5 | 1 | SCREW | XJ | |
||
| 37 | E604200060-J6 | 1 | HANDLE COVER | XJ | |
||
| 38 | E604200060-K1 | 1 | BLADE | XJ | |
||
| 39 | E604200060-L1 | 1 | COIL SA | XJ | |
||
| 40 | E604200060-L2 | 1 | FLYWHEEL | XJ | |
||
| 41 | E604200060-L3 | 1 | SPARK PLUG | XJ | |
||
| 42 | E604200060-L4 | 1 | FILTER | XJ | |
||
| 43 | E604200060-L5 | 1 | CAP SA | XJ | |
||
| 44 | E604200060-L6 | 1 | CARBURETTOR SA | XJ | |
||
| 45 | E604200060-L7 | 1 | STARTER SA | XJ | |
||
| 46 | E604200060-M1 | 1 | KNOB | XJ | |
||
| 47 | E604200060-M2 | 1 | CAP | XJ | |
||
| 48 | E604200060-M3 | 1 | PLATE | XJ | |
||
| 49 | E604200060-M4 | 1 | BAFFLE | XJ | |
||
| 50 | E604200060-M5 | 1 | LEVEL | XJ | |
||
| 51 | E604200060-M6 | 1 | TUBE | XJ | |
||
| 52 | E604200060-M7 | 1 | COVER | XJ | |
||
| 53 | E604200060-M8 | 1 | LATCH | XJ | |
||
| 54 | E604200060-M9 | 1 | SCREW | XJ | |
||
| 55 | E604200060-N1 | 1 | COVER SA | XJ | |
||
| 56 | E604200060-N2 | 1 | WASHER | XJ | |
||
| 57 | E604200060-N3 | 1 | SCREW | XJ | |
||
| 58 | E604200060-N4 | 1 | COVER-TOP | XJ | |
||
| 59 | E604200060-N5 | 1 | SCREW | XJ | |
