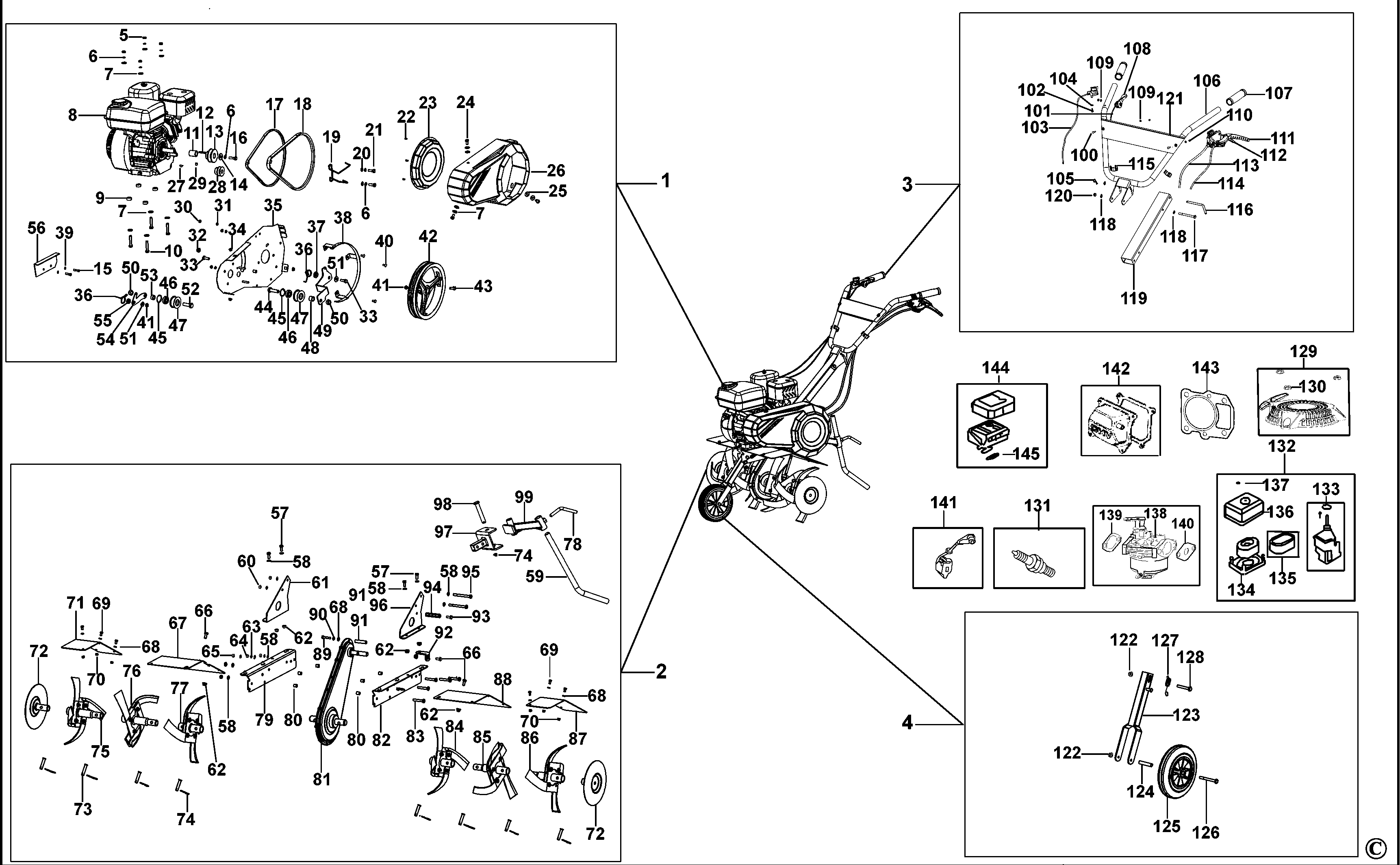

SGT-51-820H TILLER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | E604400030-A | 1 | MOTOR | 196cc | 4-STROKE OHV | XJ |  |
| 2 | E604400030-B | 1 | GEARBOX SA | + BLADE SA | XJ | |
|
| 3 | E604400030-C | 1 | HANDLE SA | XJ | |
||
| 4 | E604400030-D | 1 | WHEEL SA | XJ | |
||
| 5 | E604400030-A1 | 4 | LOCK-NUT | M8 | XJ | |
|
| 6 | E604400030-A2 | 7 | WASHER SPRING | XJ | |
||
| 7 | E604400030-A3 | 11 | WASHER | D20×d8.5×2 | XJ | |
|
| 8 | E604400030-A4 | 1 | MOTOR SA | 3.8KW PETROL | XJ | |
|
| 9 | E604400030-A5 | 4 | BUSH | XJ | |
||
| 10 | E604400030-A6 | 4 | BOLT | M8×50 | XJ | |
|
| 11 | E604400030-A7 | 1 | BUSH | XJ | |
||
| 12 | E604400030-A8 | 1 | KEY | 4.75×5×32 | XJ | |
|
| 13 | E604400030-A9 | 1 | PULLEY | XJ | |
||
| 14 | E604400030-A10 | 1 | WASHER | D28×d8.5×3 | XJ | |
|
| 15 | E604400030-A11 | 2 | RIVET | XJ | |
||
| 16 | E604400030-A12 | 1 | BOLT | 5/16-24×30 | XJ | |
|
| 17 | E604400030-A13 | 1 | BELT | 3LXA908 | XJ | |
|
| 18 | E604400030-A14 | 1 | BELT | V-A-1050 | XJ |  |
|
| 19 | E604400030-A15 | 1 | LEVER | XJ | |
||
| 20 | E604400030-A16 | 2 | WASHER | XJ | |
||
| 21 | E604400030-A17 | 2 | BOLT | M8×30 | XJ | |
|
| 22 | E604400030-A18 | 3 | SCREW | ST4×8-F | XJ | |
|
| 23 | E604400030-A19 | 1 | COVER | XJ | |
||
| 24 | E604400030-A20 | 3 | BOLT | M8×20 | XJ | |
|
| 25 | E604400030-A21 | 1 | WASHER | XJ | |
||
| 26 | E604400030-A22 | 1 | BELT COVER | XJ | |
||
| 27 | E604400030-A23 | 1 | KEY | 3×6.5×16 | XJ | |
|
| 28 | E604400030-A24 | 1 | PULLEY | XJ | |
||
| 29 | E604400030-A25 | 1 | SCREW | M8×8 | XJ | |
|
| 30 | E604400030-A26 | 3 | LOCK NUT | M6 | XJ | |
|
| 31 | E604400030-A27 | 3 | WASHER | D6 | XJ | |
|
| 32 | E604400030-A28 | 1 | LOCK NUT | M8 | XJ | |
|
| 33 | E604400030-A29 | 2 | BOLT | M8×25 | XJ | |
|
| 34 | E604400030-A30 | 3 | NUT | M8 | XJ | |
|
| 35 | E604400030-A31 | 1 | PLATE | XJ | |
||
| 36 | E604400030-A32 | 2 | SPRING TORSION | XJ | |
||
| 37 | E604400030-A33 | 1 | SLEEVE | XJ | |
||
| 38 | E604400030-A34 | 1 | RING | XJ | |
||
| 39 | E604400030-A35 | 2 | WASHER | D5 | XJ | |
|
| 40 | E604400030-A36 | 3 | BOLT | M6×12 | XJ | |
|
| 41 | E604400030-A37 | 2 | LOCK NUT | M8 | XJ | |
|
| 42 | E604400030-A38 | 1 | PULLEY | XJ | |
||
| 43 | E604400030-A39 | 1 | BOLT | XJ | |
||
| 44 | E604400030-A40 | 1 | BOLT | M12×45 | XJ | |
|
| 45 | E604400030-A41 | 2 | COLLAR | XJ | |
||
| 46 | E604400030-A42 | 2 | BEARING | 6201-2Z | XJ | |
|
| 47 | E604400030-A43 | 2 | WHEEL | Tension | XJ | |
|
| 48 | E604400030-A44 | 1 | BUSH | XJ | |
||
| 49 | E604400030-A45 | 1 | PLATE | XJ | |
||
| 50 | E604400030-A46 | 2 | LOCK NUT | M12 | XJ | |
|
| 51 | E604400030-A47 | 2 | WASHER | D24×d8.5×2 | XJ | |
|
| 52 | E604400030-A48 | 1 | BOLT | M12×35 | XJ | |
|
| 53 | E604400030-A49 | 1 | BUSH | XJ | |
||
| 54 | E604400030-A50 | 1 | PLATE | XJ | |
||
| 55 | E604400030-A51 | 1 | SLEEVE | XJ | |
||
| 56 | E604400030-A52 | 1 | PLATE | XJ | |
||
| 57 | E604400030-B1 | 4 | BOLT | M8×20 | XJ | |
|
| 58 | E604400030-B2 | 13 | WASHER | XJ | |
||
| 59 | E604400030-B3 | 1 | STRUT | XJ | |
||
| 60 | E604400030-B4 | 2 | LOCK NUT | M8 | XJ | |
|
| 61 | E604400030-B5 | 1 | SUPPORT | XJ | |
||
| 62 | E604400030-B6 | 7 | LOCK NUT | M8 | XJ | |
|
| 63 | E604400030-B7 | 2 | WASHER SPRING | D8 | XJ | |
|
| 64 | E604400030-B8 | 2 | NUT | M8 HEX | XJ | |
|
| 65 | E604400030-B9 | 3 | LOCK NUT | M8 | XJ | |
|
| 66 | E604400030-B10 | 3 | BOLT | M8×20 | XJ | |
|
| 67 | E604400030-B11 | 1 | GUARD | XJ | |
||
| 68 | E604400030-B12 | 7 | WASHER | XJ | |
||
| 69 | E604400030-B13 | 6 | BOLT | M6×12 | XJ | |
|
| 70 | E604400030-B14 | 6 | LOCK NUT | M6 | XJ | |
|
| 71 | E604400030-B15 | 1 | GUARD | XJ | |
||
| 72 | E604400030-B16 | 2 | BLADE | XJ | |
||
| 73 | E604400030-B17 | 8 | PIN | XJ | |
||
| 74 | E604400030-B18 | 9 | COTTER PIN | XJ | |
||
| 75 | E604400030-B19 | 1 | BLADE SA | XJ | |
||
| 76 | E604400030-B20 | 1 | BLADE SA | XJ | |
||
| 77 | E604400030-B21 | 1 | BLADE SA | XJ | |||
| 78 | E604400030-B22 | 1 | TIE | XJ | |
||
| 79 | E604400030-B23 | 1 | SUPPORT | XJ | |
||
| 80 | E604400030-B24 | 6 | BUSH | XJ | |
||
| 81 | E604400030-B25 | 1 | COVER SA | TRANSMISSION | XJ | |
|
| 82 | E604400030-B26 | 1 | SUPPORT | XJ | |
||
| 83 | E604400030-B27 | 5 | BOLT | M8×50 | XJ | |
|
| 84 | E604400030-B28 | 1 | BLADE SA | XJ | |
||
| 85 | E604400030-B29 | 1 | BLADE SA | XJ | |
||
| 86 | E604400030-B30 | 1 | BLADE SA | XJ | |
||
| 87 | E604400030-B31 | 1 | GUARD | XJ | |
||
| 88 | E604400030-B32 | 1 | GUARD | XJ | |
||
| 89 | E604400030-B33 | 1 | BOLT | M6×50 | XJ | |
|
| 90 | E604400030-B34 | 1 | WASHER SPRING | D6 | XJ | |
|
| 91 | E604400030-B35 | 1 | BUSH | XJ | |
||
| 92 | E604400030-B36 | 1 | SUPPORT | XJ | |
||
| 93 | E604400030-B37 | 1 | BOLT | XJ | |
||
| 94 | E604400030-B38 | 1 | AXIS | XJ | |
||
| 95 | E604400030-B39 | 2 | BOLT | Hex | XJ | |
|
| 96 | E604400030-B40 | 1 | SUPPORT | XJ | |
||
| 97 | E604400030-B41 | 1 | STRUT | XJ | |
||
| 98 | E604400030-B42 | 1 | PIN | XJ | |
||
| 99 | E604400030-B43 | 1 | SUPPORT | XJ | |
||
| 100 | E604400030-C1 | 2 | BOLT | XJ | |
||
| 101 | E604400030-C2 | 1 | CABLE | Throttle | XJ | |
|
| 102 | E604400030-C3 | 1 | SCREW | XJ | |
||
| 103 | E604400030-C4 | 1 | SWITCH | Stop | XJ | |
|
| 104 | E604400030-C5 | 1 | WASHER | XJ | |
||
| 105 | E604400030-C6 | 1 | COTTER PIN | XJ | |
||
| 106 | E604400030-C7 | 1 | HANDLE SA | XJ | |
||
| 107 | E604400030-C8 | 2 | HANDLE | Rubber | XJ | |
|
| 108 | E604400030-C9 | 1 | THROTTLE CONTROL | XJ | |
||
| 109 | E604400030-C10 | 3 | WASHER | XJ | |
||
| 110 | E604400030-C11 | 3 | LOCK-NUT | M6 Hex | XJ | |
|
| 111 | E604400030-C12 | 1 | CLUTCH SA | Forward | XJ | |
|
| 112 | E604400030-C13 | 1 | CLUTCH SA | Reverse | XJ | |
|
| 113 | E604400030-C14 | 1 | CABLE | Reverse Clutch | XJ | |
|
| 114 | E604400030-C15 | 1 | CABLE | Forward Clutch | XJ | |
|
| 115 | E604400030-C16 | 2 | CLIP CABLE | XJ | |
||
| 116 | E604400030-C17 | 1 | SCREW | XJ | |
||
| 117 | E604400030-C18 | 1 | BOLT | M8×80 | XJ | |
|
| 118 | E604400030-C19 | 3 | WASHER | XJ | |
||
| 119 | E604400030-C20 | 1 | TUBE | XJ | |
||
| 120 | E604400030-C21 | 1 | LOCK NUT | M8 HEX | XJ | |
|
| 121 | E604400030-C22 | 1 | PLATE | XJ | |
||
| 122 | E604400030-D1 | 2 | LOCK NUT | Hex | XJ | |
|
| 123 | E604400030-D2 | 1 | SUPPORT | XJ | |
||
| 124 | E604400030-D3 | 1 | BUSHING | XJ | |
||
| 125 | E604400030-D4 | 1 | WHEEL | XJ | |
||
| 126 | E604400030-D5 | 1 | BOLT | Hex M8×75 | XJ | |
|
| 127 | E604400030-D6 | 1 | SPRING | XJ | |
||
| 128 | E604400030-D7 | 1 | BOLT | XJ | |
||
| 129 | E604400030-E1 | 1 | STARTER SA | Recoil | XJ | |
|
| 130 | E604400030-E1-1 | 3 | BOLT | M6×10 | XJ | |
|
| 131 | E604400030-E2 | 1 | SPARK PLUG | XJ | |
||
| 132 | E604400030-E3 | 1 | FILTER SA | XJ | |
||
| 133 | E604400030-E3-1 | 1 | COVER SA | XJ | |
||
| 134 | E604400030-E3-2 | 1 | MOUNT SA | Air Filter | XJ | |
|
| 135 | E604400030-E3-3 | 1 | ELEMENT | XJ | |
||
| 136 | E604400030-E3-4 | 1 | COVER-TOP | XJ | |
||
| 137 | E604400030-E3-5 | 1 | NUT | M6 | XJ | |
|
| 138 | E604400030-E4 | 1 | CARBURETTOR SA | XJ | |
||
| 139 | E604400030-E4-1 | 1 | GASKET | Carburettor | XJ | |
|
