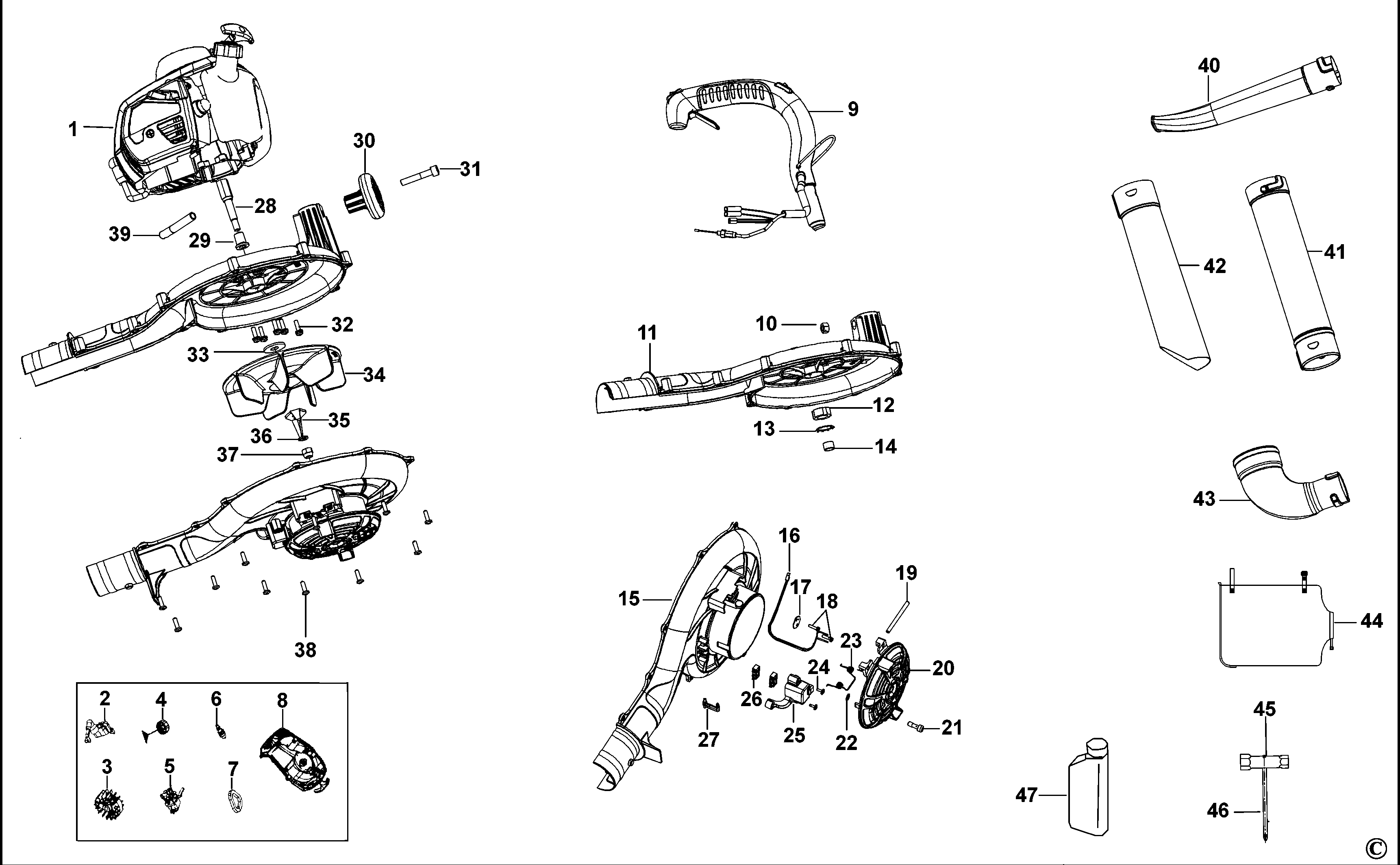

SLB-3IN1 BLOWER VAC Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | E604200020A | 1 | MOTOR SA | refer to manual | XJ |  |
|
| 2 | E604200020A1 | 1 | COIL SA | XJ |  |
||
| 3 | E604200020A2 | 1 | FLYWHEEL | XJ | |
||
| 4 | E604200020A3 | 1 | CAP SA | XJ | |
||
| 5 | E604200020A4 | 1 | CARBURETTOR SA | XJ | |
||
| 6 | E604200020A5 | 1 | SPARK PLUG | L8RTC or RCJ6Y | XJ | |
|
| 7 | E604200020A6 | 1 | FILTER SA | XJ | |
||
| 8 | E604200020A7 | 1 | STARTER SA | XJ | |
||
| 9 | E604200020B | 1 | HANDLE SA | XJ | |
||
| 10 | E604200020C1 | 1 | NUT | XJ | |
||
| 11 | E604200020C2 | 1 | COVER-TOP | XJ | |
||
| 12 | E604200020C3 | 1 | SLEEVE | XJ | |
||
| 13 | E604200020C4 | 1 | RETAINER | XJ | |
||
| 14 | E604200020C5 | 1 | BEARING | XJ | |
||
| 15 | E604200020D1 | 1 | COVER | XJ | |
||
| 16 | E604200020D2 | 1 | WIRE | XJ | |
||
| 17 | E604200020D3 | 1 | PLATE | XJ | |
||
| 18 | E604200020D4 | 2 | SCREW | XJ | |
||
| 19 | E604200020D5 | 1 | AXIS | XJ | |
||
| 20 | E604200020D6 | 1 | COVER | XJ | |
||
| 21 | E604200020D7 | 1 | SCREW | XJ | |
||
| 22 | E604200020D8 | 1 | RETAINER | XJ | |
||
| 23 | E604200020D9 | 1 | SPRING | XJ | |
||
| 24 | E604200020D10 | 2 | SCREW | XJ | |
||
| 25 | E604200020D11 | 1 | COVER | XJ | |
||
| 26 | E604200020D12 | 2 | SWITCH | XJ | |
||
| 27 | E604200020D13 | 1 | ROCKER | XJ | |
||
| 28 | E604200020E | 1 | AXIS | XJ | |
||
| 29 | E604200020F | 1 | SLEEVE | XJ | |
||
| 30 | E604200020G | 1 | HANDLE | XJ | |
||
| 31 | E604200020H | 1 | SCREW | XJ | |
||
| 32 | E604200020I | 5 | SCREW | XJ | |
||
| 33 | E604200020J | 1 | WASHER | XJ | |
||
| 34 | E604200020K | 1 | FAN | XJ | |
||
| 35 | E604200020L | 1 | BLADE | XJ | |
||
| 36 | E604200020M | 1 | WASHER | XJ | |
||
| 37 | E604200020N | 1 | NUT | XJ | |
||
| 38 | E604200020O | 11 | SCREW | XJ | |
||
| 39 | E604200020P | 1 | PIPE | XJ | |
||
| 40 | E604200020Q | 1 | TUBE | XJ | |
||
| 41 | E604200020R | 1 | TUBE UPPER | XJ | |
||
| 42 | E604200020S | 1 | TUBE LOWER | XJ | |
||
| 43 | E604200020T | 1 | TUBE SA | XJ | |
||
| 44 | E604200020U | 1 | BAG SA | XJ | |
||
| 45 | E604200020V | 1 | SOCKET | XJ | |
||
| 46 | E604200020W | 1 | SCREWDRIVER-SET | XJ | |
||
| 47 | E604200020X | 1 | BOTTLE | Petrol 40 Oil 1 | XJ | |
