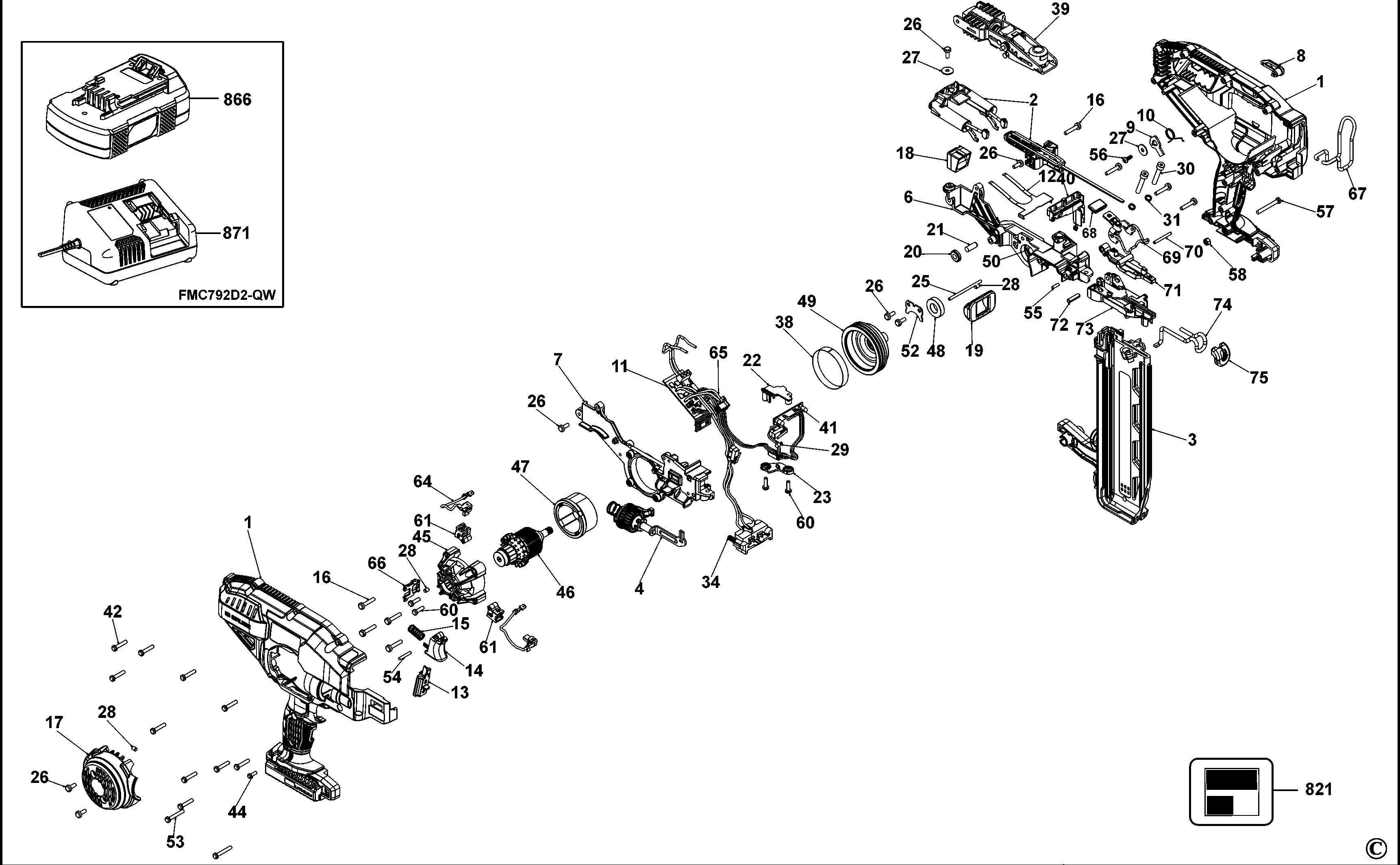

FMC792 NAILER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N496711 | 1 | HOUSING SA | GB |  |
||
| 2 | 90641718 | 1 | DRIVER SA | GB |  |
||
| 3 | 90617387-01 | 1 | MAGAZINE SA | GB | |||
| 4 | 90641721 | 1 | DEPTH STOP SA | GB | |
||
| 6 | 90616825 | 1 | FRAME SA | GB | |
||
| 7 | 90616826 | 1 | COVER | GB | |
||
| 8 | 90623653-01 | 1 | LEVER | GB | |
||
| 9 | 90629863 | 1 | PIVOT | GB | |
||
| 10 | 90624129 | 1 | SPRING | GB | |
||
| 11 | 90626617 | 1 | PCB SA | GB | |
||
| 12 | 90617917 | 1 | LEAF SPRING | GB | |
||
| 13 | 90620174-01 | 1 | TRIGGER | GB | |
||
| 14 | 90615767-01 | 1 | TRIGGER | GB | |
||
| 15 | 90551259 | 1 | SPRING | GB | |
||
| 16 | 330045-07 | 8 | SCREW | GB | |
||
| 17 | 90624433 | 1 | COVER HOUSING | GB | |
||
| 18 | 90641723 | 1 | BUMPER | GB | |
||
| 19 | 638469-00 | 1 | BUMPER | GB | |||
| 20 | 90633321 | 1 | SKID | GB | |
||
| 21 | N082403 | 1 | PIN | M6X16MM | GB | |
|
| 25 | 330041-61 | 1 | ROLLER SPINDLE | GB | |
||
| 26 | 330045-05 | 7 | SCREW | GB | |
||
| 27 | 90621828 | 2 | WASHER | M4x14 | GB | |
|
| 28 | 90621610 | 3 | PLUG | GB | |
||
| 29 | N403227 | 1 | DETENT | GB | |
||
| 30 | 395441-00 | 2 | SCREW | GB | |
||
| 31 | 488808-00 | 2 | WASHER LOCK | BDMS200 | GB | |
|
| 34 | 90516498 | 2 | SPRING | GB | |
||
| 38 | 90618959 | 1 | DAMPER | GB | |||
| 38 | 90635366 | 1 | DAMPER | GB | |||
| 39 | N663269 | 1 | CARRIAGE SA | GB | |
||
| 40 | 90624199 | 1 | SUPPORT | GB | |
||
| 41 | 90626619 | 1 | PCB | GB | |
||
| 42 | 90626630 | 10 | SCREW | GB | |
||
| 44 | 330019-41 | 1 | SCREW | GB | |
||
| 45 | 90624621 | 1 | BRIDGE | GB | |
||
| 46 | 90624714 | 1 | ARMATURE SA | GB | |
||
| 47 | 90623216 | 1 | MAGNET | GB | |
||
| 48 | 90559833 | 1 | BEARING | GB | |
||
| 49 | 90616323 | 1 | FLYWHEEL | GB | |
||
| 50 | 90615722 | 1 | RING | GB | |
||
| 52 | 90622035 | 1 | PLATE | GB | |
||
| 53 | 90626633 | 2 | SCREW | GB | |
||
| 54 | 098185-20 | 1 | PIN | GB | |
||
| 55 | 588470-00 | 1 | PIN | GB | |
||
| 56 | 582193-00 | 1 | SCREW | GB | |
||
| 57 | 90626342 | 1 | SCREW | GB | |
||
| 58 | 90610773 | 1 | NUT M4 | GB | |
||
| 60 | 330019-38 | 4 | SCREW | GB | |
||
| 61 | 90624386 | 2 | BRUSHBOX | GB | |
||
| 64 | 90626058 | 1 | BRUSH SA | GB | |
||
| 65 | 90631918 | 1 | TUBE | GB | |
||
| 66 | 90621006 | 1 | HOLDER | GB | |
||
| 67 | 90626069 | 1 | HOOK | GB | |
||
| 68 | 395093-00 | 1 | GRIP | GB | |
||
| 69 | 90623575-01 | 1 | LATCH | GB | |
||
| 70 | 650156-00 | 1 | SPIROL PIN | GB | |
||
| 71 | 90617332 | 1 | DOOR | GB | |
||
| 72 | 330036-03 | 1 | ROLL PIN | GB | |
||
| 73 | 90617339 | 1 | NOSE | GB | |
||
| 74 | 90617334 | 1 | CONTACT | GB | |
||
| 75 | 90617821-01 | 2 | TIP | GB | |
||
| 866 | N496096 | 1 | BATTERY 18V - 2.0AH - 36WH | Li-Ion - FMC687L-XJ | FMC792D2 | GB | |
| 871 | 90599845-02 | 1 | CHARGER | 1A | GB | |
