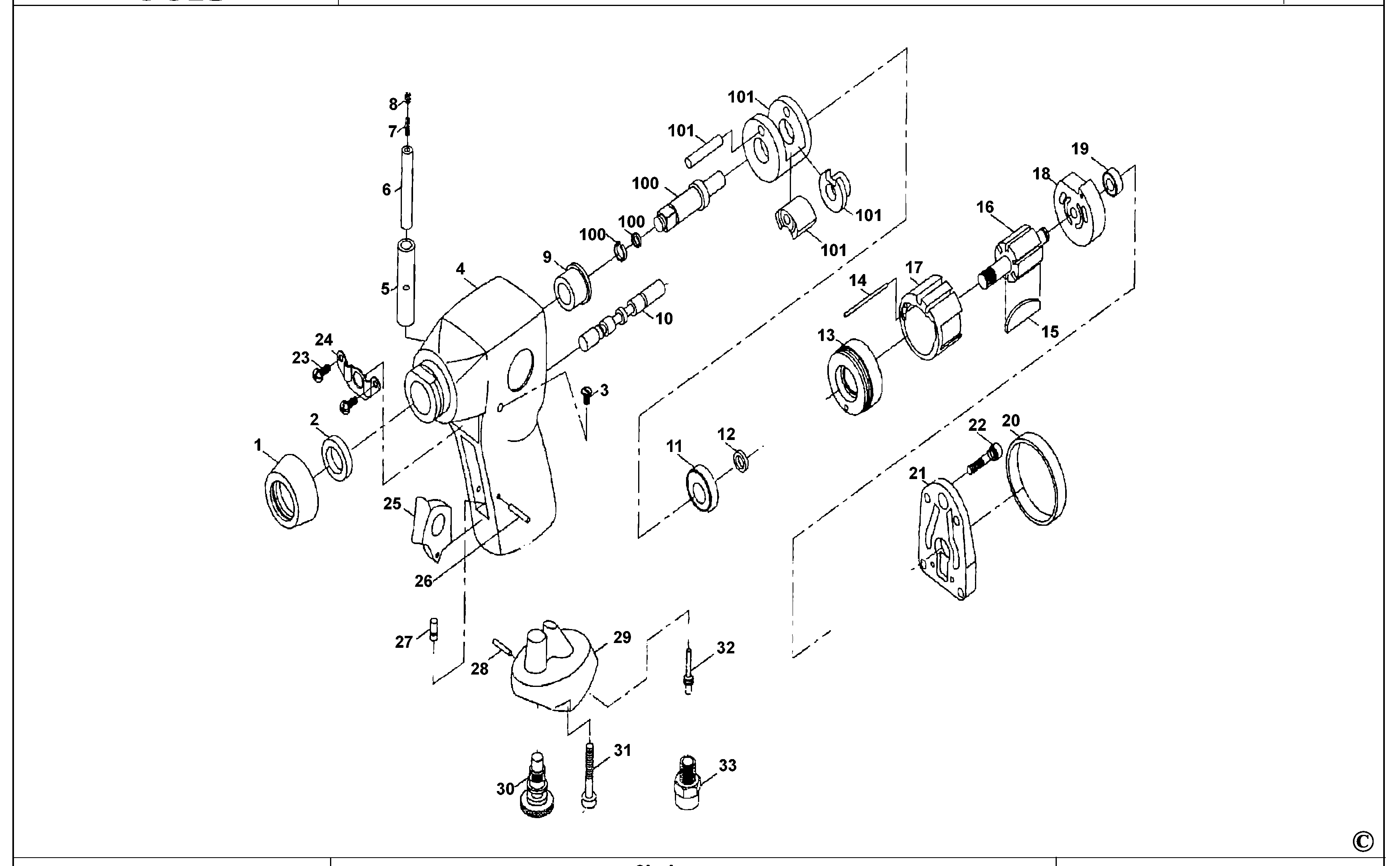

AWP538B IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 31D200011 | 1 | GUARD | GB |  |
||
| 2 | 31Y200018 | 1 | SEAL | GB | |
||
| 3 | 31R200048 | 1 | SCREW | GB | |
||
| 4 | 31R200048 | 1 | SCREW | GB | |
||
| 5 | 31H200003 | 1 | HOUSING MOTOR | GB | |
||
| 6 | 31R200049 | 1 | BUSHING | GB | |
||
| 7 | 31R200050 | 1 | PIN | GB | |
||
| 8 | 31R200051 | 1 | SPRING | GB | |
||
| 9 | 31R200052 | 1 | SCREW | GB | |
||
| 10 | 31R200053 | 1 | BUSHING | GB | |
||
| 11 | 31R200056 | 1 | REVERSER | GB |  |
||
| 12 | 31R200069 | 1 | BEARING | GB | |
||
| 13 | 31R200070 | 1 | SEAL | GB | |
||
| 14 | 31M200012 | 1 | PLATE | GB | |
||
| 15 | 31R200072 | 1 | PIN | GB | |
||
| 16 | 31M200013 | 1 | BLADE | GB | |
||
| 17 | 31M200014 | 1 | ROTOR | GB | |
||
| 18 | 31M200015 | 1 | CYLINDER | GB | |
||
| 19 | 31M200016 | 1 | PLATE | GB | |
||
| 20 | 31R200057 | 1 | BEARING REAR | GB | |
||
| 21 | 31R200059 | 1 | BAND | GB | |
||
| 22 | 31M200017 | 1 | CASE | GB | |
||
| 23 | 31R200060 | 1 | SCREW | GB | |
||
| 24 | 31R200061 | 1 | SCREW | GB | |
||
| 25 | 31Y200019 | 1 | DEFLECTOR | GB | |
||
| 26 | 31Y200020 | 1 | TRIGGER | GB | |
||
| 27 | 31R200062 | 1 | PIN | GB | |
||
| 28 | 31R200063 | 1 | PIN | GB | |
||
| 29 | 31R200066 | 1 | PIN | GB | |
||
| 30 | 31Y200021 | 1 | INLET | GB | |
||
| 31 | 31R200074 | 1 | VALVE | GB | |
||
| 32 | 31R200075 | 1 | SCREW | GB | |
||
| 33 | 31Y200022 | 1 | VALVE | GB | |
||
| 34 | 31Y200023 | 1 | ADAPTOR | GB | |
||
| 100 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 101 | 000000-00 | 1 | NO LONGER AVAILABLE | GB |
