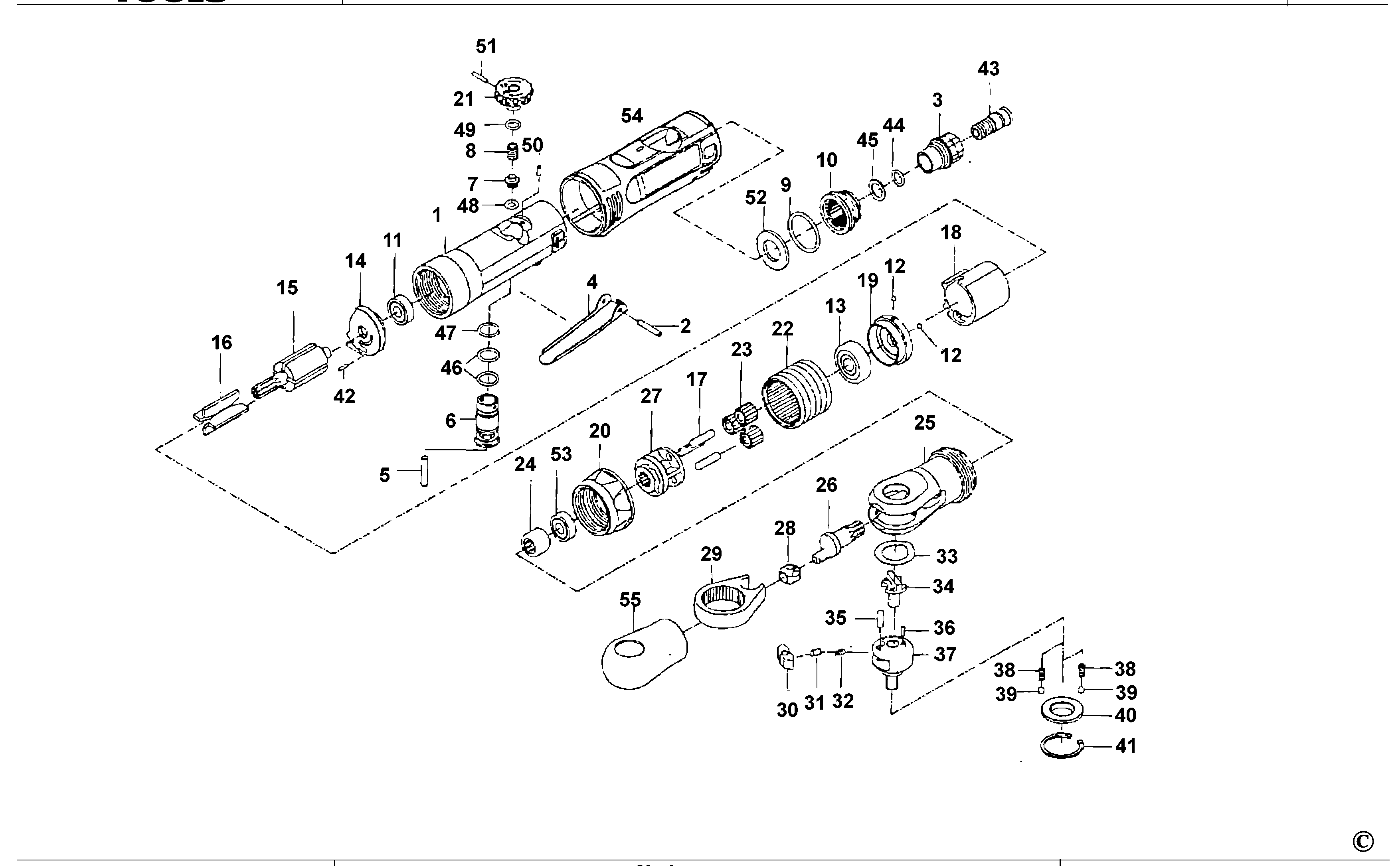

ARQP140M RATCHET Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | ARQP380M-01 | 1 | HOUSING | GB |  |
||
| 2 | AS20-51 | 1 | PIN | GB | |
||
| 3 | ARQP380-03 | 1 | CONNECTOR | GB | |
||
| 4 | ARQP380M-04 | 1 | LEVER | GB | |
||
| 5 | ARQP380M-05 | 1 | PIN | GB | |
||
| 6 | ARQP380M-06 | 1 | VALVE | GB | |
||
| 7 | ARQP380M-07 | 1 | VALVE | GB | |
||
| 8 | ARQP140M-08 | 1 | SPRING | GB | |
||
| 9 | ARQP380M-09 | 1 | O RING | GB | |
||
| 10 | ARQP380M-10 | 1 | DEFLECTOR | GB | |
||
| 11 | AGQP50M-13 | 1 | BEARING,BALL | GB | |
||
| 12 | AGQP50M-30 | 1 | BALL | GB | |
||
| 13 | ARQP380M-13 | 1 | BEARING | GB | |
||
| 14 | AGQP50M-14 | 1 | PLATE | GB | |
||
| 15 | ARQP380M-15 | 1 | ROTOR | GB | |
||
| 16 | ARQP380M-16 | 1 | BLADE | GB | |
||
| 17 | ARQP380M-17 | 1 | PIN | GB | |
||
| 18 | ARQP380M-18 | 1 | CYLINDER | GB | |
||
| 19 | ARQP380M-19 | 1 | PLATE | GB | |
||
| 20 | ARQP380M-20 | 1 | NUT | GB | |
||
| 21 | ARQP380M-21 | 1 | KNOB | GB | |
||
| 22 | ARQP380M-22 | 1 | GEAR | GB | |
||
| 23 | ARQP380M-23 | 1 | GEAR | GB | |
||
| 24 | ARQP380M-24 | 1 | BEARING | GB | |
||
| 25 | ARQP380M-25 | 1 | HOUSING | GB | |
||
| 26 | ARQP380M-26 | 1 | CRANKSHAFT | GB | |
||
| 27 | ARQP380M-27 | 1 | GEAR | GB | |
||
| 28 | ARQP380M-28 | 1 | BUSHING | GB | |
||
| 29 | ARQP380M-29 | 1 | YOKE | GB | |
||
| 30 | ARQP380M-30 | 1 | PAWL | GB | |
||
| 31 | ARQP380M-31 | 1 | CAP | GB | |
||
| 32 | ARQP380M-32 | 1 | SPRING | GB | |
||
| 33 | ARQP380M-33 | 1 | WASHER | GB | |
||
| 34 | ARQP380M-34 | 1 | BUTTON | GB | |
||
| 35 | ARQP380M-35 | 1 | PIN | GB | |
||
| 36 | AG200-17 | 1 | PIN | GB | |
||
| 37 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 38 | ARQP380M-38 | 1 | SPRING | GB | |
||
| 39 | ARQP380M-39 | 1 | BALL STEEL | GB | |
||
| 40 | ARQP380M-40 | 1 | WASHER | GB | |
||
| 41 | ARQP380M-41 | 1 | RING | GB | |
||
| 42 | AD1400-17 | 1 | PIN | GB | |
||
| 43 | ARQP380-45 | 1 | SHAFT | GB | |
||
| 44 | ARQP380-46 | 1 | O RING | GB | |
||
| 45 | AGQP50M-38 | 1 | WASHER | GB | |
||
| 46 | ARQP380-11 | 1 | O RING | GB | |
||
| 47 | ARQP380-09 | 1 | O RING | GB | |
||
| 48 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 49 | ARQP380M-49 | 1 | O RING | GB | |
||
| 50 | ARQP380-51 | 1 | PIN | GB | |
||
| 51 | ARQP380-52 | 1 | PIN | GB | |
||
| 52 | AGQP50M-39 | 1 | FELT | GB | |
||
| 53 | ARQP380M-53 | 1 | BEARING | GB | |
||
| 54 | ARQP380M-54 | 1 | GRIP | GB | |
||
| 55 | ARQP380M-55 | 1 | END CAP | GB | |
