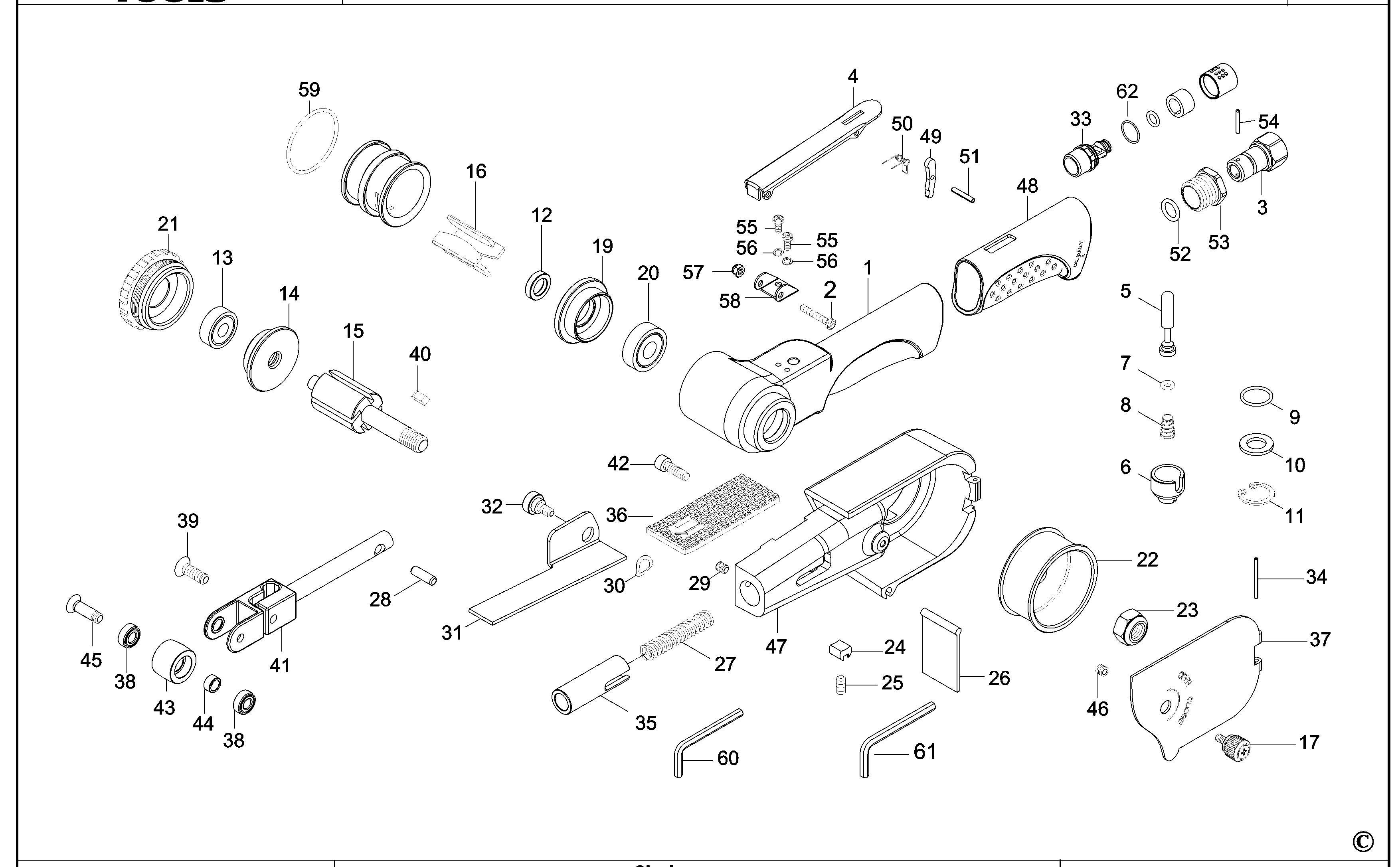

AS20 BELT SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AS20-1 | 1 | HOUSING | XJ |  |
||
| 2 | AS20-2 | 1 | SCREW | XJ | |
||
| 3 | AS20-3 | 1 | INLET | XJ | |
||
| 4 | AS20-4 | 1 | LEVER | XJ | |
||
| 5 | AS20-5 | 1 | VALVE | XJ | |
||
| 6 | AS20-6 | 1 | VALVE | XJ | |
||
| 7 | AS20-7 | 1 | O RING | XJ |  |
||
| 8 | AS20-8 | 1 | SPRING | XJ | |
||
| 9 | AS20-9 | 1 | O RING | XJ | |
||
| 10 | AS20-10 | 1 | SPACER | XJ | |
||
| 11 | AS20-11 | 1 | RING | XJ | |
||
| 12 | AS20-12 | 1 | SPACER | XJ | |
||
| 13 | AD3800AH-20 | 1 | BEARING,BALL | XJ | |
||
| 14 | AS20-14 | 1 | PLATE | XJ | |
||
| 15 | AS20-15 | 1 | ROTOR | XJ | |
||
| 16 | AS20-16 | 4 | ROTOR BLADE | XJ | |
||
| 17 | AS20-17 | 1 | SCREW | XJ | |
||
| 19 | AS20-19 | 1 | PLATE | XJ | |
||
| 20 | AD1400-20 | 1 | BEARING | XJ | |
||
| 21 | AS20-21 | 1 | CAP | XJ | |
||
| 22 | AS20-22 | 1 | PULLEY | XJ | |
||
| 23 | AS20-23 | 1 | NUT | XJ | |
||
| 24 | AS20-24 | 1 | LOCK | XJ | |
||
| 25 | AS20-25 | 1 | SCREW | XJ | |
||
| 26 | AS20-26 | 1 | COVER | XJ | |
||
| 27 | AS20-27 | 1 | SPRING | XJ | |
||
| 28 | AS20-28 | 1 | PIN | XJ | |
||
| 29 | AS20-29 | 1 | SCREW | XJ | |
||
| 30 | AS20-30 | 1 | WASHER | XJ | |
||
| 31 | AS20-31 | 1 | SHOE | XJ | |
||
| 32 | AS20-32 | 1 | SCREW | XJ | |
||
| 33 | AS20-33A | 1 | SHAFT | XJ | |
||
| 34 | AS20-34 | 1 | PIN | XJ | |
||
| 35 | AS20-35 | 1 | BUSHING | XJ | |
||
| 36 | AS20-36 | 1 | PAD | XJ | |
||
| 37 | AS20-37 | 1 | GUARD | XJ | |
||
| 38 | AS20-38 | 2 | BEARING | XJ | |
||
| 39 | AS20-39 | 1 | SCREW | XJ | |
||
| 40 | AS20-40 | 1 | KEY | XJ | |
||
| 41 | AS20-41 | 1 | BAR | XJ | |
||
| 42 | AS20-42 | 1 | SCREW | XJ | |
||
| 43 | AS20-43 | 1 | PULLEY | XJ | |
||
| 44 | AS20-44 | 1 | SPACER | XJ | |
||
| 45 | AS20-45 | 1 | SCREW | XJ | |
||
| 46 | AS20-46 | 1 | INSERT | XJ | |
||
| 47 | AS20-47 | 1 | BODY | XJ | |
||
| 48 | AS20-48 | 1 | GRIP | XJ | |
||
| 49 | AS20-49 | 1 | BAR | XJ | |
||
| 50 | AS20-50 | 1 | SPRING | XJ | |
||
| 51 | AS20-51 | 1 | PIN | XJ | |
||
| 52 | AS20-52 | 1 | O RING | XJ | |
||
| 53 | AS20-53 | 1 | SCREW | XJ | |
||
| 54 | AS20-54 | 1 | PIN | XJ | |
||
| 55 | AS20-55 | 2 | SCREW | XJ | |
||
| 56 | AS20-56 | 2 | WASHER | XJ | |
||
| 57 | AS20-57 | 1 | NUT | XJ | |
||
| 58 | AS20-58 | 1 | SUPPORT | XJ | |
||
| 59 | ARQP380-49 | 1 | O RING | XJ | |
||
| 60 | AS20-59 | 1 | HEX KEY | XJ | |
||
| 61 | AS20-60 | 1 | SPANNER | XJ | |
||
| 62 | AGQP100-33 | 1 | WASHER | XJ | |
