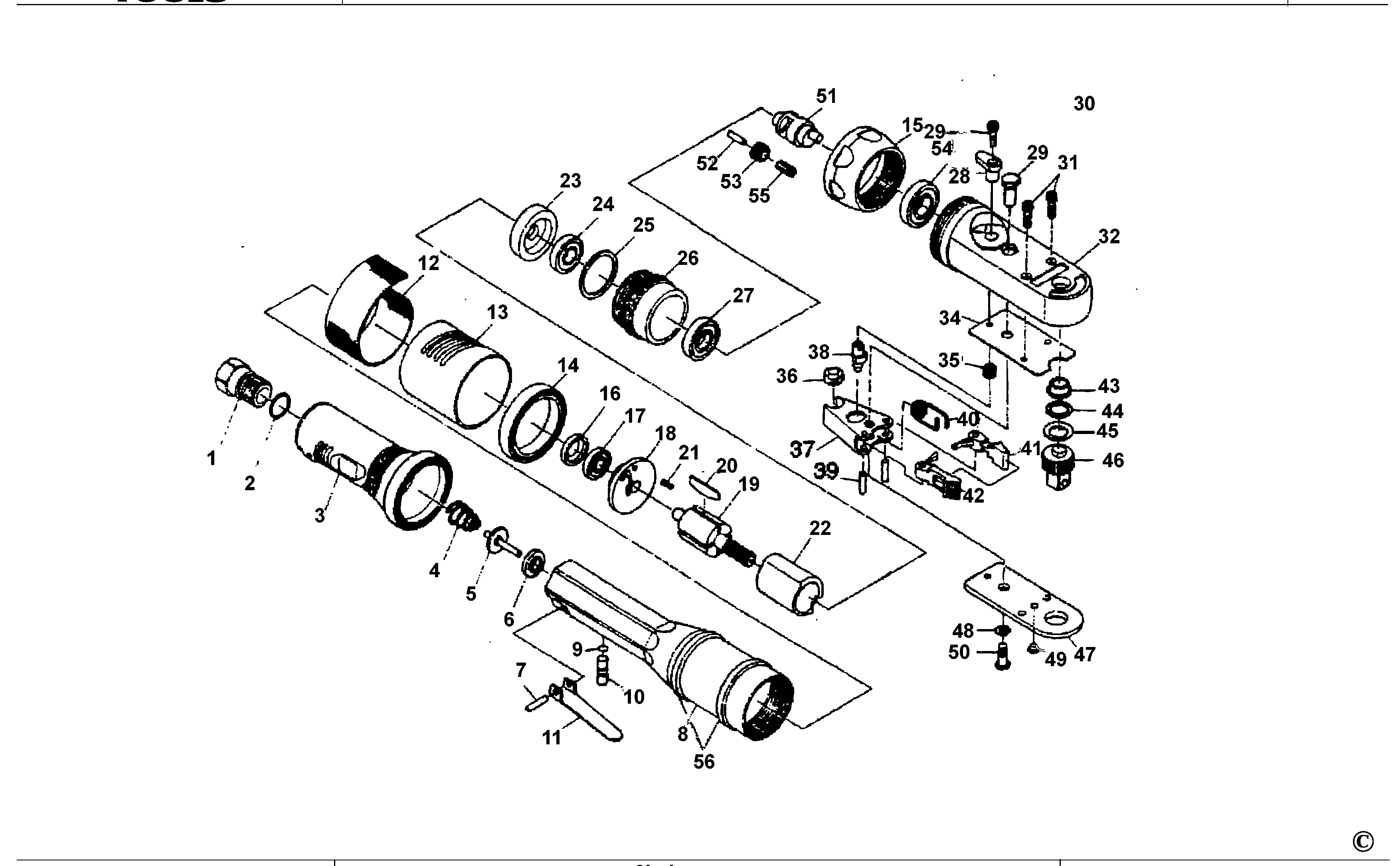

AR1776 WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AW376-55 | 1 | BUSHING | GB |  |
||
| 2 | AD527-32 | 1 | O RING | GB | |
||
| 3 | AR1776-3 | 1 | HANDLE | GB | |||
| 4 | AR1776-4 | 1 | VALVE SPRING | GB | |
||
| 5 | AW375-15 | 1 | VALVE | GB | |
||
| 6 | AW375-14 | 1 | VALVE SEAT | GB | |
||
| 7 | AR1776-7 | 1 | PIN | GB | |
||
| 8 | AR1776-8 | 1 | MOTOR HOUSING SA | GB | |
||
| 9 | AW145-008 | 1 | O RING | GB | |
||
| 10 | AR1776-10 | 1 | SHAFT | GB | |
||
| 11 | AR1776-11 | 1 | LEVER | GB |  |
||
| 12 | AR1776-12 | 1 | SCREEN | GB | |||
| 13 | AR1776-13 | 1 | COVER | GB | |||
| 14 | AR1776-14 | 1 | BAND | GB | |||
| 15 | AR1776-15 | 1 | NUT | GB | |
||
| 16 | AR133-48 | 1 | CAP | GB | |
||
| 17 | ADG210-11 | 1 | BEARING,BALL | GB | |
||
| 18 | AR1776-18 | 1 | END PANEL. REAR | GB | |||
| 19 | AR747-51 | 1 | ROTOR | GB | |
||
| 20 | AD527-20 | 4 | ROTOR BLADE | GB | |
||
| 21 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 22 | ADG210-14 | 1 | CYLINDER | GB | |
||
| 23 | AR747-18 | 1 | END PANEL. FRONT | GB | |
||
| 24 | ADG200-20 | 1 | BEARING PLATE | GB | |
||
| 25 | AR133-20 | 1 | SPACER | GB | |
||
| 26 | AR1776-26 | 1 | GEAR | GB | |
||
| 27 | AR133-21 | 1 | BEARING,BALL | GB | |
||
| 28 | AR1776-28 | 1 | SWITCH REVERSE | GB | |
||
| 29 | AR1776-29 | 1 | SCREW TORX | GB | |
||
| 30 | AR1776-30 | 1 | PIVOT | GB | |
||
| 31 | AR1776-31 | 1 | SCREW | GB | |
||
| 32 | AR1776-32 | 1 | HOUSING | GB | |
||
| 34 | AR1776-34 | 1 | PLATE | GB | |
||
| 35 | AR1776-35 | 1 | SPRING | GB | |
||
| 36 | AR1776-36 | 1 | BUSHING | GB | |
||
| 37 | AR1776-37 | 1 | LINK | GB | |
||
| 38 | AR1776-38 | 1 | CAM | GB | |
||
| 39 | AR1776-39 | 2 | DOWEL | GB | |
||
| 40 | AR1776-40 | 1 | SPRING TORSION | GB | |
||
| 41 | AR1776-41 | 1 | PAWL | Single | GB | |
|
| 42 | AR1776-42 | 1 | PAWL | Double | GB | |
|
| 43 | AR1776-43 | 1 | BUSHING | GB | |
||
| 44 | AR1776-44 | 1 | WASHER | GB | |
||
| 45 | AR1776-45 | 1 | WASHER | GB | |
||
| 46 | AR1776-46 | 1 | DRIVE | GB | |
||
| 47 | AR1776-47 | 1 | PLATE | GB | |
||
| 48 | AR1776-48 | 1 | WASHER | GB | |
||
| 49 | AR1776-49 | 1 | GREASE BIT | GB | |
||
| 50 | AR1776-50 | 1 | SCREW | GB | |
||
| 51 | AR1776-51 | 1 | CARRIER | GB | |
||
| 52 | AR133-25 | 2 | PIN | GB | |
||
| 53 | AR134-26 | 2 | GEAR | GB | |
||
| 54 | AR1776-54 | 1 | BEARING,BALL | GB | |
||
| 55 | AR134-27 | 22 | NEEDLE ROLLER | GB | |
||
| 56 | AR747-09 | 2 | O RING | GB | |
