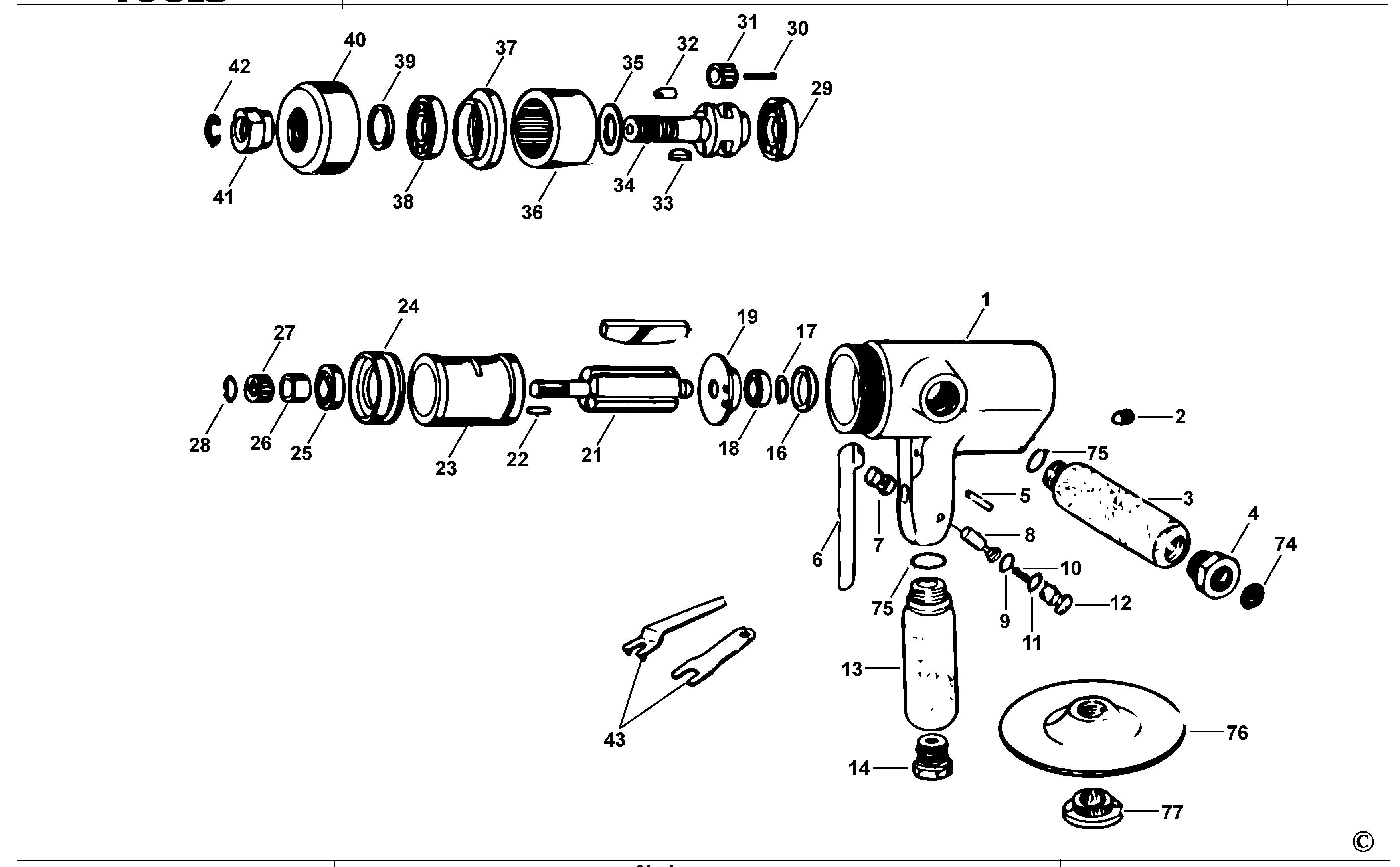

AS230V AIR SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AS230V-01 | 1 | HOUSING MOTOR | GB | |||
| 2 | AS230V-02 | 1 | PLUG | GB | |||
| 3 | AS230V-03 | 1 | HANDLE | GB |  |
||
| 4 | AS230V-04 | 1 | BUSHING | GB | |||
| 5 | AR133-02 | 1 | PIN | GB |  |
||
| 6 | AR134-05 | 1 | LEVER | GB | |||
| 7 | AR134-06 | 1 | BUSHING | GB | |||
| 8 | AR134-07 | 1 | VALVE | GB | |||
| 9 | AR134-08 | 1 | O RING | GB | |||
| 10 | AR134-09 | 1 | SPRING | GB | |||
| 11 | AR134-10 | 1 | O RING | GB | |||
| 12 | AR134-11 | 1 | REGULATOR | GB | |||
| 13 | AS230V-13 | 1 | HANDLE | GB | |
||
| 14 | AR134-01 | 1 | BUSHING | GB | |||
| 16 | AS230V-16 | 1 | CAP | GB | |||
| 17 | AS230V-17 | 1 | RING | GB | |||
| 18 | AR133-18 | 1 | BEARING PLATE | GB | |
||
| 19 | AS230V-19 | 1 | PLATE | GB | |||
| 21 | AS230V-21 | 4 | BLADE | GB | |
||
| 22 | AS230V-22 | 1 | PIN | GB | |||
| 23 | AS230V-23 | 1 | CYLINDER | GB | |
||
| 24 | AS230V-24 | 1 | PLATE | GB | |||
| 25 | AR133-18 | 1 | BEARING PLATE | GB | |
||
| 26 | AS230V-26 | 1 | COLLAR | GB | |
||
| 27 | AS230V-27 | 1 | PINION | GB | |||
| 28 | AS230V-17 | 1 | RING | GB | |||
| 29 | AS230V-29 | 1 | BEARING,BALL | GB | |
||
| 30 | AS230V-30 | 1 | ROLLER | GB | |||
| 31 | AS230V-31 | 1 | GEAR | GB | |
||
| 32 | AS230V-32 | 1 | PIN | GB | |||
| 33 | AS230V-33 | 1 | KEY | GB | |||
| 34 | AS230V-34 | 1 | CAGE | GB | |
||
| 35 | AS230V-35 | 1 | SPACER | GB | |||
| 36 | AS230V-36 | 1 | INTERGEAR | GB | |
||
| 37 | AS230V-37 | 1 | CASE | GB | |
||
| 38 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 39 | AS230V-39 | 1 | SEAL | GB | |||
| 40 | AS230V-40 | 1 | CLAMP NUT | GB | |
||
| 41 | AS230V-41 | 1 | COLLAR | GB | |
||
| 42 | AS230V-41 | 1 | COLLAR | GB | |
||
| 43 | AS230V-43 | 1 | SPANNER | GB | |||
| 74 | AD527-39 | 1 | SCREEN | GB | |
||
| 75 | AS707-06 | 1 | O RING | GB | |
||
| 76 | AS717-79 | 1 | PAD | GB | |||
| 77 | 000000-00 | 1 | NO LONGER AVAILABLE | GB |
