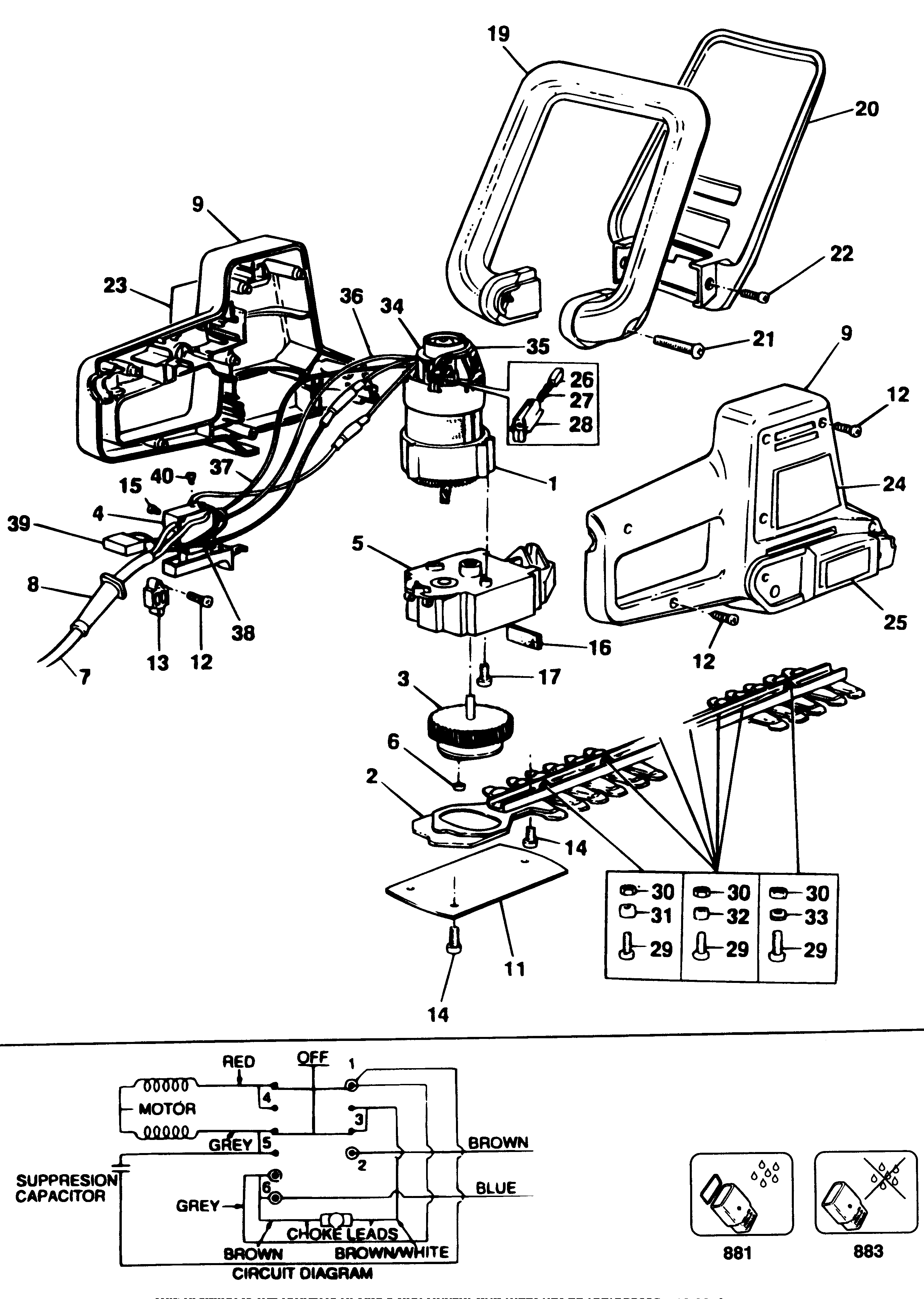

GT241 HEDGECLIPPER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 376926-09 | 1 | MOTOR SA | GB |  |
||
| 2 | 795995-49 | 1 | BLADE & GEAR SA | BLADE H1E-G PRE 1996 | GB | |
|
| 4 | 797249-02 | 1 | SWITCH | GB | |
||
| 5 | 371794-49 | 1 | REPAIR KIT | GB | |
||
| 6 | 832472 | 1 | ROLLER | BLADE H1-D | GB | |
|
| 7 | 330048-59 | 1 | CORDSET (SPLASH) | GB | |
||
| 8 | 770235 | 1 | PROTECTOR | GB |  |
||
| 9 | 796291 | 1 | CLAMSHELL | GB | |
||
| 11 | 370099 | 1 | COVER | BUILT FROM 1996 | GB | |
|
| 11 | 371794-49 | 1 | REPAIR KIT | BLADE H1E-G PRE 1996 | GB | |
|
| 12 | 849256 | 9 | SCREW | GB | |
||
| 13 | 994808 | 1 | CABLE CLAMP | GB | |
||
| 14 | 747507 | 5 | SCREW | BUILT BEFORE 1996 | GB | |
|
| 14 | 809015 | 5 | SCREW | BUILT FROM 1996 | GB | |
|
| 15 | 854611 | 2 | SCREW | GB | |
||
| 16 | 849718 | 1 | PAD | GB | |
||
| 17 | 849256 | 3 | SCREW | GB | |
||
| 19 | 829591 | 1 | HANDLE | GB | |
||
| 20 | 829718 | 1 | GUARD | GB | |
||
| 21 | 745217 | 2 | SCREW | GB | |
||
| 22 | 828849 | 2 | SCREW | GB | |
||
| 23 | 746187 | 1 | BRAND LABEL | GB | |||
| 24 | 746166 | 1 | WARNING LABEL | GB | |
||
| 26 | 376143 | 2 | BRUSH | GB | |
||
| 27 | 847709 | 2 | SPRING | GB | |
||
| 28 | 812738 | 2 | BRUSH HOLDER | GB | |
||
| 29 | 829808 | 7 | SCREW | GB | |
||
| 30 | 892153 | 7 | NUT | GB | |
||
| 31 | 829074 | 1 | SPACER | GB | |
||
| 32 | 829075 | 5 | SPACER | GB | |
||
| 33 | 829809 | 1 | SPACER | GB | |
||
| 34 | 833421 | 1 | COVER | GB | |
||
| 35 | 833494 | 1 | LEAD GREY | GB | |
||
| 36 | 833497 | 1 | LEAD RED | GB | |
||
| 37 | 833498 | 1 | LEAD GREY | GB | |
||
| 38 | 833500 | 1 | LINK | GB | |
||
| 39 | 845467 | 1 | CAPACITOR | GB | |
||
| 40 | 854053 | 2 | SCREW | GB | |
||
| 881 | 844840 | 1 | COUPLER (SPLASH) | GB | |
||
| 883 | 885264 | 1 | SOCKET | GB | |
