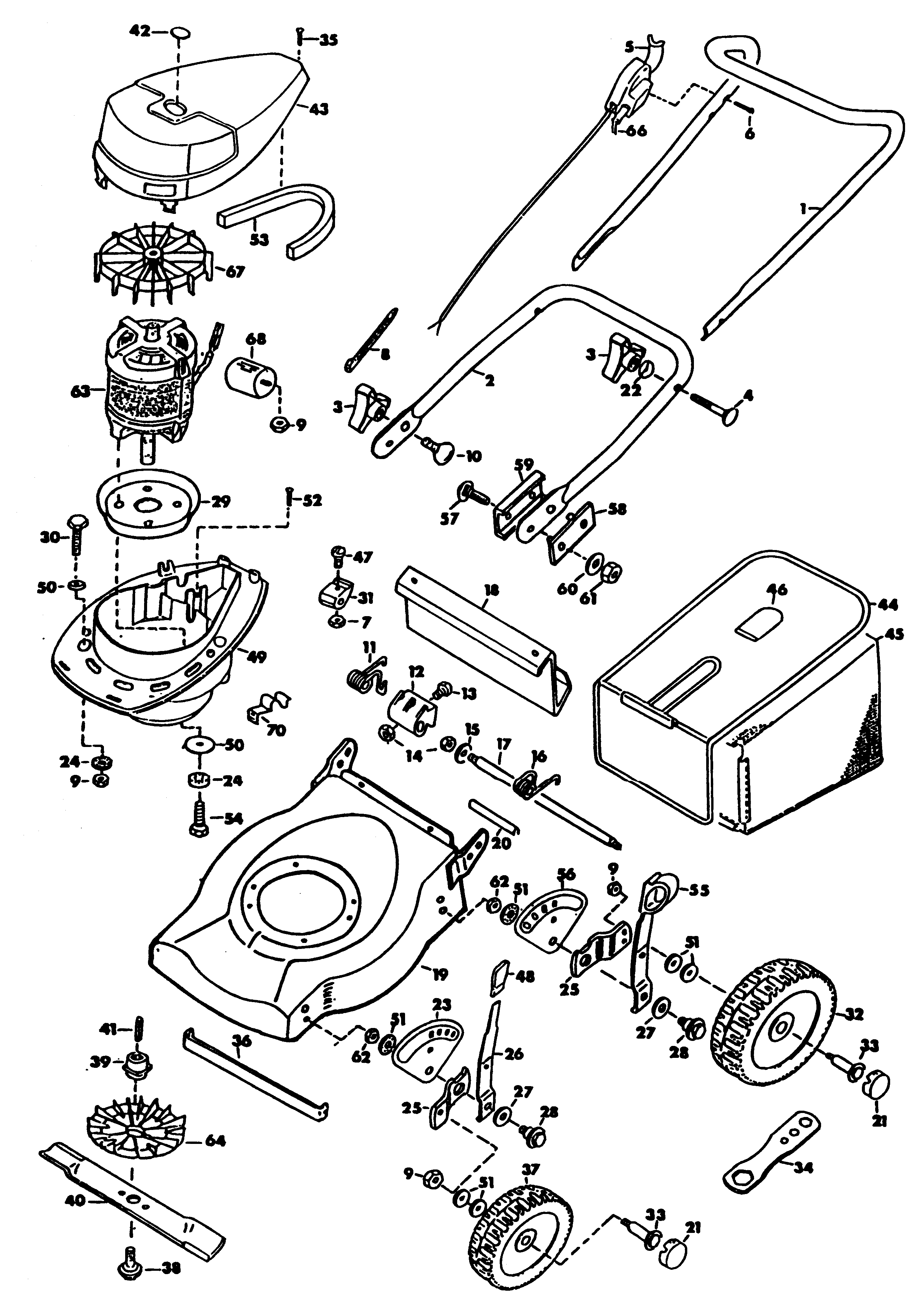

GR530C ROTARY MOWER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 278177-00 | 1 | HANDLE | GB |  |
||
| 3 | 278194-00 | 2 | LOCK-NUT | GB | |
||
| 4 | 155812500 | 2 | SCREW | GB | |
||
| 5 | 278124-00 | 1 | SWITCH SA | GB | |||
| 7 | 278149-00 | 2 | NUT | GB | |
||
| 8 | 278055-00 | 2 | TIE | GB | |
||
| 9 | 278151-00 | 3 | NUT | GB | |
||
| 10 | 278112-00 | 1 | SCREW | GB | |
||
| 11 | 278053-00 | 1 | SPRING RH | GB | |||
| 13 | 860085-13 | 1 | SCREW | GB |  |
||
| 14 | 278150-00 | 2 | NUT | GB | |||
| 15 | 278153-00 | 1 | WASHER | GB | |
||
| 16 | 278052-00 | 1 | SPRING LH | GB | |||
| 17 | 278163-00 | 1 | AXLE | GB | |
||
| 18 | 278159-00 | 1 | REAR FLAP | GB | |||
| 19 | 278197-00 | 1 | CUTTER COVER | GB | |
||
| 20 | 278180-00 | 1 | PROTECTOR | GB | |||
| 21 | 278117-00 | 4 | CAP | GB | |
||
| 24 | 278148-00 | 5 | WASHER | GB | |
||
| 26 | 278196-00 | 2 | LEVER | GB | |
||
| 28 | 278064-00 | 4 | SCREW | GB | |
||
| 30 | 860085-03 | 3 | BOLT | GB | |
||
| 31 | 278069-00 | 2 | JOINT | GB | |||
| 32 | 278116-00 | 2 | WHEEL 200 MM | GB | |
||
| 33 | 278118-00 | 4 | AXLE WHEEL | GB | |
||
| 34 | 278178-00 | 1 | SPANNER | GB | |
||
| 37 | 278114-00 | 2 | WHEEL | GB | |
||
| 38 | 278200-00 | 1 | BLADE BOLT | GB | |
||
| 39 | 278169-00 | 1 | BLADE MOUNT | GB | |
||
| 41 | 278054-00 | 1 | KEY | GB | |
||
| 42 | 278094-00 | 1 | COVER | GB | |
||
| 43 | 278131-00 | 1 | COVER | GB | |
||
| 44 | 278119-00 | 1 | FRAME | GB | |
||
| 45 | 278066-00 | 1 | GRASSBAG | GB | |
||
| 46 | 278104-00 | 1 | HANDLE | GB | |
||
| 47 | 278146-00 | 1 | SCREW | GB | |
||
| 48 | 278160-00 | 2 | GRIP | GB | |
||
| 49 | 278132-00 | 1 | MOUNT | GB | |
||
| 50 | 278155-00 | 3 | WASHER | GB | |
||
| 51 | 278158-00 | 4 | WASHER | GB | |
||
| 52 | 278130-00 | 1 | SCREW | GB | |||
| 54 | 860085-04 | 3 | SCREW | GB | |
||
| 55 | 278195-00 | 2 | LEVER | GB | |
||
| 57 | 860301-01 | 1 | SCREW | GB | |
||
| 58 | 278109-00 | 1 | INSULATOR | GB | |||
| 59 | 278110-00 | 1 | PLATE | GB | |||
| 60 | 278156-00 | 1 | WASHER M8 | GB | |
||
| 61 | 278152-00 | 1 | NUT | GB | |||
| 62 | 278057-00 | 4 | NUT | GB | |
||
| 64 | 278088-00 | 1 | FAN | GB | |
||
| 65 | 844840 | 1 | COUPLER (SPLASH) | GB | |
||
| 66 | 330048-52 | 1 | CORDSET (SPLASH) | GB | |
||
| 67 | 278263-00 | 1 | FAN | GB | |
||
| 68 | 278140-00 | 1 | CONDENSOR | GB | |
||
| 70 | 278291-00 | 3 | CLIP | GB |
