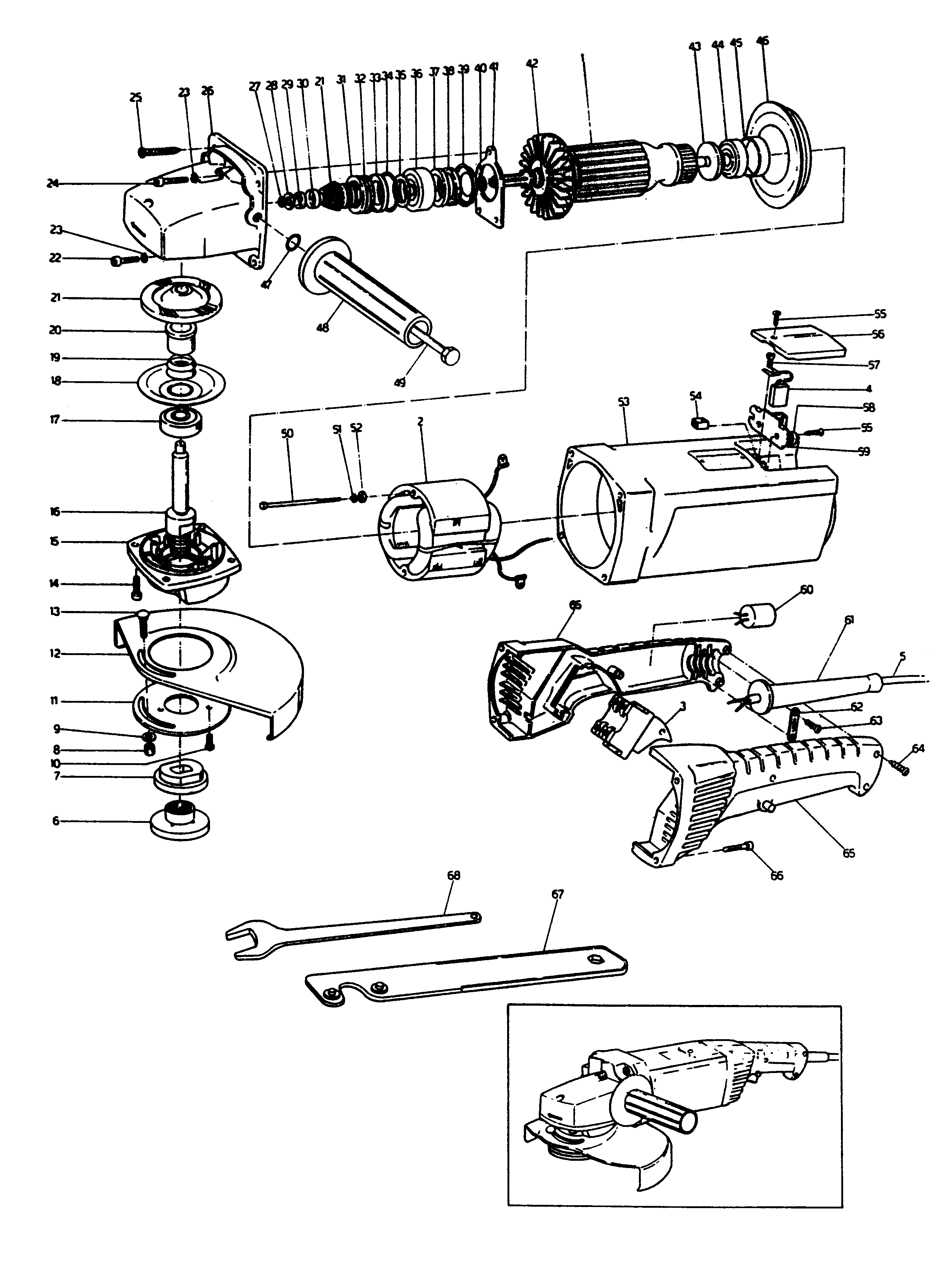

P5902 ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 934592 | 1 | FIELD | 220V/240V | XJ | ||
| 2 | 934831 | 1 | FIELD | 115 VOLTS | XJ |  |
|
| 3 | 934628 | 1 | SWITCH | 220V/240V | XJ | |
|
| 3 | 934628 | 1 | SWITCH | 115 VOLTS | XJ | |
|
| 5 | 4688529 | 1 | CABLE PER METRE | 220V/240V | XJ | |
|
| 5 | 4688531 | 1 | CABLE PER METRE | 115 VOLTS | XJ | ||
| 6 | 931771 | 1 | FLANGE | XJ |  |
||
| 7 | 930927 | 1 | FLANGE | XJ | |
||
| 8 | 860083-03 | 1 | NUT | XJ | |
||
| 9 | 930925 | 1 | WASHER | XJ | |
||
| 10 | 869076-00 | 3 | SCREW | XJ | |
||
| 11 | 930929 | 1 | FLANGE | XJ | |
||
| 12 | 937677 | 1 | GUARD | XJ | |
||
| 13 | 949892-07 | 1 | SCREW | XJ | |
||
| 14 | 949887-01 | 4 | SCREW | XJ | |
||
| 15 | 947962-00 | 1 | GEARCASE COVER | XJ | |
||
| 16 | 578243-00 | 1 | SPINDLE | XJ | |
||
| 18 | 930924 | 1 | FLANGE | XJ | |
||
| 19 | 930923 | 1 | SEAL | XJ | |
||
| 20 | 930922 | 1 | SPACER | XJ | |
||
| 21 | 936946 | 1 | GEAR & PINION | XJ | |
||
| 22 | 934567 | 2 | SCREW | XJ | |||
| 23 | 930248-00 | 3 | WASHER | XJ | |
||
| 24 | 930570 | 1 | SCREW | XJ | |
||
| 25 | 930930 | 4 | SCREW | XJ | |
||
| 26 | 934571 | 1 | GEARBOX SA | XJ | |||
| 27 | 930100 | 1 | CIRCLIP | XJ | |
||
| 28 | 930905 | 1 | WASHER SPECIAL | XJ | |
||
| 29 | 930906 | 1 | SHOCK ABSORBER | XJ | |
||
| 30 | 930907 | 1 | COVER | XJ | |
||
| 31 | 934562 | 1 | SEAL | XJ | |||
| 32 | 934561 | 1 | FELT | XJ | |||
| 34 | 934564 | 1 | SEAL | XJ | |||
| 35 | 932287-00 | 1 | WASHER | XJ | |
||
| 36 | 861721-12 | 1 | BEARING | XJ | |
||
| 37 | 934566 | 1 | SEAL | XJ | |||
| 38 | 934569 | 1 | FELT | XJ | |
||
| 39 | 934565 | 1 | COVER | XJ | |||
| 40 | 930074 | 1 | SEAL | XJ | |
||
| 41 | 934568 | 1 | FLANGE | XJ | |||
| 42 | 930147 | 1 | WASHER | XJ | |
||
| 43 | 934600 | 1 | SPACER | XJ | |||
| 45 | 934789 | 1 | COVER | XJ | |
||
| 46 | 930072-00 | 1 | BAFFLE | XJ | |
||
| 48 | 939815 | 1 | HANDLE SIDE SA | XJ | |
||
| 50 | 934619 | 2 | SCREW | XJ | |
||
| 51 | 930249 | 2 | WASHER | XJ | |
||
| 52 | 930245 | 2 | WASHER | XJ | |
||
| 54 | 932307-00 | 2 | BLOCK | XJ | |
||
| 55 | 930251-00 | 6 | SCREW | XJ | |
||
| 56 | 934570 | 2 | COVER BRUSH | XJ | |||
| 57 | 930242-00 | 2 | SCREW | XJ | |
||
| 58 | 930099-00 | 2 | SPRING | XJ | |
||
| 59 | 934620 | 2 | BRUSH PLATE SA | XJ | |
||
| 60 | 930030 | 1 | CAPACITOR | XJ | |
||
| 61 | 930556 | 1 | CORD PROTECTOR | XJ | |
||
| 62 | 931477-00 | 1 | CORD CLAMP | XJ | |
||
| 63 | 931469-02 | 2 | SCREW | XJ | |
||
| 64 | 930554-00 | 3 | SCREW | XJ | |
||
| 66 | 932318 | 1 | SCREW | XJ | |||
| 67 | 938733 | 1 | WRENCH PIN | XJ | |
