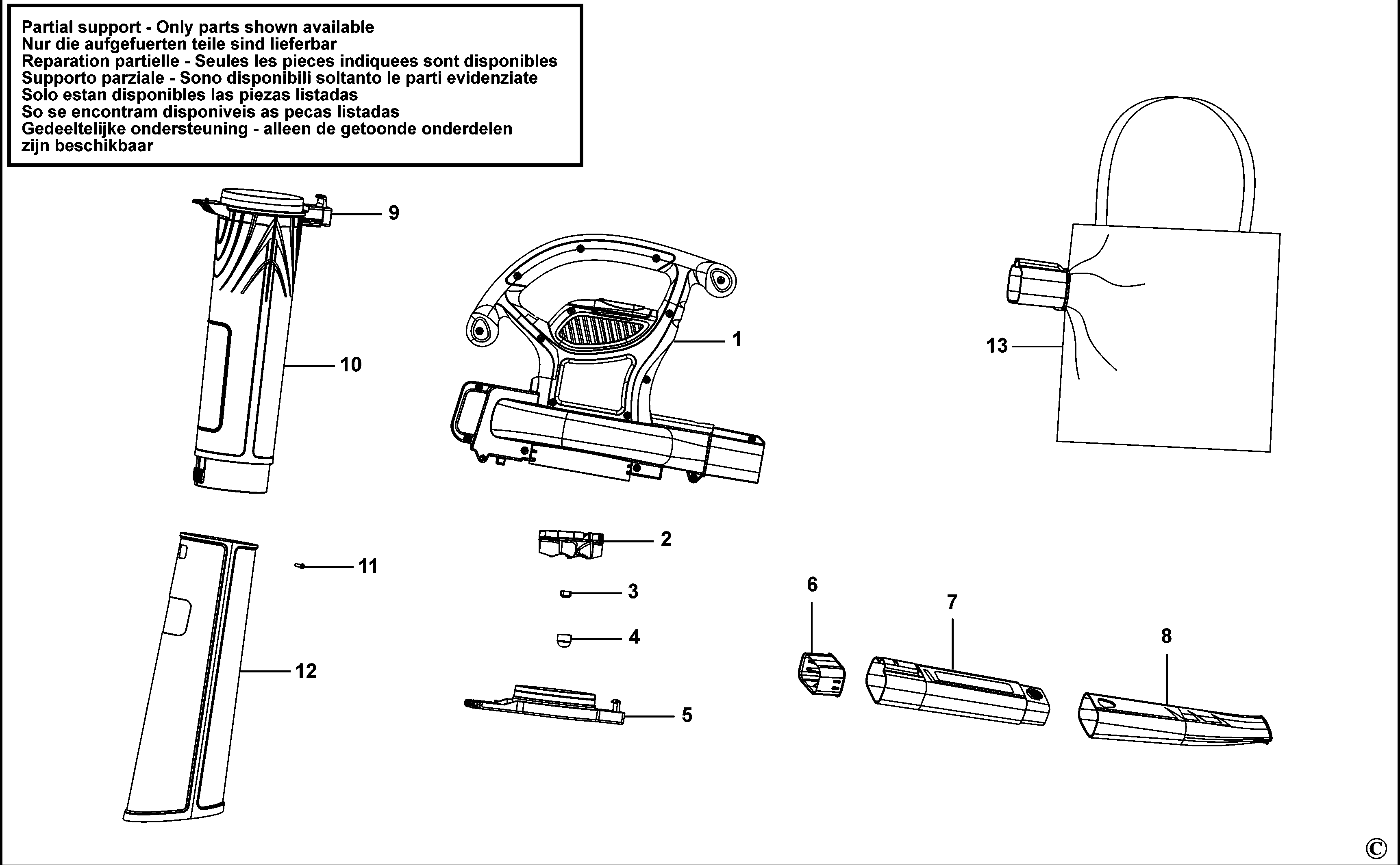

GW2500 BLOWER VAC Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 000000-05 | 1 | PARTIAL SUPPORT - ONLY PARTS LISTED AVAI | GB | |||
| 1 | N381301 | 1 | FENCE LH | GB | |||
| 2 | 1004697-17 | 1 | FAN | GB |  |
||
| 3 | 1004697-18 | 1 | LOCK-NUT | GB | |
||
| 3 | 1004718-01 | 1 | COVER SA | GB |  |
||
| 4 | 1004697-19 | 1 | CAP | GB | |
||
| 4 | 90542787 | 5 | HOOK | GB | |
||
| 5 | 1004697-20 | 1 | FAN COVER | GB | |
||
| 5 | 586840-01 | 1 | RATING PLATE | GB | |
||
| 6 | 1004697-21 | 1 | TUBE SUPPORT | GB | |
||
| 6 | 1004747-00 | 1 | CAP SA | GB | |
||
| 7 | 1004697-22 | 1 | TUBE UPPER | GB | |
||
| 7 | N441384 | 1 | CHUCK 10MM | GB | |
||
| 8 | 1004697-23 | 1 | TUBE LOWER | GB | |
||
| 8 | 5170024-83 | 1 | MOUNT | GB | |
||
| 9 | 1004697-25 | 1 | TUBE SUPPORT | GB | |
||
| 9 | 5762-00 | 3 | SCREW.TEMP | GB | |||
| 10 | 1004697-26 | 1 | TUBE LOWER | GB | |
||
| 10 | 5170006-81 | 1 | HOUSING | GB | |||
| 11 | 1004697-24 | 1 | SCREW | GB | |
||
| 11 | 5170012-08 | 1 | GUARD LH | GB | |
||
| 12 | 1004697-27 | 1 | TUBE UPPER | GB | |
||
| 13 | 1004697-28 | 1 | BAG SA | GB | |
||
| 15 | 5170013-87 | 1 | FIELD CASE | GB | |
||
| 16 | 5170012-10 | 1 | HANDLE COVER | GB | |
||
| 17 | 1004747-12 | 2 | NOZZLE | GB | |
||
| 18 | 5170011-03 | 1 | CLAMSHELL SA | GB | |
||
| 20 | 821032-00 | 1 | SCREW,6 X 1/2 | GB | |||
| 21 | 151002-00 | 1 | DUST DEFLECTOR | GB | |
||
| 22 | N809809 | 1 | RATING LABEL | GB | |||
| 23 | 5170007-25 | 1 | FIELD CASE | GB | |
||
| 24 | 6010392-37 | 1 | RAM SA | GB | |||
| 25 | 5170005-84 | 1 | HANDLE | GB | |||
| 27 | N470349 | 1 | SWITCH SA | GB | |||
| 29 | 1004696-66 | 1 | TRANSFORMER | 230v | GB | |
|
| 30 | 5170003-81 | 1 | MICRO SWITCH | GB | |||
| 31 | 1004752-09 | 1 | COUPLING | GB | |
||
| 32 | 1004746-80 | 1 | REGULATOR | GB | |
||
| 33 | 151002-00 | 2 | DUST DEFLECTOR | GB | |
||
| 34 | 90626849 | 1 | SPRING | GB | |
||
| 36 | N075436 | 1 | CORDSET | GB | |
||
| 37 | 5170005-82 | 1 | KNOB | GB | |
||
| 38 | 5170003-63 | 1 | PCB SA | GB | |||
| 39 | 90577343-01 | 1 | PCB SA | GB | |||
| 40 | 6010358-23 | 1 | FIELD CASE | GB | |
||
| 42 | 577813-00 | 2 | BEARING NEEDLE | GB | |
||
| 45 | 151002-00 | 4 | DUST DEFLECTOR | GB | |
||
| 46 | N774198 | 1 | TUBE SA | GB | |
||
| 48 | 90602334 | 1 | PCB SA | GB | |||
| 49 | 5170004-05 | 1 | BRUSH PAIR | GB | |||
| 50 | 5170024-78 | 1 | END CAP | GB | |
||
| 51 | 5762-00 | 4 | SCREW.TEMP | GB | |||
| 52 | 732470 | 1 | FIELD | GB | |
||
| 53 | N437901 | 1 | GUARD LH | GB | |
||
| 54 | 151002-00 | 3 | DUST DEFLECTOR | GB | |
||
| 100 | N741922 | 1 | TUBE SA | GB | |||
| 101 | N437923 | 1 | HANDLE COVER | GB | |
||
| 102 | 1004746-81 | 1 | REGULATOR | GB | |
||
| 103 | 5170007-36 | 1 | HANDLE | GB | |
||
| 104 | 1004557-20 | 1 | GEARCASE | GB | |||
| 105 | N679002 | 1 | FENCE LH | GB | |||
| 106 | 5170011-52 | 1 | BRUSH COVER | GB | |
||
| 107 | N323159 | 1 | SEAL | GB | |
||
| 108 | 1004760-61 | 1 | HOSE | 370mm | GB | |
|
| 109 | 1004746-85 | 1 | NOZZLE | GB | |
||
| 110 | 1004746-86 | 1 | CAP SA | GB | |
||
| 111 | 1004749-09 | 1 | NOZZLE | GB | |
||
| 115 | 1004769-46 | 1 | FOOT | GB | |
||
| 116 | 1004769-47 | 1 | MOUNT | GB | |
||
| 117 | N437938 | 1 | HOUSING MOTOR | GB | |
||
| 118 | 5762-00 | 1 | SCREW.TEMP | GB | |||
| 119 | 1004684-65 | 1 | HOUSING | GB | |
||
| 120 | 5170010-90 | 1 | SPRING TORSION | GB | |
||
| 121 | 1004776-45 | 1 | REGULATOR | GB | |
||
| 122 | 1004557-22 | 1 | GEARCASE SA | GB | |||
| 123 | 5170000-82 | 2 | RING | GB | |||
| 124 | 1004684-04 | 1 | FLANGE | GB | |
||
| 125 | N391102 | 1 | NUT | GB | |||
| 130 | 1004770-94 | 1 | O RING | GB | |||
| 130 | N391067 | 1 | SCREW | Service Packed | GB | ||
| 131 | 1004754-39 | 1 | FOOT | GB | |
||
| 132 | 1004753-17 | 1 | HOLDER SA | GB | |
||
| 133 | 5140090-75 | 1 | RING | Check Ring | GB | |
|
| 134 | 5170031-60 | 1 | GEAR & SPINDLE SA | GB | |||
| 135 | N356221 | 1 | SEAL | GB | |
||
| 140 | N136731 | 1 | LEVER | GB | |
||
| 141 | 1004756-06 | 2 | COUPLING | GB | |
||
| 142 | 1004751-65 | 1 | FOOT | GB | |
||
| 144 | N381533 | 1 | BEARING & SEAL | GB | |
||
| 146 | AG200-40 | 1 | SPANNER | GB | |
||
| 147 | 5170010-84 | 1 | RING | GB | |
||
| 148 | 1008681-00 | 1 | HOUSING HANDLE | GB | |||
| 149 | 1004751-42 | 1 | FOOT | GB | |
||
| 150 | N482796 | 1 | COVER LH | GB | |
||
| 151 | 584639-00 | 1 | SPRING CLIP | GB | |||
| 155 | 6010406-88 | 1 | SEAL | GB | |||
| 156 | N199295 | 1 | ARM | GB | |
||
| 160 | 5170014-88 | 1 | CHUCK | GB | |
||
| 161 | 1004684-36 | 1 | BRUSH HOLDER | GB | |
||
| 162 | 578005-00 | 1 | KITBOX | GB | |
||
| 163 | 1004518-63 | 1 | PIN | GB | |
||
| 165 | N536538 | 1 | CASTING | GB | |
||
| 170 | 5170034-72 | 1 | SEAL | GB | |||
| 171 | N142823 | 1 | GEARCASE SA | GB | |
||
| 172 | 1004776-90 | 1 | ISOLATOR | GB | |
||
| 173 | 1004768-23 | 1 | FAN SA | GB | |
||
| 174 | 629582-01 | 1 | BEARING HOUSING | GB | |||
| 175 | 1004761-68 | 1 | SUPPORT | GB | |
||
| 176 | 098197-10 | 1 | WASHER LOCK | GB | |
||
| 177 | N464913 | 1 | SLEEVE | INCL. WASHER | GB | |
|
| 179 | N533628 | 1 | ARMATURE 230V | + Bearing | GB | |
|
| 185 | N074826 | 1 | BEARING,BALL | GB | |
||
| 186 | 5170010-72 | 1 | GUARD | GB | |||
| 187 | 1003692-00 | 1 | GEARCASE SA | GB | |
||
| 188 | 586840-00 | 1 | RATING PLATE | GB | |||
| 189 | 1004768-25 | 1 | FOOT | GB | |
||
| 190 | 790413-00 | 1 | SPRING | GB | |||
| 192 | 1004557-18 | 1 | SPINDLE | GB | |||
| 193 | 1004754-35 | 1 | CONNECTOR | GB | |
||
| 200 | 5170011-57 | 1 | HOUSING MOTOR | GB | |||
| 201 | 6010389-86 | 1 | GEARBOX SA | GB | |
||
| 800 | 5104912-06 | 1 | EXTENSION | GB | |
||
| 801 | 313066 | 3 | FEET | GB | |
||
| 831 | 90599638 | 1 | RATING LABEL | GB | |||
| 847 | SCMT44166 | 1 | REPAIR KIT | GB | |||
| 848 | 1004714-84 | 1 | KIT | inc:14,130,134,135 | GB | |
|
| 861 | 5170010-71 | 1 | KITBOX | GB |
