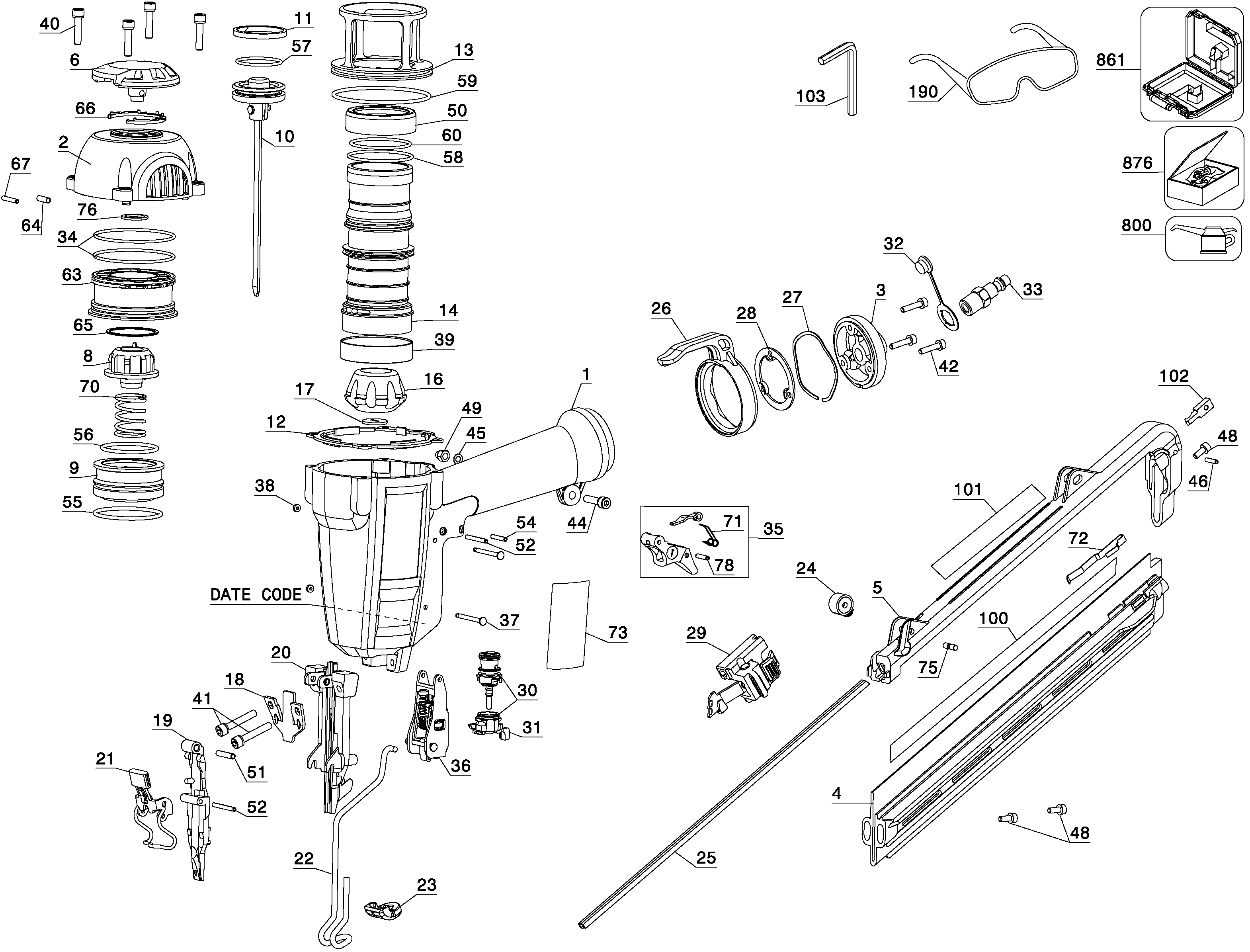

D51276K 53441 Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 645892-00 | 1 | FRAME | XJ |  |
||
| 2 | 645882-00 | 1 | CAP | XJ | |
||
| 3 | 647601-00 | 1 | END CAP | XJ | |
||
| 4 | 646770-00 | 1 | MAGAZINE | XJ |  |
||
| 5 | 646768-00 | 1 | MAGAZINE | XJ | |
||
| 6 | 646415-00 | 1 | DEFLECTOR | XJ | |
||
| 8 | 651719-00 | 1 | BUMPER | XJ | |
||
| 9 | N006894 | 1 | VALVE | XJ | |
||
| 10 | 647603-00-K | 1 | DRIVER SA | XJ | |
||
| 11 | 647952-00 | 1 | SEAL | XJ | |||
| 12 | 647650-00 | 1 | GASKET | XJ | |
||
| 13 | 652373-00 | 1 | INSERT | XJ | |
||
| 14 | 646280-00 | 1 | CYLINDER | XJ | |
||
| 16 | 652500-00 | 1 | BUMPER | XJ | |
||
| 17 | 646981-00 | 1 | PLATE | XJ | |
||
| 18 | 647060-00 | 1 | DOOR | XJ | |
||
| 19 | 647064-00 | 1 | DOOR | XJ | |
||
| 20 | N064259 | 1 | NOSE | XJ | |
||
| 21 | 653129-00 | 1 | LATCH | XJ | |
||
| 22 | N015849 | 1 | CONTACT | XJ | |
||
| 23 | 619943-00 | 1 | PAD | XJ | |
||
| 24 | 647605-00 | 1 | SPRING | XJ | |
||
| 25 | 395115-00 | 1 | LINER | XJ | |
||
| 26 | 647607-00 | 1 | HOOK | XJ | |
||
| 27 | 647608-00 | 1 | SPRING | XJ | |
||
| 28 | N043700 | 1 | GASKET | XJ | |
||
| 29 | 646725-00 | 1 | SLIDER | XJ | |||
| 30 | N566148 | 1 | TRIGGER | XJ | |
||
| 31 | N566148 | 1 | TRIGGER | XJ | |
||
| 32 | 634066-00 | 1 | CAP | XJ | |
||
| 33 | 634059-00 | 1 | CONNECTOR | XJ | |
||
| 34 | 647621-00 | 1 | O RING | XJ | |
||
| 35 | N572068 | 1 | TRIGGER ASSEMBLY | XJ | |||
| 36 | N108466 | 1 | ADJUSTER | XJ | |
||
| 37 | 395091-00 | 2 | PIN | XJ | |
||
| 38 | 391814-00 | 2 | GROMMET | XJ | |
||
| 39 | N000557 | 1 | RING | XJ | |
||
| 40 | 608174-00 | 4 | SCREW | XJ | |
||
| 41 | 608175-00 | 2 | SCREW | XJ | |
||
| 42 | 608178-00 | 3 | SCREW | XJ | |
||
| 43 | 608179-00 | 1 | SCREW | XJ | |
||
| 44 | 608176-00 | 1 | SCREW | XJ | |
||
| 45 | 330016-07 | 1 | WASHER | XJ | |
||
| 46 | 330036-11 | 1 | ROLL PIN | XJ | |
||
| 48 | 608179-00 | 2 | SCREW | XJ | |
||
| 49 | 607155-00 | 1 | NUT | XJ | |
||
| 50 | 649687-00 | 1 | SEAL | XJ | |
||
| 51 | 330036-04 | 1 | ROLL PIN | XJ | |
||
| 52 | 650156-00 | 2 | SPIROL PIN | XJ | |
||
| 54 | 650155-00 | 1 | SPIROL PIN | XJ | |
||
| 55 | 646361-00 | 1 | O RING | XJ | |
||
| 56 | 646359-00 | 1 | O RING | XJ | |
||
| 57 | 647949-00 | 1 | O RING | XJ | |
||
| 58 | 652371-00 | 1 | O RING | XJ | |
||
| 59 | 398159-00 | 1 | O RING | XJ | |
||
| 60 | 652372-00 | 1 | O RING | XJ | |
||
| 63 | N021190 | 1 | SLEEVE | XJ | |
||
| 64 | 651982-00 | 1 | SLEEVE | XJ | |
||
| 65 | 651702-00 | 1 | RING | XJ | |
||
| 66 | 632495-00 | 1 | O RING | XJ | |
||
| 67 | 632492-00 | 1 | PIN | XJ | |
||
| 70 | 395064-00 | 1 | SPRING | XJ | |
||
| 71 | 391813-00 | 1 | SPRING | XJ | |
||
| 72 | 649652-00 | 1 | RETAINER | XJ | |
||
| 73 | 647940-00 | 2 | BRAND LABEL | XJ | |
||
| 75 | N004643 | 1 | PIN | XJ | |
||
| 76 | 632239-00 | 1 | WASHER | XJ | |
||
| 78 | 603394-00 | 1 | PIN | XJ | |
||
| 100 | N071919 | 1 | RATING PLATE | XJ | |
||
| 101 | 646425-00 | 1 | LABEL | XJ | |
||
| 102 | 649138-00 | 1 | LATCH | XJ | |
||
| 103 | 604407-02 | 1 | WRENCH | XJ | |
||
| 103 | 497570-02 | 1 | KEY | 4mm | XJ | |
|
| 190 | 629042-01 | 1 | SAFETY GLASSES | XJ | |
||
| 800 | 429995-00 | 1 | GREASE 150 GMS | XJ | |
||
| 861 | 9R195833 | 1 | KIT BOX | XJ | |||
| 876 | N003390 | 1 | TRIGGER | ACCY D510002 | XJ | |
|
| 876 | N003391 | 1 | TRIGGER | ACCY D510004 | XJ | |
|
| 876 | N001060 | 1 | SERVICE KIT | D512762 | ACCY D512762 | XJ | |
| 876 | N566195 | 1 | O-RING KIT | ACCY D512761 | XJ | ||
| 876 | N001056 | 1 | SERVICE KIT | ACCY D512763 | XJ | |
|
| 876 | N003392 | 1 | VALVE | ACCY D510008 | XJ | |
