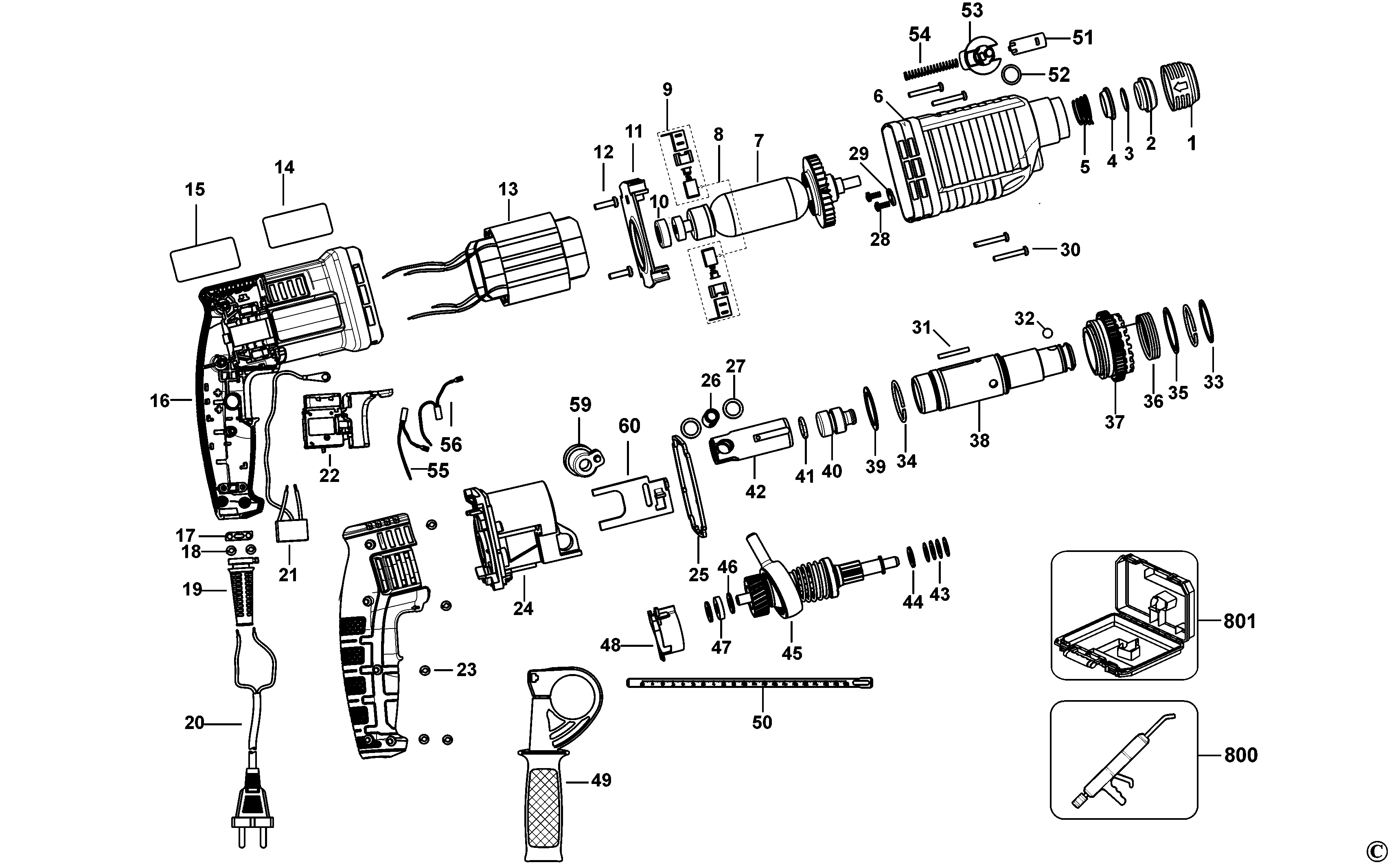

BDEL503 HAMMER DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90524565 | 1 | COLLAR | XJ |  |
||
| 2 | 90524563 | 1 | TIP | XJ | |
||
| 3 | 90558298 | 1 | CIRCLIP | XJ | |
||
| 4 | 90594643 | 1 | HOLDER | XJ | |
||
| 5 | 90549908 | 1 | SPRING | XJ | |
||
| 6 | 90592418 | 1 | GEARCASE SA | XJ | |
||
| 7 | 90592489 | 1 | ARMATURE SA | XJ | |
||
| 8 | 90592455 | 1 | BRUSH SA | XJ | |
||
| 9 | 90587066 | 2 | BRUSH HOLDER SA | XJ | |
||
| 10 | 90549817 | 1 | SLEEVE BEARING | XJ | |
||
| 11 | 90584579 | 1 | BOARD | XJ | |
||
| 12 | 330065-05 | 2 | SCREW | XJ | |
||
| 13 | 90592490 | 1 | FIELD SA | XJ | |
||
| 15 | 90590891 | 1 | BRAND LABEL | XJ |  |
||
| 16 | 90592861-01 | 1 | HOUSING SA | XJ | |
||
| 17 | 329301-00 | 1 | CORD CLAMP | XJ | |
||
| 18 | 330065-05 | 2 | SCREW | XJ | |
||
| 19 | 629648-00 | 1 | CORD PROTECTOR | XJ | |
||
| 20 | 90578995-40 | 1 | CORDSET | XJ | |
||
| 21 | 90586987 | 1 | CAPACITOR | XJ | |
||
| 22 | 90590899 | 1 | SWITCH | XJ | |
||
| 23 | 330065-07 | 5 | SCREW | XJ | |
||
| 24 | 90567050 | 1 | SUPPORT PLATE | XJ | |
||
| 25 | 90550379 | 1 | GASKET | XJ | |
||
| 26 | 90549488 | 1 | PIN | XJ | |
||
| 27 | 90549884 | 2 | WASHER | XJ | |
||
| 28 | 90550523 | 2 | SCREW | XJ | |
||
| 29 | 90549588 | 1 | BRAKE | XJ | |
||
| 30 | 330065-14 | 4 | SCREW | M4X30 T20 | XJ | |
|
| 31 | 90550377 | 1 | PIN | XJ | |
||
| 32 | 90550363 | 1 | BALL STEEL | XJ | |
||
| 33 | 90558481 | 1 | GASKET | XJ | |
||
| 34 | 90558296 | 2 | CIRCLIP | XJ | |
||
| 35 | 90549885 | 1 | WASHER | XJ | |
||
| 36 | 90550375 | 1 | SPRING | XJ | |
||
| 37 | 90567045 | 1 | CLUTCH SA | XJ | |
||
| 38 | 90592404 | 1 | SHAFT | XJ | |
||
| 39 | 90549888 | 1 | WASHER | XJ | |
||
| 40 | 90549635 | 1 | RAM | XJ | |
||
| 41 | 90558558 | 1 | O RING | XJ | |
||
| 42 | 90549489 | 1 | CYLINDER | XJ | |
||
| 43 | 90549946 | 4 | WASHER SPRING | XJ | |
||
| 44 | 90558300 | 1 | GASKET | XJ | |
||
| 45 | 90595118 | 1 | INTERSHAFT SA | XJ | |
||
| 46 | 90558664 | 2 | GASKET | XJ | |
||
| 47 | 90550384 | 1 | BEARING AXIAL | XJ | |
||
| 48 | 90585594 | 1 | BAFFLE | XJ | |
||
| 49 | 376556-11 | 1 | HANDLE SA | XJ | |
||
| 50 | 372814-00 | 1 | DEPTH STOP | XJ | |
||
| 51 | 90584578-01 | 1 | BUTTON | XJ | |
||
| 52 | 90558562 | 1 | RUBBER SEAL | XJ | |
||
| 53 | 90584577 | 1 | KNOB | XJ | |
||
| 54 | 90550392 | 1 | SPRING | XJ | |
||
| 55 | 90587067 | 1 | CHOKE LEAD SA | XJ | |
||
| 56 | 90587068 | 1 | CHOKE LEAD SA | XJ | |
||
| 59 | 90549812 | 1 | KNOB | XJ | |
||
| 60 | 90549820 | 1 | SELECTOR | XJ | |
||
| 800 | 870889-02 | 1 | GREASE | XJ | |
||
| 801 | 90584590-01 | 1 | KIT BOX | XJ | |
