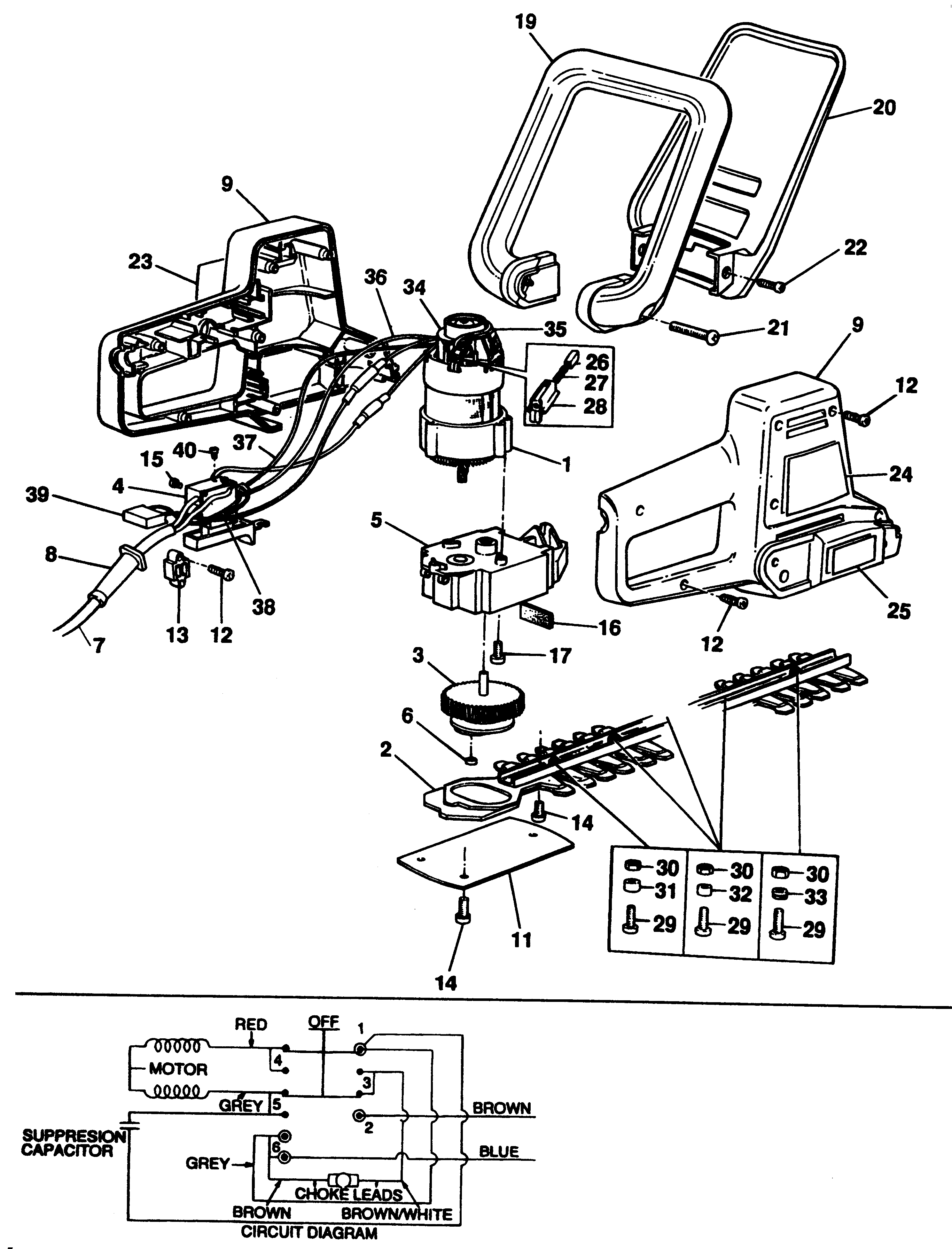

GT40B HEDGECLIPPER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 376926-09 | 1 | MOTOR SA | XJ |  |
||
| 2 | 795993-49 | 1 | BLADE & GEAR SA | BLADE H1E,H1F,H1G | XJ | |
|
| 4 | 797249-02 | 1 | SWITCH | XJ | |
||
| 5 | 371794-49 | 1 | REPAIR KIT | XJ | |
||
| 6 | 832472 | 1 | ROLLER | BLADE H1,A,B,C,D | XJ | |
|
| 8 | 770235 | 1 | PROTECTOR | XJ |  |
||
| 9 | 833695 | 1 | CLAMSHELL | XJ | |
||
| 11 | 370099 | 1 | COVER | BUILT FROM 1996 | XJ | |
|
| 11 | 371794-49 | 1 | REPAIR KIT | BUILT BEFORE 1996 | XJ | |
|
| 12 | 849256 | 9 | SCREW | XJ | |
||
| 13 | 994808 | 1 | CABLE CLAMP | XJ | |
||
| 14 | 747507 | 5 | SCREW | BUILT BEFORE 1996 | XJ | |
|
| 14 | 809015 | 5 | SCREW | BUILT FROM 1996 | XJ | |
|
| 15 | 854611 | 2 | SCREW | XJ | |
||
| 16 | 849718 | 1 | PAD | XJ | |
||
| 17 | 849256 | 3 | SCREW | XJ | |
||
| 19 | 829591 | 1 | HANDLE | XJ | |
||
| 20 | 829718 | 1 | GUARD | XJ | |
||
| 21 | 745217 | 2 | SCREW | XJ | |
||
| 22 | 828849 | 2 | SCREW | XJ | |
||
| 23 | 833206 | 1 | LABEL | XJ | |
||
| 26 | 376143 | 2 | BRUSH | XJ | |
||
| 27 | 847709 | 2 | SPRING | XJ | |
||
| 28 | 812738 | 2 | BRUSH HOLDER | XJ | |
||
| 29 | 829808 | 5 | SCREW | XJ | |
||
| 30 | 892153 | 5 | NUT | XJ | |
||
| 31 | 829074 | 1 | SPACER | XJ | |
||
| 32 | 829075 | 3 | SPACER | XJ | |
||
| 33 | 829809 | 1 | SPACER | XJ | |
||
| 34 | 833421 | 1 | COVER | XJ | |
||
| 35 | 833494 | 1 | LEAD GREY | XJ | |
||
| 36 | 833497 | 1 | LEAD RED | XJ | |
||
| 37 | 833498 | 1 | LEAD GREY | XJ | |
||
| 38 | 833500 | 1 | LINK | XJ | |
||
| 39 | 845467 | 1 | CAPACITOR | XJ | |
||
| 40 | 854053 | 2 | SCREW | XJ | |
