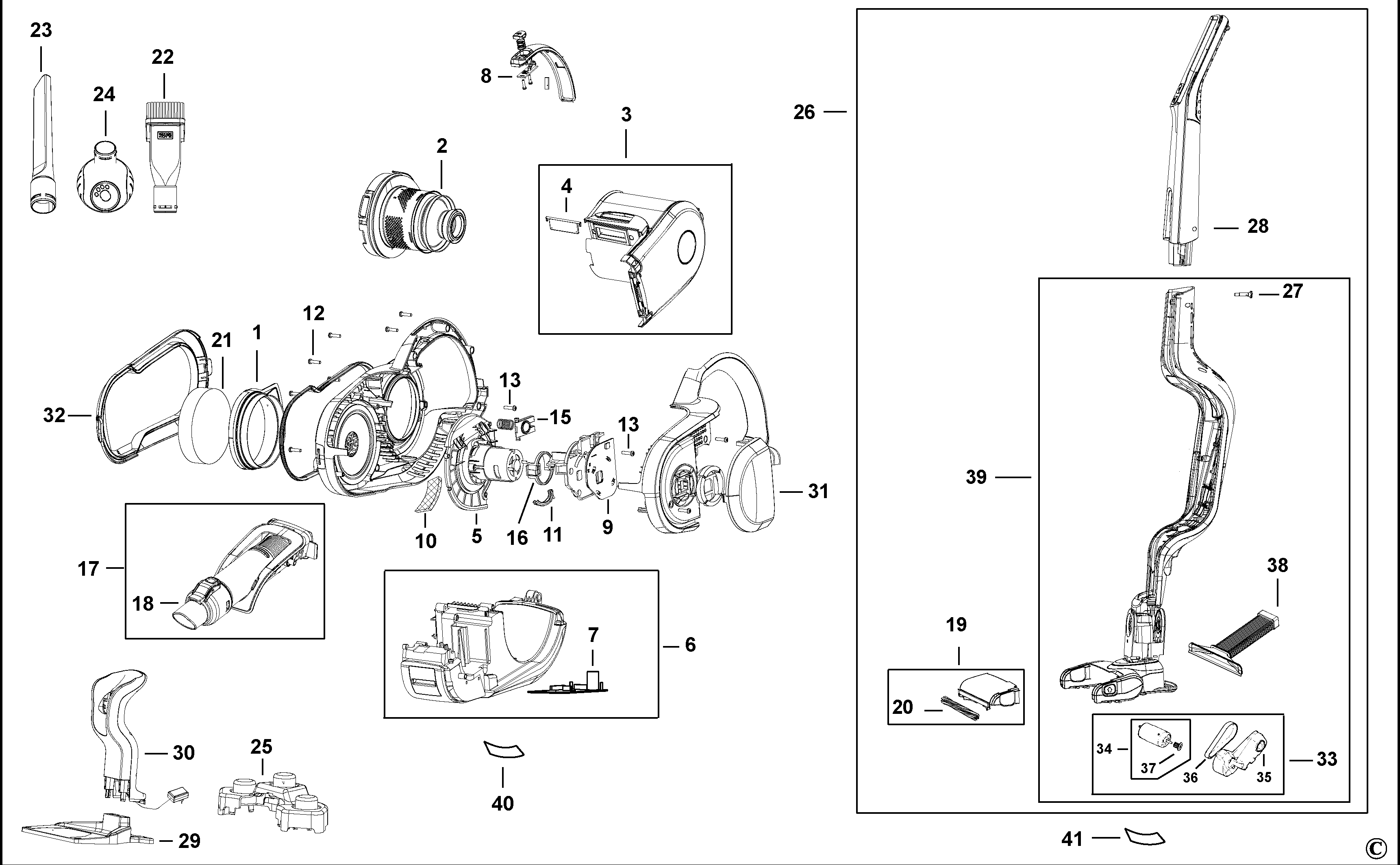

SVFV3250L DUSTBUSTER Type H1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90596689 | 1 | FRAME | GB | |||
| 2 | 90614707 | 1 | FILTER SA | GB | |||
| 3 | 90597328 | 1 | BOWL | GB | |||
| 4 | 90599426 | 1 | FLAP | GB |  |
||
| 5 | 90607900-02 | 1 | MOTOR & FAN | GB | |||
| 6 | 90605622 | 1 | BATTERY CASE SA | Li-Ion 32.4V - 65WH | SVFV3250L | GB | |
| 6 | 90605622-04 | 1 | BATTERY CASE SA | Li-Ion 32.4V - 65WH | SVFV3250LR | GB |  |
| 7 | 90593774-01 | 1 | PCB SA | GB | |
||
| 8 | 90595818 | 1 | PCB SA | GB | |
||
| 9 | 90599455-01 | 1 | PCB SA | GB | |
||
| 10 | 90611150 | 1 | EXHAUST | GB | |
||
| 11 | 90616027 | 1 | INSULATOR | GB | |
||
| 12 | 143062-02 | 13 | SCREW | GB | |
||
| 13 | 499903-00 | 5 | SCREW | GB | |
||
| 15 | 90605510 | 1 | BIT | GB | |
||
| 16 | 90603382 | 1 | CAP | GB | |
||
| 17 | 90599658-02 | 1 | HOSE SA | GB | |
||
| 18 | 90619242 | 1 | NOZZLE | GB | |
||
| 19 | 90605475 | 1 | HEAD SA | Inc 20 | GB | ||
| 20 | 90600921 | 1 | ROLLER SA | GB | |||
| 21 | 90607901 | 1 | FOAM | GB | |
||
| 22 | 90600901-02 | 1 | BRUSH | GB | |
||
| 23 | 90552231-03 | 1 | TOOL CREVICE | GB | |
||
| 24 | 90600824-02 | 1 | PET HEAD | GB | |||
| 25 | 90602833-01 | 1 | HOLDER | GB | |
||
| 26 | 90610847-02 | 1 | FOOT SA | SVFV3250LR | GB | |
|
| 26 | 90610847 | 1 | FOOT SA | SVFV3250L | GB | |
|
| 27 | 90601722 | 1 | SCREW | GB | |
||
| 28 | 90603258-03 | 1 | HANDLE SA | SVFV3250LR | GB | |
|
| 28 | 90603258-01 | 1 | HANDLE SA | SVFV3250L | GB | |
|
| 29 | 90610875-01 | 1 | BASE SA | GB | |||
| 30 | 90613140-04 | 1 | CHARGER | 0.5A | SVFV3250L + LR | GB | |
| 31 | 90594170 | 1 | MOTOR COVER | GB | |
||
| 32 | 90618871 | 1 | COVER | GB | |
||
| 33 | 90608509-02 | 1 | MOTOR SA & MOUNT | GB | |||
| 34 | 90626421 | 1 | MOTOR SA 18V | Inc. 37 | GB | ||
| 35 | N824494 | 1 | MOUNT | GB | |||
| 36 | 90592224 | 1 | BELT DRIVE | GB | |
||
| 37 | N548025 | 1 | GEAR | GB | |
||
| 38 | 90608567 | 1 | DUCT | GB | |
||
| 39 | 90622406-03 | 1 | LOWER HANDLE | SVFV3250L | GB | |
|
| 39 | 90622406-04 | 1 | LOWER HANDLE | SVFV3250LR | GB | |
|
| 40 | 90609278 | 1 | RATING PLATE | SVFV3250LR | GB | |
|
| 40 | 90605881 | 1 | RATING PLATE | SVFV3250L | GB | |
|
| 41 | 90609279 | 1 | RATING LABEL | SVFV3250LR | GB | ||
| 41 | 90605882 | 1 | RATING LABEL | SVFV3250L | GB | |
