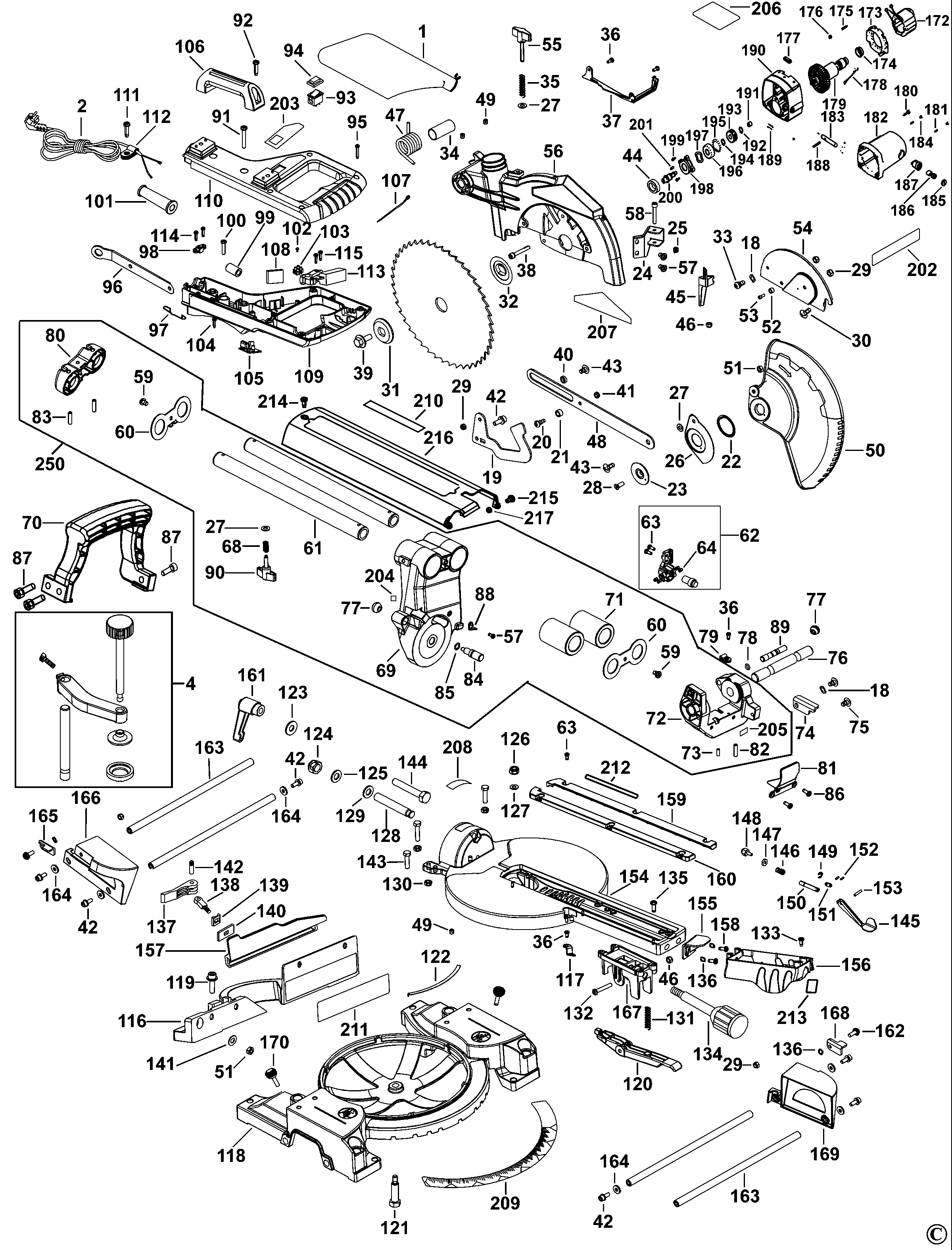

SMS254 MITRE SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004475-00 | 1 | BAG DUST SA | GB |  |
||
| 2 | 1004478-51 | 1 | CORDSET (M/PLUG) GB | GB | GB | |
|
| 4 | 1004478-52 | 1 | VICE SCREW SA | GB | |
||
| 18 | 1004475-16 | 2 | WASHER SPECIAL | GB |  |
||
| 19 | 1004477-07 | 1 | LEVER | GB | |
||
| 20 | 1004475-19 | 1 | SCREW | GB | |
||
| 21 | 1004475-20 | 1 | COLLAR | GB | |
||
| 22 | 1004477-08 | 1 | SPRING | GB | |
||
| 23 | 1004477-09 | 1 | COLLAR | GB | |
||
| 24 | 1004477-10 | 1 | PLATE | GB | |
||
| 25 | 1004475-24 | 1 | SPRING | GB | |
||
| 26 | 1004477-11 | 1 | PLATE | GB | |
||
| 27 | 1004475-26 | 3 | WASHER | GB | |
||
| 28 | 1004477-12 | 1 | SCREW | GB | |
||
| 29 | 1004475-95 | 5 | LOCK NUT | GB | |
||
| 30 | 1004477-13 | 1 | SCREW | GB | |
||
| 31 | 1004477-14 | 1 | OUTER FLANGE | GB | |
||
| 32 | 1004477-15 | 1 | INNER FLANGE | GB | |
||
| 33 | 1004475-37 | 1 | SCREW | GB | |
||
| 34 | 1004475-38 | 1 | SLEEVE | TO DCODE WK30-2013 | GB | |
|
| 34 | 1004696-46 | 1 | SLEEVE | FROM DCODE WK30-2013 | GB | |
|
| 35 | 1004475-39 | 1 | SPRING | GB | |
||
| 36 | 1004475-14 | 4 | SCREW | GB | |
||
| 37 | 1004477-16 | 1 | COVER | GB | |
||
| 38 | 1004477-17 | 3 | SCREW | GB | |
||
| 39 | 1004475-44 | 1 | BLADE BOLT | GB | |
||
| 40 | 1004475-45 | 1 | COLLAR | GB | |
||
| 41 | 1004477-18 | 2 | SCREW | GB | |
||
| 42 | 1004475-46 | 7 | SCREW | GB | |
||
| 43 | 1004477-19 | 2 | SCREW | TO DCODE WK30-2013 | GB | |
|
| 43 | 1004696-50 | 2 | SCREW | FROM DCODE WK30-2013 | GB | |
|
| 44 | 1004477-20 | 1 | COLLAR | GB | |
||
| 45 | 1004477-21 | 1 | LEVER | GB | |
||
| 46 | 1004475-29 | 3 | LOCK NUT | GB | |
||
| 47 | 1004477-22 | 1 | SPRING | TO DCODE WK30-2013 | GB | |
|
| 47 | 1004696-47 | 1 | SPRING | FROM DCODE WK30-2013 | GB | |
|
| 48 | 1004696-49 | 1 | LEVER | FROM DCODE WK30-2013 | GB | |
|
| 48 | 1004477-23 | 1 | LEVER | TO DCODE WK30-2013 | GB | |
|
| 49 | 1004477-24 | 3 | SCREW | GB | |
||
| 50 | 1004477-25 | 1 | GUARD | GB | |
||
| 51 | 1004475-55 | 2 | LOCK NUT | GB | |
||
| 52 | 1004475-57 | 1 | BLOCK | GB | |
||
| 53 | 1004475-58 | 1 | SCREW | GB | |
||
| 54 | 1004477-26 | 1 | PLATE | GB | |
||
| 55 | 1004475-60 | 1 | SCREW.SPECIAL | GB | |
||
| 56 | 1004477-27 | 1 | ARM | TO DCODE WK30-2013 | GB | |
|
| 56 | 1004696-42 | 1 | ARM | FROM DCODE WK30-2013 | GB | |
|
| 57 | 1004475-62 | 3 | SCREW | GB | |
||
| 58 | 1004475-65 | 1 | SCREW | GB | |
||
| 59 | 1004475-66 | 2 | SCREW | GB | |
||
| 60 | 1004477-28 | 2 | COVER | GB | |
||
| 61 | 1004477-29 | 2 | BAR | GB | |
||
| 62 | 1004477-30 | 1 | LASER | GB | |
||
| 63 | 1004475-70 | 8 | SCREW | GB | |
||
| 64 | 1004475-71 | 4 | SCREW | GB | |
||
| 68 | 1004477-33 | 1 | SPRING | GB | |
||
| 69 | 1004477-34 | 1 | PIVOT BLOCK | GB | |||
| 70 | 1004477-35 | 1 | HANDLE | GB | |
||
| 71 | 1004475-75 | 2 | BEARING | GB | |
||
| 72 | 1004697-31 | 1 | RAIL SA | FROM DCODE WK30-2013 | GB | |
|
| 72 | 1004697-31 | 1 | RAIL SA | TO DCODE WK30-2013 | GB | |
|
| 73 | 1004477-37 | 1 | ROLL PIN | GB | |
||
| 74 | 1004475-78 | 1 | BRACKET | GB | |
||
| 75 | 1004475-79 | 2 | SCREW | GB | |
||
| 76 | 1004475-80 | 1 | SHAFT | GB | |
||
| 77 | 1004475-81 | 2 | KNOB | GB | |
||
| 78 | 1004477-38 | 1 | O RING | GB | |
||
| 79 | 1004475-83 | 1 | CABLE CLAMP | GB | |
||
| 80 | 1004477-39 | 1 | REAR BRACKET | GB | |
||
| 81 | 1004477-40 | 1 | GUARD | TO DCODE WK30-2013 | GB | |
|
| 81 | 1004696-45 | 1 | GUARD | FROM DCODE WK30-2013 | GB | |
|
| 82 | 1004475-77 | 2 | ROLL PIN | GB | |
||
| 83 | 1004475-87 | 2 | ROLL PIN | GB | |
||
| 84 | 1004477-41 | 1 | PIN | GB | |
||
| 85 | 1004477-42 | 1 | O RING | GB | |
||
| 86 | 1004477-43 | 2 | SCREW | GB | |
||
| 87 | 1004477-44 | 3 | SCREW | GB | |
||
| 88 | 1004477-45 | 1 | POINTER | GB | |
||
| 89 | 1004477-46 | 1 | PIN | GB | |
||
| 90 | 1004477-47 | 1 | BOLT | GB | |
||
| 91 | 1004477-48 | 2 | SCREW | GB | |
||
| 92 | 1004477-49 | 2 | SCREW | GB | |
||
| 93 | 1004475-97 | 1 | SWITCH | GB | |
||
| 94 | 1004475-96 | 1 | SWITCH COVER | GB | |
||
| 95 | 1004477-50 | 4 | SCREW | GB | |
||
| 96 | 1004476-00 | 1 | SPANNER BLADE | GB | |
||
| 97 | 1004477-51 | 1 | LEAF SPRING | GB | |
||
| 98 | 1004476-02 | 1 | CORD CLAMP | GB | |
||
| 99 | 1004476-03 | 1 | RING | GB | |
||
| 100 | 1004477-52 | 1 | SCREW | GB | |
||
| 101 | 1004476-05 | 1 | CORD PROTECTOR | GB | |
||
| 102 | 1004476-06 | 1 | SCREW | GB | |
||
| 103 | 1004477-53 | 1 | TERMINAL BLOCK | GB | |
||
| 104 | 1004476-08 | 1 | SCREW | GB | |
||
| 105 | 1004476-09 | 1 | PCB | GB | |
||
| 106 | 1004477-54 | 1 | HANDLE | GB | |
||
| 107 | 1004477-55 | 1 | LEAD SA | GB | |
||
| 108 | 1004477-56 | 1 | CAPACITOR | GB | |
||
| 109 | 1004477-57 | 1 | LOWER HANDLE | GB | |
||
| 110 | 1004477-58 | 1 | HANDLE UPPER | GB | |
||
| 111 | 1004477-59 | 1 | SCREW | GB | |
||
| 112 | 1004477-60 | 1 | CORD CLAMP | GB | |
||
| 113 | 1004477-61 | 1 | TRIGGER | GB | |
||
| 114 | 1004475-98 | 2 | SCREW | GB | |
||
| 115 | 1004477-62 | 2 | SCREW | GB | |
||
| 116 | 1004477-63 | 1 | FENCE | GB | |
||
| 117 | 1004477-64 | 1 | POINTER | GB | |
||
| 118 | 1004477-65 | 1 | BASE | GB | |
||
| 119 | 1004477-66 | 3 | SCREW | GB | |
||
| 120 | 1004477-67 | 1 | HANDLE | GB | |
||
| 121 | 1004477-68 | 1 | BOLT | GB | |
||
| 122 | 1004477-69 | 3 | PLATE | GB | |
||
| 123 | 1004477-70 | 1 | WASHER | GB | |
||
| 124 | 1004476-22 | 1 | LOCK NUT | GB | |
||
| 125 | 1004477-71 | 1 | WASHER | GB | |
||
| 126 | 1004477-72 | 1 | LOCK NUT | GB | |
||
| 127 | 1004477-73 | 1 | WASHER | GB | |
||
| 128 | 1004476-26 | 1 | PIVOT SHAFT | GB | |
||
| 129 | 1004477-74 | 1 | WASHER | GB | |
||
| 130 | 1004476-27 | 3 | NUT | GB | |
||
| 131 | 1004476-28 | 1 | SPRING | GB | |
||
| 132 | 1004477-75 | 1 | SCREW | GB | |
||
| 133 | 1004477-76 | 4 | SCREW | GB | |
||
| 134 | 1004477-77 | 1 | LOCK SA | GB | |
||
| 135 | 1004477-78 | 4 | SCREW | GB | |
||
| 136 | 1004477-79 | 2 | WASHER | GB | |
||
| 137 | 1004476-31 | 1 | LOCK HANDLE | GB | |
||
| 138 | 1004476-32 | 1 | BOLT | GB | |
||
| 139 | 1004476-33 | 1 | FELT | GB | |
||
| 140 | 1004476-34 | 1 | SHIM | GB | |
||
| 141 | 1004476-35 | 1 | WASHER | GB | |
||
| 142 | 1004476-36 | 1 | ROLL PIN | GB | |
||
| 143 | 1004476-37 | 3 | BOLT | GB | |
||
| 144 | 1004477-80 | 1 | BOLT | GB | |
||
| 145 | 1004477-81 | 1 | LOCK HANDLE | GB | |
||
| 146 | 1004477-82 | 1 | SPRING | GB | |
||
| 147 | 1004477-83 | 1 | LOCK NUT | GB | |
||
| 148 | 1004477-84 | 1 | STOP | GB | |
||
| 149 | 1004477-85 | 1 | CLIP | GB | |
||
| 150 | 1004477-86 | 1 | SHAFT | GB | |
||
| 151 | 1004477-87 | 1 | LEVER | GB | |
||
| 152 | 1004477-88 | 2 | ROLL PIN | GB | |
||
| 153 | 1004477-89 | 1 | ROLL PIN | GB | |
||
| 154 | 1004477-90 | 1 | TABLE | GB | |
||
| 155 | 1004477-91 | 1 | PLATE | GB | |
||
| 156 | 1004477-92 | 1 | COVER | GB | |
||
| 157 | 1004696-48 | 1 | FENCE | FROM DCODE WK30-2013 | GB | |
|
| 157 | 1004477-93 | 1 | FENCE | TO DCODE WK30-2013 | GB | |
|
| 158 | 1004477-94 | 2 | BOLT | GB | |
||
| 159 | 1004477-95 | 1 | TABLE INSERT | GB | |
||
| 160 | 1004477-96 | 1 | TABLE INSERT | GB | |
||
| 161 | 1004477-97 | 1 | LOCK HANDLE | GB | |
||
| 162 | 1004477-98 | 2 | BOLT | GB | |
||
| 163 | 1004478-00 | 4 | BAR | GB | |
||
| 164 | 1004478-01 | 8 | WASHER | GB | |
||
| 165 | 1004478-02 | 1 | BLOCK LH | GB | |
||
| 166 | 1004478-03 | 1 | EXTENSION | GB | |
||
| 167 | 1004478-04 | 1 | SUPPORT | GB | |
||
| 168 | 1004478-05 | 1 | BLOCK RH | GB | |
||
| 169 | 1004478-06 | 1 | EXTENSION | GB | |
||
| 170 | 1004478-07 | 2 | KNOB | GB | |
||
| 172 | 1004478-08 | 1 | FIELD SA 230V | GB | |
||
| 173 | 1004478-09 | 1 | BAFFLE | GB | |
||
| 174 | 1004478-10 | 1 | BEARING | GB | |
||
| 175 | 1004478-11 | 2 | SCREW.SPECIAL | GB | |
||
| 176 | 1004475-53 | 1 | STOP | GB | |
||
| 177 | 1004478-12 | 1 | PROTECTOR | GB | |
||
| 178 | 1004478-13 | 1 | LEADWIRE | GB | |
||
| 179 | 1004478-14 | 1 | ARMATURE 220/240V | GB | |
||
| 180 | 1004478-15 | 4 | SCREW.SPECIAL | GB | |
||
| 181 | 1004478-16 | 2 | SCREW | GB | |
||
| 182 | 1004478-17 | 1 | HOUSING MOTOR | GB | |
||
| 183 | 1004478-18 | 1 | SPINDLE LOCK | GB | |
||
| 184 | 1004478-19 | 2 | SCREW | GB | |
||
| 185 | 1004478-20 | 2 | BRUSH COVER | GB | |
||
| 186 | 1004478-21 | 2 | BRUSH SA | GB | |
||
| 187 | 1004476-46 | 2 | BRUSH HOLDER | GB | |
||
| 188 | 1004478-22 | 1 | PIN | GB | |
||
| 189 | 1004478-23 | 1 | SPRING | GB | |
||
| 190 | 1004478-24 | 1 | GEARBOX | GB | |
||
| 191 | 1004476-55 | 1 | BEARING,NEEDLE | GB | |
||
| 192 | 1004476-56 | 1 | CLIP | GB | |
||
| 193 | 1004478-25 | 1 | GEAR | GB | |
||
| 194 | 1004478-26 | 1 | CLIP | GB | |
||
| 195 | 1004478-27 | 1 | CLIP | GB | |
||
| 196 | 1004478-28 | 1 | BEARING | GB | |
||
| 197 | 1004478-29 | 1 | WASHER | GB | |
||
| 198 | 1004478-30 | 1 | HOLDER BEARING | GB | |
||
| 199 | 1004478-31 | 4 | SCREW.SPECIAL | GB | |
||
| 200 | 1004478-32 | 1 | SHAFT | GB | |
||
| 201 | 1004478-33 | 1 | KEY | GB | |
||
| 202 | 1004478-34 | 1 | BRAND LABEL | GB | |
||
| 203 | 1004478-35 | 1 | RATING PLATE | GB | |
||
| 204 | 1004478-36 | 1 | LABEL | GB | |
||
| 205 | 1004478-37 | 1 | LABEL | GB | |
||
| 206 | 1004478-38 | 1 | LABEL | GB | |
||
| 207 | 1004478-39 | 1 | BRAND LABEL | GB | |
||
| 208 | 1004478-40 | 1 | LABEL | GB | |
||
| 209 | 1004478-41 | 1 | LABEL | GB | |
||
| 210 | 1004478-42 | 1 | BRAND LABEL | GB | |
||
| 211 | 1004478-43 | 1 | LABEL | GB | |
||
| 212 | 1004478-44 | 1 | LABEL | GB | |
||
| 213 | 1004478-46 | 1 | LABEL | GB | |
||
| 214 | 1004478-49 | 1 | SCREW | GB | |
||
| 215 | 1004478-48 | 2 | SCREW | GB | |
||
| 216 | 1004478-47 | 1 | COVER | TO DCODE WK30-2013 | GB | |
|
| 216 | 1004696-44 | 1 | COVER | FROM DCODE WK30-2013 | GB | |
|
| 217 | 1004478-50 | 2 | BOLT | GB | |
||
| 250 | 1004697-31 | 1 | RAIL SA | GB | |
