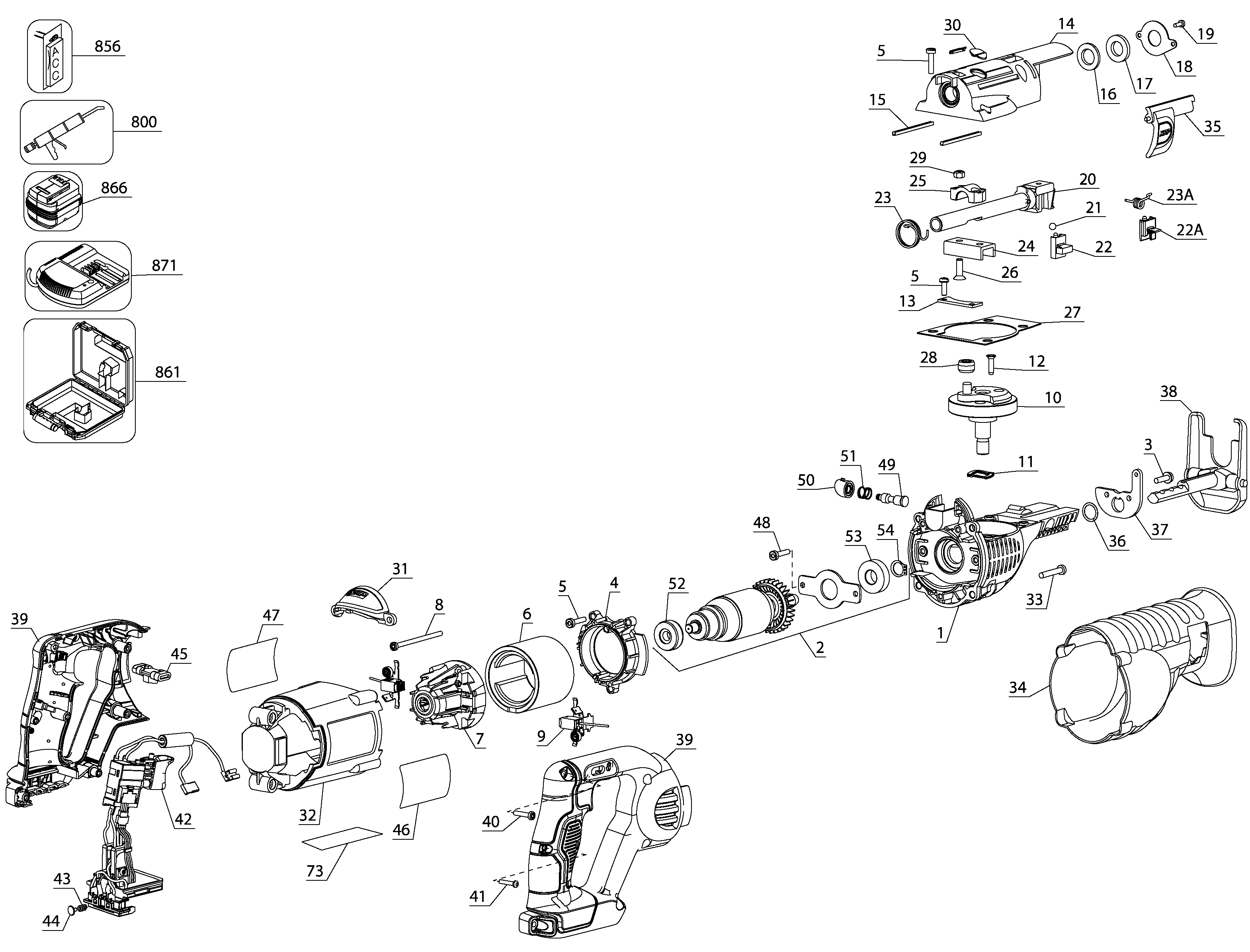

DCS380KN 18V RECIPROCATING SAW BAR Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 613138-00SV | 1 | GEARCASE SA | INCL. 49,50,51 | XJ |  |
|
| 2 | 617376-00SV | 1 | ARMATURE SA | incl. 52,53,54 | XJ |  |
|
| 3 | 142940-00 | 2 | SCREW | XJ | |
||
| 4 | 613137-00 | 1 | BAFFLE FAN | XJ | |
||
| 5 | 613619-00 | 9 | SCREW | XJ | |
||
| 6 | 611202-00SV | 1 | MAGNET | XJ | |
||
| 7 | N171820 | 1 | SUPPORT BEARING | XJ | |
||
| 8 | 330019-25 | 2 | SCREW | XJ | |
||
| 9 | 610126-00 | 2 | BRUSHBOX SA | XJ | |
||
| 10 | 615940-00SV | 1 | GEAR & SPINDLE | XJ | |
||
| 11 | 619618-00 | 1 | WASHER SPECIAL | XJ | |
||
| 12 | 622484-00 | 3 | SCREW | M4x16 THD FMG | XJ | |
|
| 13 | 621173-00 | 1 | SUPPORT PLATE | XJ | |
||
| 14 | N027851SV | 1 | GEARCASE COVER | XJ | |
||
| 15 | 621979-00 | 2 | STRIP | XJ | |
||
| 16 | 618733-00 | 1 | SEAL | XJ | |
||
| 17 | 618477-00 | 1 | FELT SEAL | XJ | |
||
| 18 | N020720 | 1 | COVERPLATE | XJ | |
||
| 19 | 330045-43 | 1 | SCREW | XJ | |
||
| 20 | N026647 | 1 | SHAFT SA | XJ | |
||
| 21 | 000903-00 | 1 | BALL | XJ | |
||
| 22 | N252639 | 1 | SLIDER | After 201609 | XJ | |
|
| 22 | 622647-00 | 1 | SLIDER | XJ | |
||
| 23 | 622659-00 | 1 | SPRING TORSION | XJ | |
||
| 23 | N426742 | 1 | SPRING | After 201609 | XJ | |
|
| 24 | 658115-00 | 1 | YOKE | XJ | |
||
| 25 | 617000-00 | 1 | SADDLE | XJ | |
||
| 26 | 622486-00 | 2 | SCREW | M5x 17 mm T20 HD | XJ | |
|
| 27 | N063272 | 1 | GASKET | XJ | |
||
| 28 | N021857 | 1 | BEARING | XJ | |
||
| 29 | 622485-00 | 2 | LOCK NUT | XJ | |
||
| 30 | 621927-00 | 2 | COVER | XJ | |
||
| 31 | N030977 | 1 | INSERT | XJ | |
||
| 32 | N914377 | 1 | MOTOR HOUSING | pckgd N264499 | Does NOT need #31. | XJ | |
| 33 | 330019-45 | 4 | SCREW | XJ | |
||
| 34 | N084697 | 1 | BOOT | XJ | |
||
| 35 | N093438SV | 1 | LEVER LOCK | XJ | |
||
| 37 | 617008-00 | 1 | BRACKET | XJ | |
||
| 38 | 623511-00SV | 1 | SHOE SA | XJ | |
||
| 39 | N347382 | 1 | HANDLE SA | XJ | |
||
| 40 | 330019-04 | 6 | SCREW | XJ | |
||
| 41 | 682211-00 | 1 | SCREW | XJ | |
||
| 42 | N413819 | 1 | SWITCH SA | DCS380 4P58 EMI | ALSO REPLACE ITEM 43! | XJ | |
| 43 | N102647 | 1 | SPRING | Terminal Block Tension spring | XJ | |
|
| 44 | N091479 | 1 | MOUNT | Terminal block spring mount | XJ | |
|
| 45 | N060864 | 1 | BUTTON LOCK-OFF | XJ | |
||
| 46 | N093227 | 1 | BRAND LABEL | XJ | |
||
| 47 | N108565 | 1 | RATING PLATE | DCS380 (Euro) | XJ | |
|
| 48 | 330045-45 | 2 | SCREW | XJ | |
||
| 49 | 615983-00 | 1 | LOCK PIN | XJ | |
||
| 50 | 617733-00 | 1 | CAP | XJ | |
||
| 51 | 618427-00 | 1 | SPRING | XJ | |
||
| 52 | 391032-00 | 1 | BEARING & SEAL | XJ | |
||
| 53 | 330003-64 | 1 | BEARING | ID 12 x OD 28 x 8mm | XJ | |
|
| 54 | 696060-00 | 1 | RETAINER | XJ | |
||
| 73 | N105032 | 1 | WARNING LABEL | French/Spanish | XJ | |
|
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | XJ | |
|
| 856 | 384428-03 | 1 | BLADE PACK | DW4876 | Not Included with Unit | XJ | |
| 861 | N152704 | 1 | KITBOX | XJ | |
