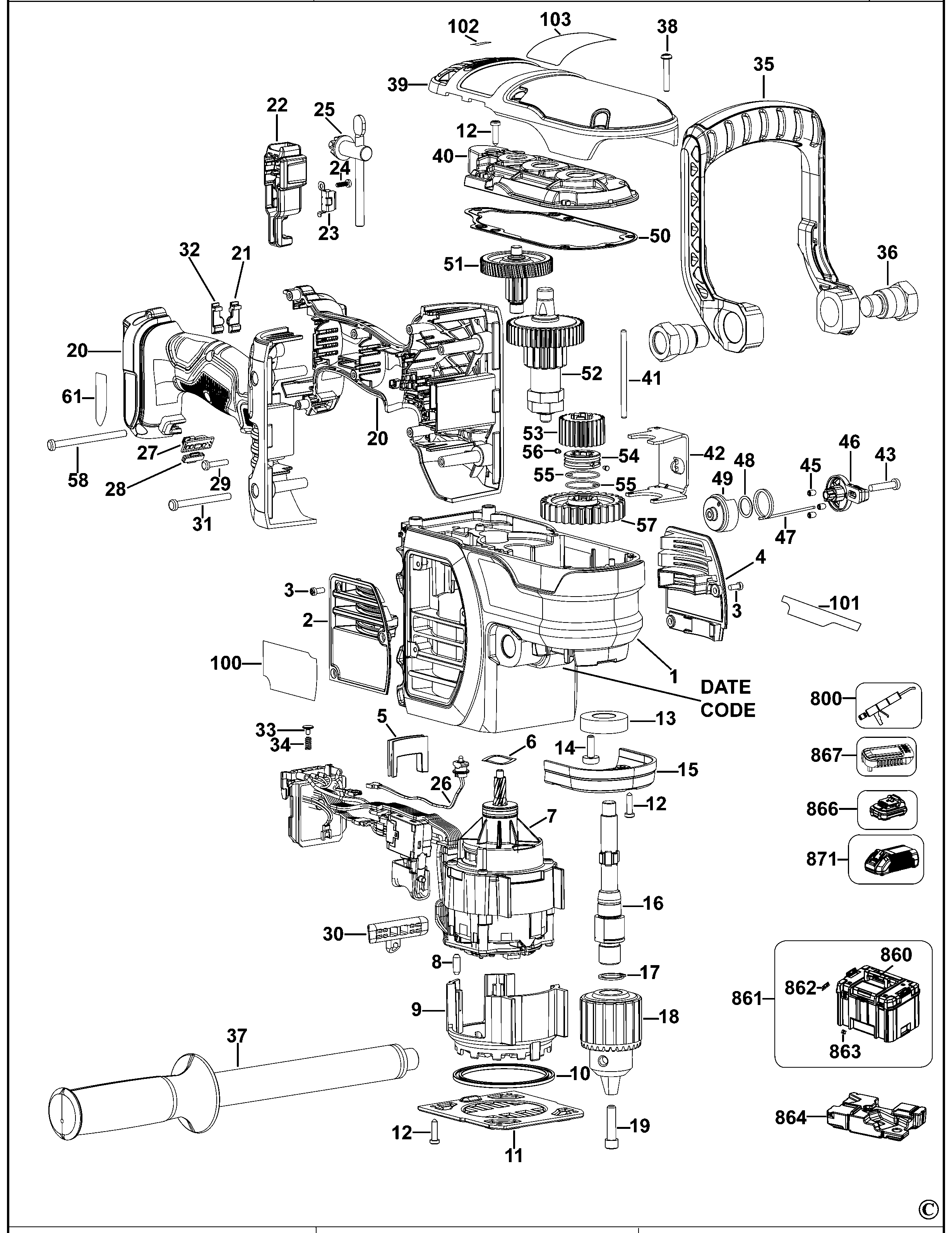

DCD460 CORDLESS DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N470709 | 1 | GEARCASE SA | PKGD N453608 | GB |  |
|
| 2 | N438265 | 1 | PANEL RH | RIGHT | GB | |
|
| 3 | 648777-00 | 6 | SCREW | M3, MACHINE | GB | |
|
| 4 | N437368 | 1 | PANEL LH | LEFT | GB | |
|
| 5 | N443370 | 1 | GUIDE | GB | |
||
| 6 | 448373-00 | 1 | WASHER SPRING | GB | |
||
| 7 | N563714 | 1 | MOTOR SA | EURO | GB | |
|
| 8 | N441815 | 4 | PLUG | GB | |
||
| 9 | N429746 | 1 | HOLDER | MOTOR ASSIST | GB | |
|
| 10 | N442082 | 1 | GASKET | END CAP | GB | |
|
| 11 | N437007 | 1 | END CAP | GB | |
||
| 12 | 330045-06 | 8 | SCREW | GB | |
||
| 13 | 330003-15 | 1 | BEARING | GB | |
||
| 14 | 330045-78 | 3 | SCREW | M5x0.8x12 LG HD | GB | |
|
| 15 | N437361 | 1 | COVER | SPINDLE | GB | |
|
| 16 | N088737 | 1 | SPINDLE | 5/8-16 THREAD | GB | |
|
| 17 | 652890-00 | 1 | RETAINER | EXTERNAL | GB | |
|
| 18 | N462525 | 1 | CHUCK | 1/2in CAP 5/8-16 THD | GB | |
|
| 19 | 447735-02 | 1 | SCREW | GB | |
||
| 20 | N440567 | 1 | CLAMSHELL SET | GB | |
||
| 21 | N438438 | 1 | INSERT | GB | |
||
| 22 | N441816 | 1 | CHUCK KEY HOLDER | GB | |
||
| 23 | N092774 | 1 | CLIP | GB | |
||
| 24 | N042665 | 1 | SCREW | GB | |
||
| 25 | 330034-16 | 1 | CHUCK KEY | GB | |
||
| 26 | N442168 | 1 | LED | HHK | GB | |
|
| 27 | N231799 | 1 | LED LIGHT | GB | |
||
| 28 | N394333 | 1 | LENS | GB | |
||
| 29 | 330019-05 | 4 | SCREW | GB | |
||
| 30 | N435816 | 1 | ACTUATOR FWD/REV | GB | |
||
| 31 | 330019-30 | 2 | SCREW | GB | |
||
| 32 | N438439 | 1 | INSERT | GB | |
||
| 33 | N122099 | 1 | BLOCK | GB | |
||
| 34 | N461735 | 1 | SPRING | GB | |
||
| 35 | N441817 | 1 | LOOP HANDLE | GB | |
||
| 36 | 636385-00 | 2 | ADJUSTER | SIDE HANDLE | GB | |
|
| 37 | 650546-00SV | 1 | SIDE HANDLE | GB | |
||
| 38 | 330045-08 | 6 | SCREW | GB | |
||
| 39 | N563711 | 1 | GEARCASE COVER | EURO | GB | |
|
| 40 | 636393-00SV | 1 | GEARCASE COVER SA | GB | |
||
| 41 | 649351-00 | 1 | PIN | SHIFTER GUIDE | GB | |
|
| 42 | 636360-00 | 1 | SLIDER | SHIFT | GB | |
|
| 43 | 330019-32 | 1 | SCREW | GB | |
||
| 45 | N403227 | 3 | DETENT | GB | |
||
| 46 | 636388-00 | 1 | LEVER | SHIFT | GB | |
|
| 47 | 636386-01 | 1 | SPRING | SHIFTER | GB | |
|
| 48 | 650249-00 | 1 | O RING | GB | |
||
| 49 | 636387-00 | 1 | HOLDER | SPRING | GB | |
|
| 50 | 658818-00 | 1 | GASKET | GB | |
||
| 51 | 636348-00SV | 1 | GEAR & PINION | 61T / 10T | GB | |
|
| 52 | N030550SV | 1 | CLUTCH SA | GB | |
||
| 53 | N019978 | 1 | GEAR | 25T, HIGH SPD. | GB | |
|
| 54 | 660513-00 | 1 | SPACER | DETENT | GB | |
|
| 55 | 660512-00 | 2 | SPRING | GB | |
||
| 56 | 660514-01 | 1 | DETENT | GB | |
||
| 57 | N470710 | 1 | GEAR | 3rd Red, Low Speed | GB | |
|
| 58 | 330019-34 | 2 | SCREW | GB | |
||
| 61 | N459248 | 1 | LABEL | XR Flexvot L/H | GB | |
|
| 100 | N532837 | 1 | RATING PLATE | EURO | GB | |
|
| 101 | N532839 | 1 | BRAND LABEL | 54V | GB | |
|
| 102 | N464746 | 1 | LABEL | LED INDICATOR | GB | |
|
| 103 | N540119 | 1 | LABEL | PERFORM PROTECT | GB | |
|
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | GB | |
|
| 860 | H1400196008 | 1 | HANDLE | GB | |||
| 861 | N445186 | 1 | KITBOX | GB | |
||
| 862 | H1500082520 | 2 | LATCH | GB | |||
| 863 | P910190 | 2 | LATCH | GB | |
||
| 864 | N534112 | 1 | INSERT | KITBOX | GB | |
|
| 866 | N473851 | 1 | BATTERY 3 X18V-6.0AH-108WH | Li-Ion - DCB546-XJ | GB | |
|
| 867 | N462141 | 1 | SAFETY CAP | GB | |
||
| 871 | N473855 | 1 | CHARGER GB | DCB118-GB | GB | |
