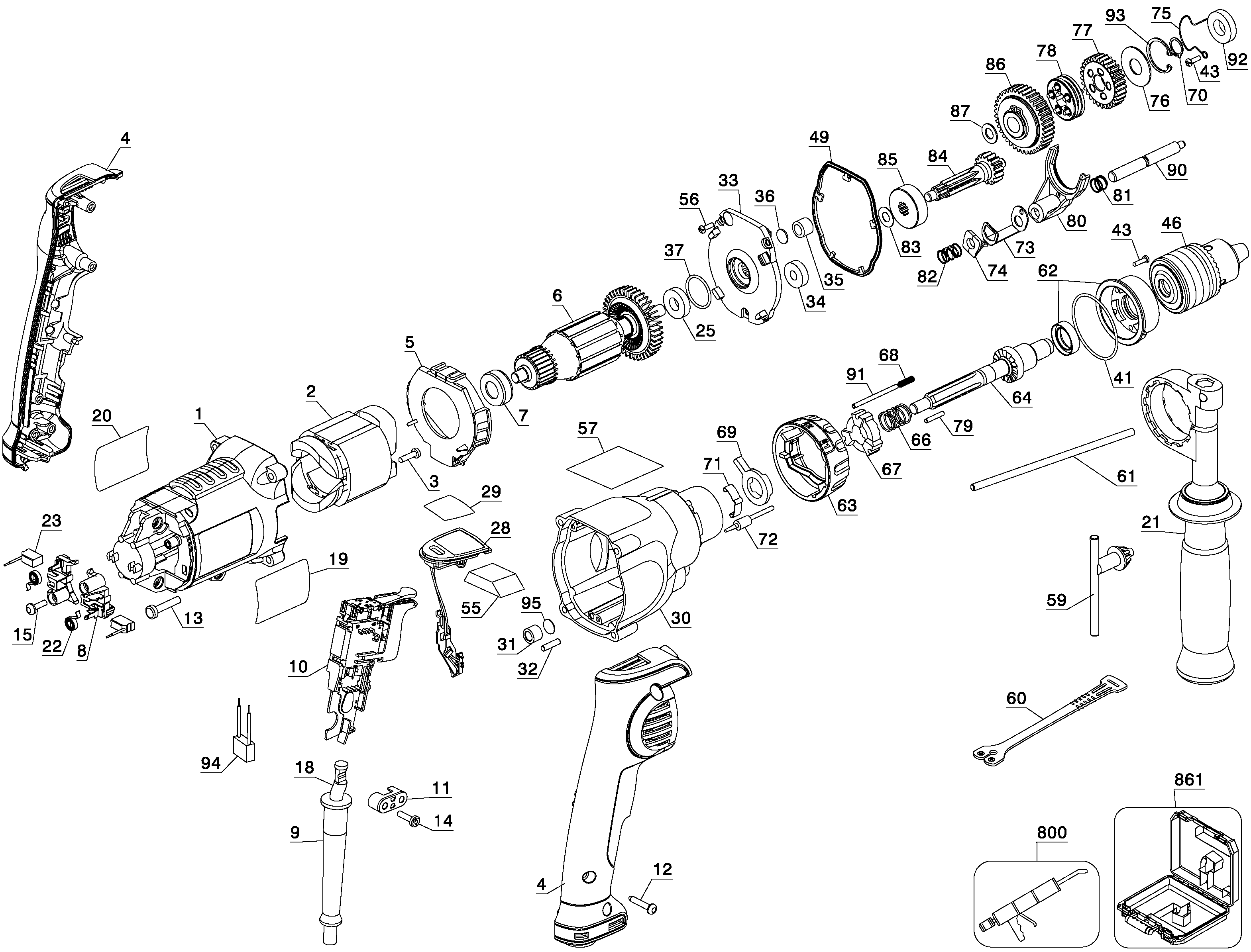

D21570K ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 639593-01 | 1 | FIELD CASE | GB |  |
||
| 2 | N048009SV | 1 | FIELD 230V | GB | |
||
| 3 | N068183 | 2 | SCREW | M3.5x16 SERRATED HD | GB | |
|
| 4 | N028547 | 1 | CLAMSHELL SET | PISTOL GRIP | GB | |
|
| 5 | 641824-00 | 1 | BAFFLE FAN | GB | |
||
| 6 | 647864-03SV | 1 | ARMATURE 230V | INCL. 7,25 | GB | |
|
| 7 | 391032-00 | 1 | BEARING & SEAL | GB | |
||
| 8 | N028784SV | 2 | BRUSH HOLDER | INCL. 22 | GB | |
|
| 9 | 330005-01 | 1 | CORD PROTECTOR | GB | |||
| 10 | N034127 | 1 | SWITCH SA | VS, 230V | GB | |
|
| 11 | 655058-00 | 1 | CORD CLAMP | GB | |
||
| 12 | 330065-31 | 4 | PLASTIC SCREW | GB | |
||
| 13 | 330045-15 | 4 | SCREW | GB | |
||
| 14 | 330065-07 | 2 | SCREW | GB | |
||
| 15 | 176951-00 | 2 | SCREW | GB | |
||
| 18 | 330120-93 | 1 | CORDSET (M/PLUG) GB | GB | GB | |
|
| 19 | N097983 | 1 | RATING PLATE | D21570-GB TY1 | GB | |
|
| 20 | 395047-00 | 1 | BRAND LABEL | GB | |
||
| 21 | 663029-00 | 1 | HANDLE SIDE SA | GB | |
||
| 22 | 662999-01 | 2 | SPRING | GB | |
||
| 23 | N032702 | 2 | BRUSH | GB | |
||
| 25 | N339299 | 1 | BEARING | GB | |
||
| 28 | 656320-00 | 1 | MODULE | ALC | GB | |
|
| 29 | N203994 | 1 | LABEL | E-CLUTCH PERF/PROT | GB | |
|
| 30 | N077817SV | 1 | GEARCASE ASSY | INCL 31,32,90-93 | GB | ||
| 31 | 330004-01 | 1 | BEARING NEEDLE | GB | |||
| 32 | 330041-07 | 1 | PIN | GB | |
||
| 33 | 645400-04SV | 1 | GEARCASE COVER | Incl.34-37 | GB | |
|
| 34 | 605040-02 | 1 | BEARING | GB | |
||
| 35 | 330004-02 | 1 | BEARING NEEDLE | GB | |
||
| 36 | 652185-00 | 1 | THRUST PLATE | GB | |
||
| 37 | 099014-04 | 1 | O RING | GB | |
||
| 41 | 056122-00 | 1 | O RING | GB | |
||
| 43 | 330045-74 | 4 | SCREW | THD FORM M3 X .5 | GB | |
|
| 46 | N080922 | 1 | CHUCK | 16mm, 1/2-20THD | GB | |
|
| 49 | 648761-00 | 1 | SEAL | GB | |
||
| 55 | N063107 | 1 | FELT | FELT | DATE CODE 2010-24+ | GB | |
| 56 | 098102-13 | 3 | SCREW | GB | |||
| 57 | N084312 | 1 | LABEL | SPEED USAGE | GB | |
|
| 59 | N080923 | 1 | CHUCK KEY | GB | |
||
| 60 | 065288-01 | 1 | HOLDER CHUCK KEY | GB | |
||
| 61 | 940357-00 | 1 | DEPTH STOP | GB | |
||
| 62 | N030304 | 1 | END CAP | W/ LIPSEAL | GB | |
|
| 63 | 655856-00 | 1 | COLLAR | Mode | GB | |
|
| 64 | 656368-02SV | 1 | SPINDLE | 1/2-20 THREAD | GB | |
|
| 66 | 651266-00 | 1 | SPRING | GB | |
||
| 67 | 651262-00 | 1 | RATCHET | GB | |
||
| 68 | 656287-00 | 3 | SPRING | GB | |
||
| 69 | 659192-00 | 1 | ARM | HAMMER CAM | GB | |
|
| 70 | 652188-00 | 1 | CIRCLIP | GB | |
||
| 71 | 395460-00 | 1 | SPRING GUIDE | GB | |
||
| 72 | 648298-00 | 1 | PIN | GB | |
||
| 73 | 651331-00 | 1 | BRACKET | SHIFT | GB | |
|
| 74 | 656286-00 | 1 | FINGER | SPRING | GB | |
|
| 75 | 652003-00 | 1 | SPRING | GB | |
||
| 76 | 652004-00 | 1 | WASHER THRUST | GB | |
||
| 77 | 653728-00 | 1 | GEAR | GB | |
||
| 78 | 643924-00SV | 1 | SELECTOR | GB | |
||
| 79 | 651330-00 | 1 | ROLLER | GB | |
||
| 80 | N045436 | 1 | YOKE | GB | |
||
| 81 | N031370 | 1 | SPRING | GB | |
||
| 82 | N022914 | 1 | SPRING | GB | |
||
| 83 | 659185-00 | 1 | WASHER THRUST | GB | |
||
| 84 | N045500SV | 1 | INTER SHAFT | GB | |
||
| 85 | 643896-00 | 1 | GEAR | GB | |
||
| 86 | 653814-00SV | 1 | CLUTCH SA | GB | |
||
| 87 | 652007-00 | 1 | WASHER THRUST | GB | |
||
| 90 | 651334-00 | 1 | PIN | GB | |
||
| 91 | 656321-00 | 3 | PIN | HAMMER | GB | |
|
| 92 | 605040-72 | 1 | BEARING | GB | |
||
| 93 | 658952-00 | 1 | CIRCLIP | GB | |
||
| 94 | N075085 | 1 | CAPACITOR | GB | |
||
| 95 | N045430 | 1 | WASHER THRUST | GB | |
||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | GB | |
|
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | GB | |
|
| 861 | N079829 | 1 | KITBOX | GB | |
