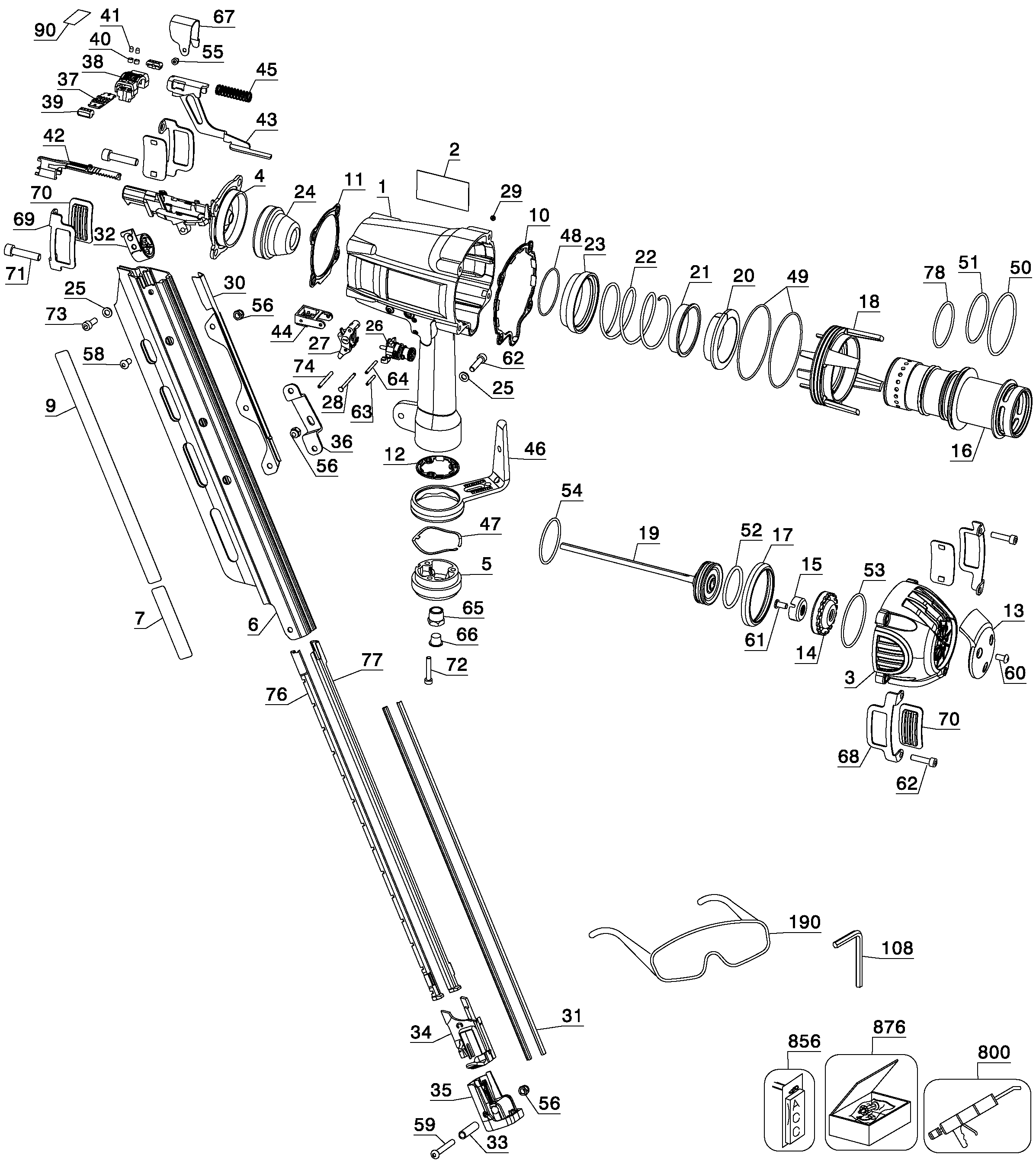

D51825 3-1/2 FRAMING NAILER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 641099-00 | 1 | FRAME | XJ |  |
||
| 2 | 641180-00 | 2 | BRAND LABEL | XJ | |
||
| 3 | 640226-00 | 1 | CAP | XJ | |
||
| 4 | 641101-00 | 1 | NOSE | XJ | |
||
| 5 | 640495-00 | 1 | END CAP | XJ | |
||
| 6 | 5140056-53 | 1 | MAGAZINE SA | XJ | |
||
| 7 | 641181-00 | 1 | IDENTITY LABEL | XJ | |
||
| 9 | N071921 | 1 | RATING PLATE | EURO | XJ | |
|
| 10 | N080856 | 1 | GASKET | XJ | |
||
| 11 | 641106-00 | 1 | GASKET | XJ | |
||
| 12 | 641107-00 | 1 | GASKET | XJ | |
||
| 13 | N056729 | 1 | EXHAUST DEFLECTOR | XJ | |||
| 14 | 641167-00 | 1 | BUTTON | XJ | |
||
| 15 | 641198-00 | 1 | BUMPER | XJ | |
||
| 16 | 641207-00 | 1 | CYLINDER | XJ | |
||
| 17 | 641170-00 | 1 | SEAL | XJ | |
||
| 18 | 641111-00 | 1 | LOCATOR | XJ | |
||
| 19 | 641114-00 | 1 | DRIVER SA | XJ | |
||
| 20 | 641169-00 | 1 | RETAINER | XJ | |
||
| 21 | 641168-00 | 1 | BAND | XJ | |
||
| 22 | 641115-00 | 1 | SPRING | XJ | |
||
| 23 | 641171-00 | 1 | COLLAR | XJ | |
||
| 24 | 641165-00 | 1 | BUMPER | XJ | |
||
| 25 | 330016-02 | 2 | WASHER | XJ |  |
||
| 26 | N566148 | 1 | TRIGGER | XJ | |
||
| 27 | 391813-00 | 1 | SPRING | XJ | |
||
| 27 | N572068 | 1 | TRIGGER ASSEMBLY | XJ | |||
| 28 | 641172-00 | 1 | PIN | XJ | |
||
| 29 | 391814-00 | 1 | GROMMET | XJ | |
||
| 30 | N004444 | 1 | GUIDE | XJ | |
||
| 31 | 641118-00 | 2 | LINER | XJ | |
||
| 32 | 641199-00 | 1 | HUB | XJ | |
||
| 33 | 641120-00 | 1 | SPACER | XJ | |
||
| 34 | 645896-00 | 1 | SLIDER | XJ | |
||
| 35 | 641126-00SV | 1 | END CAP | XJ | |||
| 36 | 641128-00 | 1 | BRACKET | XJ | |
||
| 37 | 633214-00 | 1 | ADJUSTER | XJ | |
||
| 38 | N016446 | 1 | COVER | ALSO ORDER ITEM 90 | XJ | |
|
| 39 | 633359-00 | 2 | CAP | XJ | |
||
| 40 | 633216-00 | 2 | BUSHING | XJ | |
||
| 41 | 326467-00 | 2 | DETENT | XJ | |
||
| 42 | 641119-00 | 1 | CONTACT | XJ | |
||
| 43 | 641129-00 | 1 | CONTACT | XJ | |
||
| 44 | N000248 | 1 | GUIDE | XJ | |||
| 45 | N016488 | 1 | SPRING | XJ | |
||
| 46 | 641133-00 | 1 | HOOK | XJ | |
||
| 47 | 641134-00 | 1 | WASHER SPRING | XJ | |
||
| 48 | 641135-00 | 1 | O RING | 53.70 X 1.78 | XJ | |
|
| 49 | 641136-00 | 2 | O RING | 87.00 X 2.00 | XJ | |
|
| 50 | N023140 | 1 | O RING | XJ | |
||
| 51 | N023141 | 1 | O RING | XJ | |
||
| 52 | 641139-00 | 1 | O RING | 44.00 X 3.53 | XJ | |
|
| 53 | N023142 | 1 | O RING | XJ | |
||
| 54 | N023143 | 1 | O RING | XJ | |
||
| 55 | 98119-10 | 1 | SCREW | M4 X 10 SHCS NYL PAT | XJ | |
|
| 56 | 330021-01 | 5 | NUT | XJ | |
||
| 58 | 641127-00 | 3 | SCREW | M6 X 14 | XJ | |
|
| 59 | 650160-00 | 1 | SCREW | M6 X 50 | XJ | ||
| 60 | 650162-00 | 3 | SCREW | XJ | |
||
| 61 | 650159-00 | 1 | SCREW | XJ | |||
| 62 | 603390-00 | 5 | SCREW | XJ | |
||
| 63 | 650155-00 | 1 | SPIROL PIN | XJ | |
||
| 64 | 650156-00 | 1 | SPIROL PIN | XJ | |
||
| 65 | 395195-00 | 1 | BUSHING | XJ | |
||
| 66 | 395196-00 | 1 | PLUG | XJ | |
||
| 67 | 641175-00 | 1 | COVER | XJ | |
||
| 68 | 641190-00 | 2 | PLATE | XJ | |
||
| 69 | 641191-00 | 2 | PLATE | XJ | |
||
| 70 | 641192-00 | 4 | PAD | XJ | |
||
| 71 | 641195-00 | 4 | SCREW | XJ | |
||
| 72 | 608175-00 | 3 | SCREW | XJ | |
||
| 73 | 641208-00 | 1 | SCREW | M6 1.0 X 14 | XJ | |
|
| 74 | 330036-22 | 1 | ROLL PIN | XJ | |
||
| 76 | 641203-00 | 1 | LINER | XJ | |
||
| 77 | 641204-00 | 1 | LINER | XJ | |
||
| 78 | N008933 | 1 | O RING | 50.47 X 2.62 BLACK | XJ | |
|
| 90 | N024271 | 1 | LABEL | XJ | USE IF ITEM 38 DOES NOT HAVE LOCK/UNLOCK ICONS | XJ | |
| 108 | 098000-11 | 1 | HEX KEY | XJ | |
||
| 190 | 629042-00 | 1 | SAFETY GLASSES | XJ | |
||
| 800 | 429995-00 | 1 | GREASE 150 GMS | XJ | |
||
| 856 | D518016 | 1 | BUMPER | KIT, ACCESSORY | XJ | ||
| 856 | D518014 | 1 | PUSHER SPRING | ACCESSORY | XJ | ||
| 856 | D518250 | 1 | OVERHAUL KIT | ACCESSORY | INCL. PISTON DRIVER | XJ | |
| 856 | D518251 | 1 | DRIVER KIT | C.H., ACCESSORY | XJ | ||
| 856 | D518015 | 1 | O-RING KIT | ACCESSORY | XJ | ||
| 876 | N001064 | 1 | BUMPER | D518016 | XJ | |
|
| 876 | N001152 | 1 | O RING KIT | D518015 | XJ | |
|
| 876 | N001334 | 1 | REPAIR KIT | D518250 | XJ | |
|
| 876 | N001157 | 1 | SPRING | D518014 | XJ | |
|
| 876 | N001068 | 1 | DRIVER SA | D518251 | XJ | |
|
| 876 | 641214-00 | 1 | TRIGGER | XJ | |
